GN 612.1

Mounting blocks

Steel / Stainless Steel, for indexing plungers / cam action indexing plungers

Enquire Now

GN 612.1

Mounting blocks

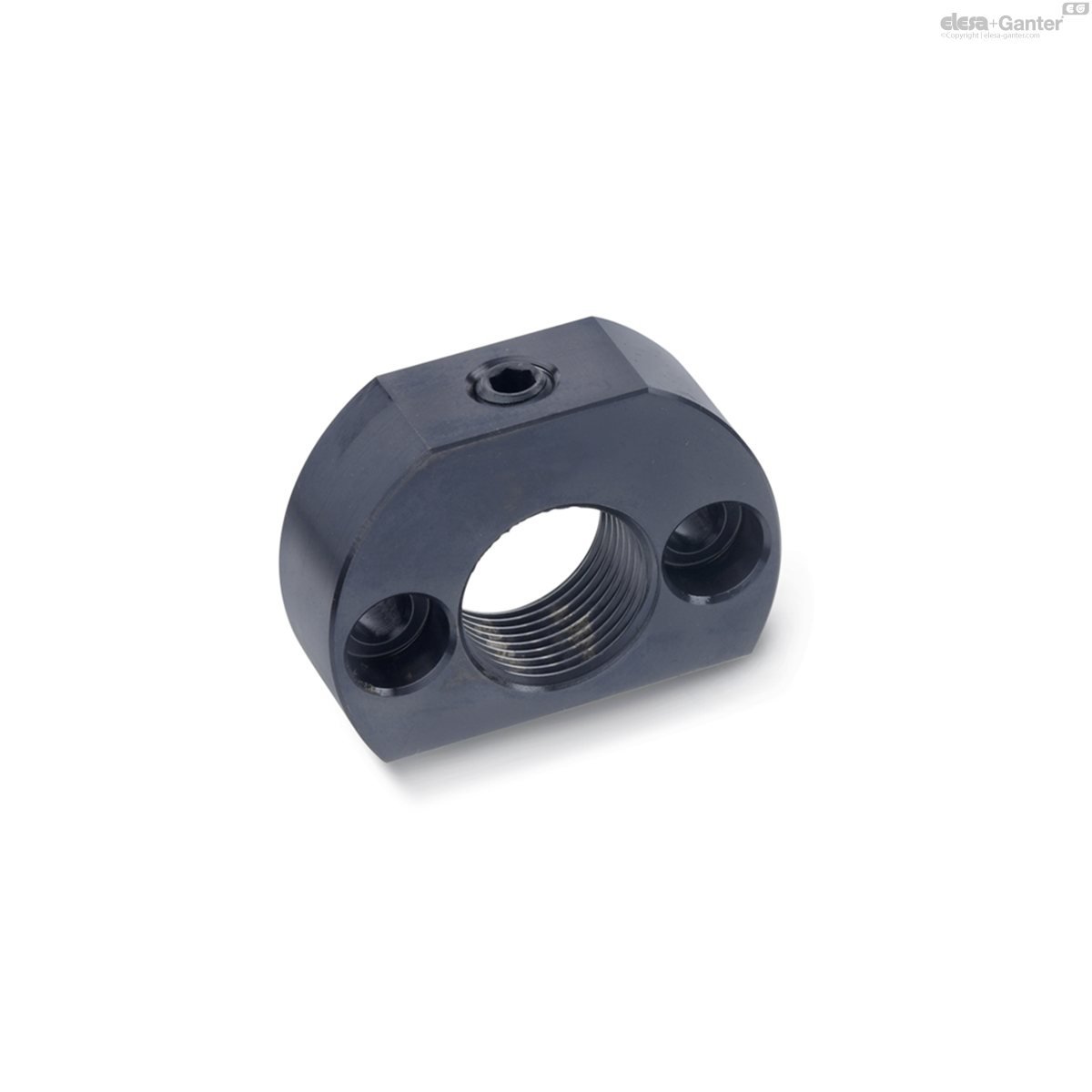

Mounting blocks, Steel

GN 612.1-NI

Mounting blocks

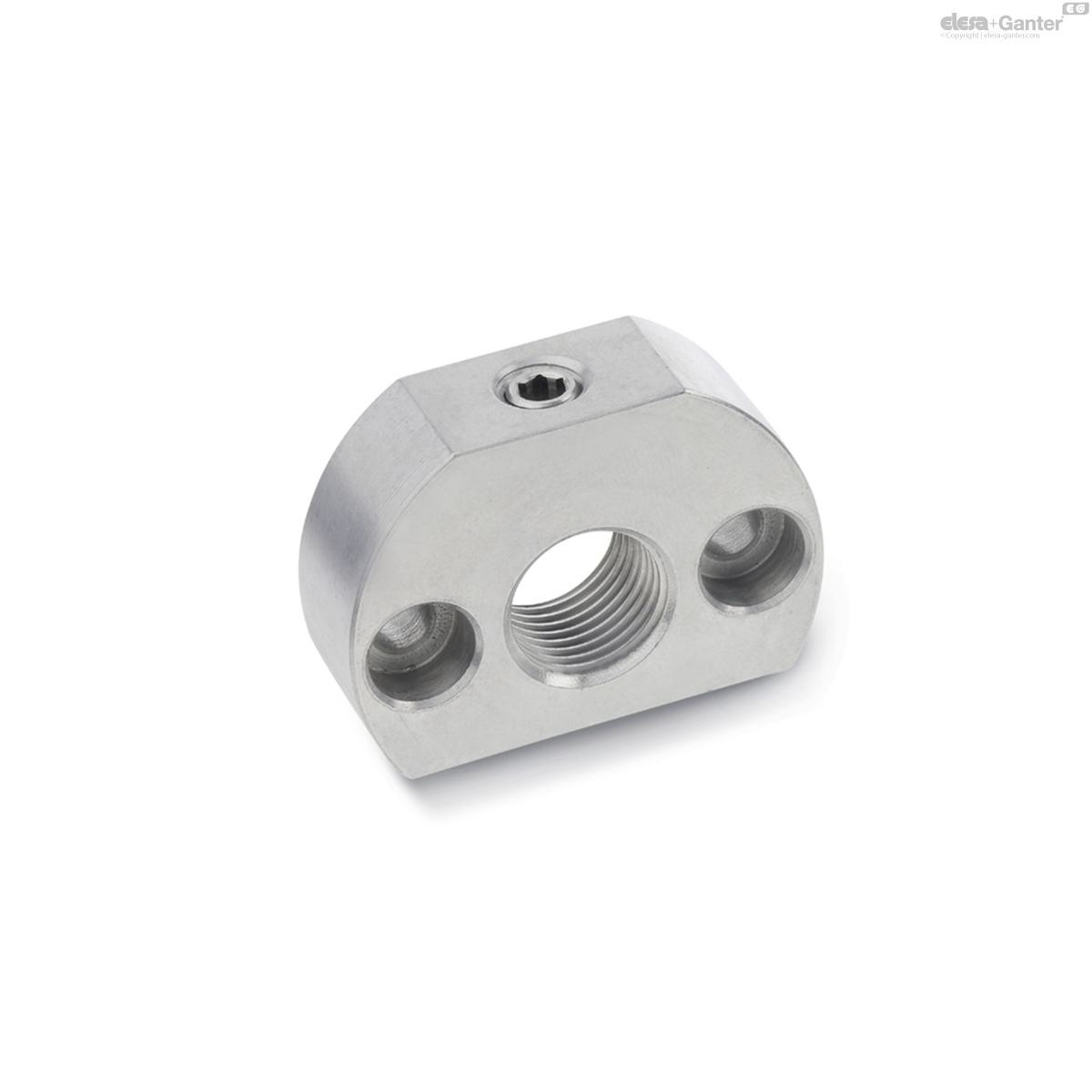

Mounting blocks, Stainless Steel

Description

Specification

Types

Type A: fixing holes parallel to plunger

Type B: fixing holes vertical to plunger

Version in Steel

blackened

Grub screw GN 913.3 with brass pad

Version in Stainless Steel AISI 303 NI

Grub screw GN 913.5 with brass pad

Information

Mounting blocks GN 612.1 broaden the mounting possibilities and are and added feature for the cam action indexing plungers GN 612 and cam action indexing plungers GN 712 / GN 712.1

To position the indexing pin of an indexing plunger or cam action indexing plunger, they can also hold GN 412.2 -positioning bushings.

Technical information

Stainless Steel characteristics -

GN 612.1

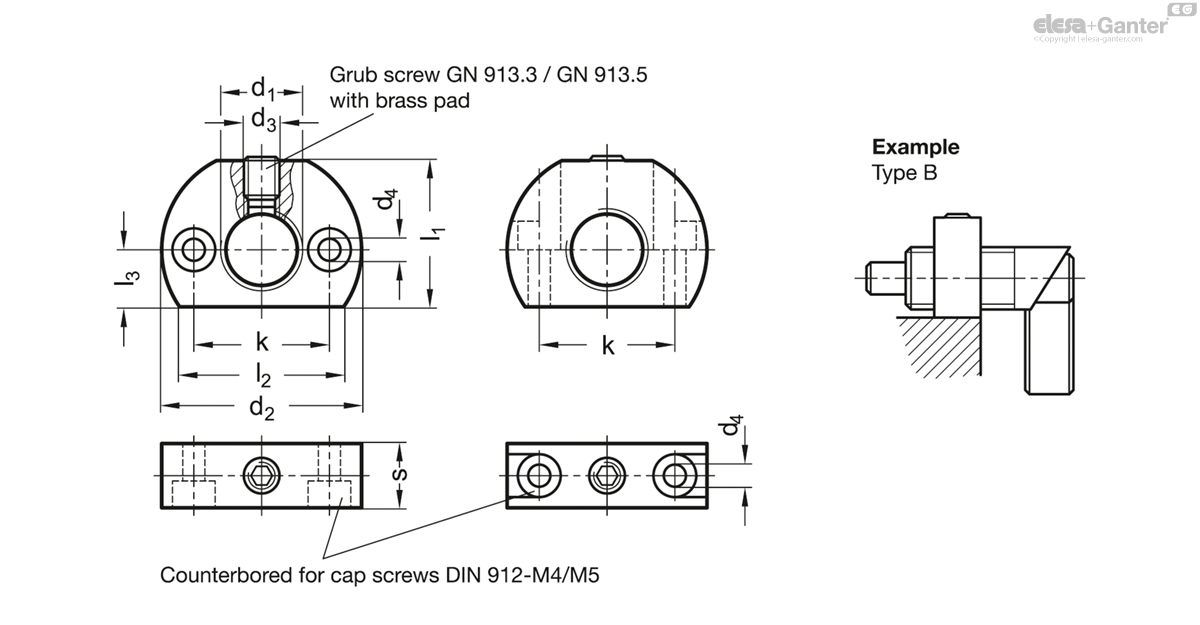

	d₁	d₂	d₃	d₄	d₅	k ±0.1	l₁	l₂ ≈	l₃	s	t
Code													Actions
GN 612.1-M12x1,5-A	M 12 x 1.5	32	M 5	4.5	12.2	21	22	26.5	9	12	3	44
GN 612.1-M12x1,5-B	M 12 x 1.5	32	M 5	4.5	12.2	21	22	26.5	9	12	3	30
GN 612.1-M16x1,5-A	M 16 x 1.5	46	M 8	5.5	16.2	32	33	37	13	15	3	122
GN 612.1-M16x1,5-B	M 16 x 1.5	46	M 8	5.5	16.2	32	33	37	13	15	3	107
GN 612.1-M20x1,5-A	M 20 x 1.5	46	M 8	5.5	20.2	32	33	37	13	15	3	95
GN 612.1-M20x1,5-B	M 20 x 1.5	46	M 8	5.5	20.2	32	33	37	13	15	3	94
