GN 612

Cam Action Indexing Plungers

Steel / Stainless Steel

Enquire Now

GN 612

Cam Action Indexing Plungers

Cam action indexing plungers, Steel

GN 612-NI

Cam Action Indexing Plungers

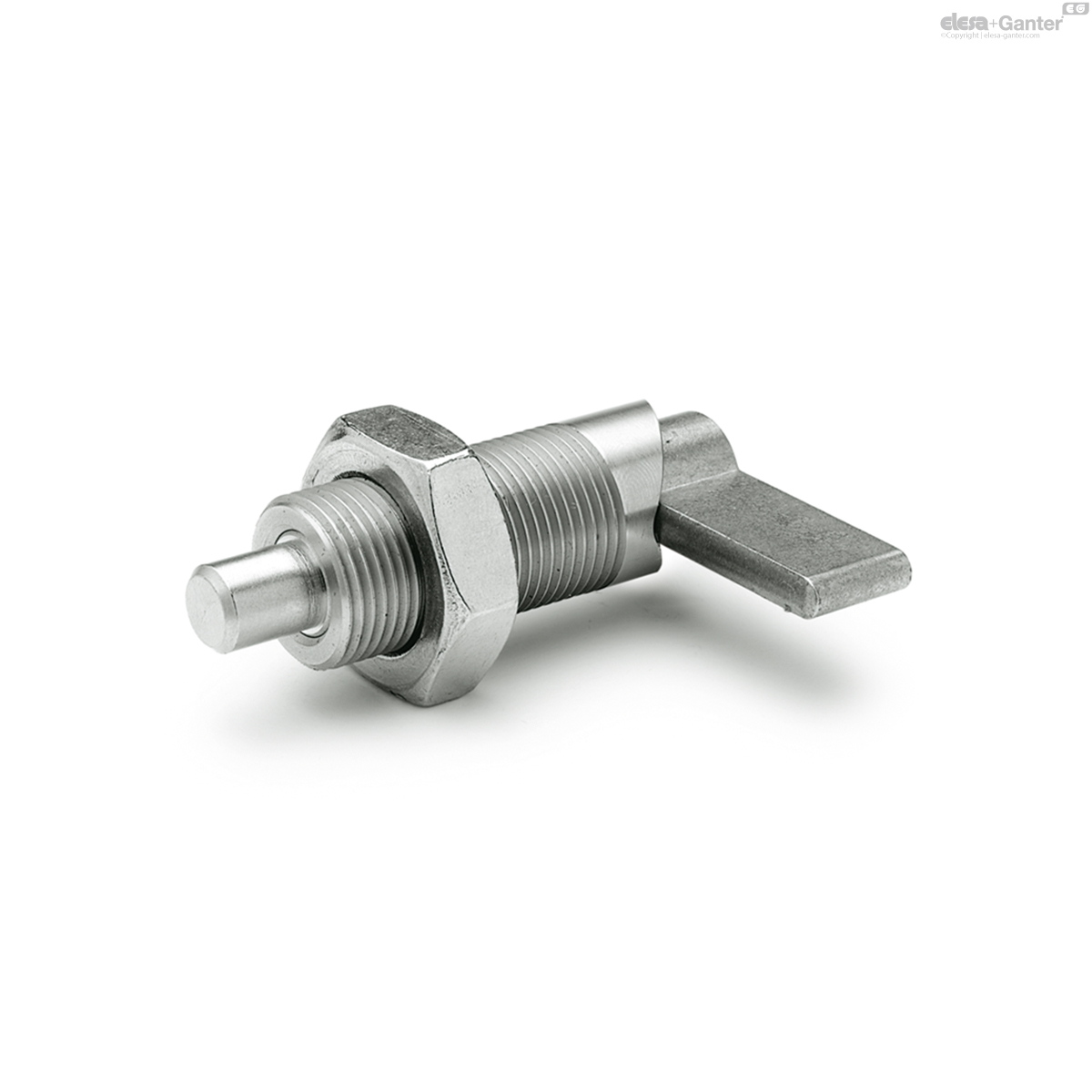

Cam action indexing plungers, Stainless Steel

Description

Specification

Types

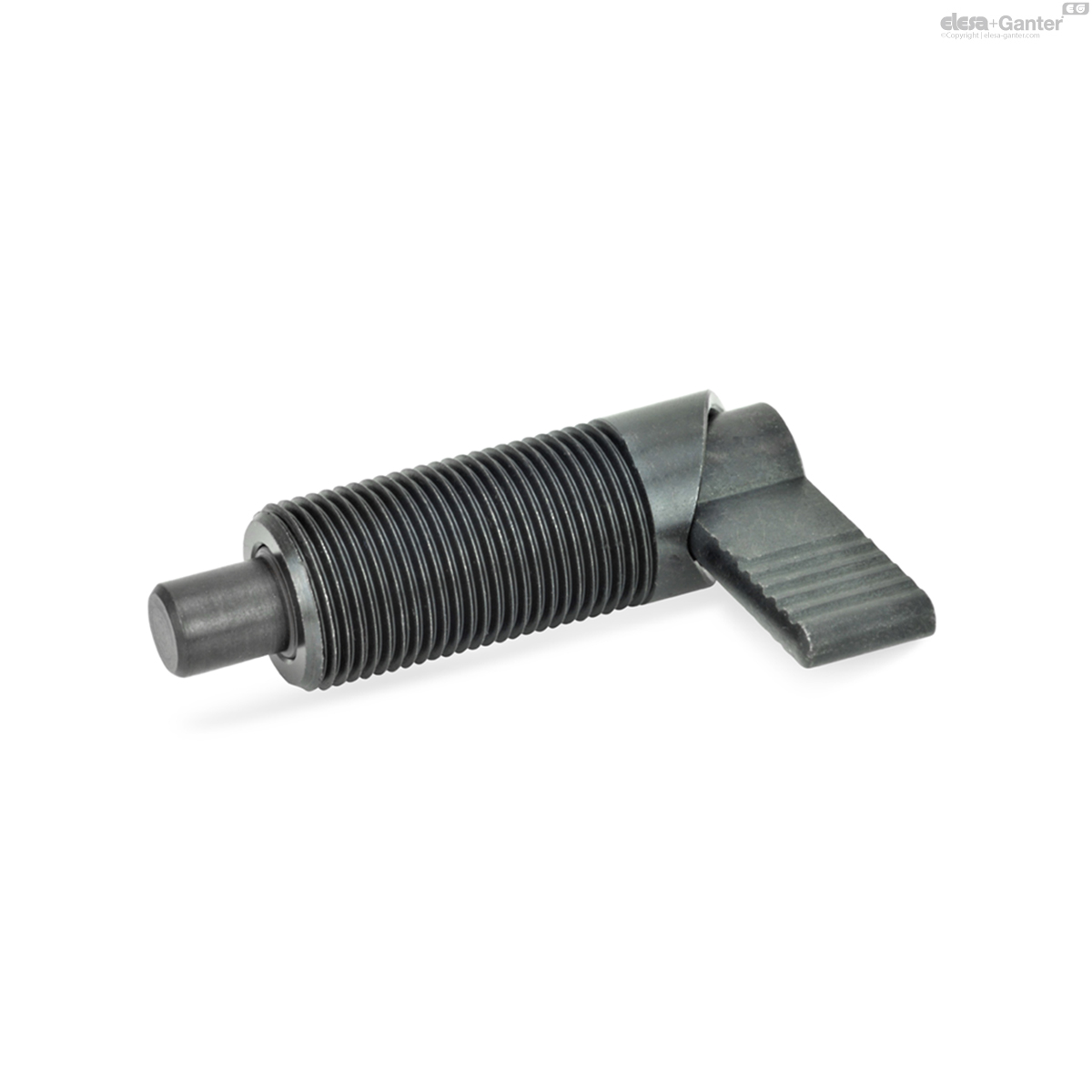

Type A: without plastic cover, without lock nut

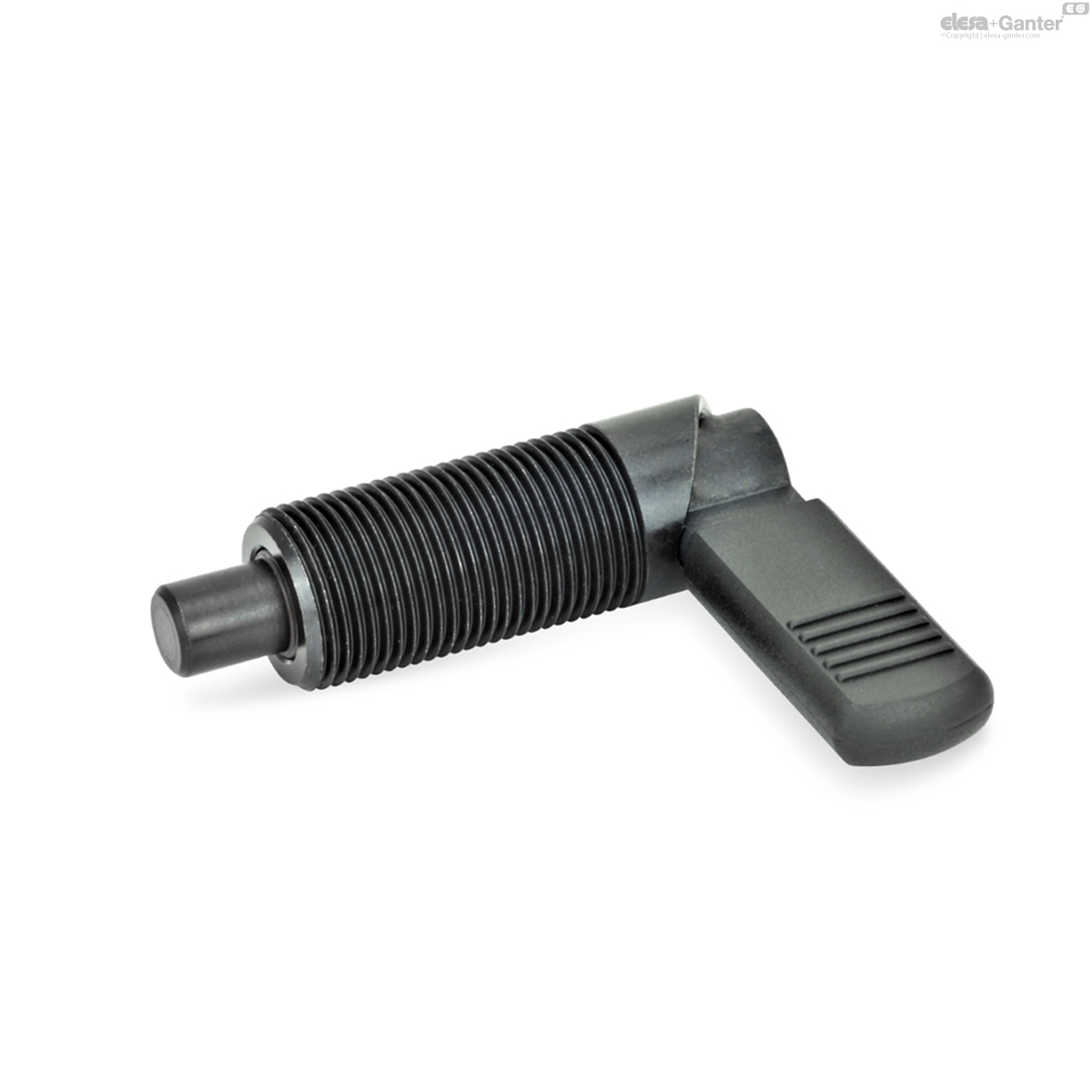

Type B: with plastic cover, without lock nut

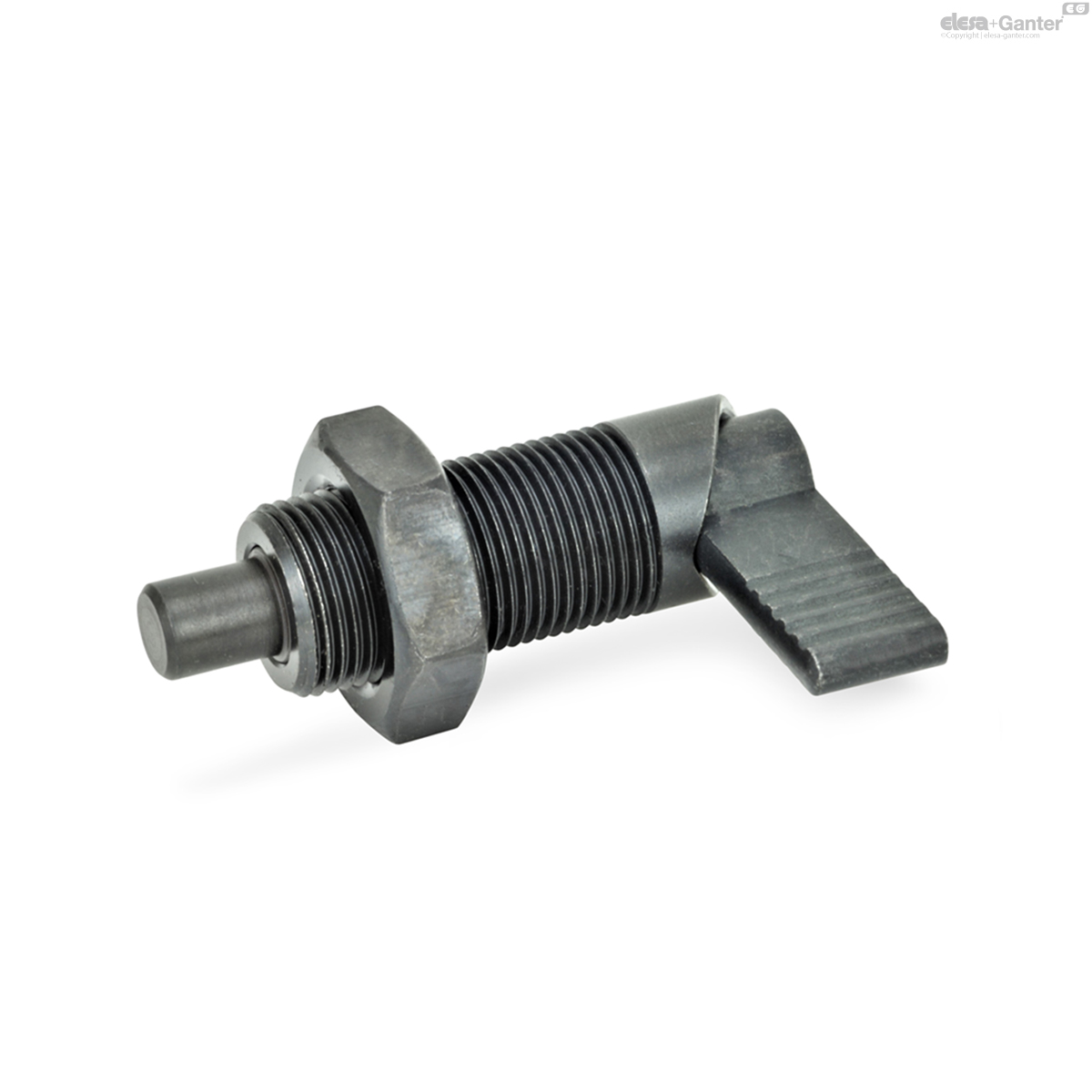

Type AK: without plastic cover, with lock nut

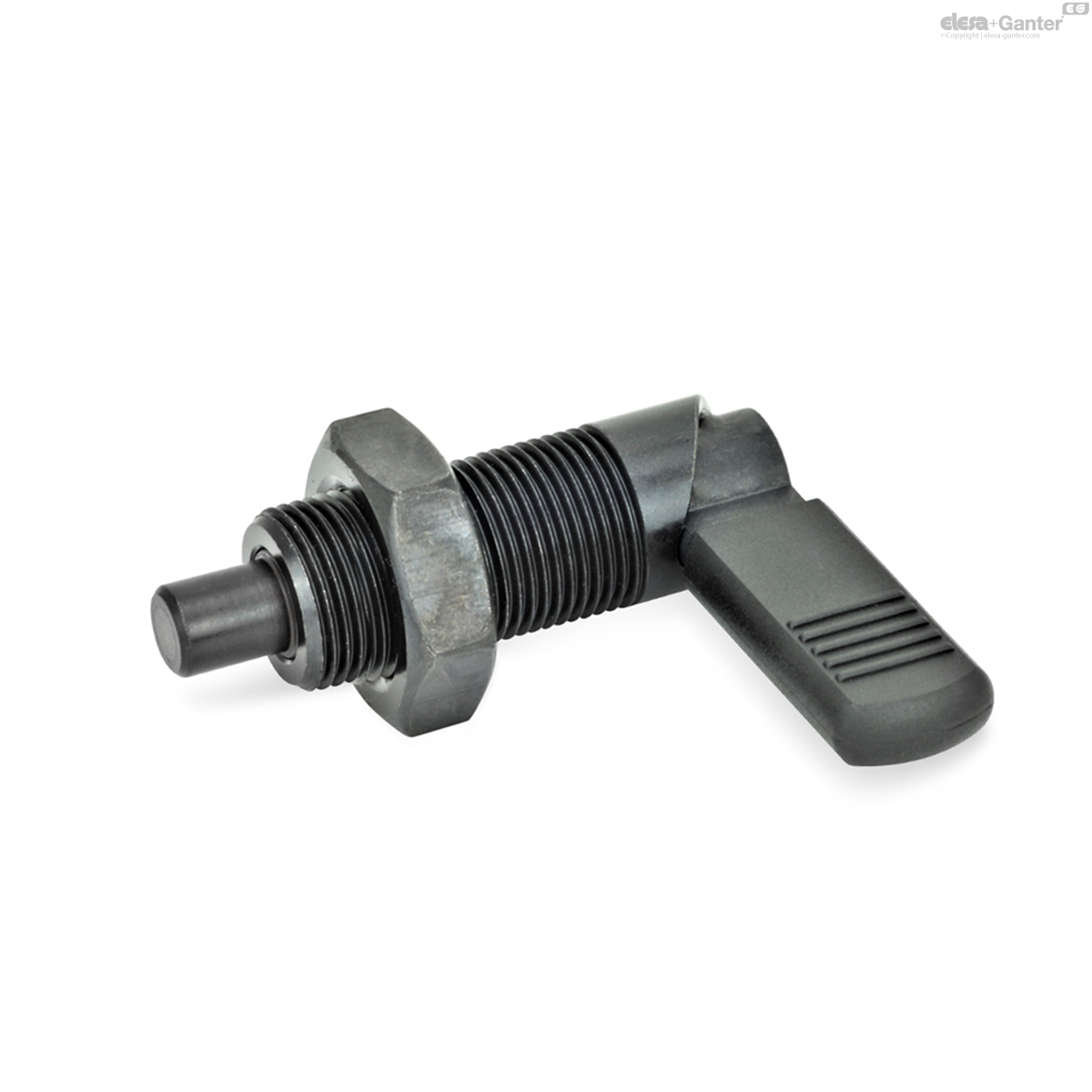

Type BK: with plastic cover, with lock nut

Version in Steel

blackened

Pin nitrided

Version in Stainless Steel AISI 303 NI

Spring

Stainless Steel AISI 301

Plastic cover (Polyamide PA)

black, matt

Information

Cam action indexing plungers GN 612 are used in cases where the locking pin must not protude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.

Range of cam action indexing plungers

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

Plastic characteristics

Load rating information

GN 612

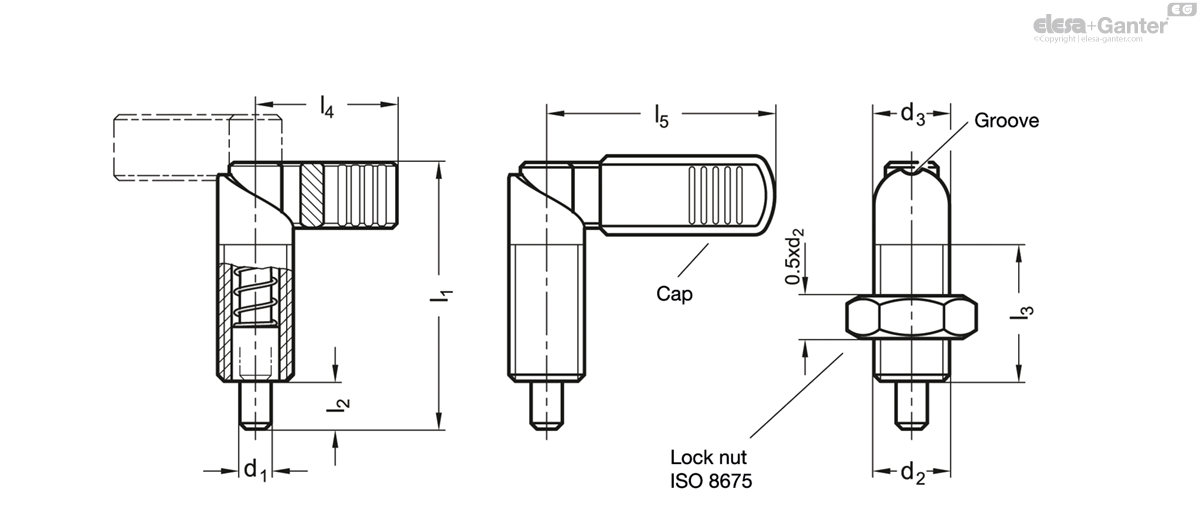

	Color	d₁ Pin -0.02/-0.04 Bore H7	d₂	d₃	l₁	l₂	l₃ +1.5	l₄	l₅	Spring load in N ≈ initial	Spring load in N ≈ end
Code													Actions
GN 612-4-M10-A	A	4**	M 10	10	37.5	6	19	21	-	7	20	17
GN 612-4-M10-AK	AK	4**	M 10	10	37.5	6	19	21	-	7	20	17
GN 612-4-M10x1-A	A	4**	M 10 x 1	10	37.5	6	19	21	-	7	20	17
GN 612-4-M10x1-AK	AK	4**	M 10 x 1	10	37.5	6	19	21	-	7	20	17
GN 612-5-M10-A	A	5**	M 10	10	37.5	6	19	21	-	7	20	17
GN 612-5-M10-AK	AK	5**	M 10	10	37.5	6	19	21	-	7	20	17
GN 612-5-M10x1-A	A	5**	M 10 x 1	10	37.5	6	19	21	-	7	20	18
GN 612-5-M10x1-AK	AK	5**	M 10 x 1	10	37.5	6	19	21	-	7	20	18
GN 612-5-M12-A	A	5	M 12	12	47	8	26	26	32	8	18	28
GN 612-5-M12-AK	AK	5	M 12	12	47	8	26	26	32	8	18	28
GN 612-5-M12-B	B	5	M 12	12	47	8	26	26	32	8	18	28
GN 612-5-M12-BK	BK	5	M 12	12	47	8	26	26	32	8	18	28
GN 612-5-M12x1,5-A	A	5	M 12 x 1.5	12	47	8	26	26	32	8	18	28
GN 612-5-M12x1,5-AK	AK	5	M 12 x 1.5	12	47	8	26	26	32	8	18	28
GN 612-5-M12x1,5-B	B	5	M 12 x 1.5	12	47	8	26	26	32	8	18	28
GN 612-5-M12x1,5-BK	BK	5	M 12 x 1.5	12	47	8	26	26	32	8	18	28
GN 612-6-M10-A	A	6**	M 10	10	37.5	6	19	21	-	7	20	18
GN 612-6-M10-AK	AK	6**	M 10	10	37.5	6	19	21	-	7	20	18
GN 612-6-M10x1-A	A	6**	M 10 x 1	10	37.5	6	19	21	-	7	20	18
GN 612-6-M10x1-AK	AK	6**	M 10 x 1	10	37.5	6	19	21	-	7	20	18
GN 612-6-M12-A	A	6	M 12	12	47	8	26	26	32	8	18	29
GN 612-6-M12-AK	AK	6	M 12	12	47	8	26	26	32	8	18	29
GN 612-6-M12-B	B	6	M 12	12	47	8	26	26	32	8	18	29
GN 612-6-M12-BK	BK	6	M 12	12	47	8	26	26	32	8	18	29
GN 612-6-M12x1,5-A	A	6	M 12 x 1.5	12	47	8	26	26	32	8	18	30
GN 612-6-M12x1,5-AK	AK	6	M 12 x 1.5	12	47	8	26	26	32	8	18	30
GN 612-6-M12x1,5-B	B	6	M 12 x 1.5	12	47	8	26	26	32	8	18	30
GN 612-6-M12x1,5-BK	BK	6	M 12 x 1.5	12	47	8	26	26	32	8	18	30
GN 612-6-M16-A	A	6	M 16	16	56	10	30	32	42	11	29	57
GN 612-6-M16-AK	AK	6	M 16	16	56	10	30	32	42	11	29	57
GN 612-6-M16-B	B	6	M 16	16	56	10	30	32	42	11	29	57
GN 612-6-M16-BK	BK	6	M 16	16	56	10	30	32	42	11	29	57
GN 612-6-M16x1,5-A	A	6	M 16 x 1.5	16	56	10	30	32	42	11	29	59
GN 612-6-M16x1,5-AK	AK	6	M 16 x 1.5	16	56	10	30	32	42	11	29	59
GN 612-6-M16x1,5-B	B	6	M 16 x 1.5	16	56	10	30	32	42	11	29	59
GN 612-6-M16x1,5-BK	BK	6	M 16 x 1.5	16	56	10	30	32	42	11	29	59
GN 612-8-M12-A	A	8	M 12	12	47	8	26	26	32	8	18	30
GN 612-8-M12-AK	AK	8	M 12	12	47	8	26	26	32	8	18	30
GN 612-8-M12-B	B	8	M 12	12	47	8	26	26	32	8	18	30
GN 612-8-M12-BK	BK	8	M 12	12	47	8	26	26	32	8	18	30
GN 612-8-M12x1,5-A	A	8	M 12 x 1.5	12	47	8	26	26	32	8	18	29
GN 612-8-M12x1,5-AK	AK	8	M 12 x 1.5	12	47	8	26	26	32	8	18	29
GN 612-8-M12x1,5-B	B	8	M 12 x 1.5	12	47	8	26	26	32	8	18	29
GN 612-8-M12x1,5-BK	BK	8	M 12 x 1.5	12	47	8	26	26	32	8	18	29
GN 612-8-M16-A	A	8	M 16	16	56	10	30	32	42	11	29	59
GN 612-8-M16-AK	AK	8	M 16	16	56	10	30	32	42	11	29	59
GN 612-8-M16-B	B	8	M 16	16	56	10	30	32	42	11	29	59
GN 612-8-M16-BK	BK	8	M 16	16	56	10	30	32	42	11	29	59
GN 612-8-M16x1,5-A	A	8	M 16 x 1.5	16	56	10	30	32	42	11	29	61
GN 612-8-M16x1,5-AK	AK	8	M 16 x 1.5	16	56	10	30	32	42	11	29	61
GN 612-8-M16x1,5-B	B	8	M 16 x 1.5	16	56	10	30	32	42	11	29	61
GN 612-8-M16x1,5-BK	BK	8	M 16 x 1.5	16	56	10	30	32	42	11	29	61
GN 612-8-M20-A	A	8	M 20	20	69	12	37	37	52	21	57	115
GN 612-8-M20-AK	AK	8	M 20	20	69	12	37	37	52	21	57	115
GN 612-8-M20-B	B	8	M 20	20	69	12	37	37	52	21	57	115
GN 612-8-M20-BK	BK	8	M 20	20	69	12	37	37	52	21	57	115
GN 612-8-M20x1,5-A	A	8	M 20 x 1.5	20	69	12	37	37	52	21	57	111
GN 612-8-M20x1,5-AK	AK	8	M 20 x 1.5	20	69	12	37	37	52	21	57	111
GN 612-8-M20x1,5-B	B	8	M 20 x 1.5	20	69	12	37	37	52	21	57	111
GN 612-8-M20x1,5-BK	BK	8	M 20 x 1.5	20	69	12	37	37	52	21	57	111
GN 612-10-M16-A	A	10	M 16	16	56	10	30	32	42	11	29	61
GN 612-10-M16-AK	AK	10	M 16	16	56	10	30	32	42	11	29	61
GN 612-10-M16-B	B	10	M 16	16	56	10	30	32	42	11	29	61
GN 612-10-M16-BK	BK	10	M 16	16	56	10	30	32	42	11	29	61
GN 612-10-M16x1,5-A	A	10	M 16 x 1.5	16	56	10	30	32	42	11	29	60
GN 612-10-M16x1,5-AK	AK	10	M 16 x 1.5	16	56	10	30	32	42	11	29	60
GN 612-10-M16x1,5-B	B	10	M 16 x 1.5	16	56	10	30	32	42	11	29	60
GN 612-10-M16x1,5-BK	BK	10	M 16 x 1.5	16	56	10	30	32	42	11	29	60
GN 612-10-M20-A	A	10	M 20	20	69	12	37	37	52	21	57	121
GN 612-10-M20-AK	AK	10	M 20	20	69	12	37	37	52	21	57	121
GN 612-10-M20-B	B	10	M 20	20	69	12	37	37	52	21	57	121
GN 612-10-M20-BK	BK	10	M 20	20	69	12	37	37	52	21	57	121
GN 612-10-M20x1,5-A	A	10	M 20 x 1.5	20	69	12	37	37	52	21	57	114
GN 612-10-M20x1,5-AK	AK	10	M 20 x 1.5	20	69	12	37	37	52	21	57	114
GN 612-10-M20x1,5-B	B	10	M 20 x 1.5	20	69	12	37	37	52	21	57	114
GN 612-10-M20x1,5-BK	BK	10	M 20 x 1.5	20	69	12	37	37	52	21	57	114
GN 612-12-M20-A	A	12	M 20	20	69	12	37	37	52	21	57	12
GN 612-12-M20-AK	AK	12	M 20	20	69	12	37	37	52	21	57	12
GN 612-12-M20-B	B	12	M 20	20	69	12	37	37	52	21	57	12
GN 612-12-M20-BK	BK	12	M 20	20	69	12	37	37	52	21	57	12
GN 612-12-M20x1,5-A	A	12	M 20 x 1.5	20	69	12	37	37	52	21	57	133
GN 612-12-M20x1,5-AK	AK	12	M 20 x 1.5	20	69	12	37	37	52	21	57	133
GN 612-12-M20x1,5-B	B	12	M 20 x 1.5	20	69	12	37	37	52	21	57	133
GN 612-12-M20x1,5-BK	BK	12	M 20 x 1.5	20	69	12	37	37	52	21	57	133
