GN 60b
Cover Caps
Plastic, for Aluminum Profiles (b-Modular System)
Description
Specification
Type
- Type P: Press-on type
Plastic (Polyamide PA)
Black KS
Information

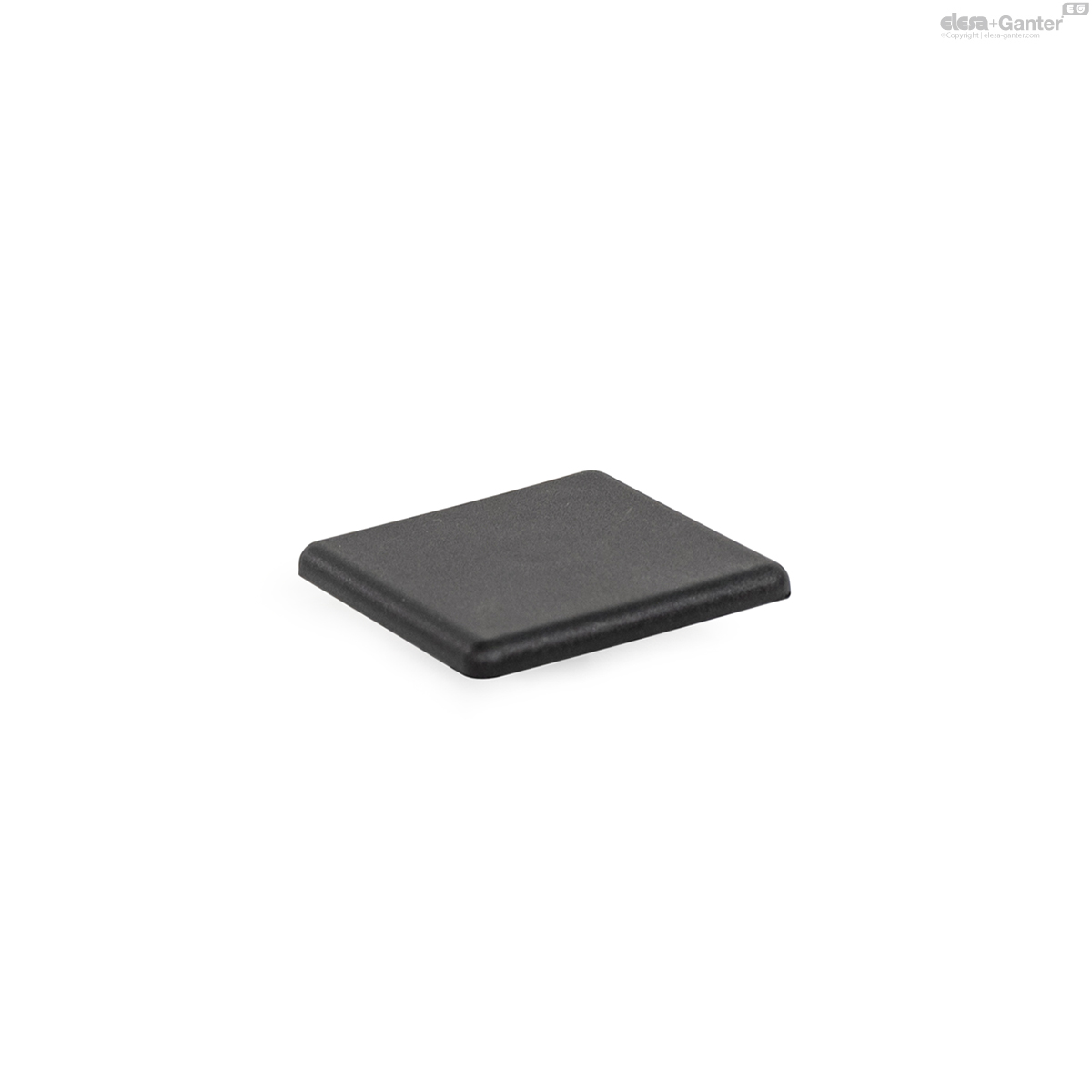

Cover caps GN 60b make a visually appealing closure for the end faces of aluminum profiles, protecting against injuries from sharp cut edges and preventing the ingress of dust and dirt.
They can be fitted without machining the profile.
Technical information
- Plastic CharacteristicsÂ
GN 60b

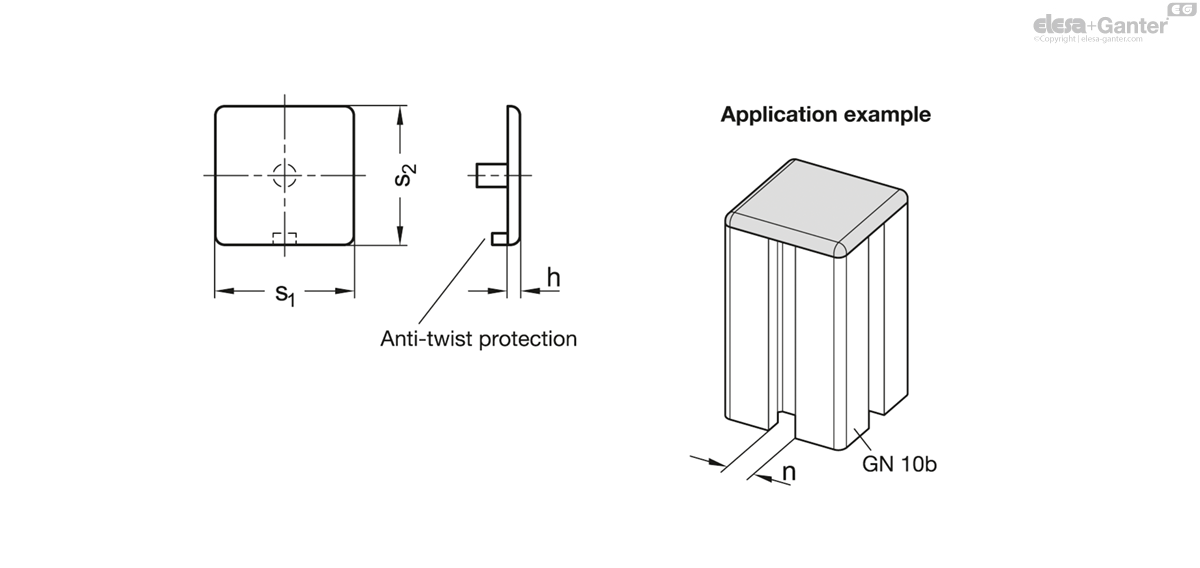

| s1 | s2 | n | h ≈ | Grid size |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 60b-30308-P-KS | 30 | 30 | 8 | 3 | 30 | 3 |
|
| GN 60b-30608-P-KS | 30 | 60 | 8 | 3 | 30 | 6 |
|
| GN 60b-404010-P-KS | 40 | 40 | 10 | 4 | 40 | 5 |
|
| GN 60b-408010-P-KS | 40 | 80 | 10 | 4 | 40 | 8 |
|
| GN 60b-454510-P-KS | 45 | 45 | 10 | 4 | 45 | 8 |
|
| GN 60b-456010-P-KS | 45 | 60 | 10 | 4 | 45 | 10 |
|
| GN 60b-459010-P-KS | 45 | 90 | 10 | 4 | 45 | 10 |
|
| GN 60b-808010-P-KS | 80 | 80 | 10 | 4 | 40 | 17 |
|
| GN 60b-909010-P-KS | 90* | 90 | 10 | 4 | 45 | 30 |
|
