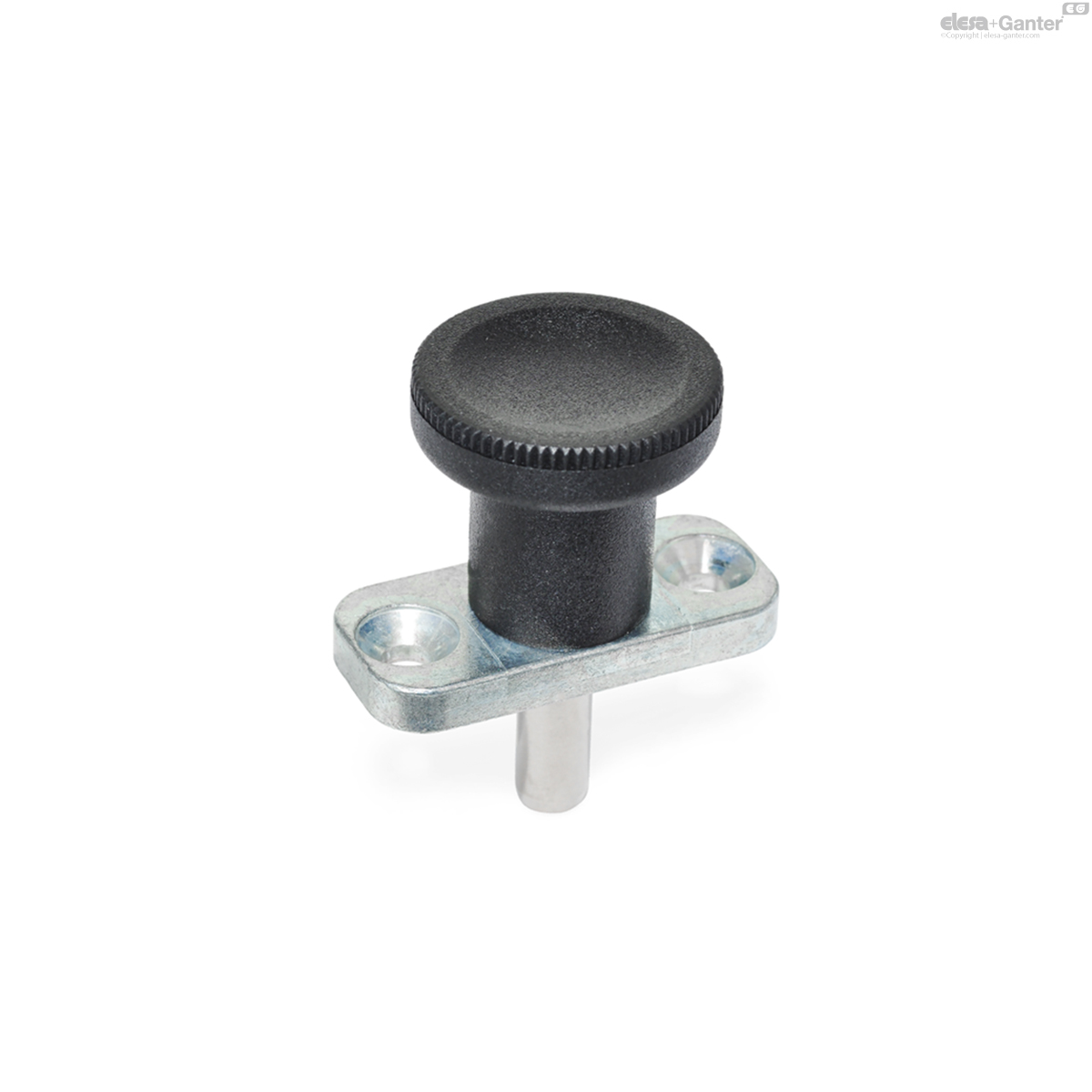

GN 608.5

Indexing plungers with Stainless Steel-Plunger

without rest position

Enquire Now

Description

Specification

Guide

Zinc die casting

zinc plated, blue passivated

Knob

Plastic (Polyamide PA)

Pin Stainless Steel AISI 303

chemically nickel plated

Single components Stainless Steel

Information

Indexing plungers with Stainless Steel-Plunger GN 608.5 are distinguished for their small dimensions.

Technical information

	d₁ Pin -0.02/-0.05 Bore H7	l₁	b₁	b₂	d₂ -0.02/-0.1	d₃	d₄	d₅	k	l₂	l₃ -0.15	l₄	l₅	Spring load in N ≈ initial	Spring load in N ≈ end	Axial load in N
Code																		Actions
GN 608.5-6-6	6	6	40	18	10	25	4.3	8.3	30	37	2.5	4.5	6	9	25	400	36
GN 608.5-6-14	6	14	40	18	10	25	4.3	8.3	30	45	2.5	4.5	6	9	25	400	38
GN 608.5-8-8	8	8	46	20	12	31	5.3	10.4	34	44	2.5	4.5	8	13	26	500	59
GN 608.5-8-18	8	18	46	20	12	31	5.3	10.4	34	54	2.5	4.5	8	13	26	500	60
