GN 607

Indexing plungers

Steel / Stainlees Steel, without rest position

Enquire Now

Description

Specification

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

Information

Indexing plungers GN 607 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options.

Technical information

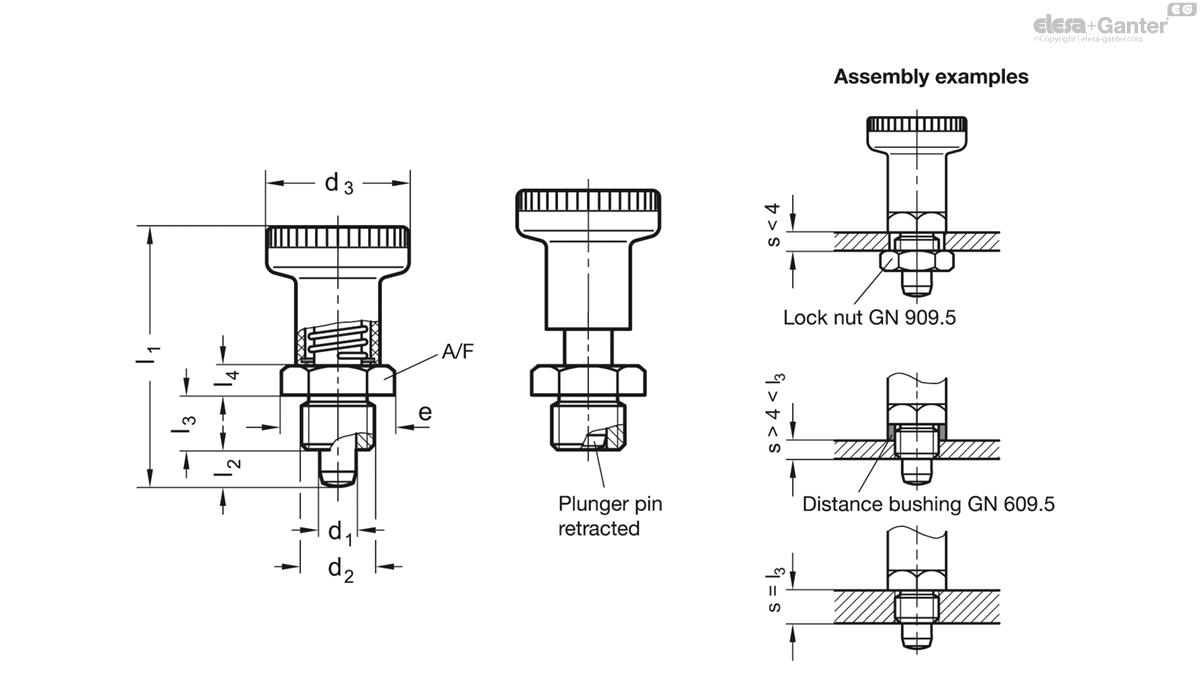

	d₁ Pin -0.02/-0.05 Bore H7	d₂	d₃	e ≈	l₁	l₂ ±0.5	l₃ -0.15	l₄	A/F	Spring load in N ≈ initial	Spring load in N ≈ end	Axial load in N
Code														Actions
GN 607-6-A-NI	6	M 12 x 1.5	25	19.6	45	6	10	5	17	9	25	400	35
GN 607-6-AK-NI	6	M 12 x 1.5	25	19.6	45	6	10	5	17	9	25	400	40
GN 607-8-A-NI	8	M 16 x 1.5	31	21.9	54	8	12	6	19	13	26	500	61
GN 607-8-AK-NI	8	M 16 x 1.5	31	21.9	54	8	12	6	19	13	26	500	70
