GN 607.5

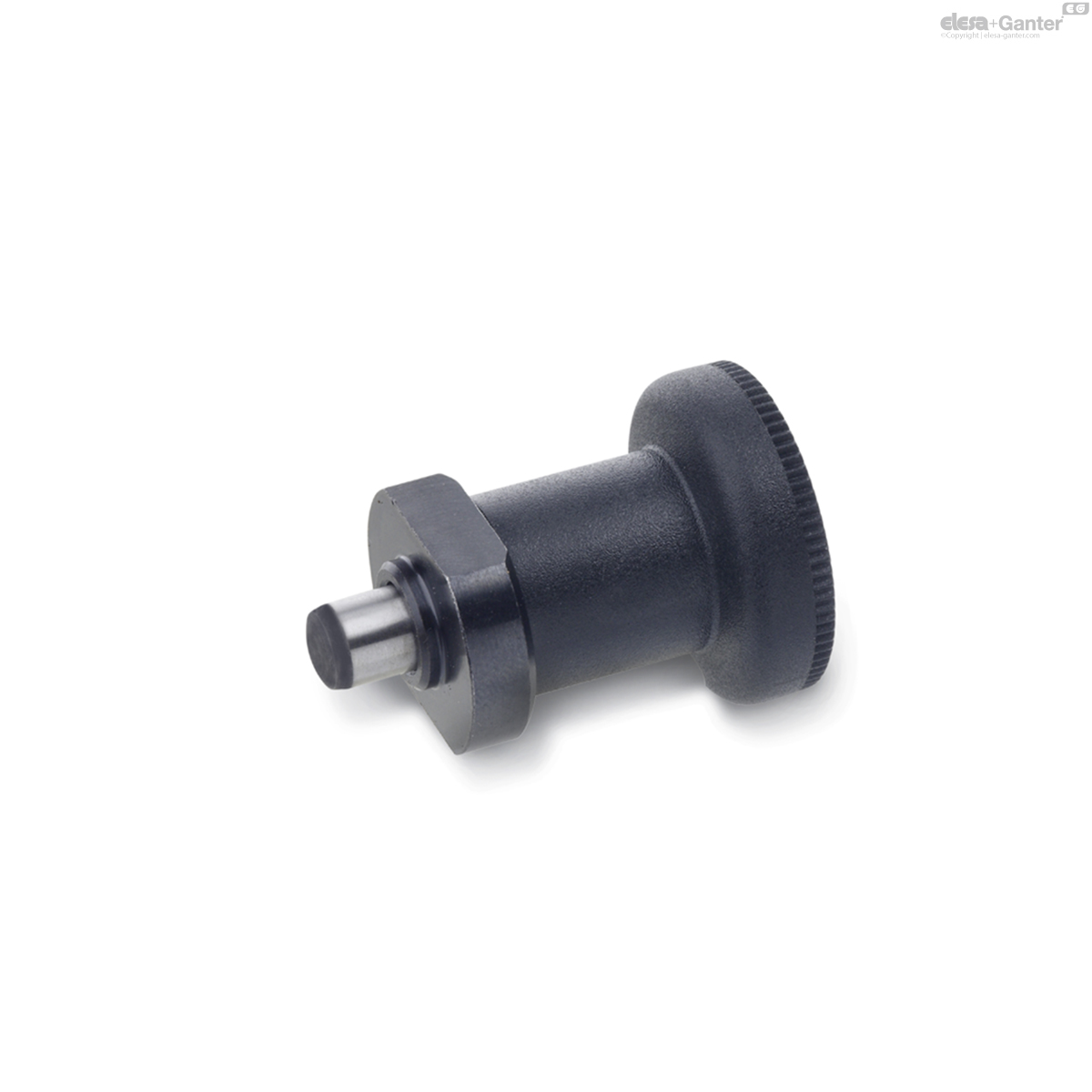

Indexing plungers

for welding, with rest position

Enquire Now

Description

Specification

Steel ST

blackened

Pin hardened

Knob Plastic (Polyamide PA)

black, matt

not removable

Information

Indexing plungers GN 607.5 with rest position are used in cases where the indexing pin is temporarily not allowed to protrude. After pulling out, the knob is turned by 90°.

A notch keeps the plunger in this position.

The GN 607.5 indexing plungers are intended for welded fixing, in particular for use in steel square tubings.

The lug d₂ is intended for positioning.

The plastic knob with the in-moulded indexing pin is driven on after the welding process.

Range of indexing plungers

Technical information

Plastic characteristics -

Load rating information

GN 607.5

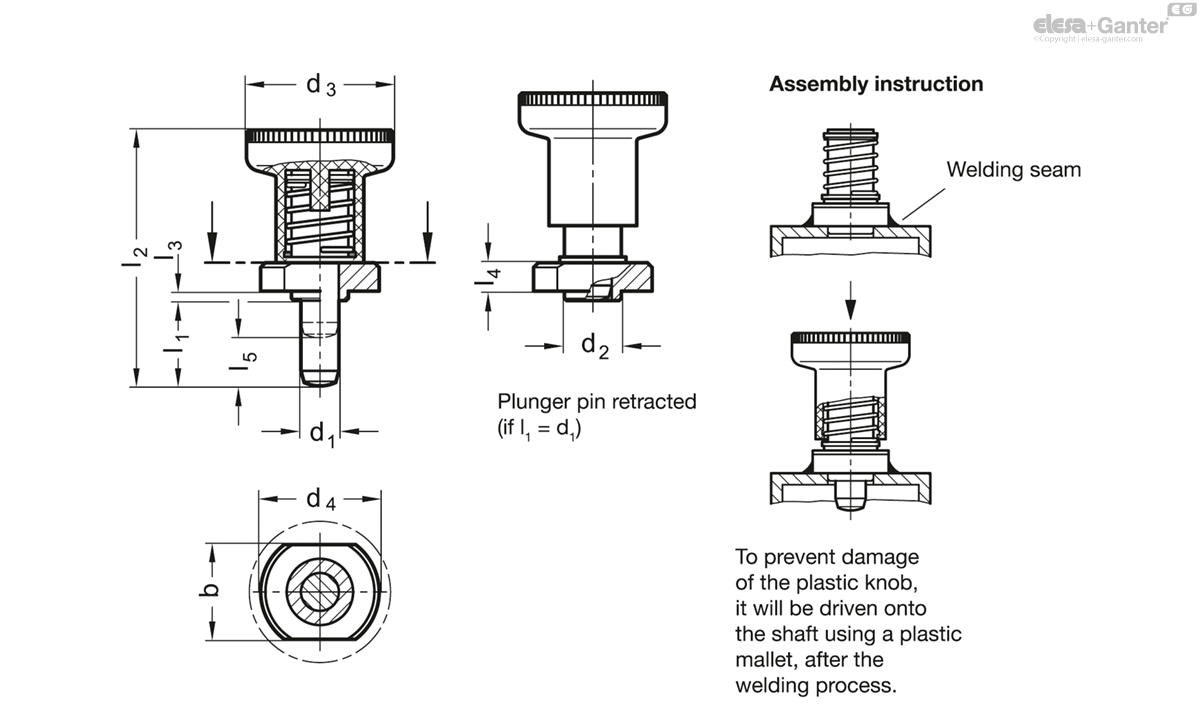

	d₁ Pin -0.02/-0.05 Bore +0.30/+0.25	l₁	b	d₂ -0.02/-0.1	d₃	d₄	l₂	l₃	l₄	l₅	Spring load in N ≈ initial	Spring load in N ≈ end	Axial load in N
Code															Actions
GN 607.5-6-6-ST	6	6	18	10	25	22	37	1.5	5.5	6	9	25	400	34
GN 607.5-6-14-ST	6	14	18	10	25	22	45	1.5	5.5	6	9	25	400	36
GN 607.5-8-8-ST	8	8	20	12	31	25	44	2	6.5	8	13	26	500	54
GN 607.5-8-18-ST	8	18	20	12	31	25	54	2	6.5	8	13	26	500	60
