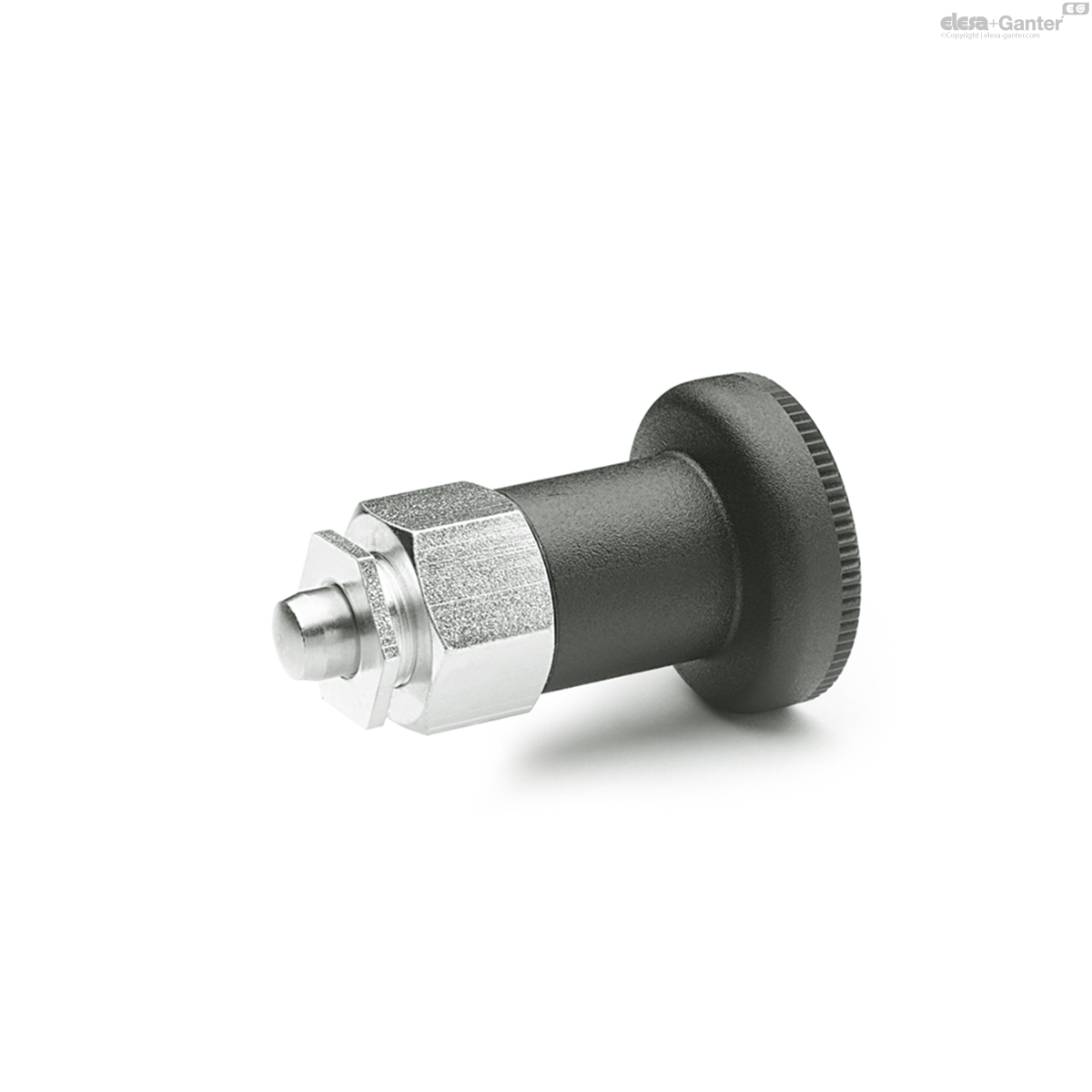

Indexing plungers

for installation in thin walled equipment, without rest position

Enquire Now

Description

Specification

Guide Steel ST

zinc plated, blue passivated

Pin Stainless Steel AISI 303

chemically nickel plated

Knob Plastic (Polyamide PA)

black, matt

not removable

Information

Indexing plungers GN 607.2 have been developed for installation in thin walled equipment.

It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l₁' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.

For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 -

Range of indexing plungers -

Accessory

Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)

Technical information

ISO-Fundamental Tolerances -

Stainless Steel characteristics

Plastic characteristics

Load rating information

GN 607.2

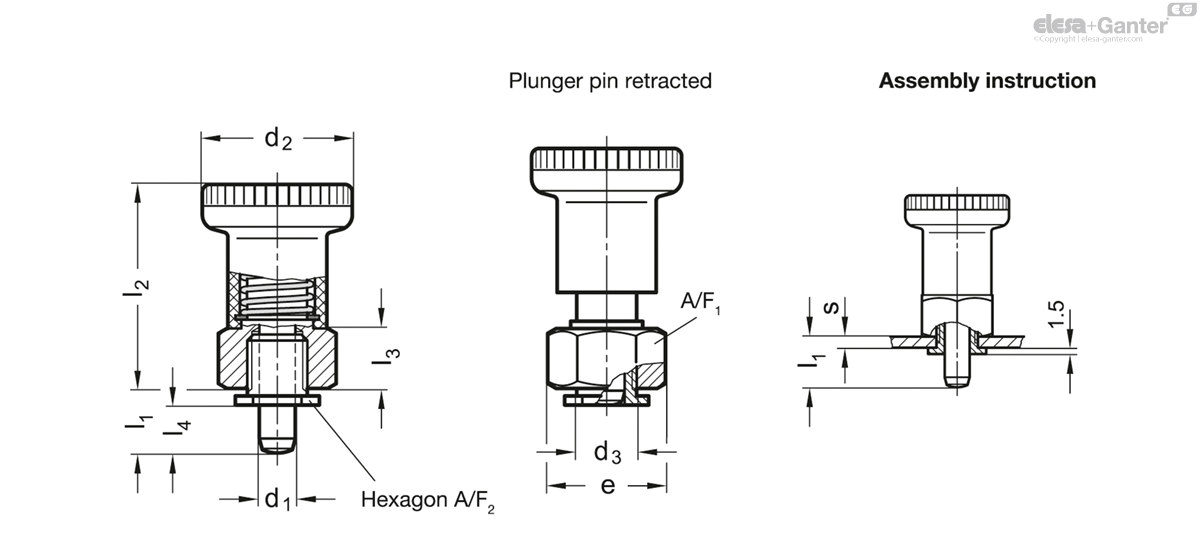

	d₁	d₁ Pin -0.02/-0.05 Bore H7	l₁	d₂	d₃	e	l₂	l₃	l₄	s	A/F ₁	A/F ₂	Spring load in N ≈ initial	Spring load in N ≈ end	Spring force F in N≈ Retracted	Spring force F in N≈ Protruding	Axial load in N
Code																			Actions
GN 607.2-6-8,5-ST	6	6	8.5	25	10	19.5	34	10	6	1 … 3	17	14	10	24	10	24	400	40
GN 607.2-6-10,5-ST	6	6	10.5	25	10	19.5	34	10	6	3 … 5	17	14	10	24	10	24	400	40
GN 607.2-8-10-ST	8	8	10	31	12	22	40	12	7.5	1 … 5	19	16	13	23	13	23	500	62
GN 607.2-8-12-ST	8	8	12	31	12	22	40	12	7.5	3 … 5	19	16	13	23	13	23	500	63
