Indexing plungers

Steel / Stainless Steel, with rest position

Enquire Now

GN 607.1

Indexing plungers

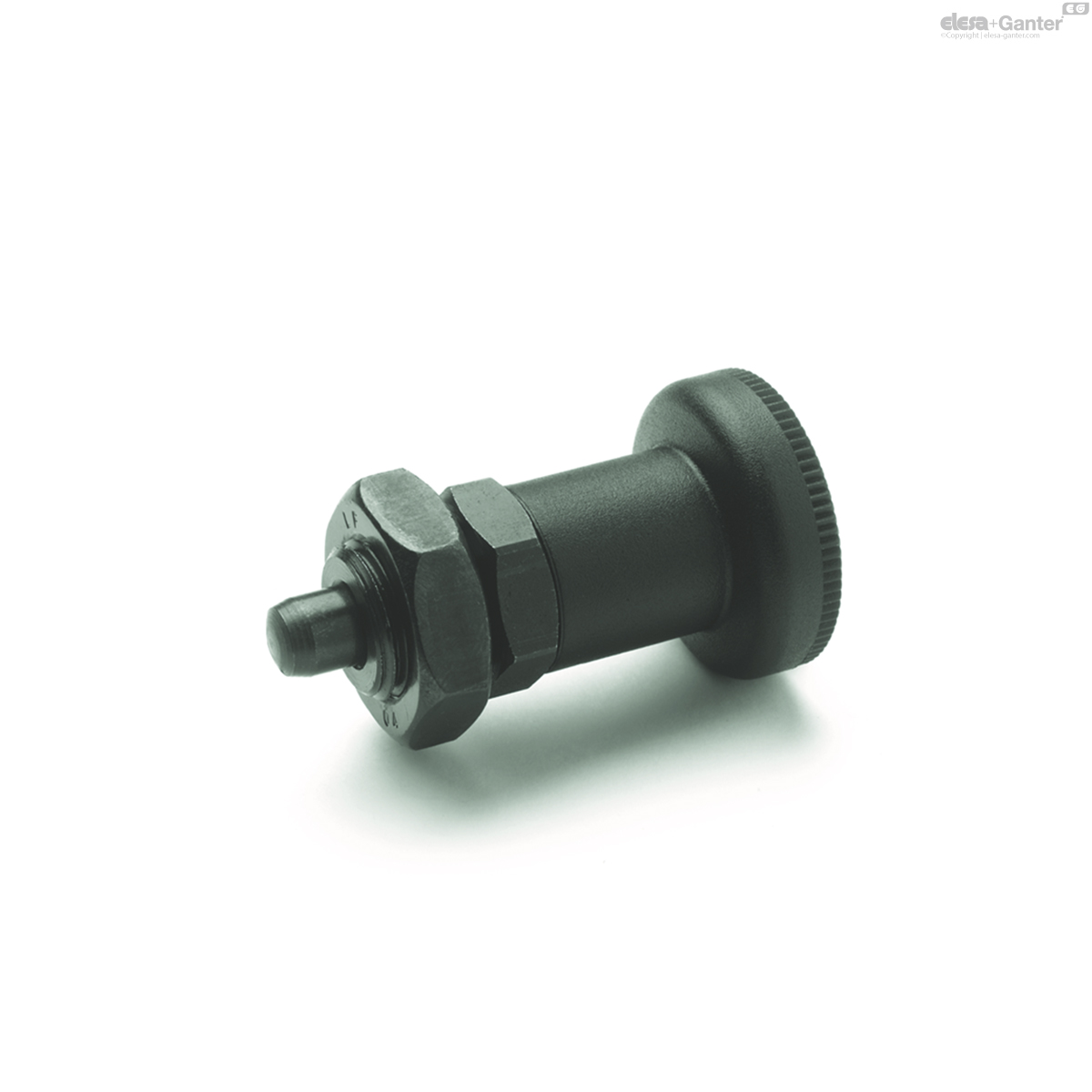

Indexing plungers, Steel

GN 607.1-NI

Indexing plungers

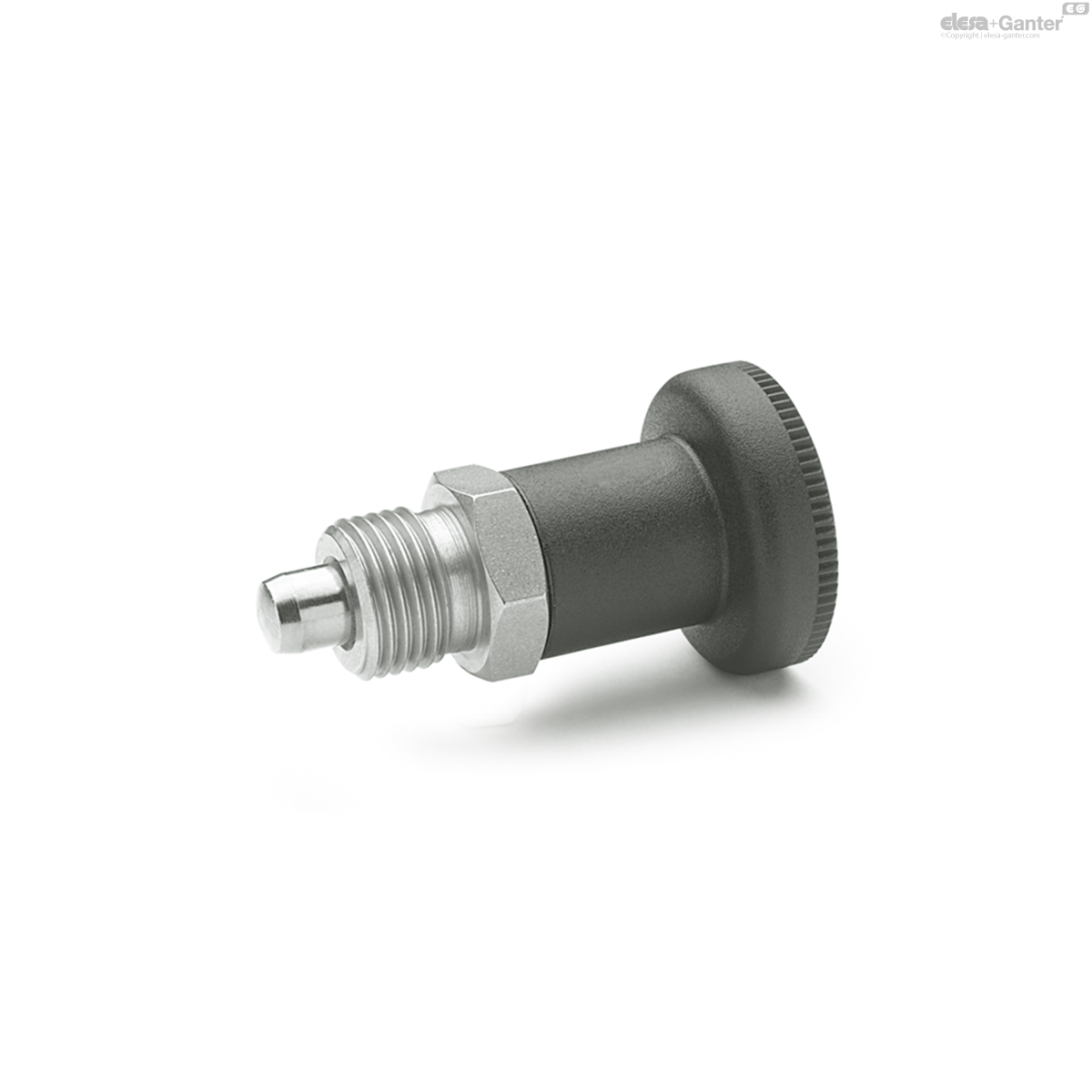

Indexing plungers, Stainless Steel

Description

Specification

Types

Type A: without lock nut

Type AK: with lock nut

Version in Steel ST

blackened

Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

black, matt

not removable

Information

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.

Range of indexing plungers -

Technical information

ISO-Fundamental Tolerances -

Stainless Steel characteristics

Plastic characteristics

Load rating information

GN 607.1

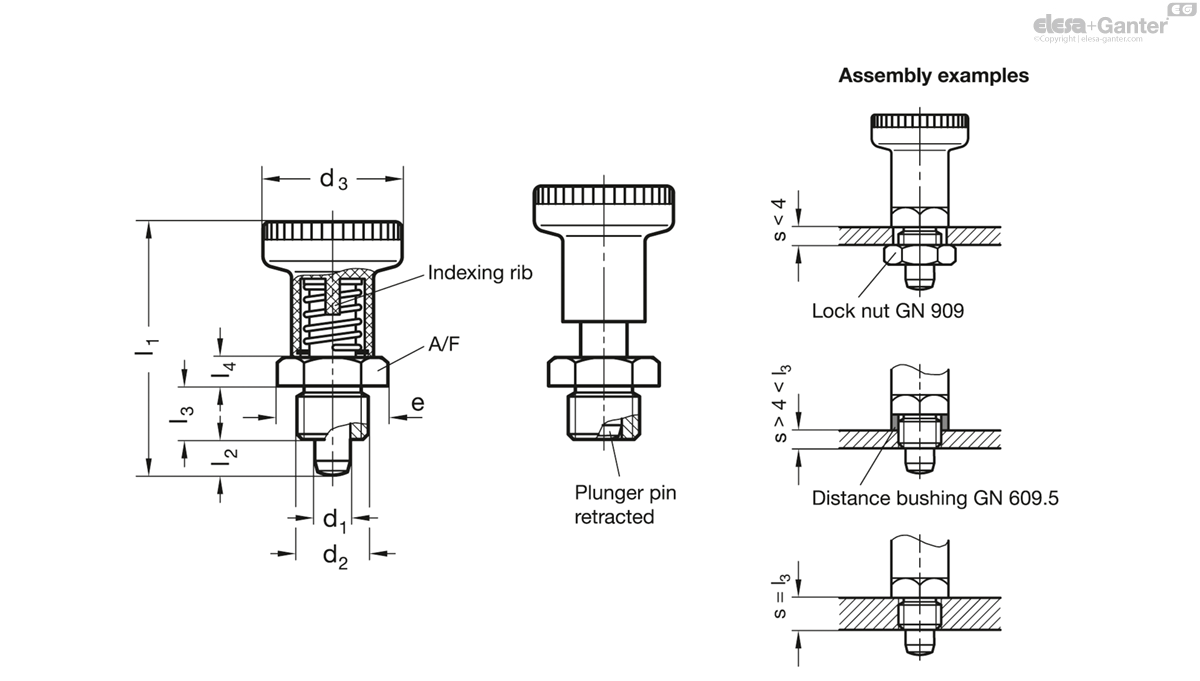

	d₁ Pin -0.02/-0.05 Bore H7	d₂	d₃	e ≈	l₁	l₂ ±0.5	l₃ -0.15	l₄	A/F	Spring load in N ≈ initial	Spring load in N ≈ end	Axial load in N
Code														Actions
GN 607.1-6-A-ST	6	M 12 x 1.5	25	19.6	45	6	10	5	17	11	28	400	47
GN 607.1-6-AK-ST	6	M 12 x 1.5	25	19.6	45	6	10	5	17	11	28	400	42
GN 607.1-8-A-ST	8	M 16 x 1.5	31	21.9	54	8	12	6	19	15	29	500	60
GN 607.1-8-AK-ST	8	M 16 x 1.5	31	21.9	54	8	12	6	19	15	29	500	67
