Ball point screws

Steel / Stainless Steel

Enquire Now

Description

Specification

Version in Steel

Types

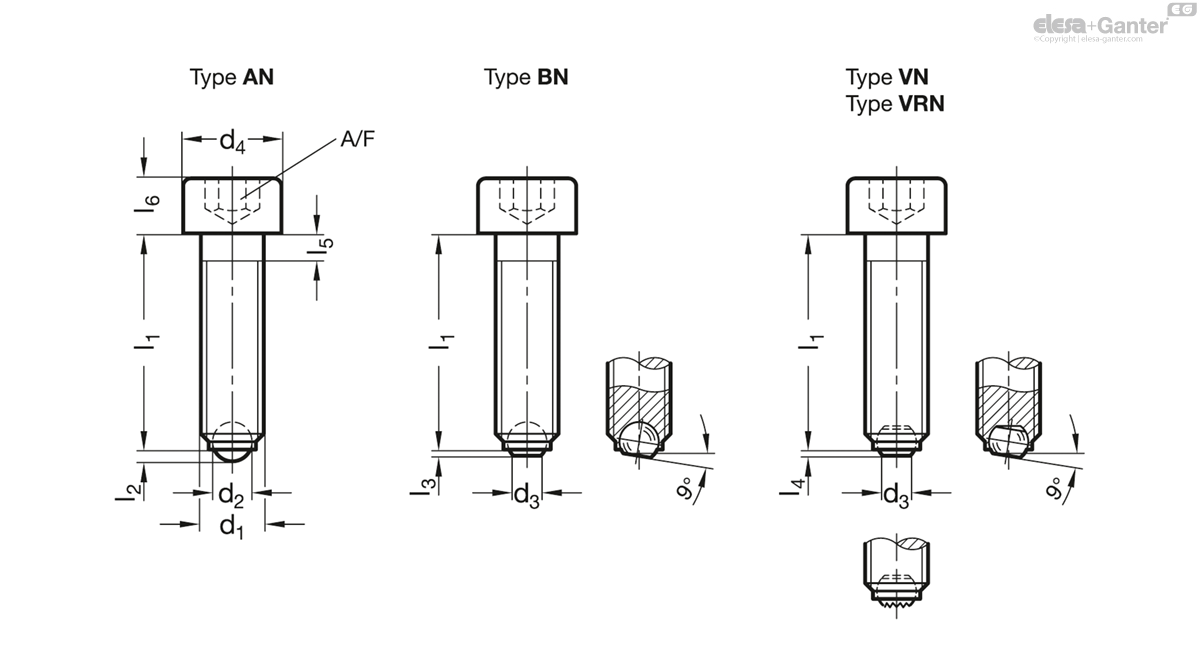

Type A: full ball

Type B: flat ball

Type V: flat ball, with swivel limiting stop

Type VR: flat ball, with swivel limiting stop, corrugated

Steel

Tensile strength class 12.9

blackened

Ball

hardened

blank

Version in Stainless Steel

Types

Type AN: full ball

Type BN: flat ball

Type VN: flat ball, with swivel limiting stop

Type VRN: flat ball, with swivel limiting stop, corrugated

Screw

Stainless Steel AISI 304

Ball

Stainless Steel AISI 440C

hardened

Information

Ball point screws GN 606 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.

The flat faced moving ball (Type B / Type BN) allows a clamping or supporting of non parallel surfaces.

The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.

On request

Ball point screws with (full) plastic ball (Type AK)

Technical information

Stainless Steel characteristics

Strength values of screws

GN 606-NI

	d₁	l₁	d₂	d₃	d₄	l₂ ≈	l₃ ≈	l₄ ≈	l₅	l₆	A/F	Static load in N
Code														Actions
GN 606-M4-10-AN	M 4	10	2.5	-	7	0.8	-	-	2.1	4	3	2040	2
GN 606-M4-10-BN	M 4	10	-	2	7	-	0.2	-	2.1	4	3	2040	2
GN 606-M4-12-AN	M 4	12	2.5	-	7	0.8	-	-	2.1	4	3	2040	2
GN 606-M4-12-BN	M 4	12	-	2	7	-	0.2	-	2.1	4	3	2040	2
GN 606-M4-16-AN	M 4	16	2.5	-	7	0.8	-	-	2.1	4	3	2040	2
GN 606-M4-16-BN	M 4	16	-	2	7	-	0.2	-	2.1	4	3	2040	2
GN 606-M4-20-AN	M 4	20	2.5	-	7	0.8	-	-	2.1	4	3	2040	2
GN 606-M4-20-BN	M 4	20	-	2	7	-	0.2	-	2.1	4	3	2040	2
GN 606-M4-25-AN	M 4	25	2.5	-	7	0.8	-	-	2.1	4	3	2040	3
GN 606-M4-25-BN	M 4	25	-	2	7	-	0.2	-	2.1	4	3	2040	3
GN 606-M5-12-AN	M 5	12	3	-	8.5	1	-	-	2.4	5	4	3000	3
GN 606-M5-12-BN	M 5	12	-	2.5	8.5	-	0.4	-	2.4	5	4	3000	3
GN 606-M5-16-AN	M 5	16	3	-	8.5	1	-	-	2.4	5	4	3000	3
GN 606-M5-16-BN	M 5	16	-	2.5	8.5	-	0.4	-	2.4	5	4	3000	3
GN 606-M5-20-AN	M 5	20	3	-	8.5	1	-	-	2.4	5	4	3000	4
GN 606-M5-20-BN	M 5	20	-	2.5	8.5	-	0.4	-	2.4	5	4	3000	4
GN 606-M5-25-AN	M 5	25	3	-	8.5	1	-	-	2.4	5	4	3000	4
GN 606-M5-25-BN	M 5	25	-	2.5	8.5	-	0.4	-	2.4	5	4	3000	4
GN 606-M5-30-AN	M 5	30	3	-	8.5	1	-	-	2.4	5	4	3000	5
GN 606-M5-30-BN	M 5	30	-	2.5	8.5	-	0.4	-	2.4	5	4	3000	5
GN 606-M6-16-AN	M 6	16	4	-	10	1.3	-	-	3	6	5	4500	6
GN 606-M6-16-BN	M 6	16	-	3.2	10	-	0.6	-	3	6	5	4500	6
GN 606-M6-16-VN	M 6	16	-	3.2	10	-	-	0.45	3	6	5	-	6
GN 606-M6-16-VRN	M 6	16	-	3.2	10	-	-	0.45	3	6	5	-	6
GN 606-M6-20-AN	M 6	20	4	-	10	1.3	-	-	3	6	5	4500	7
GN 606-M6-20-BN	M 6	20	-	3.2	10	-	0.6	-	3	6	5	4500	7
GN 606-M6-20-VN	M 6	20	-	3.2	10	-	-	0.45	3	6	5	-	7
GN 606-M6-20-VRN	M 6	20	-	3.2	10	-	-	0.45	3	6	5	-	7
GN 606-M6-25-AN	M 6	25	4	-	10	1.3	-	-	3	6	5	4500	8
GN 606-M6-25-BN	M 6	25	-	3.2	10	-	0.6	-	3	6	5	4500	8
GN 606-M6-25-VN	M 6	25	-	3.2	10	-	-	0.45	3	6	5	-	8
GN 606-M6-25-VRN	M 6	25	-	3.2	10	-	-	0.45	3	6	5	-	8
GN 606-M6-30-AN	M 6	30	4	-	10	1.3	-	-	3	6	5	4500	9
GN 606-M6-30-BN	M 6	30	-	3.2	10	-	0.6	-	3	6	5	4500	9
GN 606-M6-30-VN	M 6	30	-	3.2	10	-	-	0.45	3	6	5	-	9
GN 606-M6-30-VRN	M 6	30	-	3.2	10	-	-	0.45	3	6	5	-	9
GN 606-M6-40-AN	M 6	40	4	-	10	1.3	-	-	3	6	5	4500	11
GN 606-M6-40-BN	M 6	40	-	3.2	10	-	0.6	-	3	6	5	4500	11
GN 606-M6-40-VN	M 6	40	-	3.2	10	-	-	0.45	3	6	5	-	11
GN 606-M6-40-VRN	M 6	40	-	3.2	10	-	-	0.45	3	6	5	-	11
GN 606-M8-20-AN	M 8	20	5.5	-	13	1.8	-	-	3.5	8	6	9000	14
GN 606-M8-20-BN	M 8	20	-	4.5	13	-	0.8	-	3.5	8	6	9000	10
GN 606-M8-20-VN	M 8	20	-	4.5	13	-	-	0.5	3.5	8	6	-	13
GN 606-M8-20-VRN	M 8	20	-	4.2	13	-	-	0.5	3.5	8	6	-	13
GN 606-M8-30-AN	M 8	30	5.5	-	13	1.8	-	-	3.5	8	6	9000	20
GN 606-M8-30-BN	M 8	30	-	4.5	13	-	0.8	-	3.5	8	6	9000	15
GN 606-M8-30-VN	M 8	30	-	4.5	13	-	-	0.5	3.5	8	6	-	20
GN 606-M8-30-VRN	M 8	30	-	4.2	13	-	-	0.5	3.5	8	6	-	20
GN 606-M8-35-AN	M 8	35	5.5	-	13	1.8	-	-	3.5	8	6	9000	19
GN 606-M8-35-BN	M 8	35	-	4.5	13	-	0.8	-	3.5	8	6	9000	17
GN 606-M8-35-VN	M 8	35	-	4.5	13	-	-	0.5	3.5	8	6	-	17
GN 606-M8-35-VRN	M 8	35	-	4.2	13	-	-	0.5	3.5	8	6	-	17
GN 606-M8-40-AN	M 8	40	5.5	-	13	1.8	-	-	3.5	8	6	9000	19
GN 606-M8-40-BN	M 8	40	-	4.5	13	-	0.8	-	3.5	8	6	9000	18
GN 606-M8-40-VN	M 8	40	-	4.5	13	-	-	0.5	3.5	8	6	-	19
GN 606-M8-40-VRN	M 8	40	-	4.2	13	-	-	0.5	3.5	8	6	-	200
GN 606-M8-50-AN	M 8	50	5.5	-	13	1.8	-	-	3.5	8	6	9000	25
GN 606-M8-50-BN	M 8	50	-	4.5	13	-	0.8	-	3.5	8	6	9000	23
GN 606-M8-50-VN	M 8	50	-	4.5	13	-	-	0.5	3.5	8	6	-	23
GN 606-M8-50-VRN	M 8	50	-	4.2	13	-	-	0.5	3.5	8	6	-	23
GN 606-M10-25-AN	M 10	25	7	-	16	1.8	-	-	4.5	10	8	14400	26
GN 606-M10-25-BN	M 10	25	-	6	16	-	0.8	-	4.5	10	8	14400	25
GN 606-M10-25-VN	M 10	25	-	6	16	-	-	0.6	4.5	10	8	-	25
GN 606-M10-25-VRN	M 10	25	-	5.7	16	-	-	0.6	4.5	10	8	-	25
GN 606-M10-30-AN	M 10	30	7	-	16	2.3	-	-	4.5	10	8	14400	27
GN 606-M10-30-BN	M 10	30	-	6	16	-	0.8	-	4.5	10	8	14400	20
GN 606-M10-30-VN	M 10	30	-	6	16	-	-	0.6	4.5	10	8	-	26
GN 606-M10-30-VRN	M 10	30	-	5.7	16	-	-	0.6	4.5	10	8	-	298
GN 606-M10-40-AN	M 10	40	7	-	16	2.3	-	-	4.5	10	8	14400	32
GN 606-M10-40-BN	M 10	40	-	6	16	-	0.8	-	4.5	10	8	14400	31
GN 606-M10-40-VN	M 10	40	-	6	16	-	-	0.6	4.5	10	8	-	31
GN 606-M10-40-VRN	M 10	40	-	5.7	16	-	-	0.6	4.5	10	8	-	31
GN 606-M10-50-AN	M 10	50	7	-	16	2.3	-	-	4.5	10	8	14400	40
GN 606-M10-50-BN	M 10	50	-	6	16	-	0.8	-	4.5	10	8	14400	37
GN 606-M10-50-VN	M 10	50	-	6	16	-	-	0.6	4.5	10	8	-	37
GN 606-M10-50-VRN	M 10	50	-	5.7	16	-	-	0.6	4.5	10	8	-	40
GN 606-M10-60-AN	M 10	60	7	-	16	2.3	-	-	4.5	10	8	14400	47
GN 606-M10-60-BN	M 10	60	-	6	16	-	0.8	-	4.5	10	8	14400	44
GN 606-M10-60-VN	M 10	60	-	6	16	-	-	0.6	4.5	10	8	-	44
GN 606-M10-60-VRN	M 10	60	-	5.7	16	-	-	0.6	4.5	10	8	-	44
GN 606-M12-30-AN	M 12	30	8.5	-	18	2.8	-	-	5	12	10	18000	40
GN 606-M12-30-BN	M 12	30	-	7.2	18	-	-	-	5	12	10	18000	38
GN 606-M12-30-VN	M 12	30	-	7.2	18	-	-	0.75	5	12	10	-	38
GN 606-M12-30-VRN	M 12	30	-	7.2	18	-	-	0.75	5	12	10	-	38
GN 606-M12-50-AN	M 12	50	8.5	-	18	2.8	-	-	5	12	10	18000	56
GN 606-M12-50-BN	M 12	50	-	7.2	18	-	-	-	5	12	10	18000	54
GN 606-M12-50-VN	M 12	50	-	7.2	18	-	-	0.75	5	12	10	-	54
GN 606-M12-50-VRN	M 12	50	-	7.2	18	-	-	0.75	5	12	10	-	54
GN 606-M12-80-AN	M 12	80	8.5	-	18	2.8	-	-	5	12	10	18000	83
GN 606-M12-80-BN	M 12	80	-	7.2	18	-	-	-	5	12	10	18000	80
GN 606-M12-80-VN	M 12	80	-	7.2	18	-	-	0.75	5	12	10	-	80
GN 606-M12-80-VRN	M 12	80	-	7.2	18	-	-	0.75	5	12	10	-	80
GN 606-M16-40-AN	M 16	40	12	-	24	4.3	-	-	6	16	14	43800	91
GN 606-M16-40-BN	M 16	40	-	10.7	24	-	-	-	6	16	14	43800	92
GN 606-M16-40-VN	M 16	40	-	10.7	24	-	-	1	6	16	14	-	92
GN 606-M16-40-VRN	M 16	40	-	10.7	24	-	-	1	6	16	14	-	92
GN 606-M16-60-AN	M 16	60	12	-	24	4.3	-	-	6	16	14	43800	119
GN 606-M16-60-BN	M 16	60	-	10.7	24	-	-	-	6	16	14	43800	123
GN 606-M16-60-VN	M 16	60	-	10.7	24	-	-	1	6	16	14	-	123
GN 606-M16-60-VRN	M 16	60	-	10.7	24	-	-	1	6	16	14	-	123
GN 606-M16-80-AN	M 16	80	12	-	24	4.3	-	-	6	16	14	43800	154
GN 606-M16-80-BN	M 16	80	-	10.7	24	-	-	-	6	16	14	43800	151
GN 606-M16-80-VN	M 16	80	-	10.7	24	-	-	1	6	16	14	-	153
GN 606-M16-80-VRN	M 16	80	-	10.7	24	-	-	1	6	16	14	-	151
