GN 606

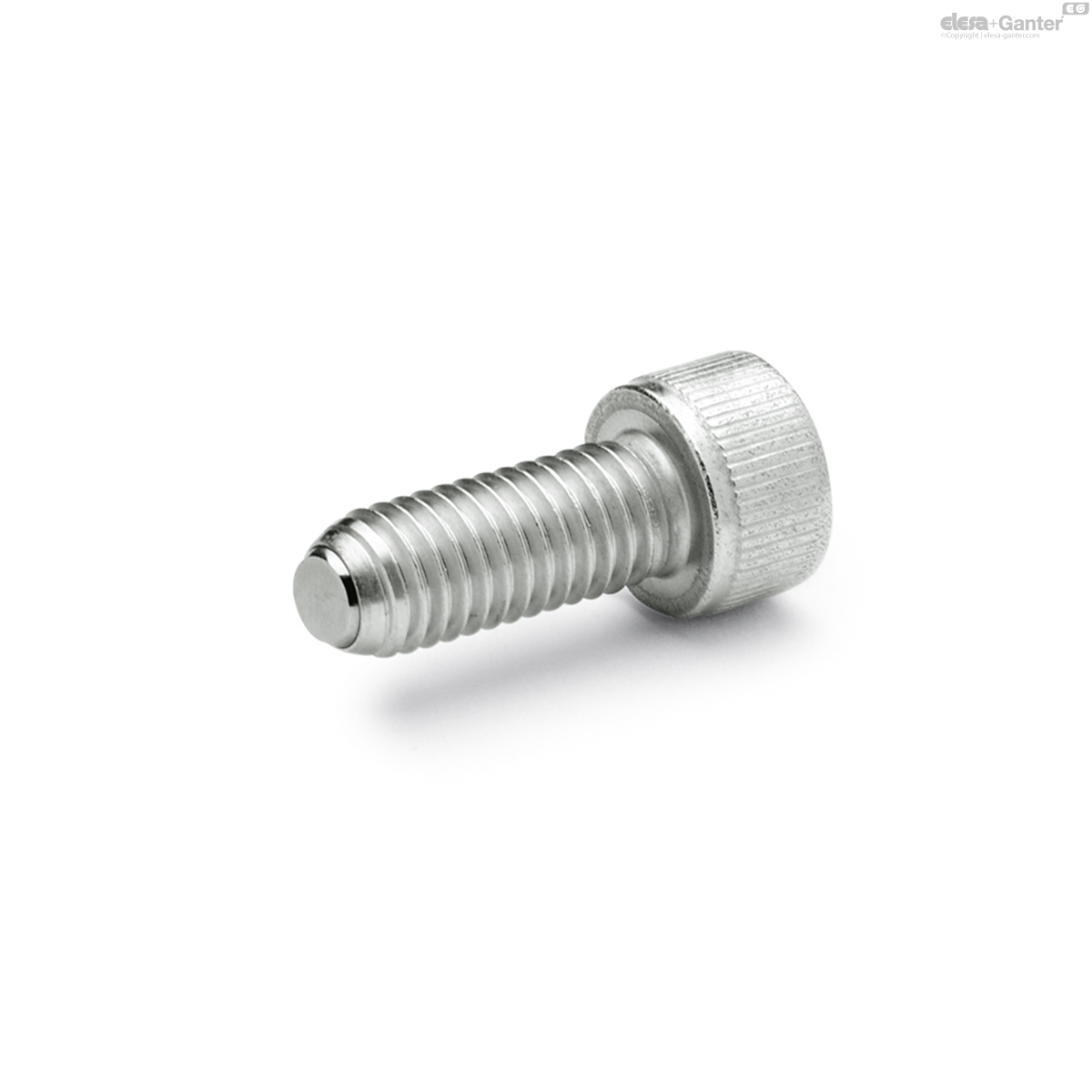

Ball point screws

Steel / Stainless Steel

Enquire Now

Description

Specification

Version in Steel

Types

Type A: full ball

Type B: flat ball

Type V: flat ball, with swivel limiting stop

Type VR: flat ball, with swivel limiting stop, corrugated

Steel

Tensile strength class 12.9

blackened

Ball

hardened

blank

Version in Stainless Steel

Types

Type AN: full ball

Type BN: flat ball

Type VN: flat ball, with swivel limiting stop

Type VRN: flat ball, with swivel limiting stop, corrugated

Screw

Stainless Steel AISI 304

Ball

Stainless Steel AISI 440C

hardened

Information

Ball point screws GN 606 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.

The flat faced moving ball (Type B / Type BN) allows a clamping or supporting of non parallel surfaces.

The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.

On request

Ball point screws with (full) plastic ball (Type AK)

Technical information

Stainless Steel characteristics

Strength values of screws

GN 606

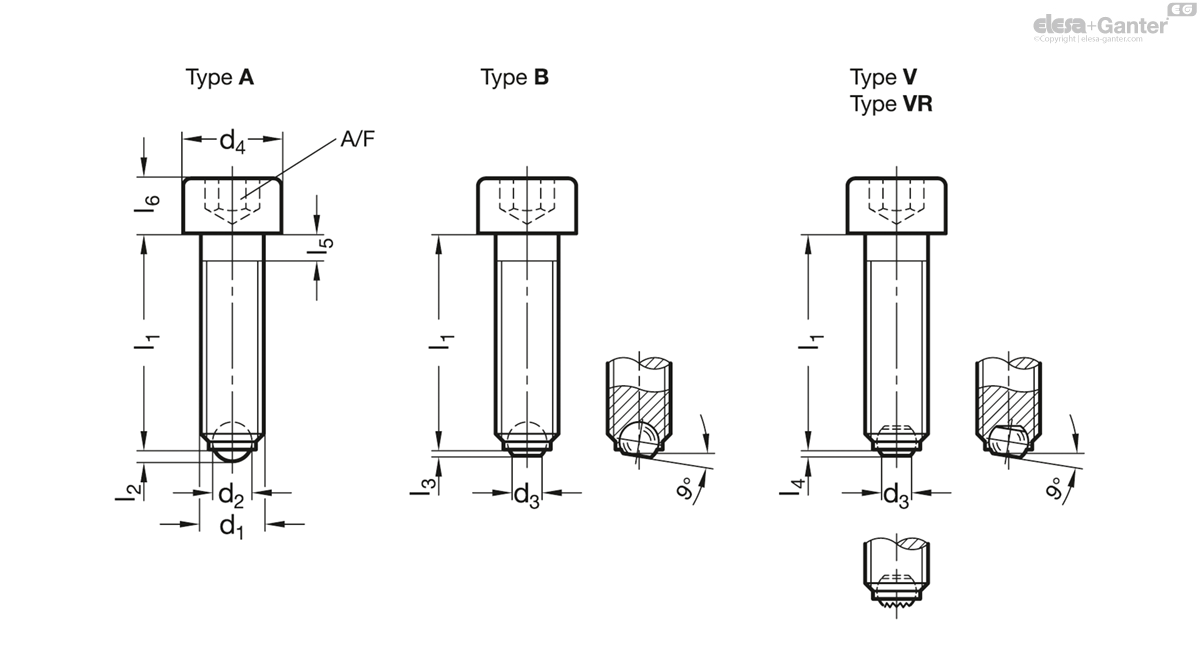

	d₁	l₁	d₂	d₃	d₄	l₂ ≈	l₃ ≈	l₄ ≈	l₅	l₆	A/F	Static load in N
Code														Actions
GN 606-M4-10-A	M 4	10	2.5	-	7	0.8	-	-	2.1	4	3	3500	2
GN 606-M4-10-B	M 4	10	-	2	7	-	0.2	-	2.1	4	3	3500	2
GN 606-M4-12-A	M 4	12	2.5	-	7	0.8	-	-	2.1	4	3	3500	2
GN 606-M4-12-B	M 4	12	-	2	7	-	0.2	-	2.1	4	3	3500	2
GN 606-M4-16-A	M 4	16	2.5	-	7	0.8	-	-	2.1	4	3	3500	2
GN 606-M4-16-B	M 4	16	-	2	7	-	0.2	-	2.1	4	3	3500	2
GN 606-M4-20-A	M 4	20	2.5	-	7	0.8	-	-	2.1	4	3	3500	2
GN 606-M4-20-B	M 4	20	-	2	7	-	0.2	-	2.1	4	3	3500	2
GN 606-M4-25-A	M 4	25	2.5	-	7	0.8	-	-	2.1	4	3	3500	3
GN 606-M4-25-B	M 4	25	-	2	7	-	0.2	-	2.1	4	3	3500	3
GN 606-M5-12-A	M 5	12	3	-	8.5	1	-	-	2.4	5	4	5000	3
GN 606-M5-12-B	M 5	12	-	2.5	8.5	-	0.4	-	2.4	5	4	5000	3
GN 606-M5-16-A	M 5	16	3	-	8.5	1	-	-	2.4	5	4	5000	3
GN 606-M5-16-B	M 5	16	-	2.5	8.5	-	0.4	-	2.4	5	4	5000	3
GN 606-M5-20-A	M 5	20	3	-	8.5	1	-	-	2.4	5	4	5000	4
GN 606-M5-20-B	M 5	20	-	2.5	8.5	-	0.4	-	2.4	5	4	5000	4
GN 606-M5-25-A	M 5	25	3	-	8.5	1	-	-	2.4	5	4	5000	4
GN 606-M5-25-B	M 5	25	-	2.5	8.5	-	0.4	-	2.4	5	4	5000	4
GN 606-M5-30-A	M 5	30	3	-	8.5	1	-	-	2.4	5	4	5000	5
GN 606-M5-30-B	M 5	30	-	2.5	8.5	-	0.4	-	2.4	5	4	5000	5
GN 606-M6-16-A	M 6	16	4	-	10	1.3	-	-	3	6	5	9000	6
GN 606-M6-16-B	M 6	16	-	3.2	10	-	0.6	-	3	6	5	9000	6
GN 606-M6-16-V	M 6	16	-	3.2	10	-	-	0.45	3	6	5	-	6
GN 606-M6-16-VR	M 6	16	-	3.2	10	-	-	0.45	3	6	5	-	6
GN 606-M6-20-A	M 6	20	4	-	10	1.3	-	-	3	6	5	9000	7
GN 606-M6-20-B	M 6	20	-	3.2	10	-	0.6	-	3	6	5	9000	2
GN 606-M6-20-V	M 6	20	-	3.2	10	-	-	0.45	3	6	5	-	7
GN 606-M6-20-VR	M 6	20	-	3.2	10	-	-	0.45	3	6	5	-	7
GN 606-M6-25-A	M 6	25	4	-	10	1.3	-	-	3	6	5	9000	8
GN 606-M6-25-B	M 6	25	-	3.2	10	-	0.6	-	3	6	5	9000	8
GN 606-M6-25-V	M 6	25	-	3.2	10	-	-	0.45	3	6	5	-	8
GN 606-M6-25-VR	M 6	25	-	3.2	10	-	-	0.45	3	6	5	-	8
GN 606-M6-30-A	M 6	30	4	-	10	1.3	-	-	3	6	5	9000	8
GN 606-M6-30-B	M 6	30	-	3.2	10	-	0.6	-	3	6	5	9000	9
GN 606-M6-30-V	M 6	30	-	3.2	10	-	-	0.45	3	6	5	-	9
GN 606-M6-30-VR	M 6	30	-	3.2	10	-	-	0.45	3	6	5	-	9
GN 606-M6-40-A	M 6	40	4	-	10	1.3	-	-	3	6	5	9000	11
GN 606-M6-40-B	M 6	40	-	3.2	10	-	0.6	-	3	6	5	9000	11
GN 606-M6-40-V	M 6	40	-	3.2	10	-	-	0.45	3	6	5	-	11
GN 606-M6-40-VR	M 6	40	-	3.2	10	-	-	0.45	3	6	5	-	11
GN 606-M8-20-A	M 8	20	5.5	-	13	1.8	-	-	3.5	8	6	15000	14
GN 606-M8-20-B	M 8	20	-	4.5	13	-	0.8	-	3.5	8	6	15000	14
GN 606-M8-20-V	M 8	20	-	4.5	13	-	-	0.5	3.5	8	6	-	13
GN 606-M8-20-VR	M 8	20	-	4.5	13	-	-	0.5	3.5	8	6	-	13
GN 606-M8-30-A	M 8	30	5.5	-	13	1.8	-	-	3.5	8	6	15000	15
GN 606-M8-30-B	M 8	30	-	4.5	13	-	0.8	-	3.5	8	6	15000	11
GN 606-M8-30-V	M 8	30	-	4.5	13	-	-	0.5	3.5	8	6	-	15
GN 606-M8-30-VR	M 8	30	-	4.5	13	-	-	0.5	3.5	8	6	-	15
GN 606-M8-35-A	M 8	35	5.5	-	13	1.8	-	-	3.5	8	6	15000	19
GN 606-M8-35-B	M 8	35	-	4.5	13	-	0.8	-	3.5	8	6	15000	19
GN 606-M8-35-V	M 8	35	-	4.5	13	-	-	0.5	3.5	8	6	-	17
GN 606-M8-35-VR	M 8	35	-	4.5	13	-	-	0.5	3.5	8	6	-	17
GN 606-M8-40-A	M 8	40	5.5	-	13	1.8	-	-	3.5	8	6	15000	19
GN 606-M8-40-B	M 8	40	-	4.5	13	-	0.8	-	3.5	8	6	15000	19
GN 606-M8-40-V	M 8	40	-	4.5	13	-	-	0.5	3.5	8	6	-	19
GN 606-M8-40-VR	M 8	40	-	4.5	13	-	-	0.5	3.5	8	6	-	19
GN 606-M8-50-A	M 8	50	5.5	-	13	1.8	-	-	3.5	8	6	15000	25
GN 606-M8-50-B	M 8	50	-	4.5	13	-	0.8	-	3.5	8	6	15000	25
GN 606-M8-50-V	M 8	50	-	4.5	13	-	-	0.5	3.5	8	6	-	23
GN 606-M8-50-VR	M 8	50	-	4.5	13	-	-	0.5	3.5	8	6	-	23
GN 606-M10-25-A	M 10	25	7	-	16	2.3	-	-	4.5	10	8	24000	26
GN 606-M10-25-B	M 10	25	-	6	16	-	0.8	-	4.5	10	8	24000	26
GN 606-M10-25-V	M 10	25	-	6	16	-	-	0.6	4.5	10	8	-	25
GN 606-M10-25-VR	M 10	25	-	6	16	-	-	0.6	4.5	10	8	-	25
GN 606-M10-30-A	M 10	30	7	-	16	2.3	-	-	4.5	10	8	24000	26
GN 606-M10-30-B	M 10	30	-	6	16	-	0.8	-	4.5	10	8	24000	40
GN 606-M10-30-V	M 10	30	-	6	16	-	-	0.6	4.5	10	8	-	26
GN 606-M10-30-VR	M 10	30	-	6	16	-	-	0.6	4.5	10	8	-	26
GN 606-M10-40-A	M 10	40	7	-	16	2.3	-	-	4.5	10	8	24000	34
GN 606-M10-40-B	M 10	40	-	6	16	-	0.8	-	4.5	10	8	24000	34
GN 606-M10-40-V	M 10	40	-	6	16	-	-	0.6	4.5	10	8	-	31
GN 606-M10-40-VR	M 10	40	-	6	16	-	-	0.6	4.5	10	8	-	31
GN 606-M10-50-A	M 10	50	7	-	16	2.3	-	-	4.5	10	8	24000	37
GN 606-M10-50-B	M 10	50	-	6	16	-	0.8	-	4.5	10	8	24000	36
GN 606-M10-50-V	M 10	50	-	6	16	-	-	0.6	4.5	10	8	-	38
GN 606-M10-50-VR	M 10	50	-	6	16	-	-	0.6	4.5	10	8	-	37
GN 606-M10-60-A	M 10	60	7	-	16	2.3	-	-	4.5	10	8	24000	45
GN 606-M10-60-B	M 10	60	-	6	16	-	0.8	-	4.5	10	8	24000	47
GN 606-M10-60-V	M 10	60	-	6	16	-	-	0.6	4.5	10	8	-	44
GN 606-M10-60-VR	M 10	60	-	6	16	-	-	0.6	4.5	10	8	-	44
GN 606-M12-30-A	M 12	30	8.5	-	18	2.8	-	-	5	12	10	30000	80
GN 606-M12-30-B	M 12	30	-	7.2	18	-	1	-	5	12	10	30000	40
GN 606-M12-30-V	M 12	30	-	7.2	18	-	-	0.75	5	12	10	-	38
GN 606-M12-30-VR	M 12	30	-	7.2	18	-	-	0.75	5	12	10	-	38
GN 606-M12-50-A	M 12	50	8.5	-	18	2.8	-	-	5	12	10	30000	52
GN 606-M12-50-B	M 12	50	-	7.2	18	-	1	-	5	12	10	30000	56
GN 606-M12-50-V	M 12	50	-	7.2	18	-	-	0.75	5	12	10	-	54
GN 606-M12-50-VR	M 12	50	-	7.2	18	-	-	0.75	5	12	10	-	54
GN 606-M12-80-A	M 12	80	8.5	-	18	2.8	-	-	5	12	10	30000	74
GN 606-M12-80-B	M 12	80	-	7.2	18	-	1	-	5	12	10	30000	70
GN 606-M12-80-V	M 12	80	-	7.2	18	-	-	0.75	5	12	10	-	80
GN 606-M12-80-VR	M 12	80	-	7.2	18	-	-	0.75	5	12	10	-	80
GN 606-M16-40-A	M 16	40	12	-	24	4.3	-	-	6	16	14	73000	91
GN 606-M16-40-B	M 16	40	-	10.7	24	-	1.3	-	6	16	14	73000	91
GN 606-M16-40-V	M 16	40	-	10.7	24	-	-	1	6	16	14	-	92
GN 606-M16-40-VR	M 16	40	-	10.7	24	-	-	1	6	16	14	-	92
GN 606-M16-60-A	M 16	60	12	-	24	4.3	-	-	6	16	14	73000	122
GN 606-M16-60-B	M 16	60	-	10.7	24	-	1.3	-	6	16	14	73000	122
GN 606-M16-60-V	M 16	60	-	10.7	24	-	-	1	6	16	14	-	123
GN 606-M16-60-VR	M 16	60	-	10.7	24	-	-	1	6	16	14	-	123
GN 606-M16-80-A	M 16	80	12	-	24	4.3	-	-	6	16	14	73000	154
GN 606-M16-80-B	M 16	80	-	10.7	24	-	1.3	-	6	16	14	73000	154
GN 606-M16-80-V	M 16	80	-	10.7	24	-	-	1	6	16	14	-	151
GN 606-M16-80-VR	M 16	80	-	10.7	24	-	-	1	6	16	14	-	151
