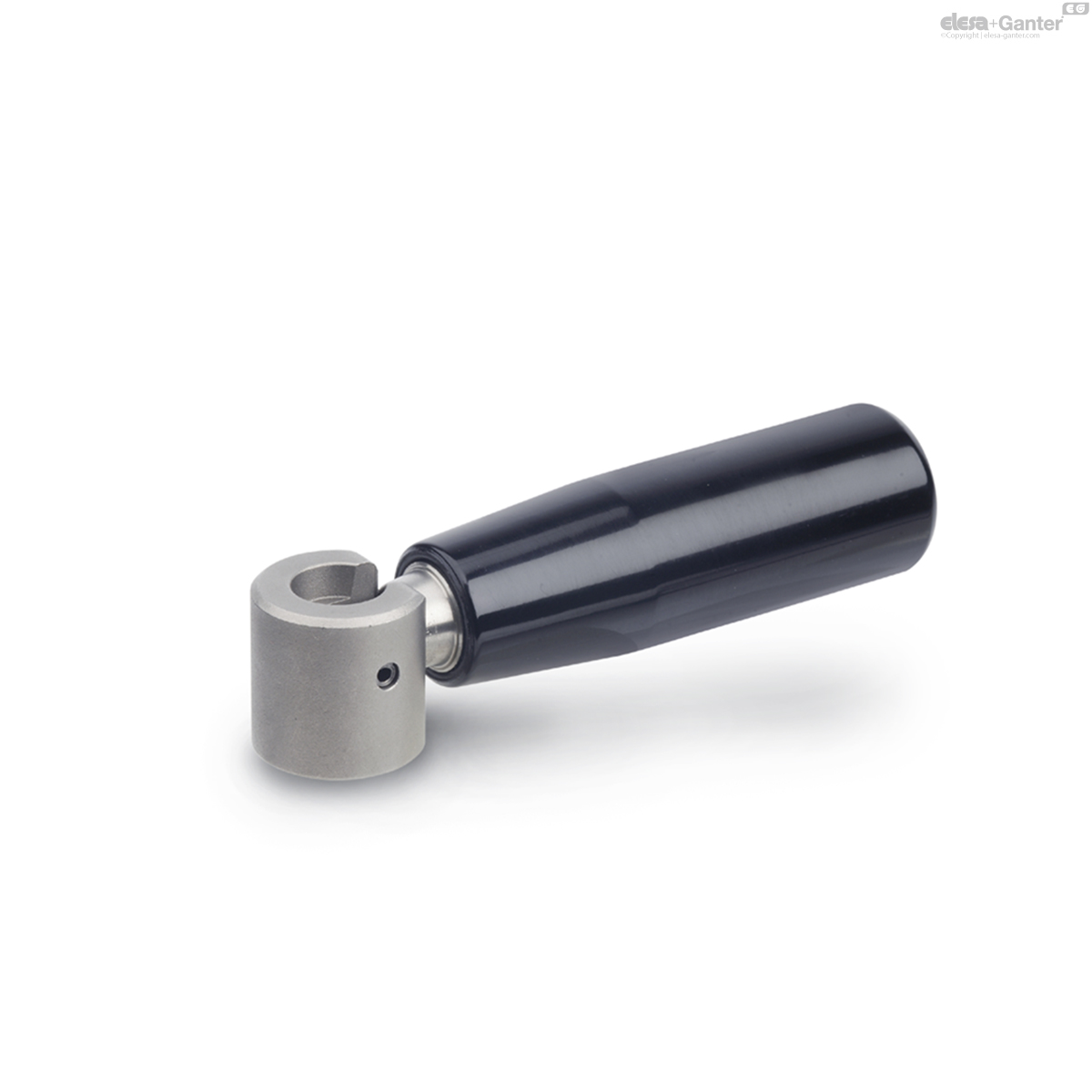

GN 598.5
Retractable Handles
Plastic, Retractable Mechanism Stainless Steel, Locked in Operating Position
Description
Specification
Handle
Plastic, phenolic resin (PF) KU
- Operating temperature up to 110 °C
- Black, shiny finish
- Revolving
Retractable mechanism
Stainless steel
- Spindle, AISI 303
- Flat base, AISI 316LHC
- sintered
Information
Retractable handles GN 598.5 are used when the handle should not protrude temporarily for space or safety reasons.
Technical information
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ

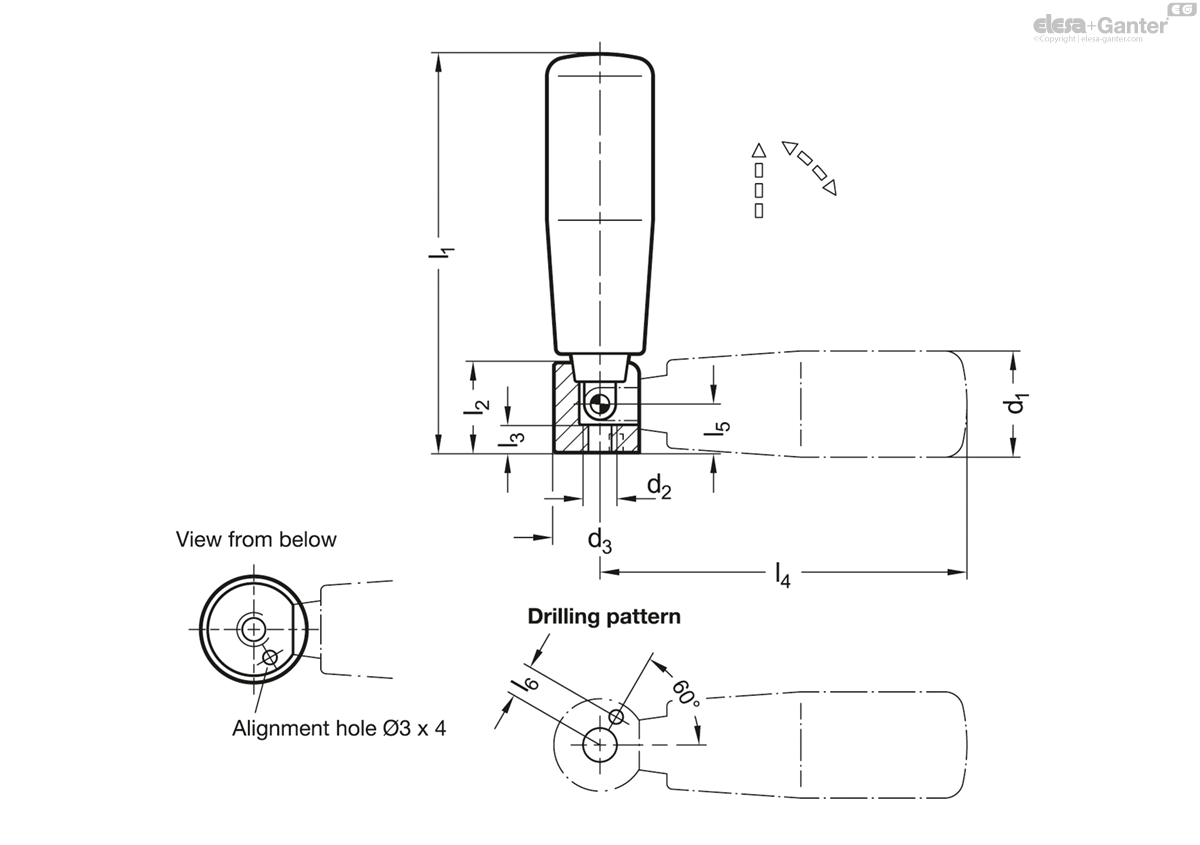

GN 598.5
| d1 | d2 | d3 | l1 ≈ | l2 | l3 | l4 ≈ | l5 | l6 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 598.5-KU-23 | 23 | M 6 | 20 | 87 | 19.5 | 6 | 80 | 10.5 | 7 | 102 |
|
| GN 598.5-KU-26 | 26 | M 6 | 20 | 102 | 19.5 | 6 | 95 | 10.5 | 7 | 134 |
|
| GN 598.5-KU-28 | 28 | M 8 | 26 | 118 | 26 | 10 | 106 | 16 | 10 | 215 |
|
