GN 565.7

Inclined Cabinet U-Handles

Stainless Steel

Enquire Now

Description

Specification

Type

Type A: Mounting from the back (threaded blind bore)

Stainless steel AISI 304

Matte shot-blasted finish MT

Information

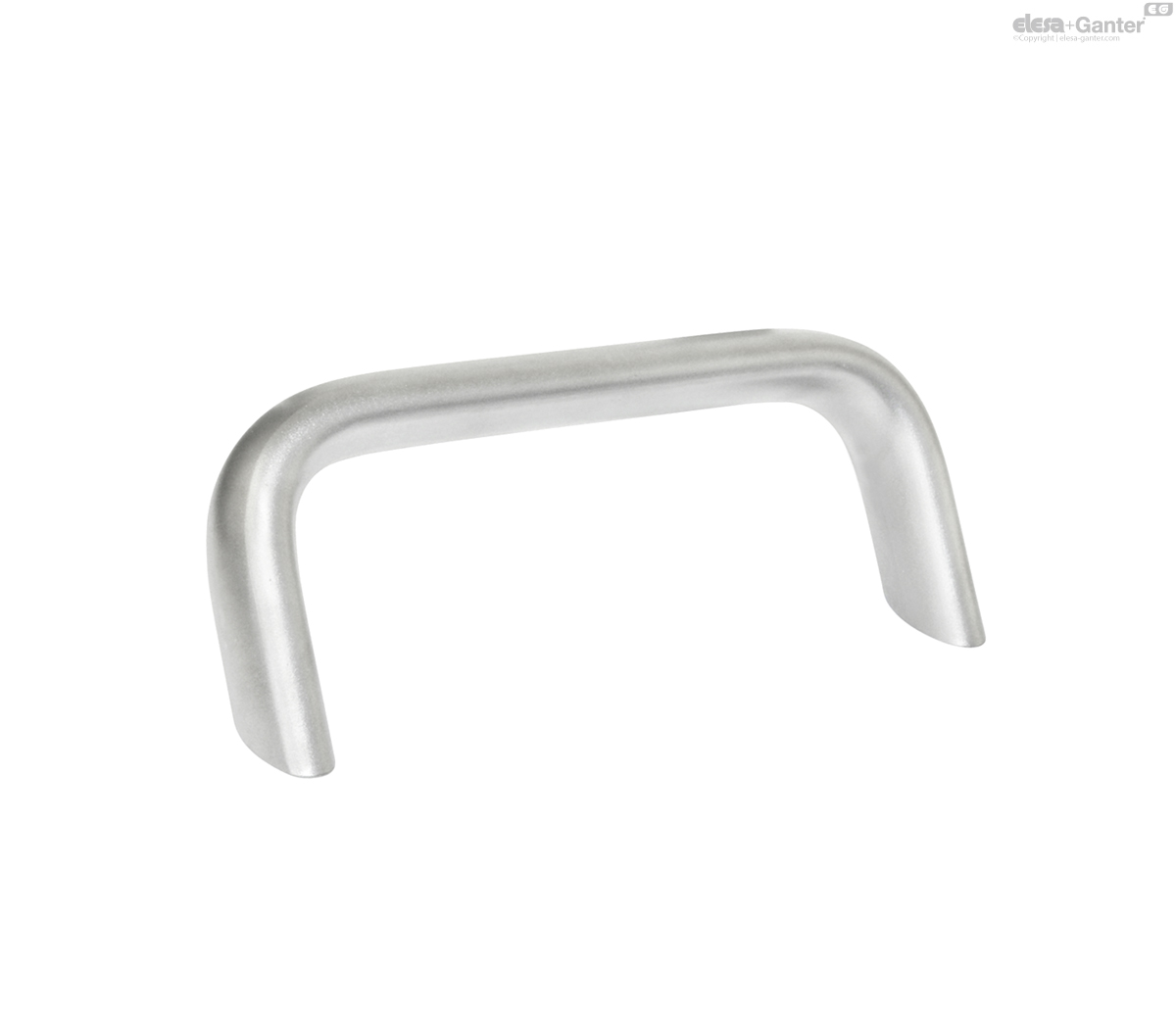

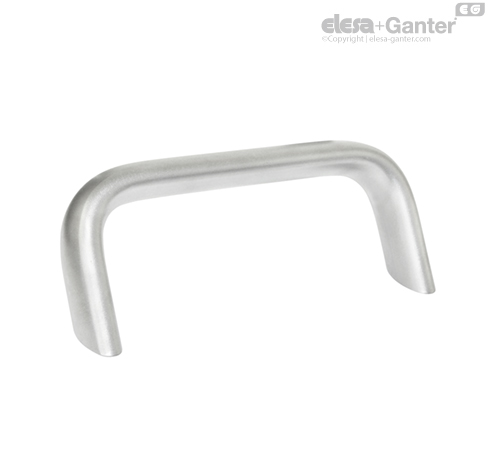

Inclined stainless steel cabinet U-handles GN 565.7 are manufactured from a bent stainless steel profile. Their special features are their rigidity and ergonomical shaping.

The angled contact surface allows improved access even in tight spaces such as corners.

Technical information

Load Rating Information
Stainless Steel Characteristics

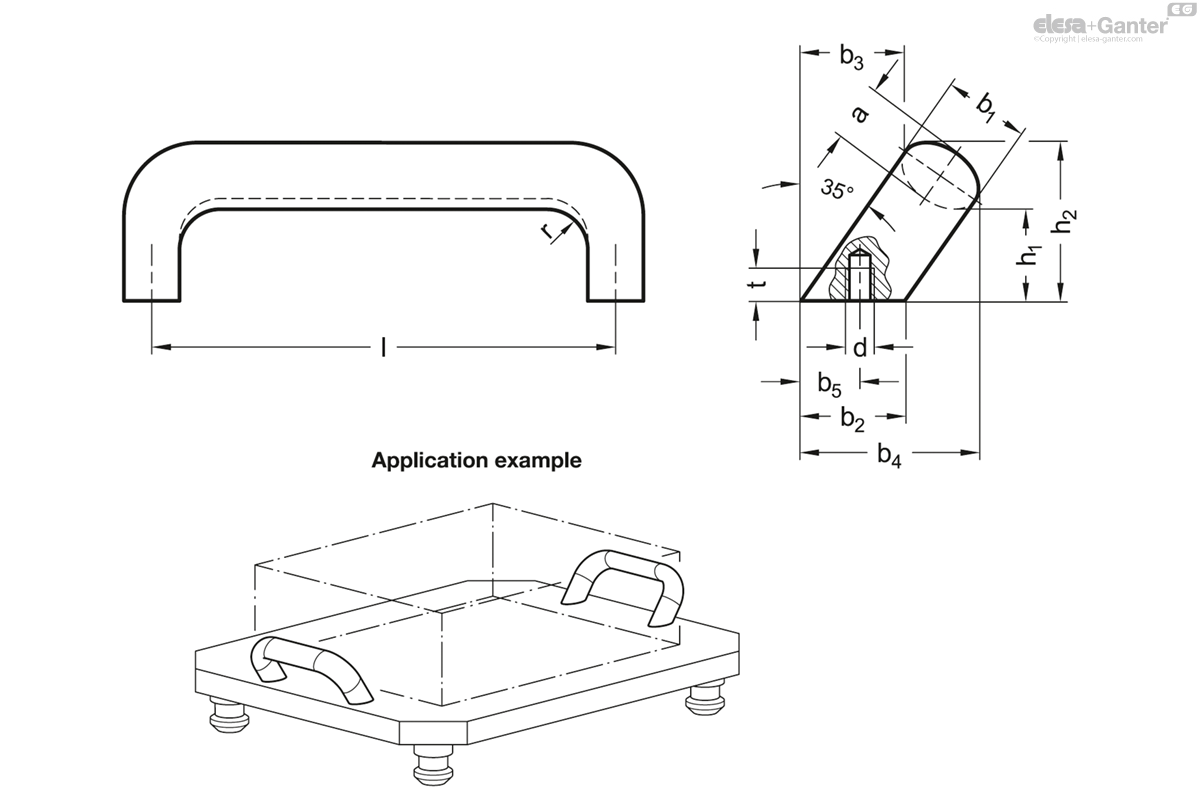

GN 565.7

	b₁	Length l ±0.25	a	b₂	b₃	b₄	b₅ +1	d	h₁	h₂	r	t min.
Code														Actions
GN 565.7-20-112-A-MT	20	112	13	24	32	50	13.5	M 6	32	48	13	10	308
GN 565.7-20-128-A-MT	20	128	13	24	32	50	13.5	M 6	32	48	13	10	340
GN 565.7-26-128-A-MT	26	128	17	32	34	57	18	M 8	34	54	17	12	569
GN 565.7-26-160-A-MT	26	160	17	32	34	57	18	M 8	34	54	17	12	657
