GN 565.5

Cabinet U-Handles

Stainless Steel

Enquire Now

Description

Specification

Information

The special features of cabinet U-handles GN 565.5 are their rigidity and ergonomical shaping.

Cabinet U-handles are manufactured from a bent profile.

Accessory

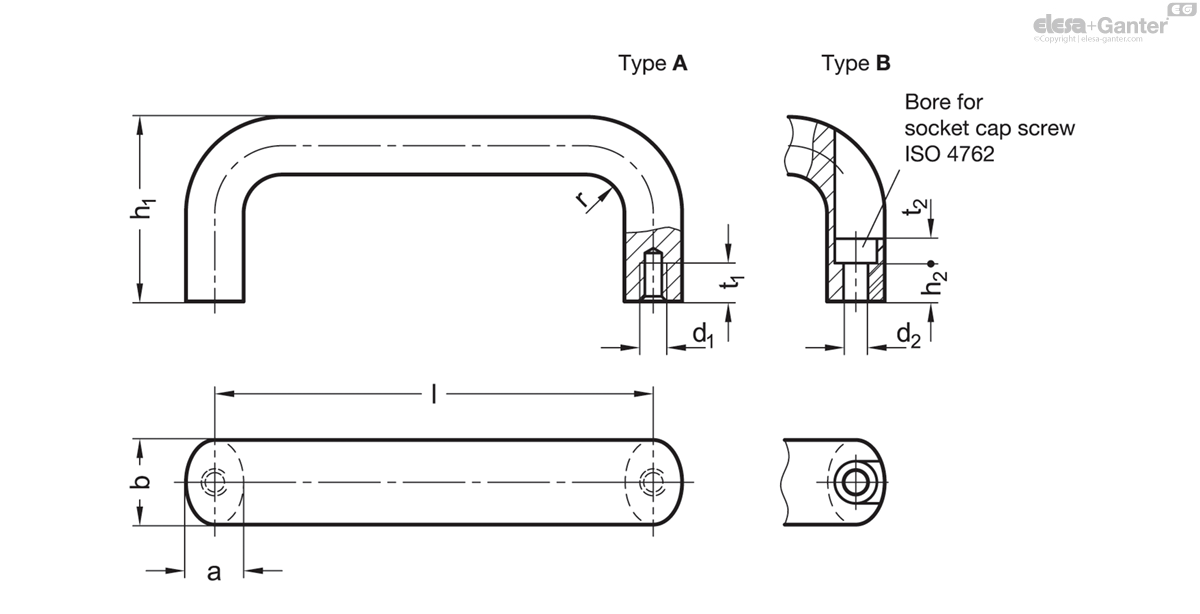

Technical information

	Color	b	Length l	a	d₁	h₁	r	t₁ min.
Code										Actions
GN 565.5-20-112-A-GP	GP - Slip polished, shiny metallic	20	112	13	M 6	49	13	10	273
GN 565.5-20-112-A-GS	GS - Matte shot-blasted	20	112	13	M 6	49	13	10	273
GN 565.5-20-128-A-GP	GP - Slip polished, shiny metallic	20	128	13	M 6	51	13	10	304
GN 565.5-20-128-A-GS	GS - Matte shot-blasted	20	128	13	M 6	51	13	10	304
GN 565.5-20-160-A-GP	GP - Slip polished, shiny metallic	20	160	13	M 6	51	13	10	355
GN 565.5-20-160-A-GS	GS - Matte shot-blasted	20	160	13	M 6	51	13	10	355
GN 565.5-20-200-A-GP	GP - Slip polished, shiny metallic	20	200	13	M 6	51	13	10	418
GN 565.5-20-200-A-GS	GS - Matte shot-blasted	20	200	13	M 6	51	13	10	418
GN 565.5-20-250-A-GS	GS - Matte shot-blasted	20	250	13	M 6	51	13	10	517
GN 565.5-20-300-A-GS	GS - Matte shot-blasted	20	300	13	M 6	51	13	10	600
GN 565.5-20-400-A-GS	GS - Matte shot-blasted	20	400	13	M 6	51	13	10	737
GN 565.5-26-128-A-GP	GP - Slip polished, shiny metallic	26	128	17	M 8	57	19	12	750
GN 565.5-26-128-A-GS	GS - Matte shot-blasted	26	128	17	M 8	57	19	12	750
GN 565.5-26-160-A-GP	GP - Slip polished, shiny metallic	26	160	17	M 8	57	19	12	760
GN 565.5-26-160-A-GS	GS - Matte shot-blasted	26	160	17	M 8	57	19	12	760
GN 565.5-26-200-A-GP	GP - Slip polished, shiny metallic	26	200	17	M 8	57	19	12	770
GN 565.5-26-200-A-GS	GS - Matte shot-blasted	26	200	17	M 8	57	19	12	770
GN 565.5-26-300-A-GS	GS - Matte shot-blasted	26	300	17	M 8	57	19	12	990
GN 565.5-26-400-A-GS	GS - Matte shot-blasted	26	400	17	M 8	57	19	12	1260
GN 565.5-26-500-A-GS	GS - Matte shot-blasted	26	500	17	M 8	57	19	12	1525
