GN 565.4

Arch Handles

Aluminum

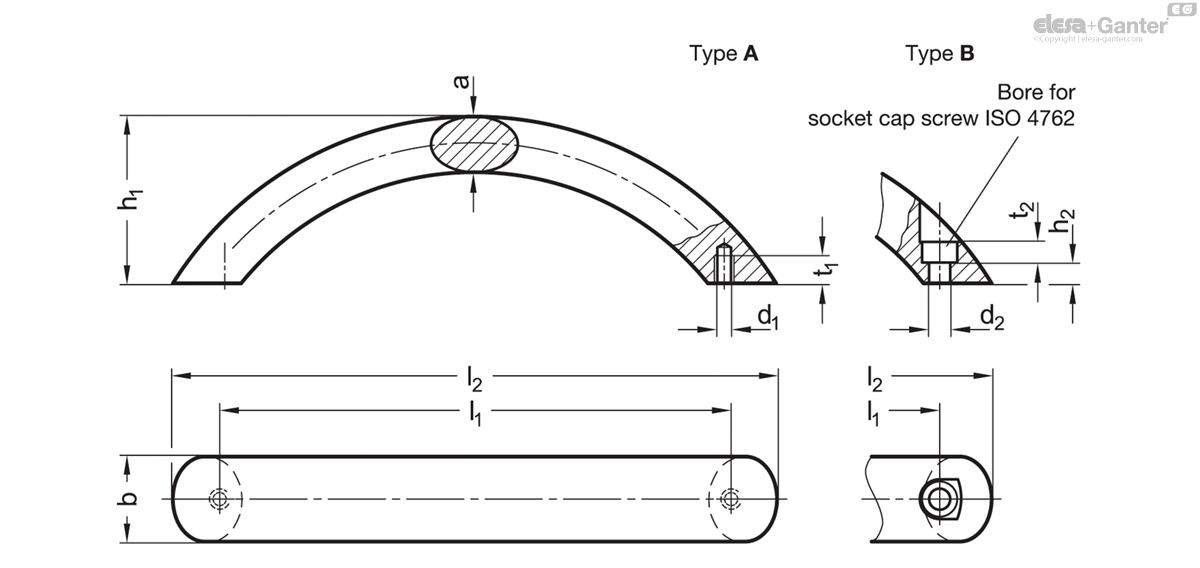

GN 565.4-A

Arch Handles

Mounting from the back (threaded blind bore)

GN 565.4-B

Arch Handles

Mounting from the operator‘s side

GN 565.4-A

	Color	b	l1	a	d1	h1 ≈	l2 ≈	t1 min.
Code	All BL - Plain finish EL - Anodized, natural color RS - RAL 3000 SR - RAL 9006 SW - RAL 9005	All 20 26	All 160 192	All 13 17	All M 6 M 8	All 50 57	All 185 190 221 227	All 8 11	All 106 125 188 215	Actions
GN 565.4-20-160-A-BL	BL - Plain finish	20	160	13	M 6	50	185	8	106

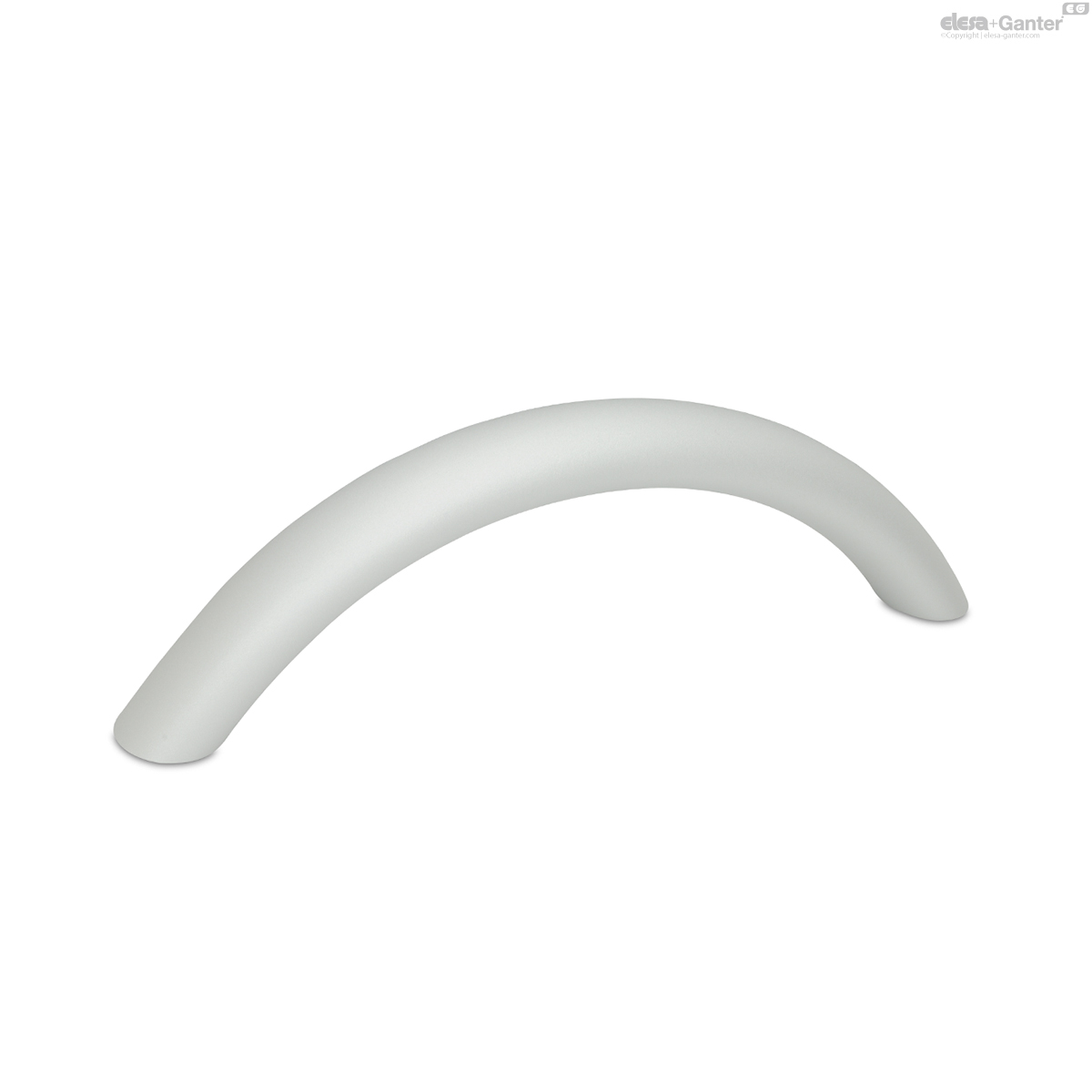

GN 565.4-20-160-A-EL	EL - Anodized, natural color	20	160	13	M 6	50	185	8	106

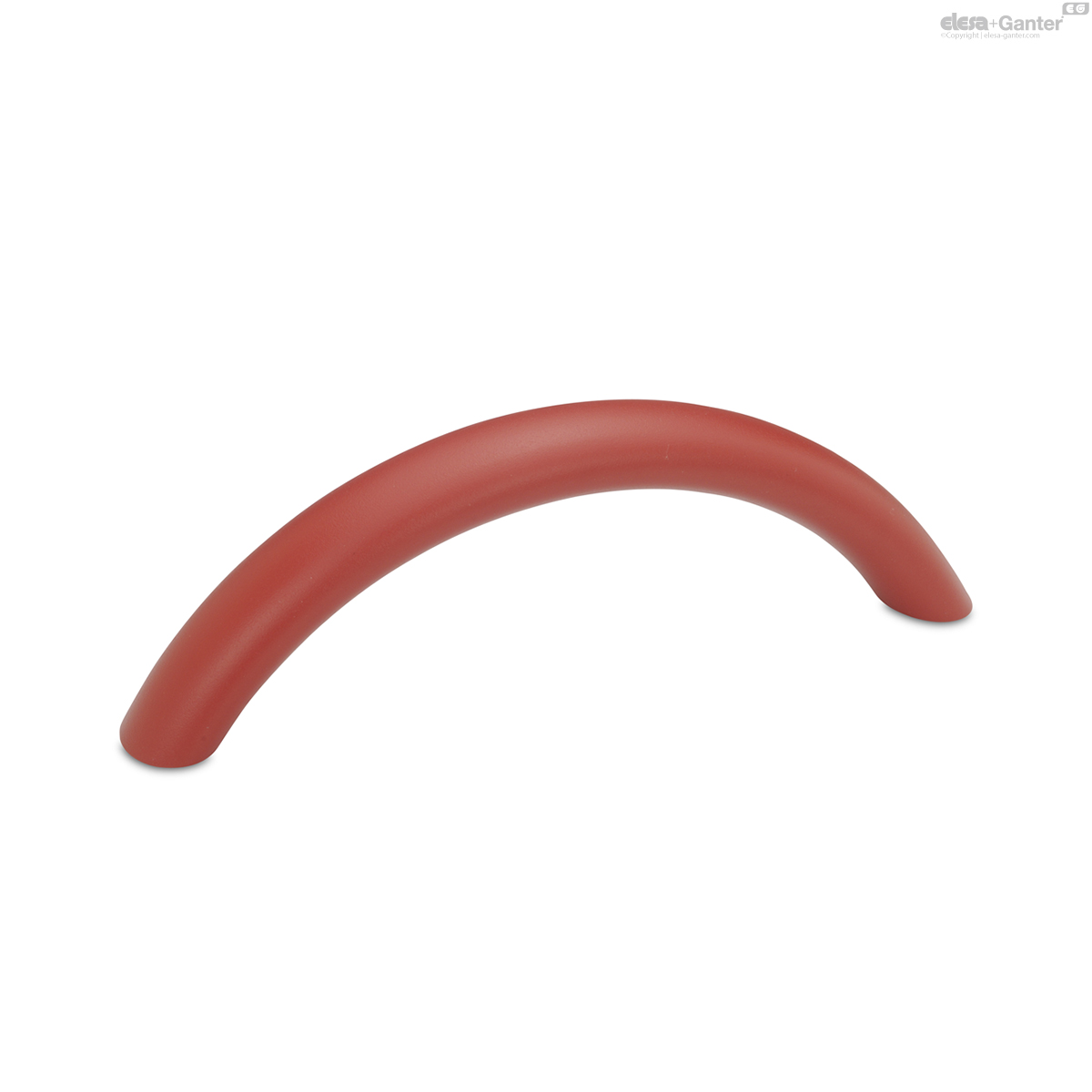

GN 565.4-20-160-A-RS	RS - RAL 3000	20	160	13	M 6	50	185	8	106

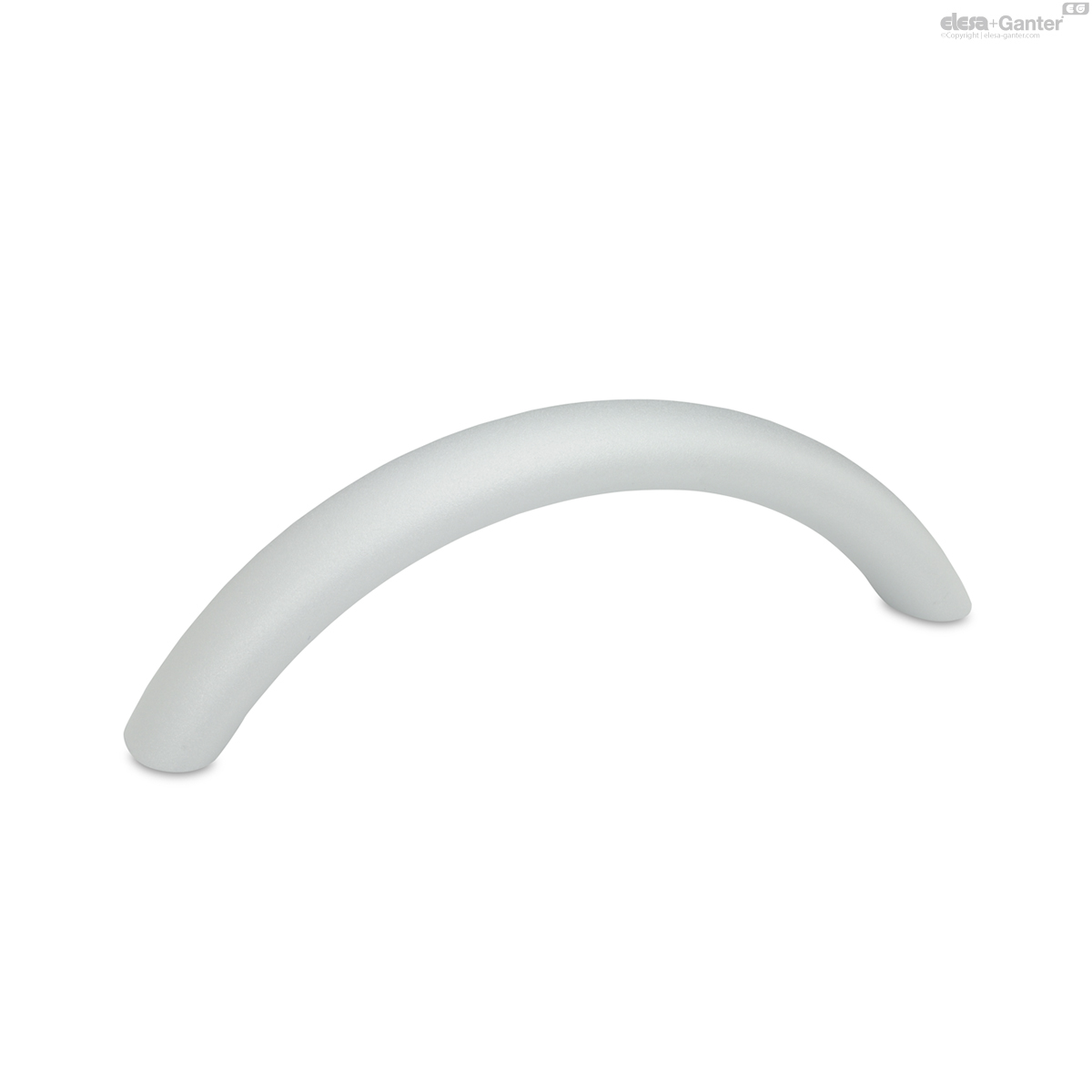

GN 565.4-20-160-A-SR	SR - RAL 9006	20	160	13	M 6	50	185	8	106
GN 565.4-20-160-A-SW	SW - RAL 9005	20	160	13	M 6	50	185	8	106
GN 565.4-20-192-A-BL	BL - Plain finish	20	192	13	M 6	50	221	8	125
GN 565.4-20-192-A-EL	EL - Anodized, natural color	20	192	13	M 6	50	221	8	125
GN 565.4-20-192-A-RS	RS - RAL 3000	20	192	13	M 6	50	221	8	125
GN 565.4-20-192-A-SR	SR - RAL 9006	20	192	13	M 6	50	221	8	125
GN 565.4-20-192-A-SW	SW - RAL 9005	20	192	13	M 6	50	221	8	125
GN 565.4-26-160-A-BL	BL - Plain finish	26	160	17	M 8	57	190	11	188
GN 565.4-26-160-A-EL	EL - Anodized, natural color	26	160	17	M 8	57	190	11	188
GN 565.4-26-160-A-RS	RS - RAL 3000	26	160	17	M 8	57	190	11	188
GN 565.4-26-160-A-SR	SR - RAL 9006	26	160	17	M 8	57	190	11	188
GN 565.4-26-160-A-SW	SW - RAL 9005	26	160	17	M 8	57	190	11	188
GN 565.4-26-192-A-BL	BL - Plain finish	26	192	17	M 8	57	227	11	215
GN 565.4-26-192-A-EL	EL - Anodized, natural color	26	192	17	M 8	57	227	11	215
GN 565.4-26-192-A-RS	RS - RAL 3000	26	192	17	M 8	57	227	11	215
GN 565.4-26-192-A-SR	SR - RAL 9006	26	192	17	M 8	57	227	11	215
GN 565.4-26-192-A-SW	SW - RAL 9005	26	192	17	M 8	57	227	11	215

•
