GN 565.3

Cabinet U-Handles

Aluminum

Enquire Now

GN 565.3-A

Cabinet U-Handles

Mounting from the back (threaded blind bore)

GN 565.3-B

Cabinet U-Handles

Mounting from the operator‘s side

Description

Specification

Types

Type A: Mounting from the back (threaded blind bore)
Type B: Mounting from the operator‘s side

Aluminum

Powder coated

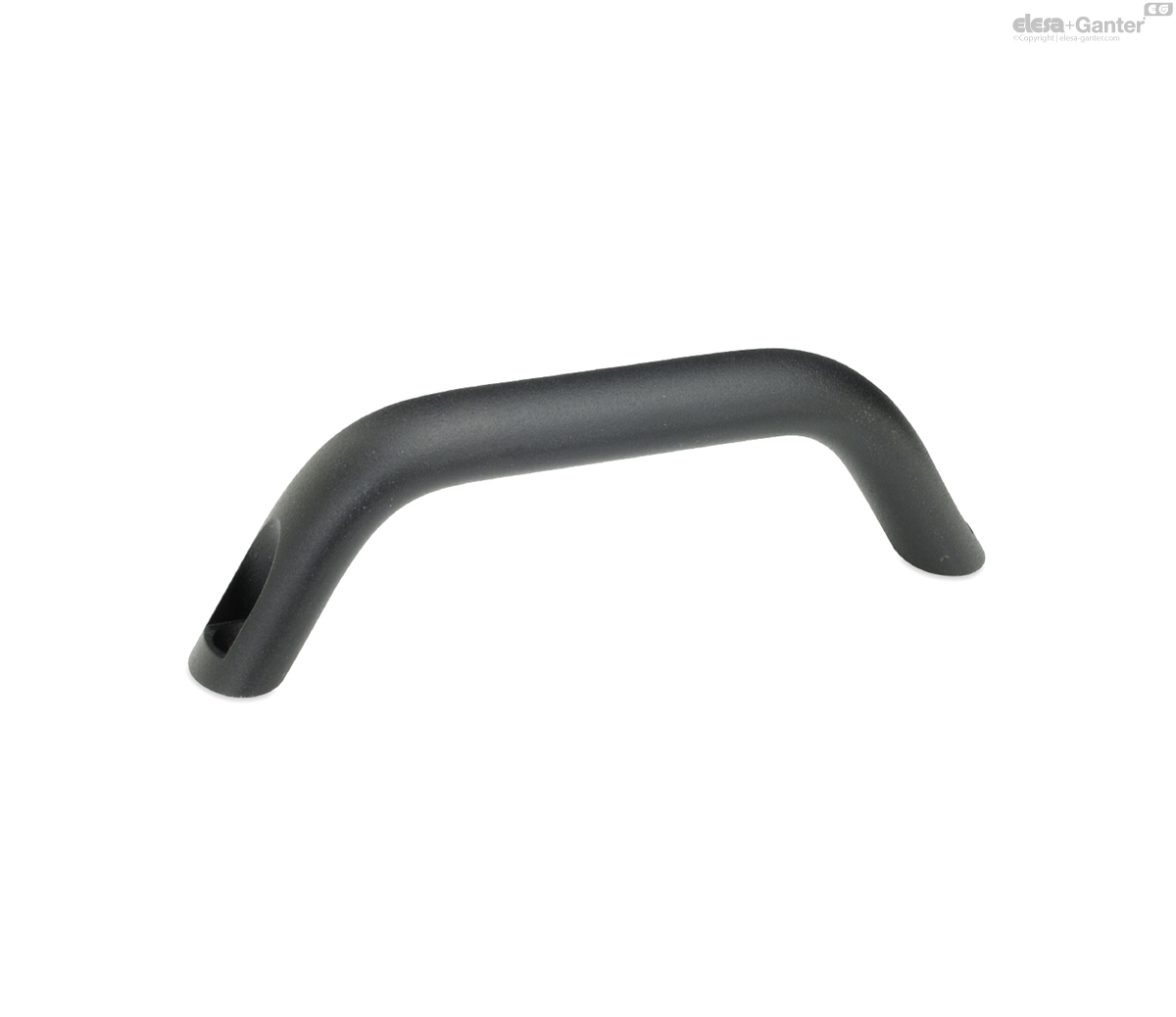

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Anodized, natural color EL

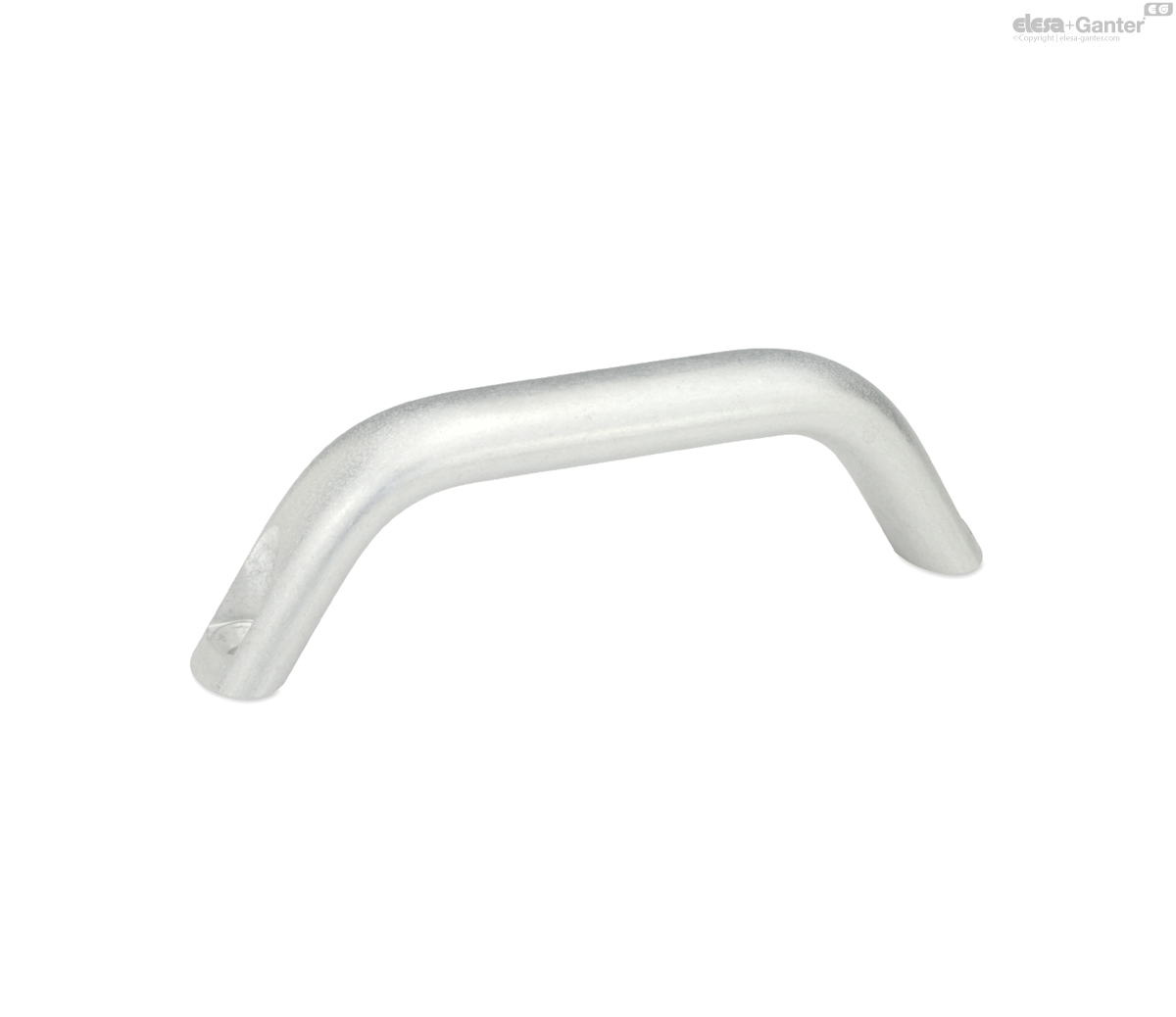

Plain finish, tumbled BL

Information

Cabinet U-handles GN 565.3 are manufactured from a bent aluminum profile. They are suitable for applications where lower required such as on lids or protective machine covers.

The countersunk holes of type B allow fixing with self tapping screws or countersunk rivets.

Technical information

Load Rating Information

GN 565.3-B

	Color	b	l₁ ±0.25	l₃ ≈	a	d₂	h₁	h₂	r
Code											Actions
GN 565.3-20-120-B-BL	BL - Plain finish	20	120	137	13	5.3	41	5	13	82
GN 565.3-20-120-B-EL	EL - Anodized, natural color	20	120	137	13	5.3	41	5	13	82
GN 565.3-20-120-B-SR	SR - RAL 9006	20	120	137	13	5.3	41	5	13	82
GN 565.3-20-120-B-SW	SW - RAL 9005	20	120	137	13	5.3	41	5	13	82
GN 565.3-20-160-B-BL	BL - Plain finish	20	160	177	13	5.3	45	5	13	107
GN 565.3-20-160-B-EL	EL - Anodized, natural color	20	160	177	13	5.3	45	5	13	107
GN 565.3-20-160-B-SR	SR - RAL 9006	20	160	177	13	5.3	45	5	13	107
GN 565.3-20-160-B-SW	SW - RAL 9005	20	160	177	13	5.3	45	5	13	107
