GN 565.2

Inclined Cabinet U-Handles

Aluminum

Enquire Now

Description

Specification

Aluminum

Steel, zinc plated, blue passivated

Information

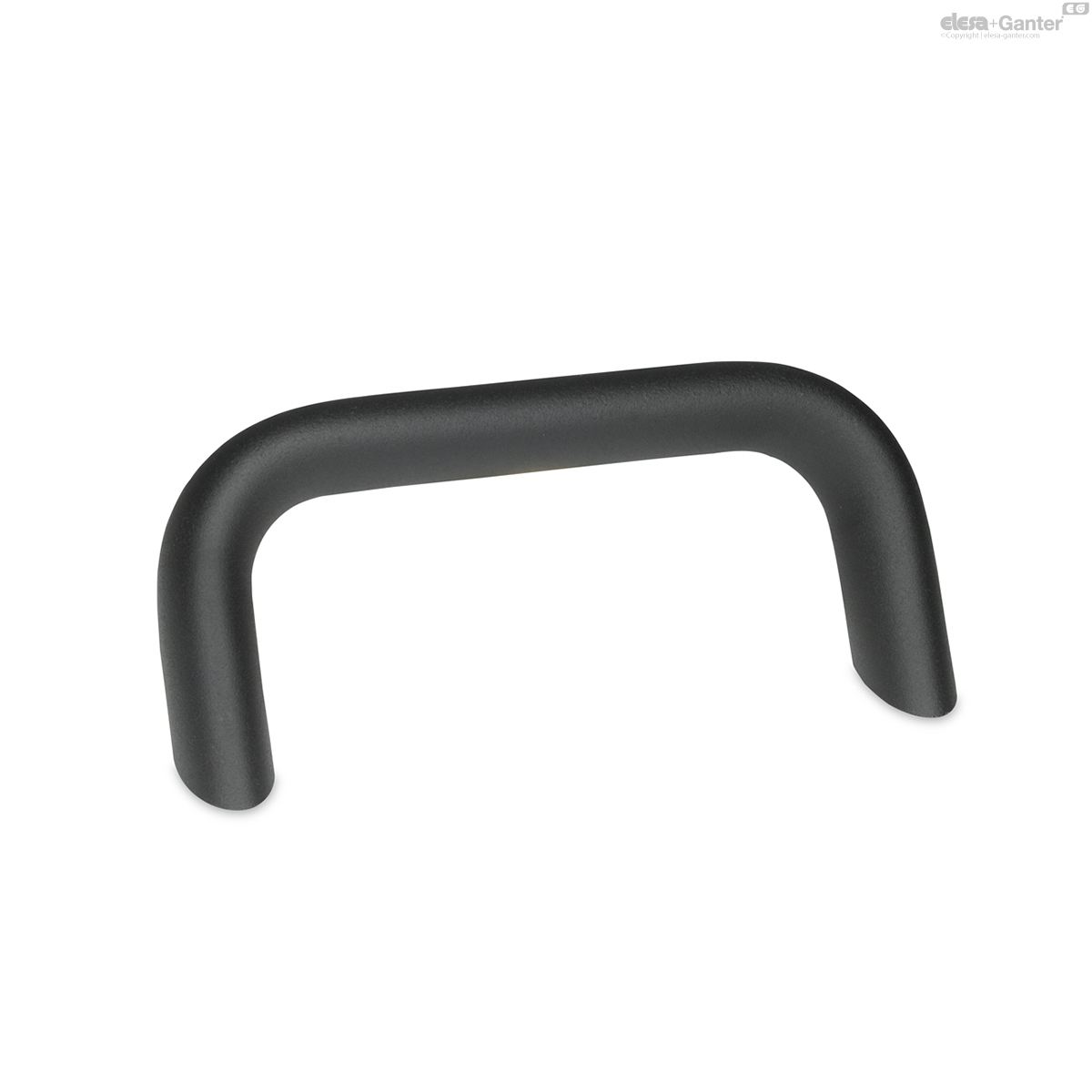

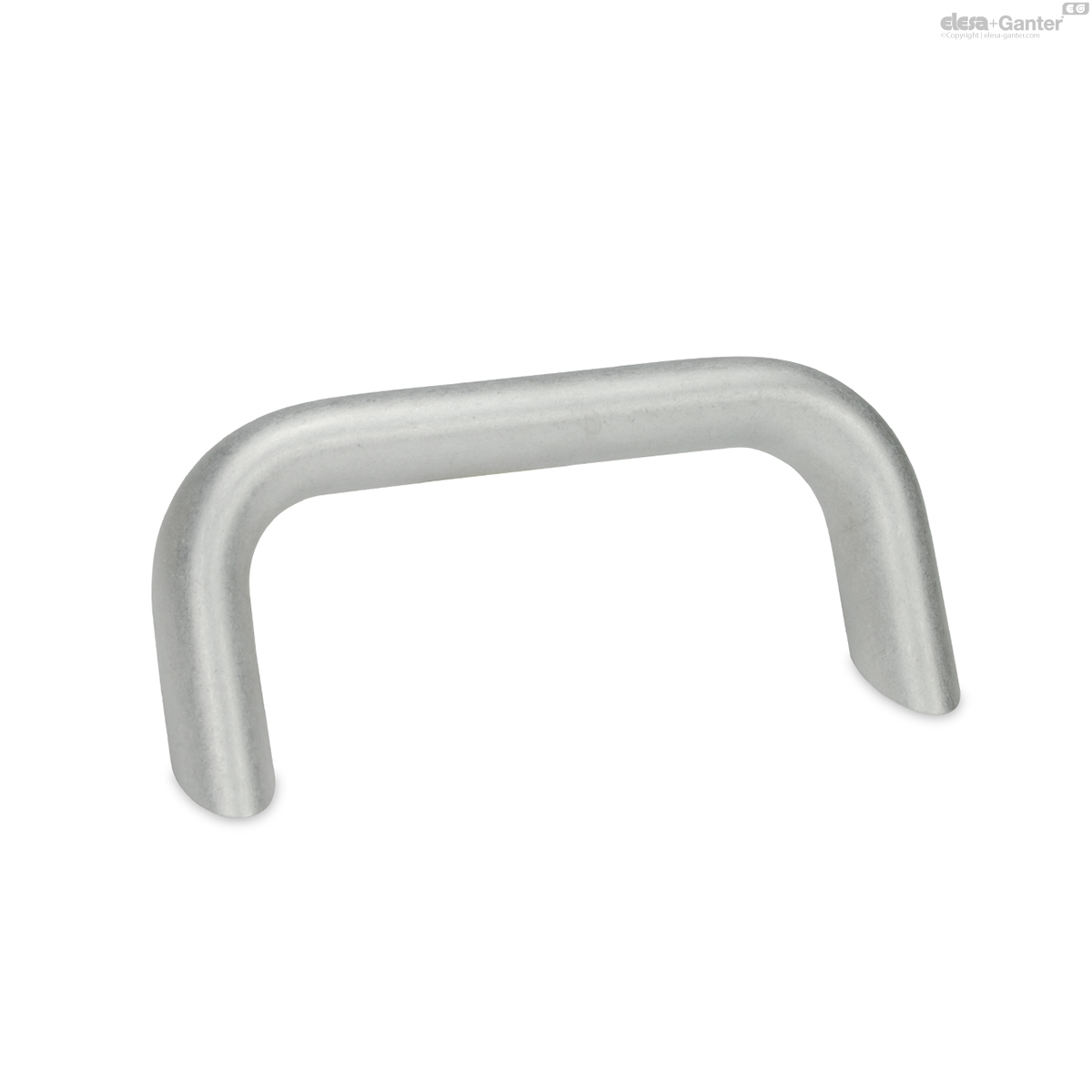

Inclined cabinet U-handles GN 565.2 are manufactured from a bent aluminum profile. Their special features are their rigidity and ergonomical shaping.

The angled contact surface allows improved access even in tight spaces such as corners.

For type B, socket button head screws, hex nuts and washers are included parts of the order.

Technical information

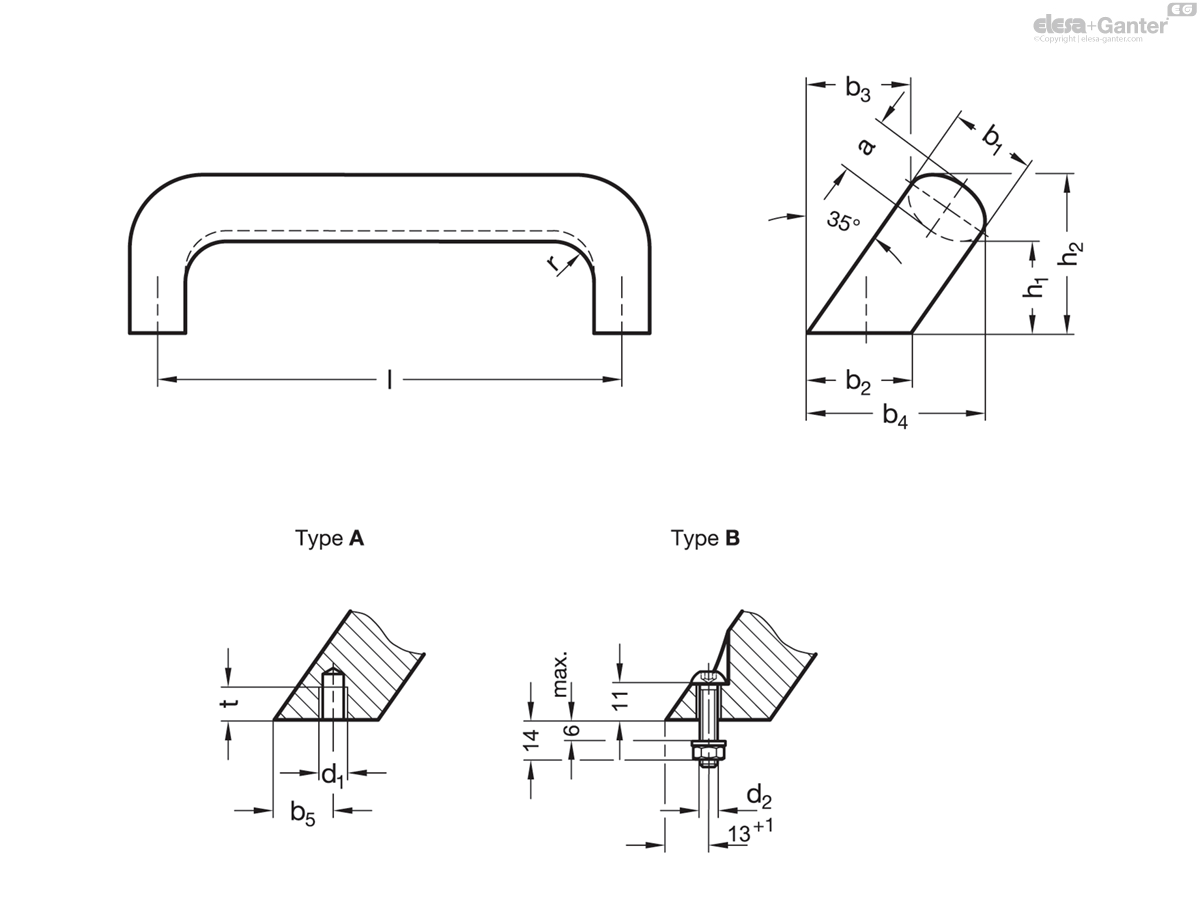

	Color	b₁	Length l ±0.25	a	b₂	b₃	b₄	b₅ +1	d₁	h₁	h₂	r	t min.
Code															Actions
GN 565.2-20-112-A-BL	BL - Plain finish	20	112	13	24	32	50	13.5	M 6	32	48	13	10	102
GN 565.2-20-112-A-EL	EL - Anodized, natural color	20	112	13	24	32	50	13.5	M 6	32	48	13	10	102
GN 565.2-20-112-A-SR	SR - RAL 9006	20	112	13	24	32	50	13.5	M 6	32	48	13	10	102
GN 565.2-20-112-A-SW	SW - RAL 9005	20	112	13	24	32	50	13.5	M 6	32	48	13	10	102
GN 565.2-20-128-A-BL	BL - Plain finish	20	128	13	24	32	50	13.5	M 6	32	48	13	10	111
GN 565.2-20-128-A-EL	EL - Anodized, natural color	20	128	13	24	32	50	13.5	M 6	32	48	13	10	111
GN 565.2-20-128-A-SR	SR - RAL 9006	20	128	13	24	32	50	13.5	M 6	32	48	13	10	111
GN 565.2-20-128-A-SW	SW - RAL 9005	20	128	13	24	32	50	13.5	M 6	32	48	13	10	111
GN 565.2-26-128-A-BL	BL - Plain finish	26	128	17	32	34	57	18	M 8	34	54	17	12	192
GN 565.2-26-128-A-EL	EL - Anodized, natural color	26	128	17	32	34	57	18	M 8	34	54	17	12	192
GN 565.2-26-128-A-SR	SR - RAL 9006	26	128	17	32	34	57	18	M 8	34	54	17	12	192
GN 565.2-26-128-A-SW	SW - RAL 9005	26	128	17	32	34	57	18	M 8	34	54	17	12	192
GN 565.2-26-160-A-BL	BL - Plain finish	26	160	17	32	34	57	18	M 8	34	54	17	12	218
GN 565.2-26-160-A-EL	EL - Anodized, natural color	26	160	17	32	34	57	18	M 8	34	54	17	12	218
GN 565.2-26-160-A-SR	SR - RAL 9006	26	160	17	32	34	57	18	M 8	34	54	17	12	218
GN 565.2-26-160-A-SW	SW - RAL 9005	26	160	17	32	34	57	18	M 8	34	54	17	12	218
