GN 565.1

Cabinet U-Handles

Aluminum

Enquire Now

Description

Specification

Aluminum

Powder coated

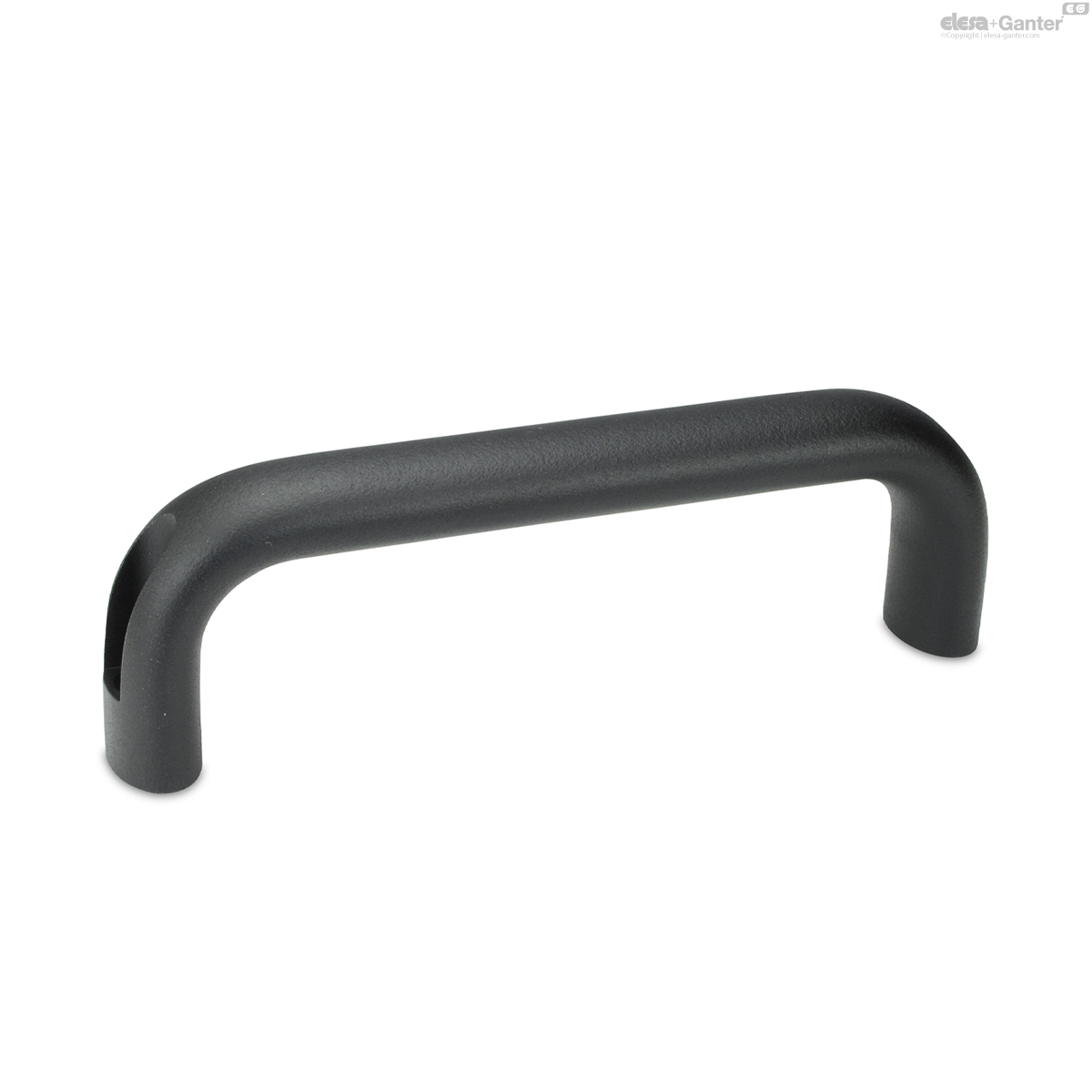

Black, RAL 9005, textured finish SW

UV-resistant

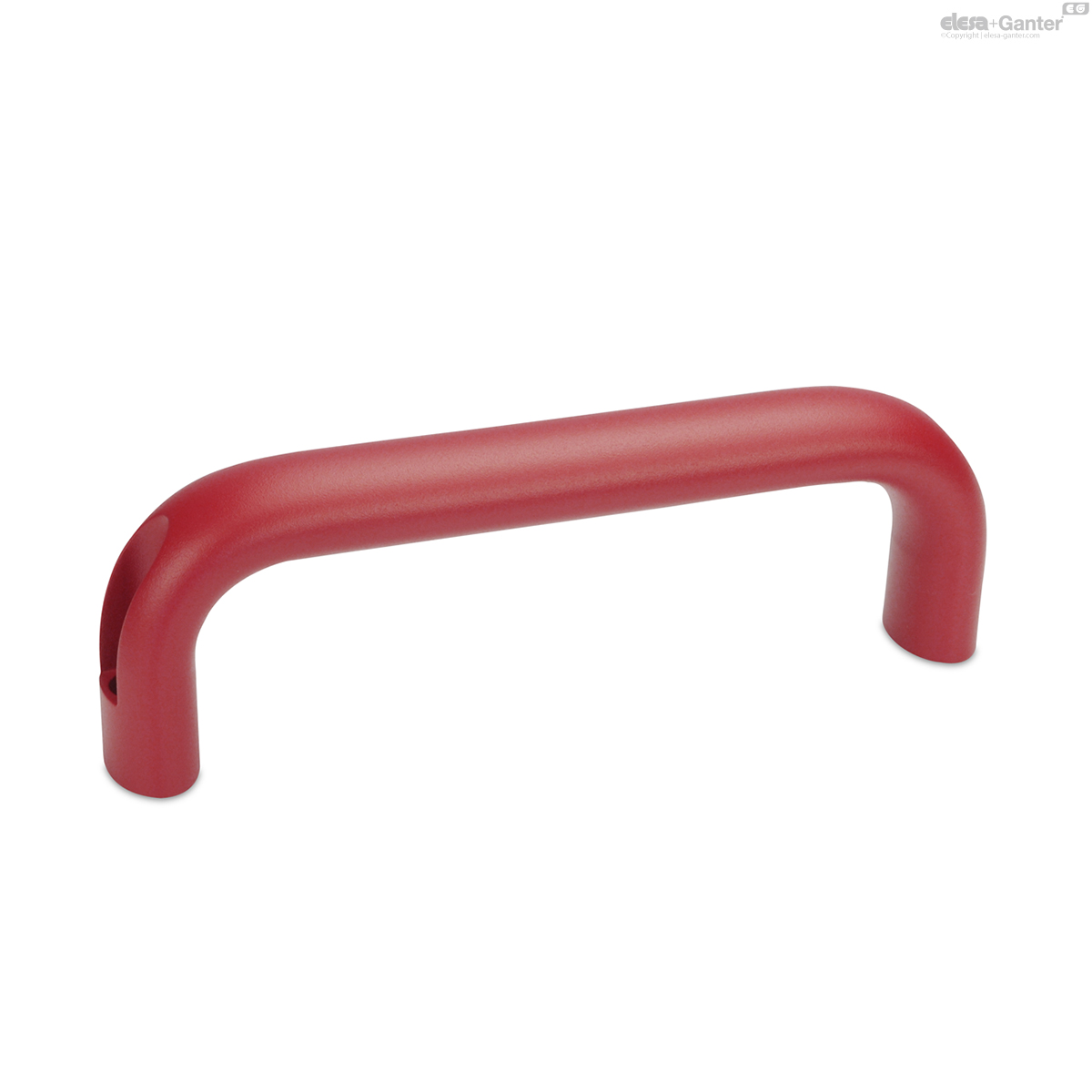

Red, RAL 3000, textured finish RS

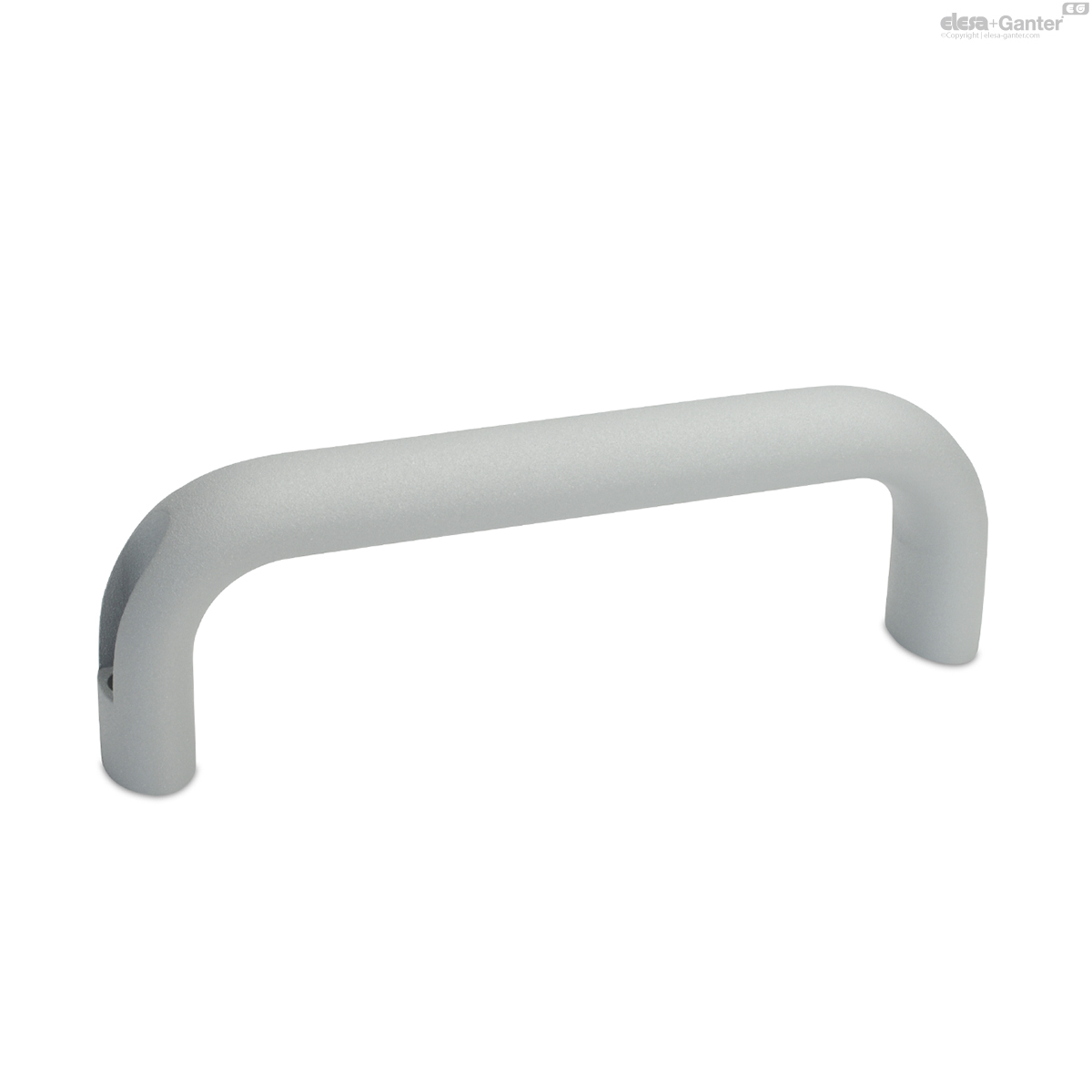

Silver, RAL 9006, textured finish SR

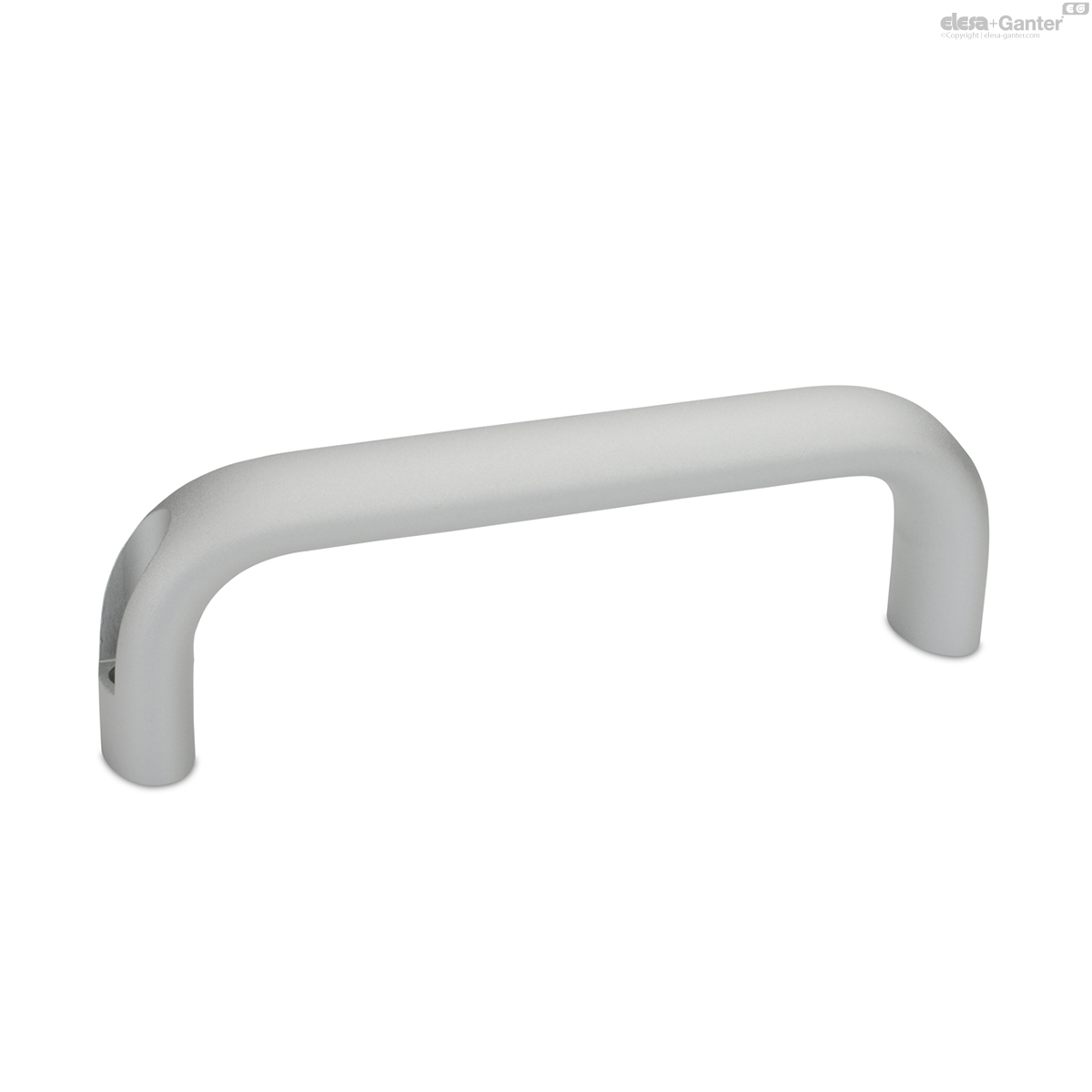

Anodized, natural color EL

Plain finish, tumbled BL

Information

Cabinet U-handles GN 565.1 are manufactured from a bent aluminum profile and have excellent stability and ergonomic design.

In addition to the standard surfaces, these cabinet U-handles are also available with a functional coating.

The SW version is coated with a highly weather-resistant and UV- resistant powder coating system, making this version excellent for outdoor use.

Technical information

Load Rating Information

GN 565.1

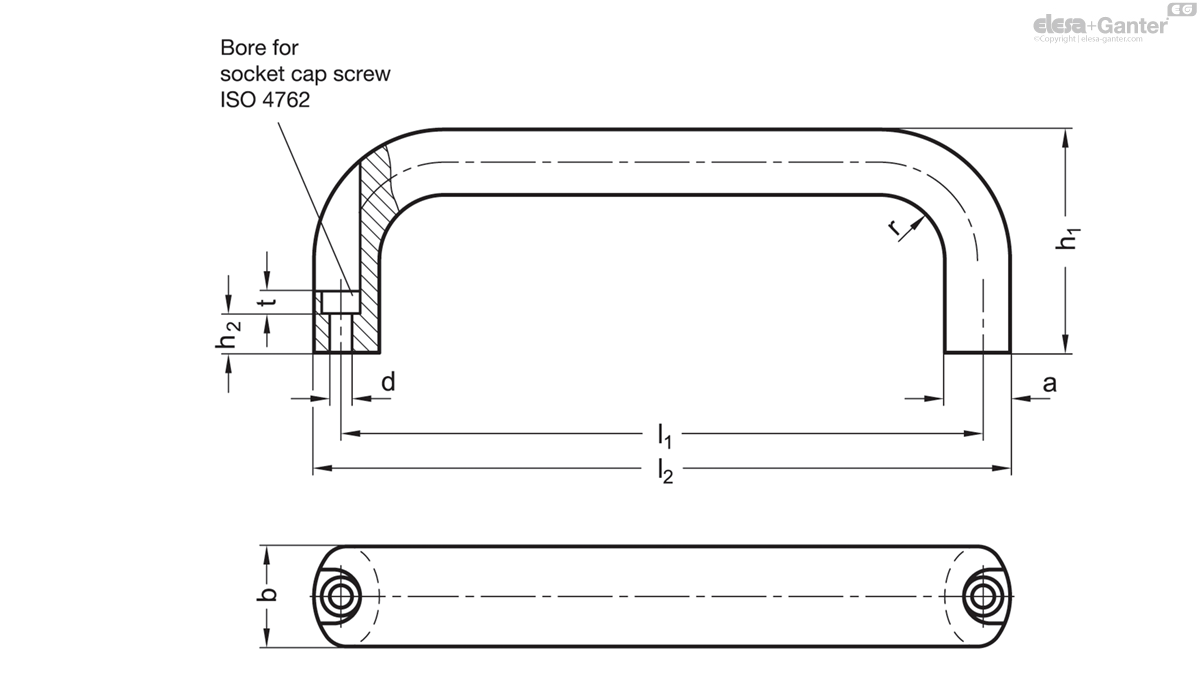

	Color	b	l₁	a	d	h₁	h₂	l₂	r	t
Code												Actions
GN 565.1-20-100-BL	BL - Plain finish	20	100	13	5.4	49	13.5	112	13	5.5	76
GN 565.1-20-100-EL	EL - Anodized, natural color	20	100	13	5.4	49	13.5	112	13	5.5	76
GN 565.1-20-100-RS	RS - RAL 3000	20	100	13	5.4	49	13.5	112	13	5.5	76
GN 565.1-20-100-SR	SR - RAL 9006	20	100	13	5.4	49	13.5	112	13	5.5	76
GN 565.1-20-100-SW	SW - RAL 9005	20	100	13	5.4	49	13.5	112	13	5.5	76
GN 565.1-20-112-BL	BL - Plain finish	20	112	13	5.4	49	13.5	124	13	5.5	81
GN 565.1-20-112-EL	EL - Anodized, natural color	20	112	13	5.4	49	13.5	124	13	5.5	81
GN 565.1-20-112-RS	RS - RAL 3000	20	112	13	5.4	49	13.5	124	13	5.5	81
GN 565.1-20-112-SR	SR - RAL 9006	20	112	13	5.4	49	13.5	124	13	5.5	81
GN 565.1-20-112-SW	SW - RAL 9005	20	112	13	5.4	49	13.5	124	13	5.5	81
GN 565.1-20-117-BL	BL - Plain finish	20	117	13	5.4	49	13.5	129	13	5.5	84
GN 565.1-20-117-EL	EL - Anodized, natural color	20	117	13	5.4	49	13.5	129	13	5.5	84
GN 565.1-20-117-RS	RS - RAL 3000	20	117	13	5.4	49	13.5	129	13	5.5	84
GN 565.1-20-117-SR	SR - RAL 9006	20	117	13	5.4	49	13.5	129	13	5.5	84
GN 565.1-20-117-SW	SW - RAL 9005	20	117	13	5.4	49	13.5	129	13	5.5	84
GN 565.1-20-120-BL	BL - Plain finish	20	120	13	5.4	51	13.5	132	13	5.5	88
GN 565.1-20-120-EL	EL - Anodized, natural color	20	120	13	5.4	51	13.5	132	13	5.5	88
GN 565.1-20-120-RS	RS - RAL 3000	20	120	13	5.4	51	13.5	132	13	5.5	88
GN 565.1-20-120-SR	SR - RAL 9006	20	120	13	5.4	51	13.5	132	13	5.5	88
GN 565.1-20-120-SW	SW - RAL 9005	20	120	13	5.4	51	13.5	132	13	5.5	88
GN 565.1-20-128-BL	BL - Plain finish	20	128	13	5.4	51	13.5	140	13	5.5	91
GN 565.1-20-128-EL	EL - Anodized, natural color	20	128	13	5.4	51	13.5	140	13	5.5	91
GN 565.1-20-128-RS	RS - RAL 3000	20	128	13	5.4	51	13.5	140	13	5.5	91
GN 565.1-20-128-SR	SR - RAL 9006	20	128	13	5.4	51	13.5	140	13	5.5	91
GN 565.1-20-128-SW	SW - RAL 9005	20	128	13	5.4	51	13.5	140	13	5.5	91
GN 565.1-20-160-BL	BL - Plain finish	20	160	13	5.4	51	13.5	172	13	5.5	110
GN 565.1-20-160-EL	EL - Anodized, natural color	20	160	13	5.4	51	13.5	172	13	5.5	110
GN 565.1-20-160-RS	RS - RAL 3000	20	160	13	5.4	51	13.5	172	13	5.5	110
GN 565.1-20-160-SR	SR - RAL 9006	20	160	13	5.4	51	13.5	172	13	5.5	110
GN 565.1-20-160-SW	SW - RAL 9005	20	160	13	5.4	51	13.5	172	13	5.5	110
GN 565.1-26-116-BL	BL - Plain finish	26	116	17	6.4	55	11	130	17	6	159
GN 565.1-26-116-EL	EL - Anodized, natural color	26	116	17	6.4	55	11	130	17	6	159
GN 565.1-26-116-RS	RS - RAL 3000	26	116	17	6.4	55	11	130	17	6	159
GN 565.1-26-116-SR	SR - RAL 9006	26	116	17	6.4	55	11	130	17	6	159
GN 565.1-26-116-SW	SW - RAL 9005	26	116	17	6.4	55	11	130	17	6	159
GN 565.1-26-120-BL	BL - Plain finish	26	120	17	6.4	55	11	134	17	6	162
GN 565.1-26-120-EL	EL - Anodized, natural color	26	120	17	6.4	55	11	134	17	6	162
GN 565.1-26-120-RS	RS - RAL 3000	26	120	17	6.4	55	11	134	17	6	162
GN 565.1-26-120-SR	SR - RAL 9006	26	120	17	6.4	55	11	134	17	6	162
GN 565.1-26-120-SW	SW - RAL 9005	26	120	17	6.4	55	11	134	17	6	162
GN 565.1-26-132-BL	BL - Plain finish	26	132	17	6.4	55	11	146	17	6	165
GN 565.1-26-132-EL	EL - Anodized, natural color	26	132	17	6.4	55	11	146	17	6	165
GN 565.1-26-132-RS	RS - RAL 3000	26	132	17	6.4	55	11	146	17	6	165
GN 565.1-26-132-SR	SR - RAL 9006	26	132	17	6.4	55	11	146	17	6	165
GN 565.1-26-132-SW	SW - RAL 9005	26	132	17	6.4	55	11	146	17	6	165
GN 565.1-26-164-BL	BL - Plain finish	26	164	17	6.4	57	11	178	17	6	190
GN 565.1-26-164-EL	EL - Anodized, natural color	26	164	17	6.4	57	11	178	17	6	190
GN 565.1-26-164-RS	RS - RAL 3000	26	164	17	6.4	57	11	178	17	6	190
GN 565.1-26-164-SR	SR - RAL 9006	26	164	17	6.4	57	11	178	17	6	190
GN 565.1-26-164-SW	SW - RAL 9005	26	164	17	6.4	57	11	178	17	6	190
GN 565.1-26-179-BL	BL - Plain finish	26	179	17	6.4	57	11	193	17	6	218
GN 565.1-26-179-EL	EL - Anodized, natural color	26	179	17	6.4	57	11	193	17	6	218
GN 565.1-26-179-RS	RS - RAL 3000	26	179	17	6.4	57	11	193	17	6	218
GN 565.1-26-179-SR	SR - RAL 9006	26	179	17	6.4	57	11	193	17	6	218
GN 565.1-26-179-SW	SW - RAL 9005	26	179	17	6.4	57	11	193	17	6	218
GN 565.1-26-196-BL	BL - Plain finish	26	196	17	6.4	57	11	210	17	6	223
GN 565.1-26-196-EL	EL - Anodized, natural color	26	196	17	6.4	57	11	210	17	6	223
GN 565.1-26-196-RS	RS - RAL 3000	26	196	17	6.4	57	11	210	17	6	223
GN 565.1-26-196-SR	SR - RAL 9006	26	196	17	6.4	57	11	210	17	6	223
GN 565.1-26-196-SW	SW - RAL 9005	26	196	17	6.4	57	11	210	17	6	223
