GN 559
Cabinet U-Handles
Aluminum
GN 559-A
Cabinet U-Handles
Closed type
GN 559-B
Cabinet U-Handles
Open ended type, mounting from the back (threaded blind bore)

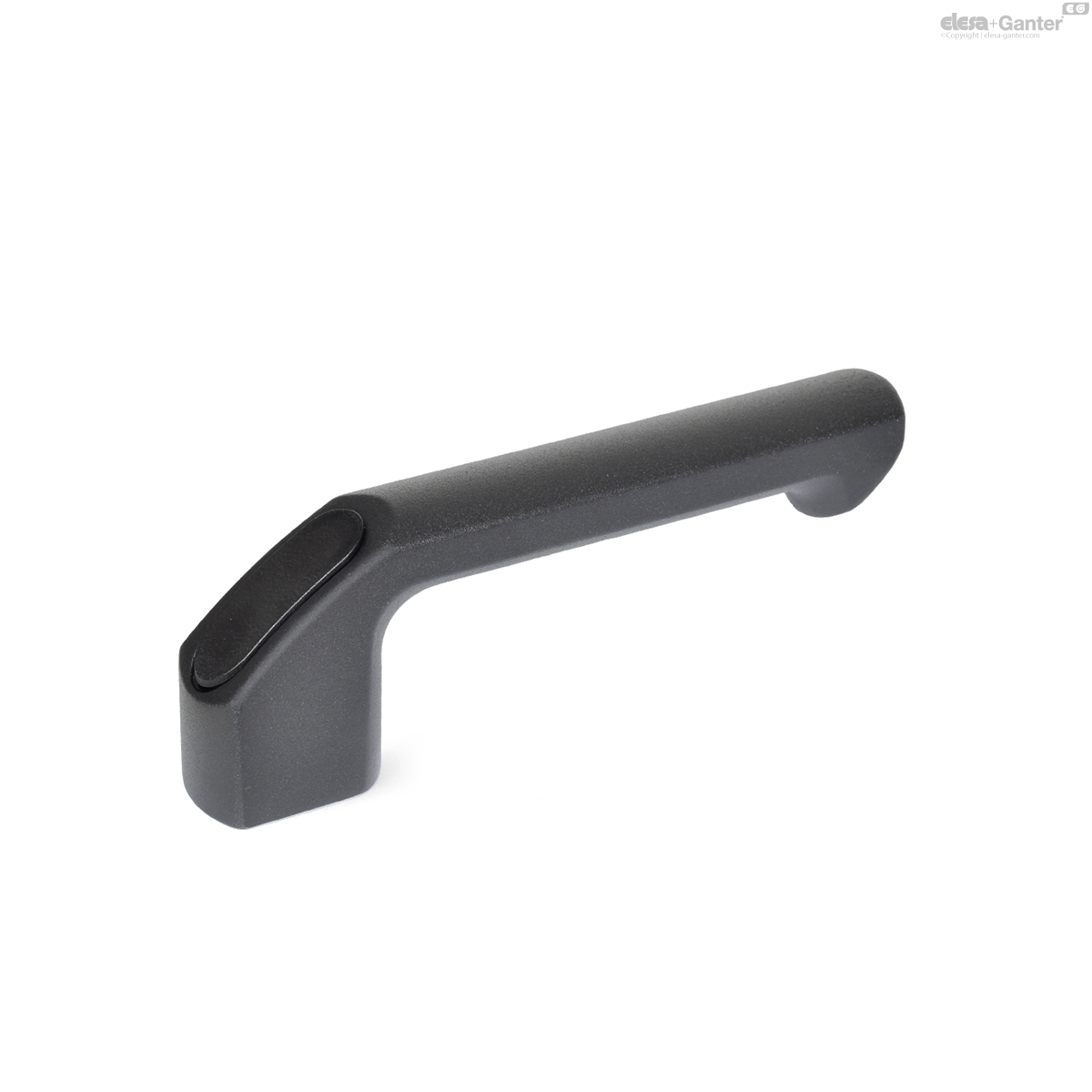

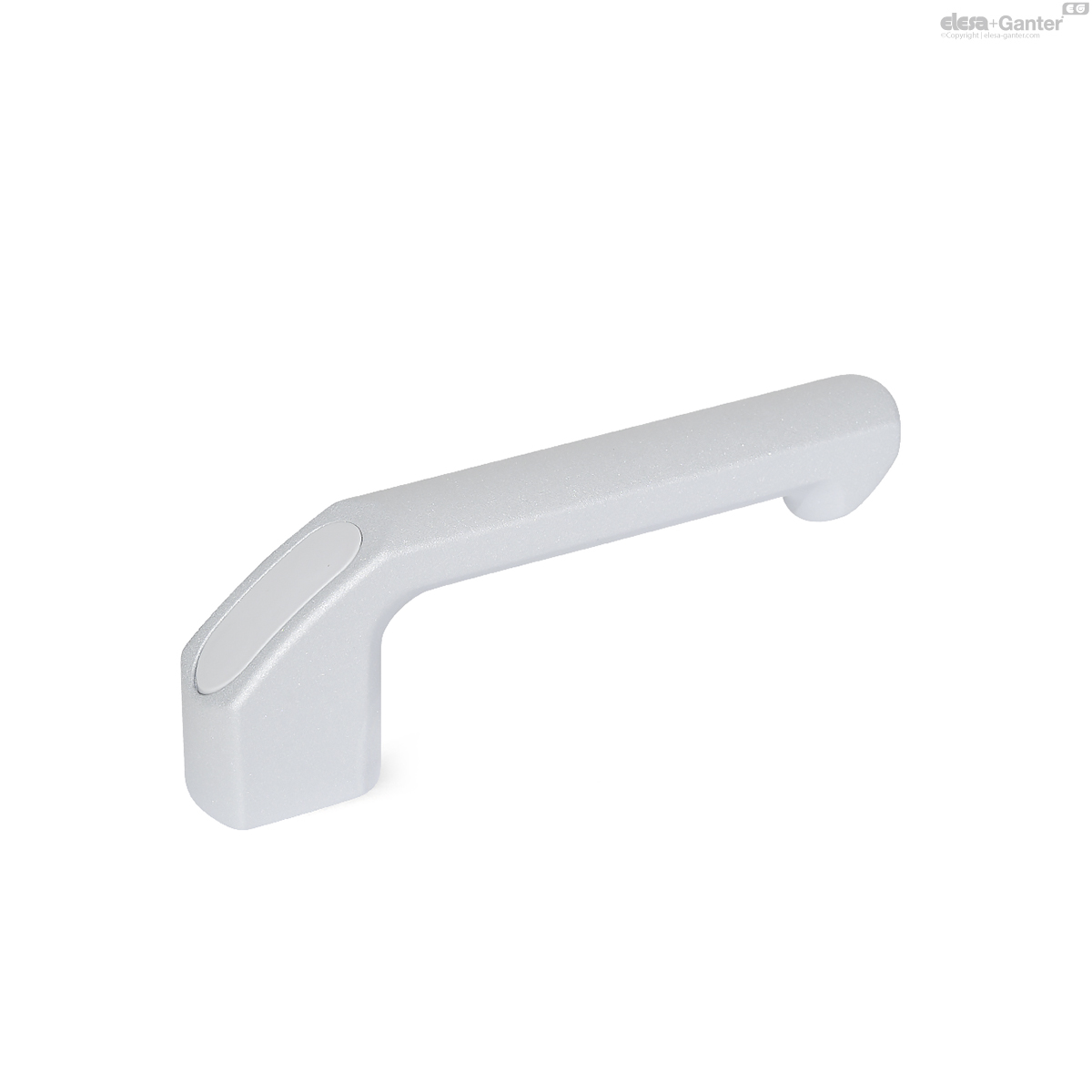

GN 559-C
Cabinet U-Handles
Open ended type, mounting from the operator‘s side
Description
Specification
Types
- Type A: Closed type
- Type B: Open ended type, mounting from the back (threaded blind bore)
- Type C: Open ended type, mounting from the operator‘s side
Handle
Aluminum
Powder coated
- Black, RAL 9005, textured finish SW
- Silver, RAL 9006, textured finish SR
Cover cap for type C
Plastic
- Black for SW
- Light gray for SR
Information
A special characteristic of the cabinet U-handles GN 559 is the thumb rest pad on the front of the leg. At the same time the extended leg offers an open ended version with wide access.
The fastening bores of type C are closed by a cover cap following the handle installation. The cover cap is included in the delivery contents.
Cabinet U-handles GN 559 are known for their high stability. They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3).
Technical information
- Load Rating InformationÂ
GN 559-C
| Color | l1 | a3 | b1 | b2 | d2 | h2 | h4 | h5 | l6 | l7 | t3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 559-162-C-SR | SR - RAL 9006 | 162 | 40 | 25 | 28 | 8.3 | 57 | 38 | 28 | 10 | 20 | 8 | 223 |
|
| GN 559-162-C-SW | SW - RAL 9005 | 162 | 40 | 25 | 28 | 8.3 | 57 | 38 | 28 | 10 | 20 | 8 | 223 |
|
