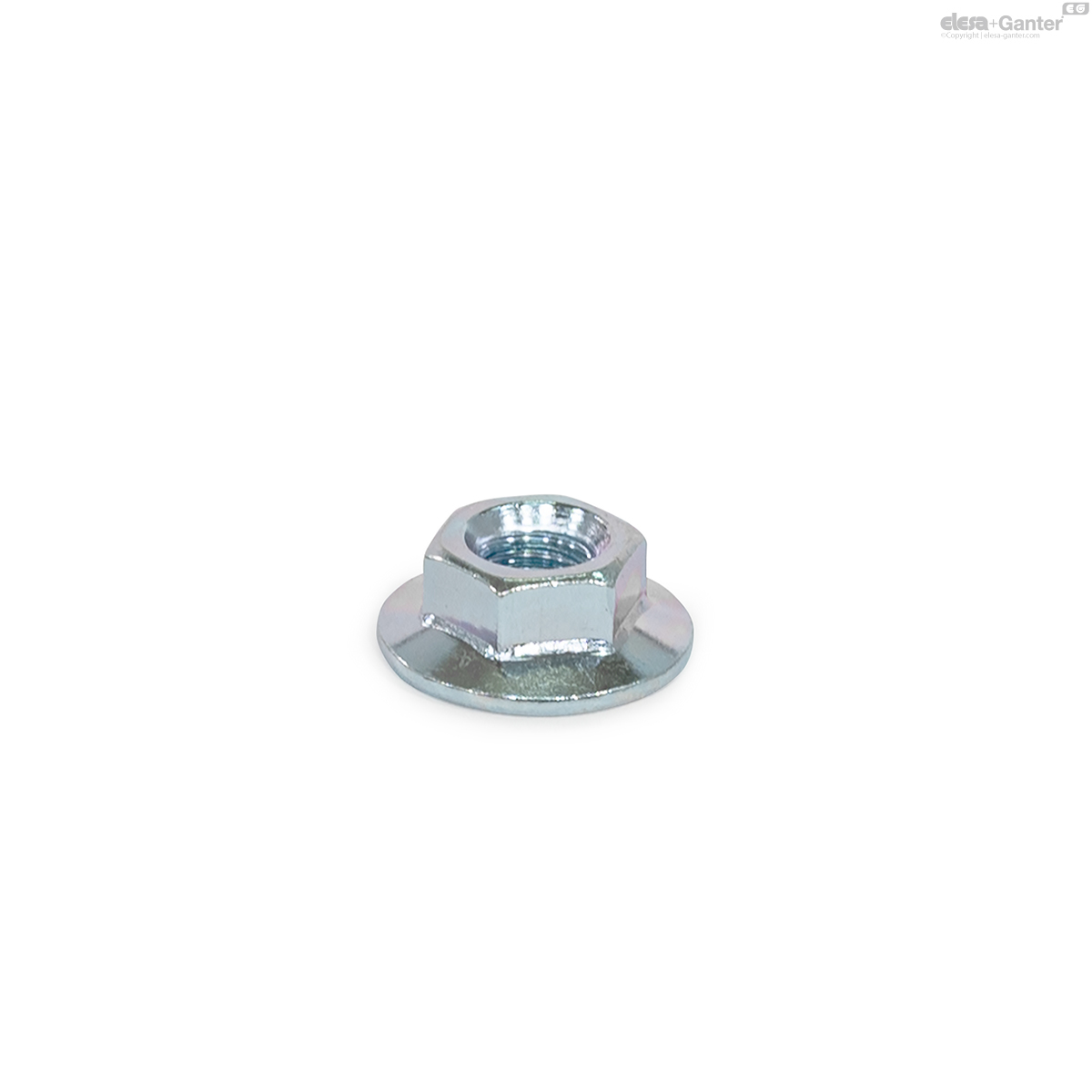

GN 53b
Collar Nuts
Steel, for Aluminum Profiles (b-Modular System)
Description
Specification
Steel, zinc plated, blue passivated SZ
Information
Collar nuts GN 53b fasten attachments and accessories in the slot of aluminum profiles, generally in combination with T-slot bolts GN 52b.
The collar makes a washer unnecessary.
Accessory
- T-Slot Bolts GN 52b

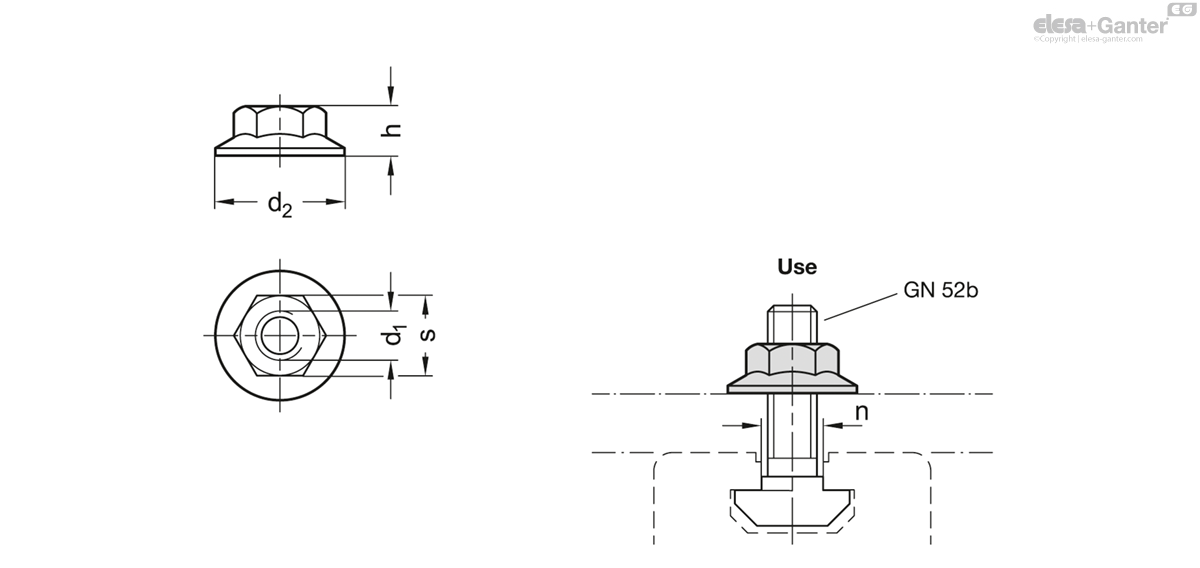

GN 53b
| n | d1 | d2 ≈ | h | s |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 53b-8M6-SZ | 8 | M 6 | 14 | 6 | 10 | 3 |
|
| GN 53b-10M8-SZ | 10 | M 8 | 21 | 8 | 13 | 6 |
|
