GN 5336
Star Knobs
Aluminum
GN 5336-A
Star Knobs
Without bore (unmachined)
GN 5336-C
Star Knobs
With blind bore H7
GN 5336-D
Star Knobs
With threaded through bore
GN 5336-E
Star Knobs
With threaded blind bore
Description
Specification
Types
- Type A: Without bore (unmachined)
- Type C: With blind bore H7
- Type D: With threaded through bore
- Type E: With threaded blind bore
Aluminum

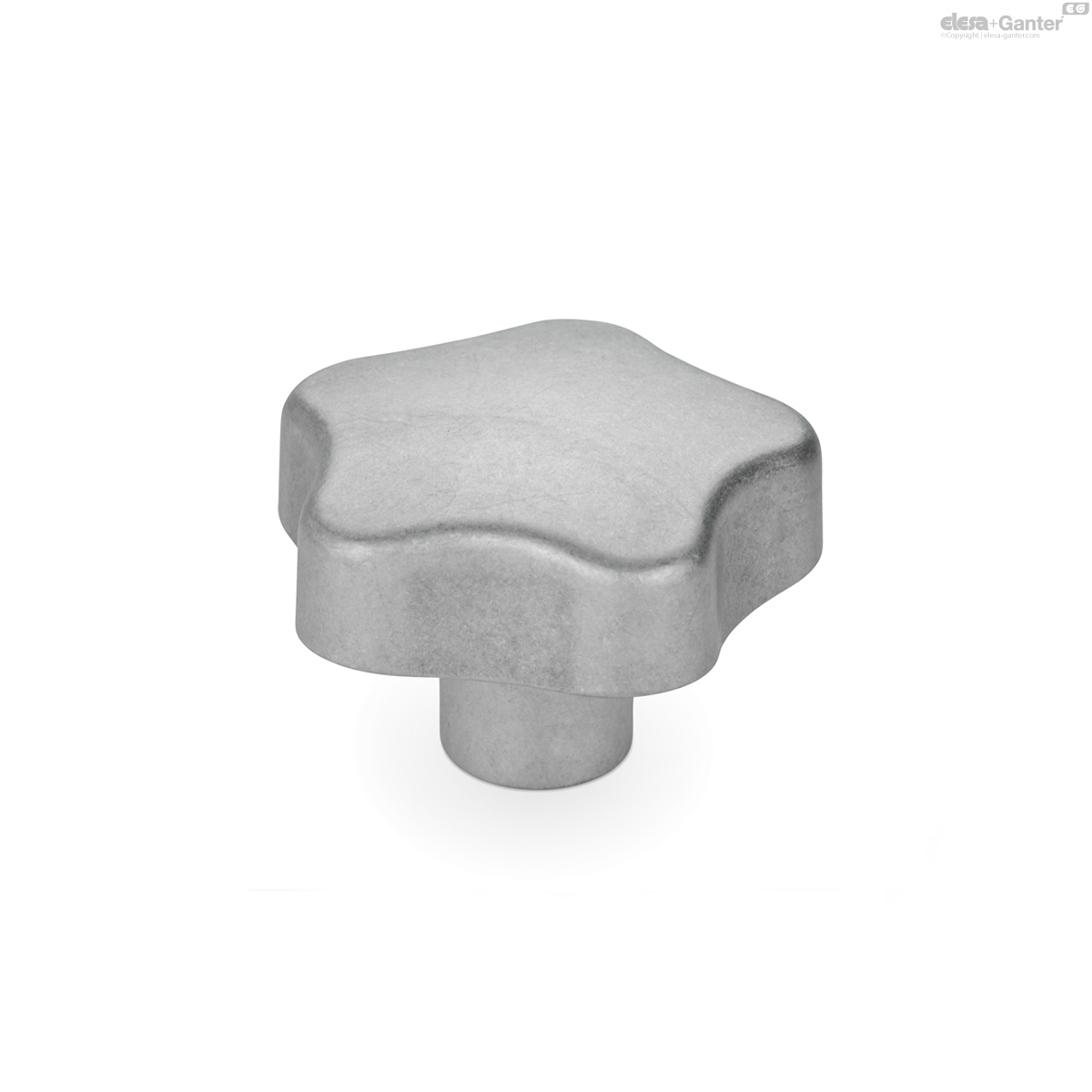

- Matte finish (tumbled) MT
Flash mark not visible

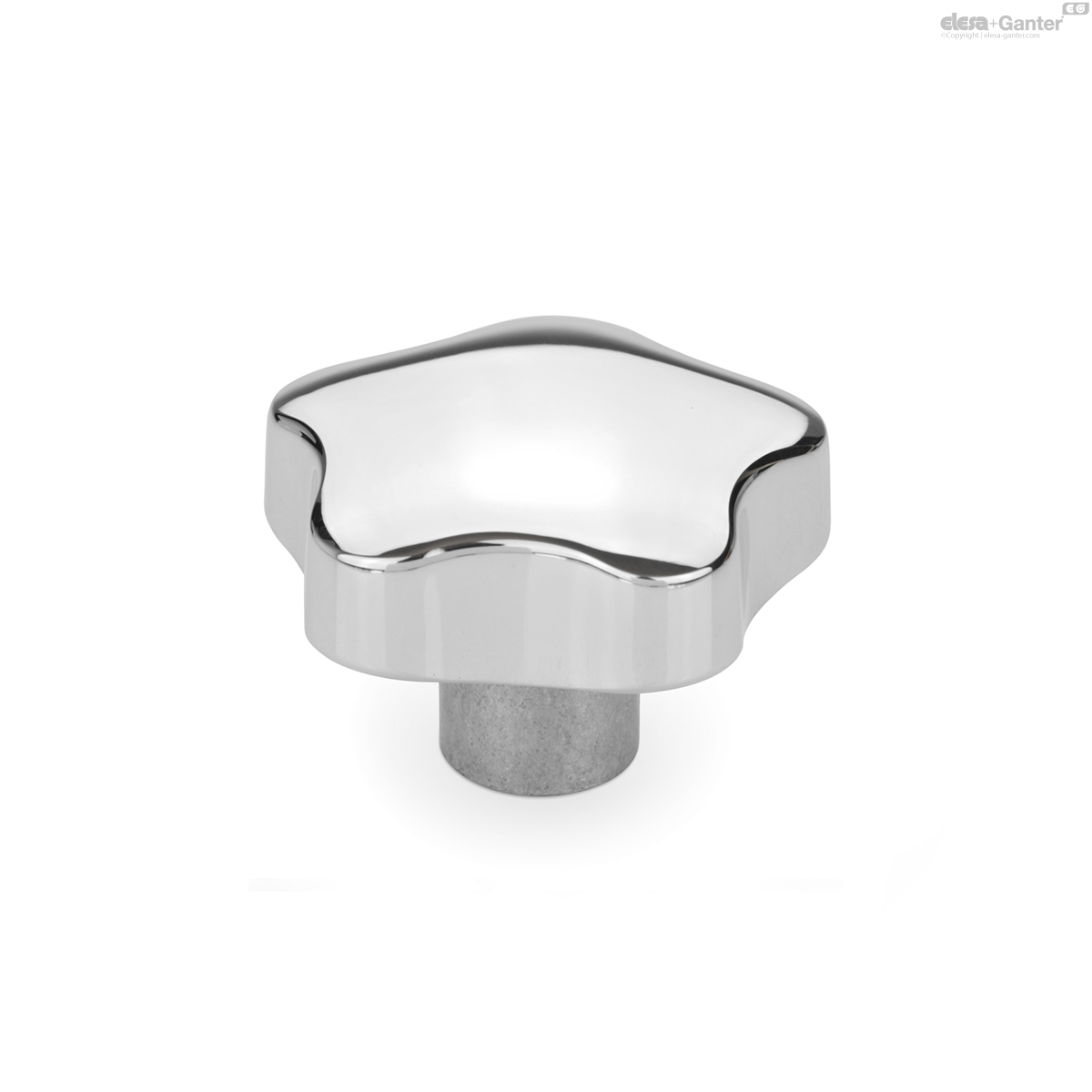

- Polished PL
Type A (without bore) only available with a matte finish (MT)
Information
Star knobs GN 5336 are forged, therefore a close grain structure is maintained providing a high tensile strength and a smooth surface.
Original ELESA design, now produced in metal in agreement with ELESA S.p.A.
Technical information
- Cross holes GN 110
- ISO-Fundamental TolerancesÂ

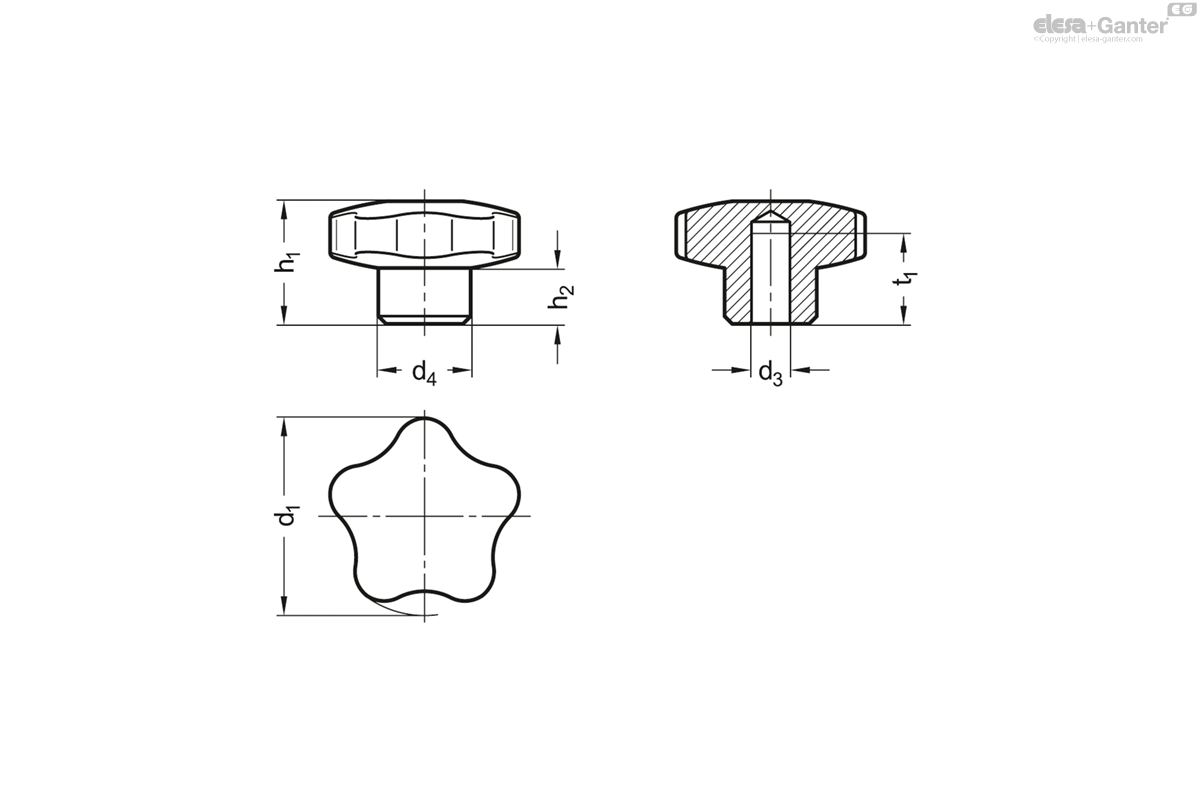

GN 5336-C
| Color | d1 | d3 H7 | d4 -0.5 | h1 -1 | h2 ≈ | t1 min. | t2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 5336-40-B8-C-MT | MT - Matte finish | 40 | B 8 | 15 | 25 | 12.5 | 15 | 13 | 28 |
|
| GN 5336-40-B8-C-PL | PL - Polished | 40 | B 8 | 15 | 25 | 12.5 | 15 | 13 | 28 |
|
| GN 5336-50-B10-C-MT | MT - Matte finish | 50 | B 10 | 19 | 32 | 16 | 18 | 16 | 53 |
|
| GN 5336-50-B10-C-PL | PL - Polished | 50 | B 10 | 19 | 32 | 16 | 18 | 16 | 53 |
|
| GN 5336-60-B12-C-MT | MT - Matte finish | 60 | B 12 | 21 | 40 | 20 | 22 | 20 | 99 |
|
| GN 5336-60-B12-C-PL | PL - Polished | 60 | B 12 | 21 | 40 | 20 | 22 | 20 | 99 |
|
| GN 5336-70-B16-C-MT | MT - Matte finish | 70 | B 16 | 26 | 46 | 23 | 28 | 20 | 148 |
|
| GN 5336-70-B16-C-PL | PL - Polished | 70 | B 16 | 26 | 46 | 23 | 28 | 20 | 148 |
|
