GN 5336
Star Knobs
Aluminum

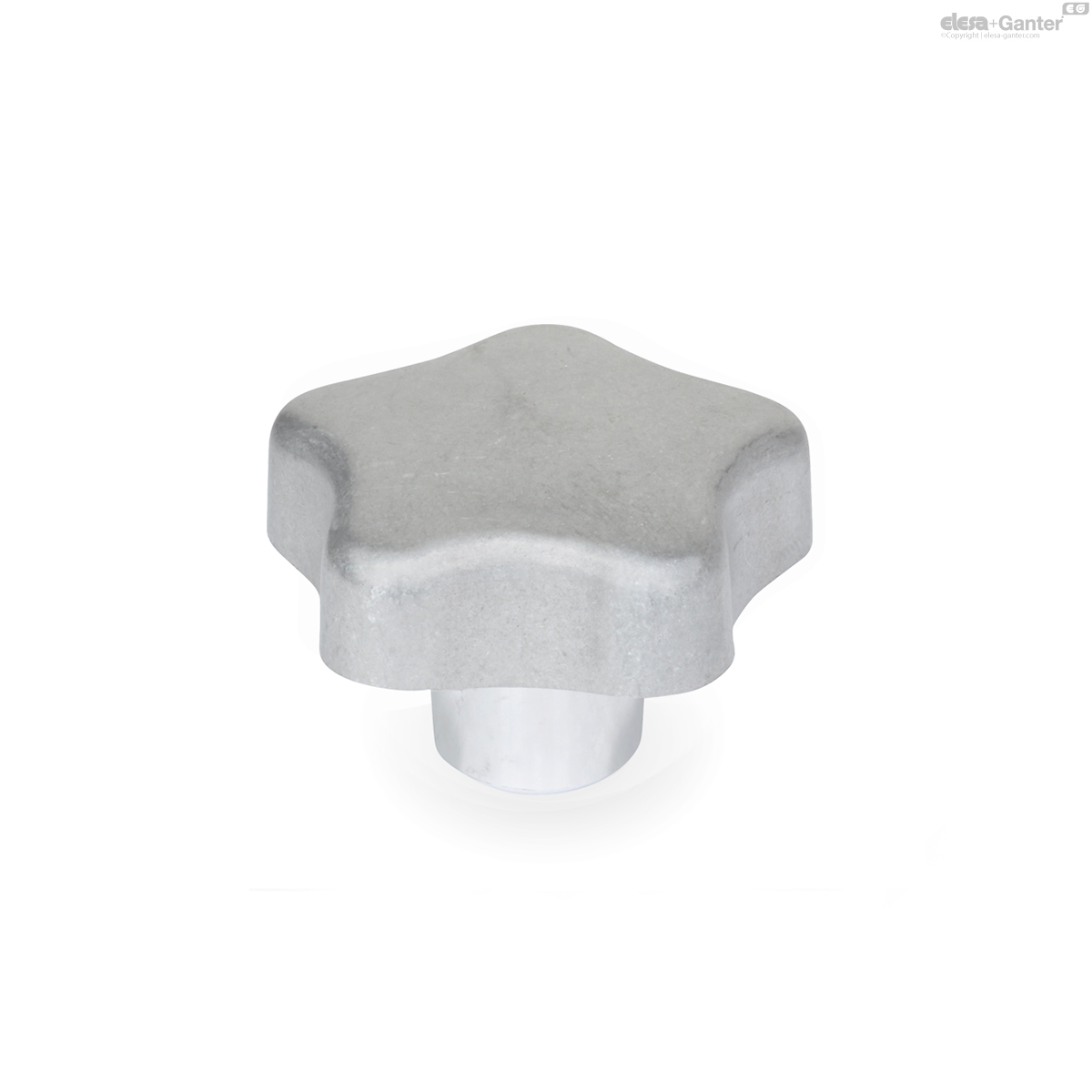

GN 5336-A
Star Knobs
Without bore (unmachined)
GN 5336-C
Star Knobs
With blind bore H7
GN 5336-D
Star Knobs
With threaded through bore
GN 5336-E
Star Knobs
With threaded blind bore
Description
Specification
Types
- Type A: Without bore (unmachined)
- Type C: With blind bore H7
- Type D: With threaded through bore
- Type E: With threaded blind bore
Aluminum
- Matte finish (tumbled) MT
Flash mark not visible
- Polished PL
Type A (without bore) only available with a matte finish (MT)
Information
Star knobs GN 5336 are forged, therefore a close grain structure is maintained providing a high tensile strength and a smooth surface.
Original ELESA design, now produced in metal in agreement with ELESA S.p.A.
Technical information
- Cross holes GN 110
- ISO-Fundamental TolerancesÂ

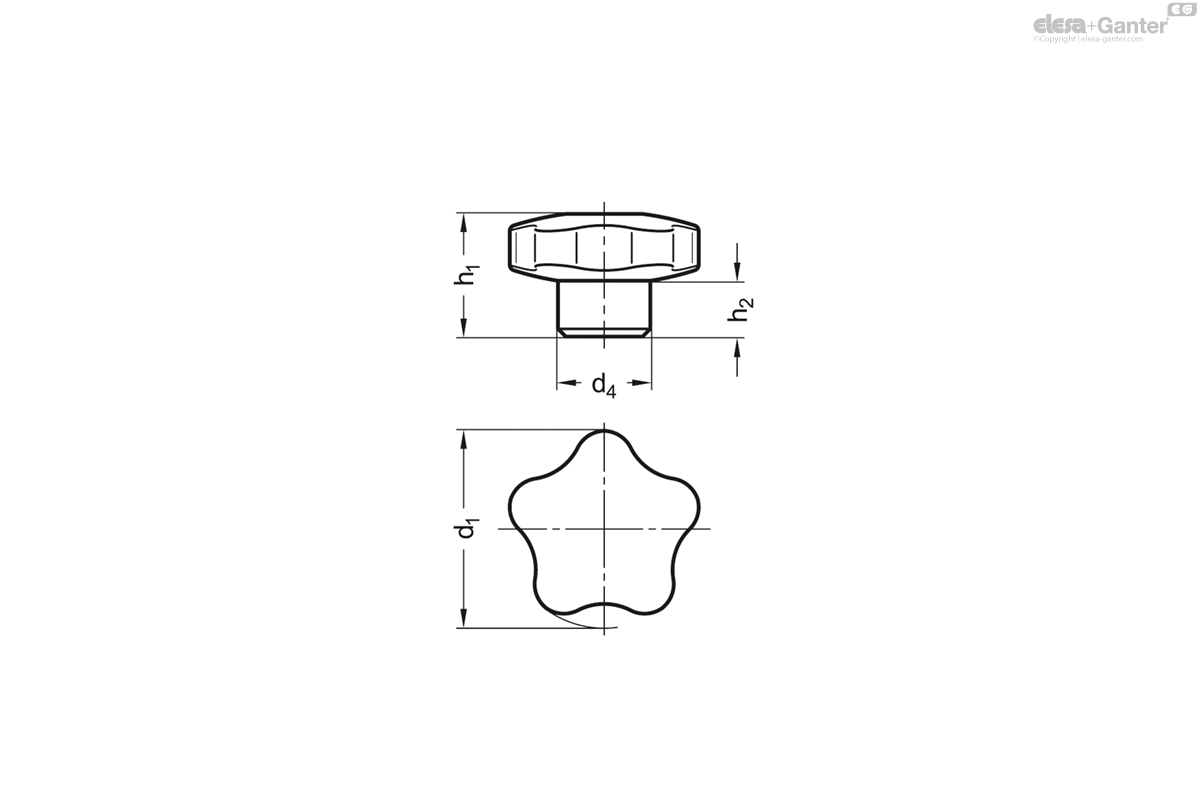

GN 5336-A
| d1 | d4 -0.5 | h1 -1 | h2 ≈ |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 5336-40-A-MT | 40 | 15 | 26 | 12.5 | 31 |
|
| GN 5336-50-A-MT | 50 | 19 | 33 | 16 | 69 |
|
| GN 5336-60-A-MT | 60 | 21 | 41 | 20 | 101 |
|
| GN 5336-70-A-MT | 70 | 26 | 47 | 23 | 163 |
|
