GN 5335.4

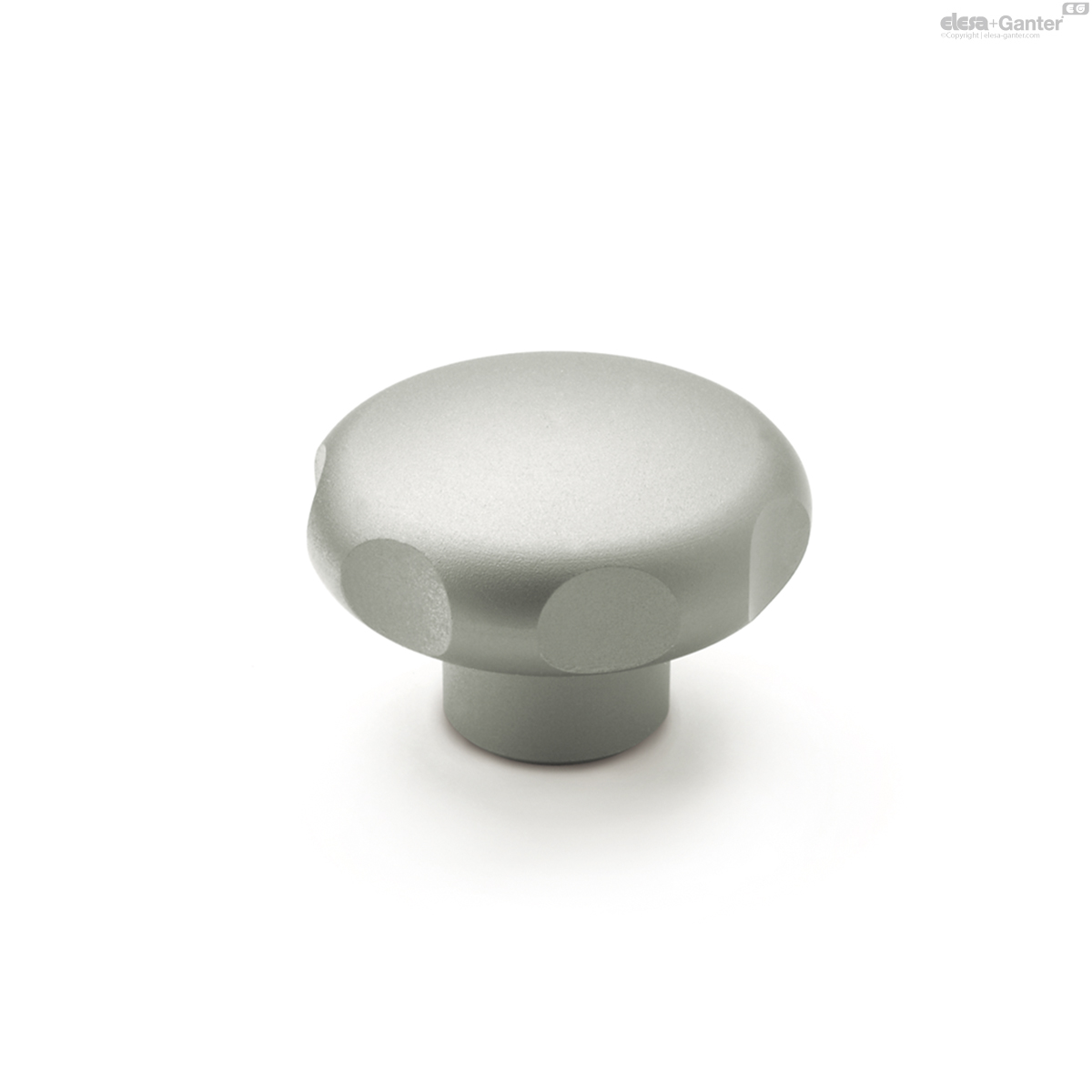

Stainless Steel-Star knobs

Stainless Steel AISI 316L (A4)

Enquire Now

Description

Specification

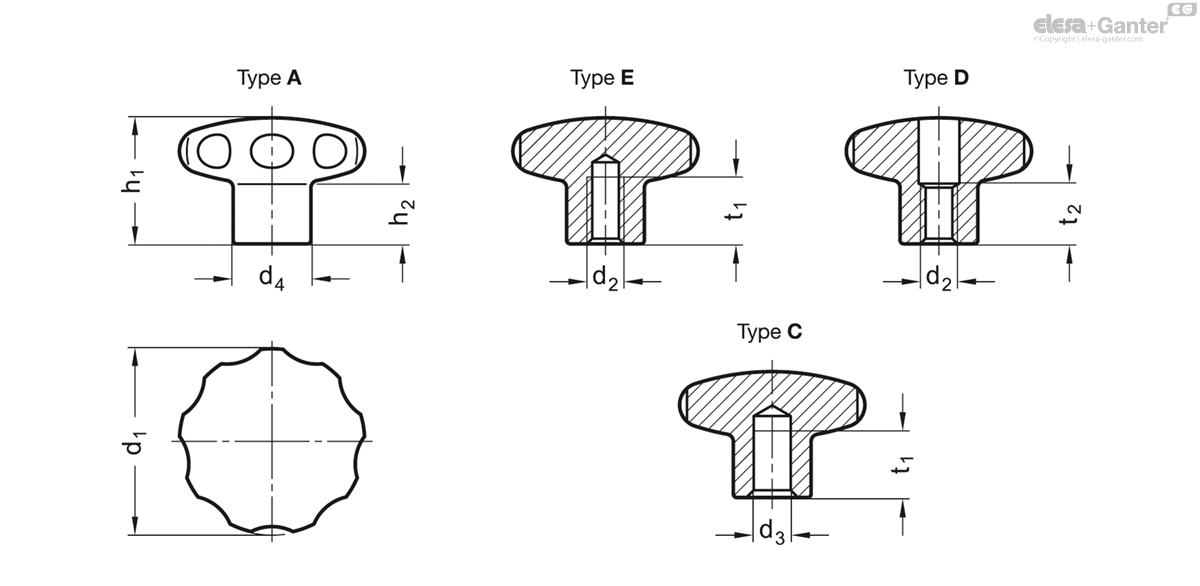

Types

Type A: without bore

Type E: with threaded blind bore

Type D: with threaded through bore

Type C: with plain blind bore H7

Stainless Steel AISI 316L (A4)

matt shot-blasted

Information

Stainless Steel-Star knobs GN 5335.4 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.

Technical information

Cross holes GN 110

ISO-Fundamental Tolerances

Stainless Steel characteristics

GN 5335.4

	d₁	d₂	d₃ H7	d₄	h₁	h₂	t₁ min.	t₂
Code										Actions
GN 5335.4-40-A	40	-	-	18	30.5	15	-	-	130
GN 5335.4-40-B8-C	40	-	B 8	18	30.5	15	15	-	125
GN 5335.4-40-M6-D	40	M 6	-	18	30.5	15	-	13	132
GN 5335.4-40-M6-E	40	M 6	-	18	30.5	15	12	-	150
GN 5335.4-40-M8-D	40	M 8	-	18	30.5	15	-	13	150
GN 5335.4-40-M8-E	40	M 8	-	18	30.5	15	15	-	140
GN 5335.4-50-A	50	-	-	21	34	17	-	-	220
GN 5335.4-50-B10-C	50	-	B 10	21	34	17	18	-	205
GN 5335.4-50-M8-D	50	M 8	-	21	34	17	-	16	225
GN 5335.4-50-M8-E	50	M 8	-	21	34	17	15	-	225
GN 5335.4-50-M10-D	50	M 10	-	21	34	17	-	16	205
GN 5335.4-50-M10-E	50	M 10	-	21	34	17	18	-	220
GN 5335.4-60-A	60	-	-	25	39	18	-	-	388
GN 5335.4-60-B12-C	60	-	B 12	25	39	18	22	-	366
GN 5335.4-60-M10-D	60	M 10	-	25	39	18	-	20	360
GN 5335.4-60-M10-E	60	M 10	-	25	39	18	18	-	367
GN 5335.4-60-M12-D	60	M 12	-	25	39	18	-	20	366
GN 5335.4-60-M12-E	60	M 12	-	25	39	18	22	-	380
