Home Magnets Disc-shaped GN 53.4

GN 53.4

Magnets

Disk-Shaped, with Handle

Enquire Now

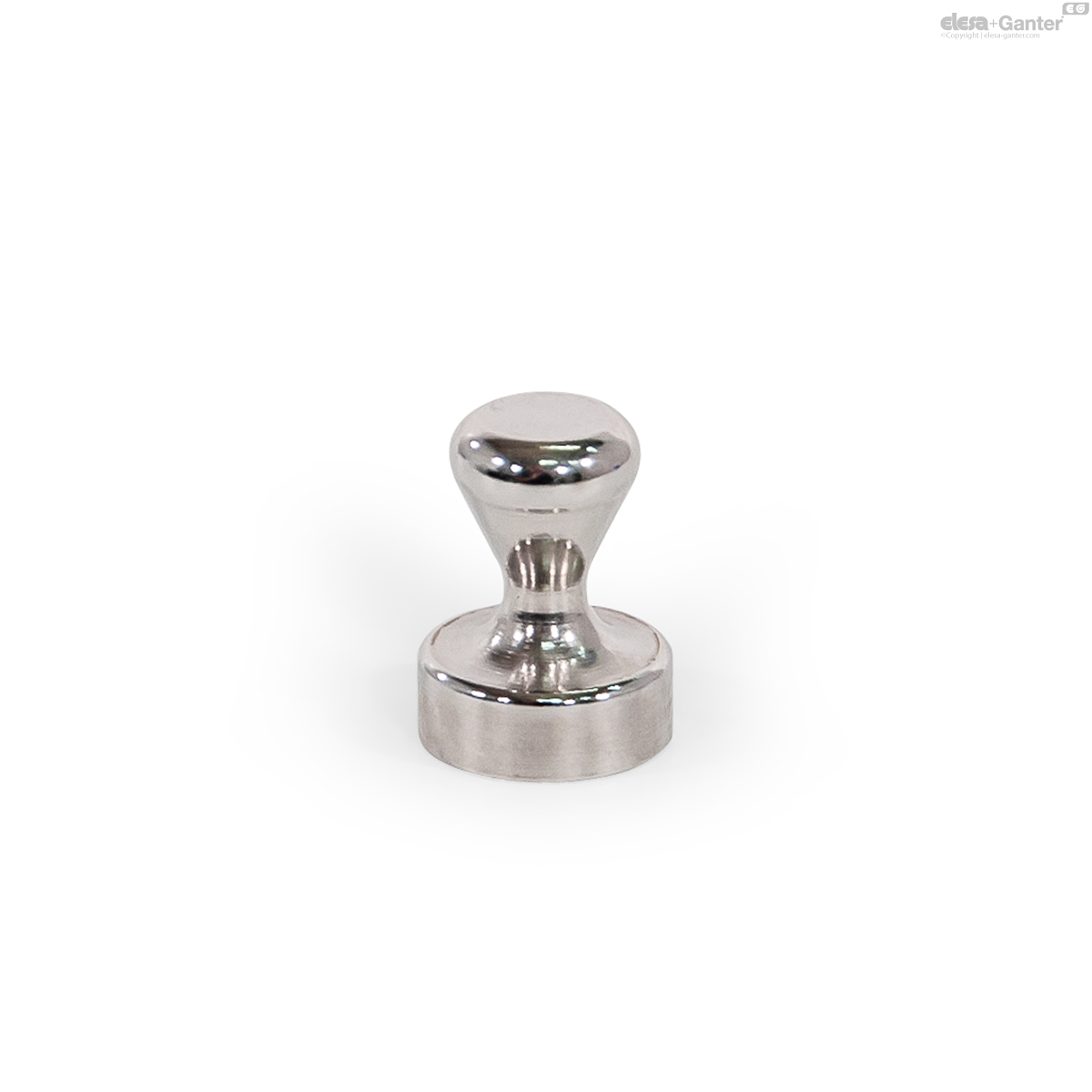

GN 53.4-A

Magnets

Without rubber underlay

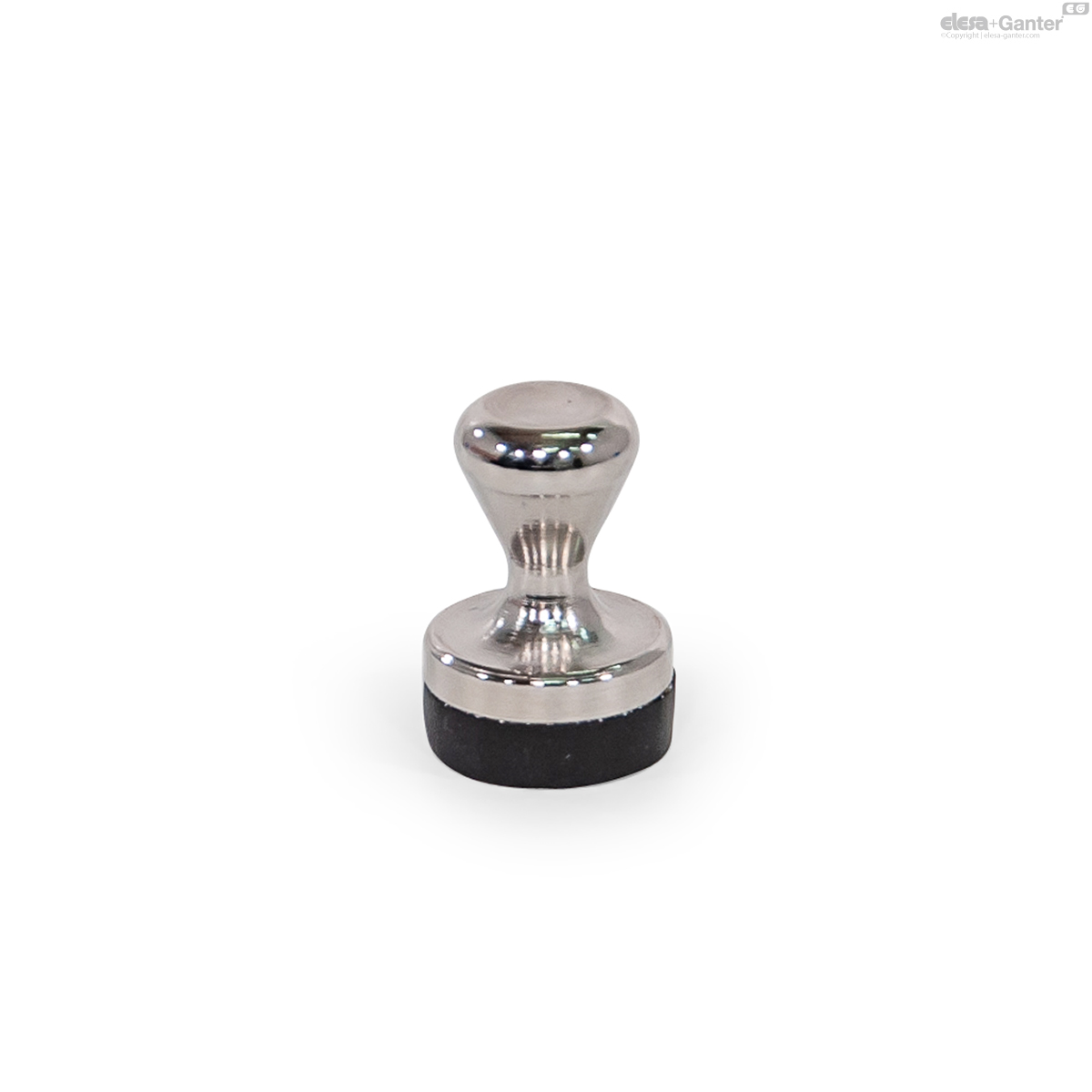

GN 53.4-B

Magnets

With rubber underlay

Description

Specification

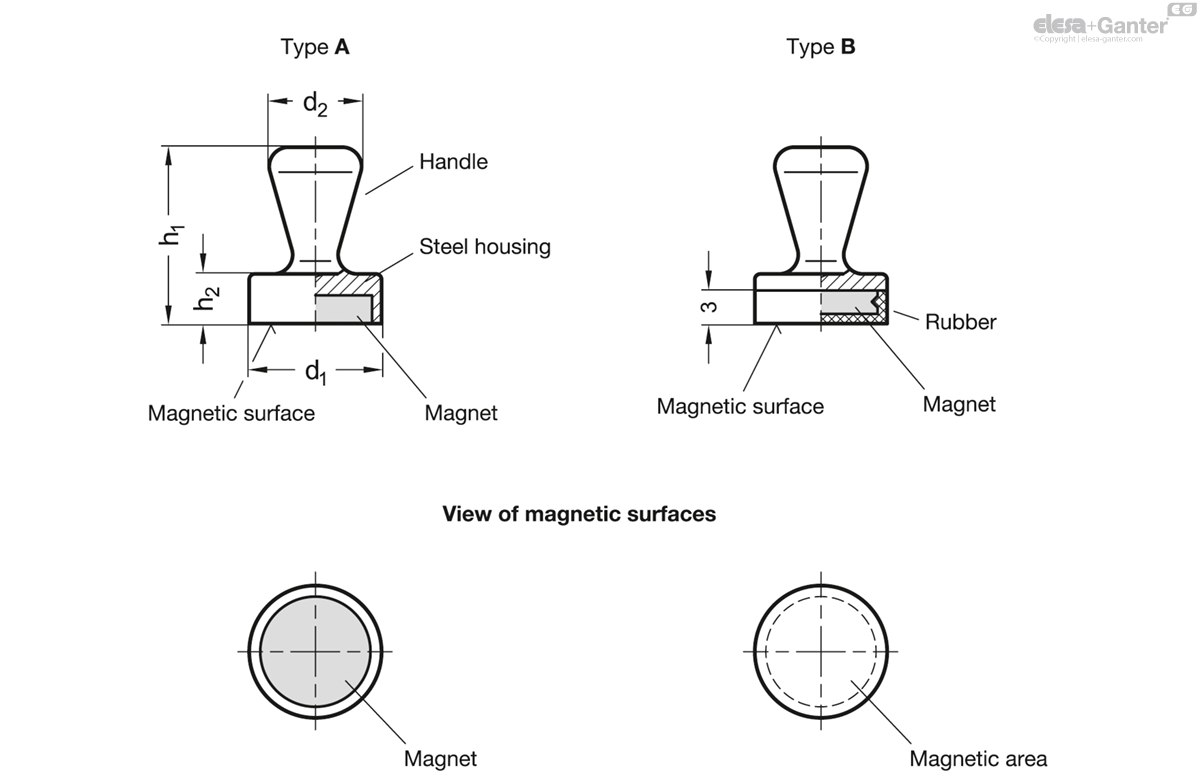

Types

Type A: Without rubber underlay

Type B: With rubber underlay

Magnet material

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Housing

Steel ST

Nickel-plated

Rubber underlay (type B)

Elastomer (TPE)

Black

≈ 80 Shore A

Information

Magnets GN 53.4 work in combination with the ergonomic nickel-plated steel handle as a system for holding documents, templates, drawings etc. that are used in technical environments.

The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.

Type B also features a rubber underlay to protect sensitive surfaces from damage and ensure low noise on contact.

More Information on Retaining Magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Technical information

Elastomer Characteristics

GN 53.4-A

	d₁	d₂	h₁	h₂	Nominal magnetic force in N
Code							Actions
GN 53.4-ND-ST-12-A	12	9	16	4.5	55	7
