GN 53.3

Magnets

Disk-Shaped, with Handle, with Plastic Housing

Enquire Now

Description

Specification

Types

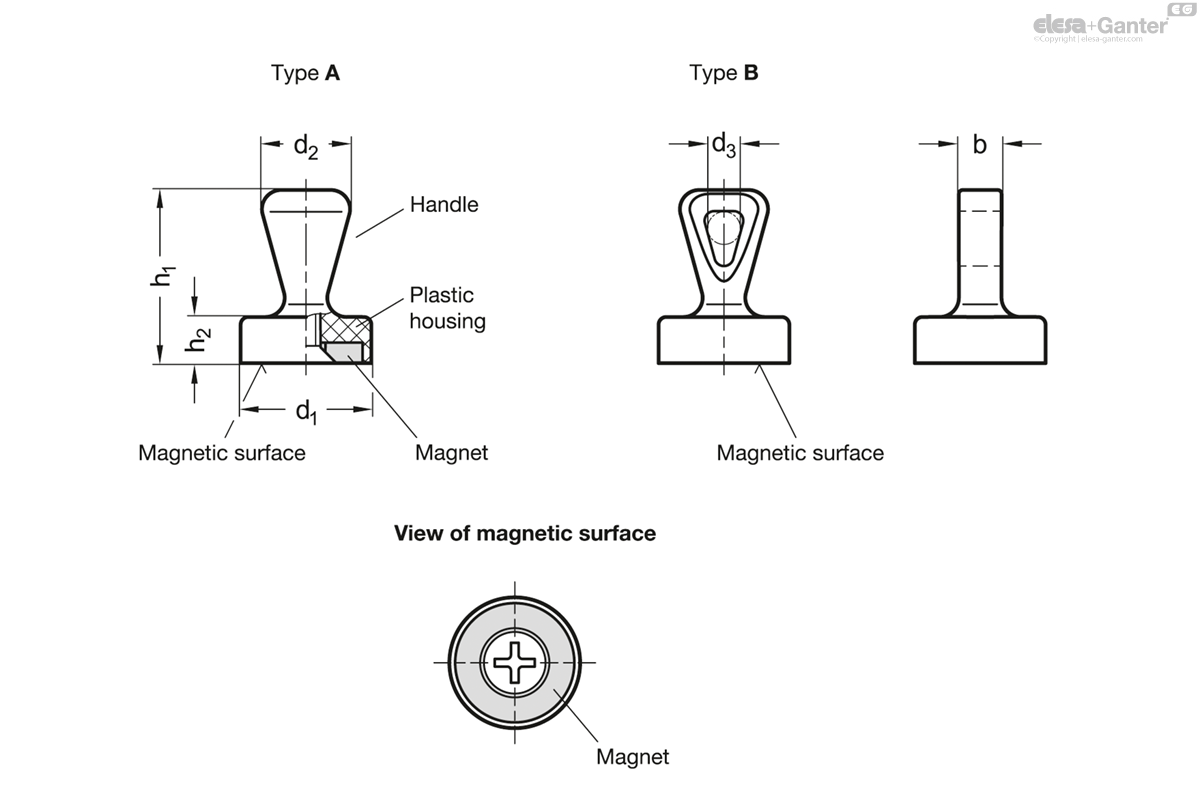

Type A: Without eyelet

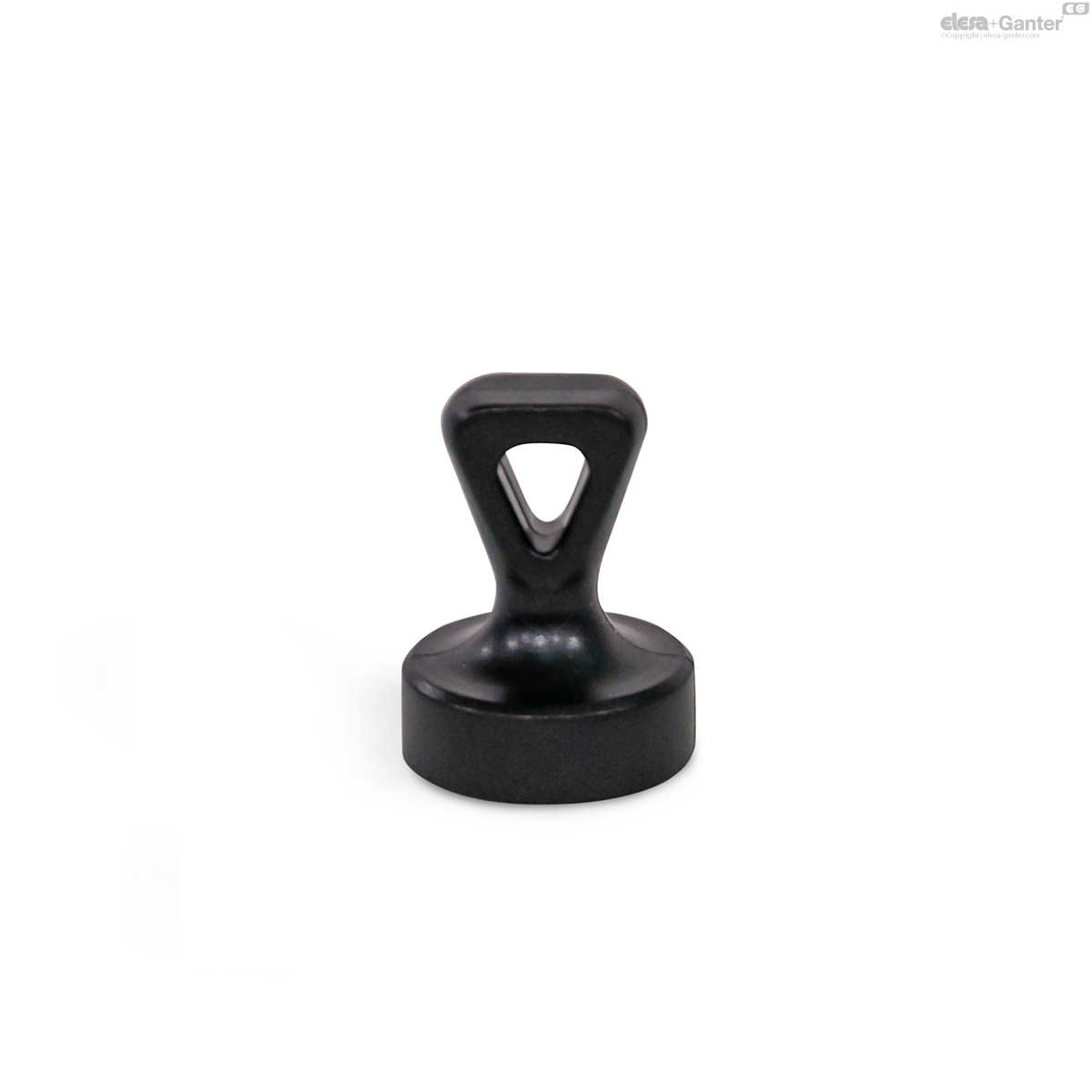

Type B: With eyelet

Magnet material

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Housing

Plastic

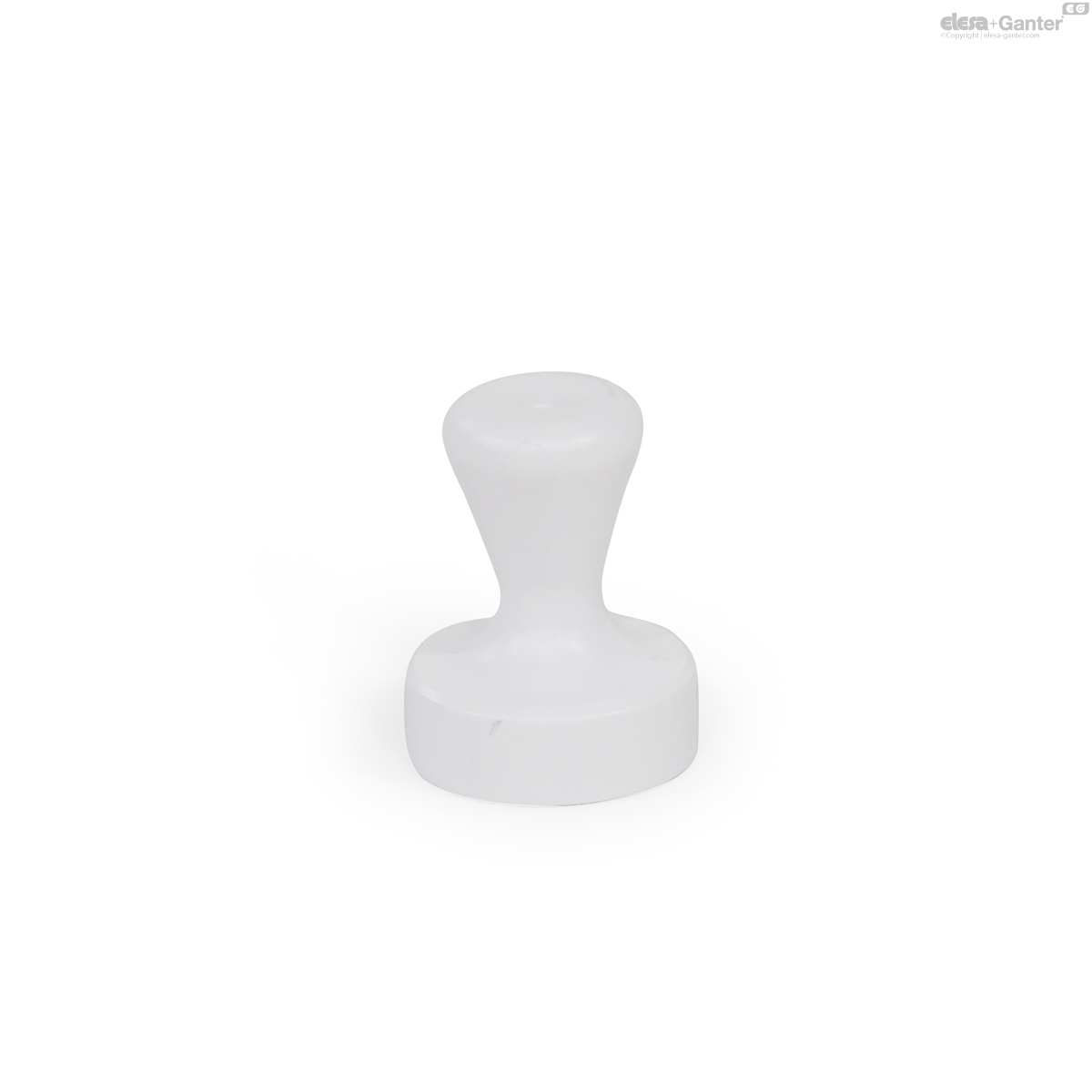

White, RAL 9003 WS

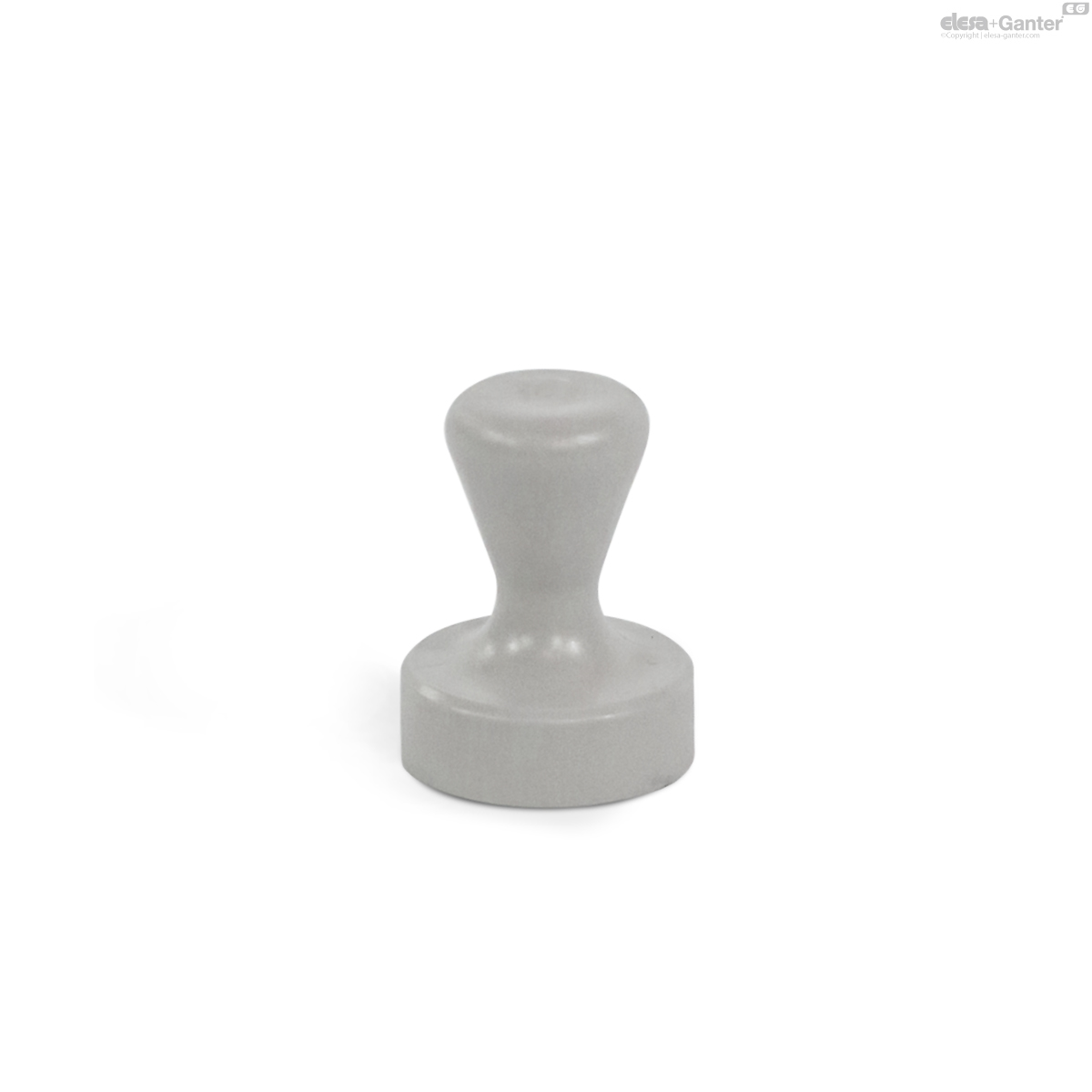

Gray, RAL 7040 GR

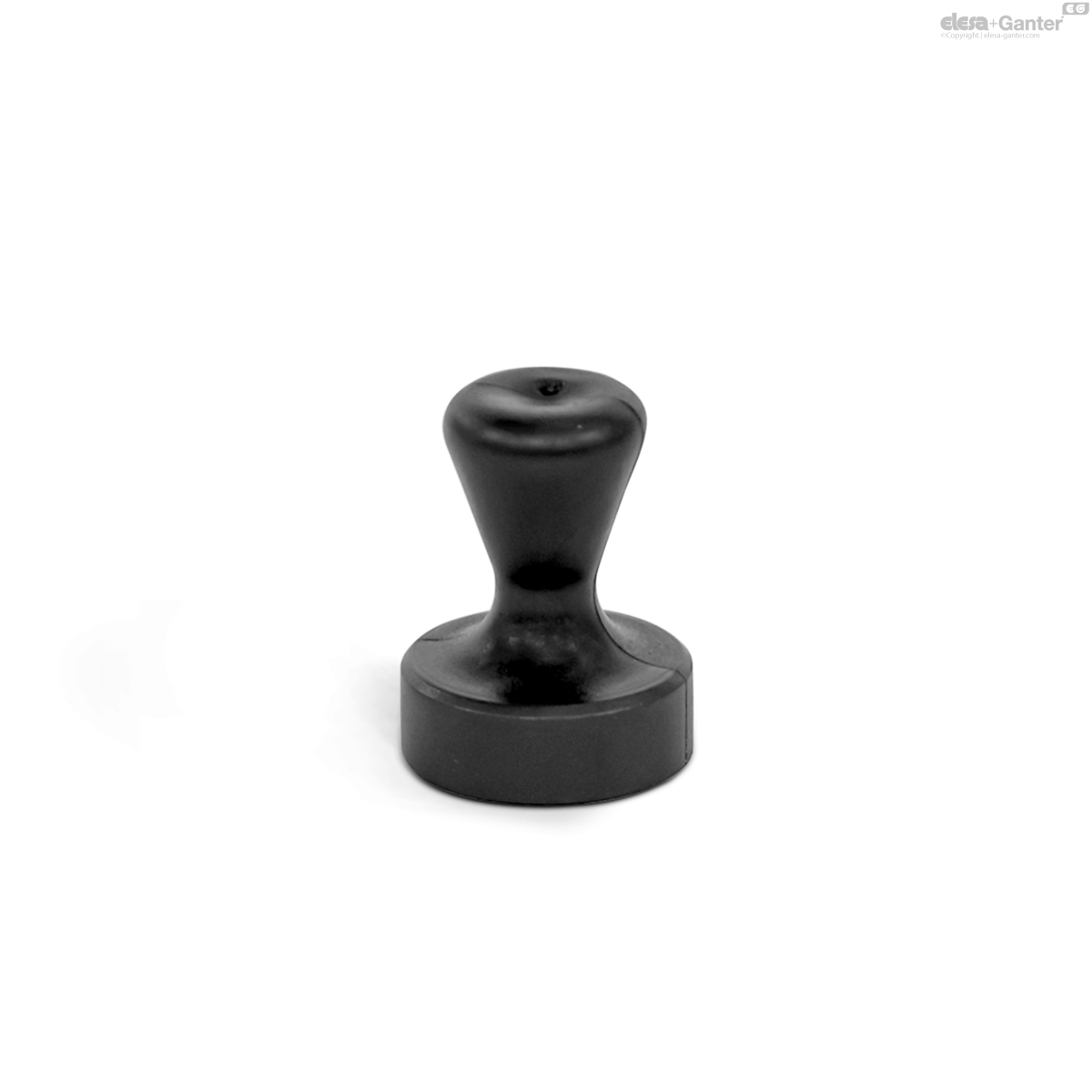

Black, RAL 9004 SW

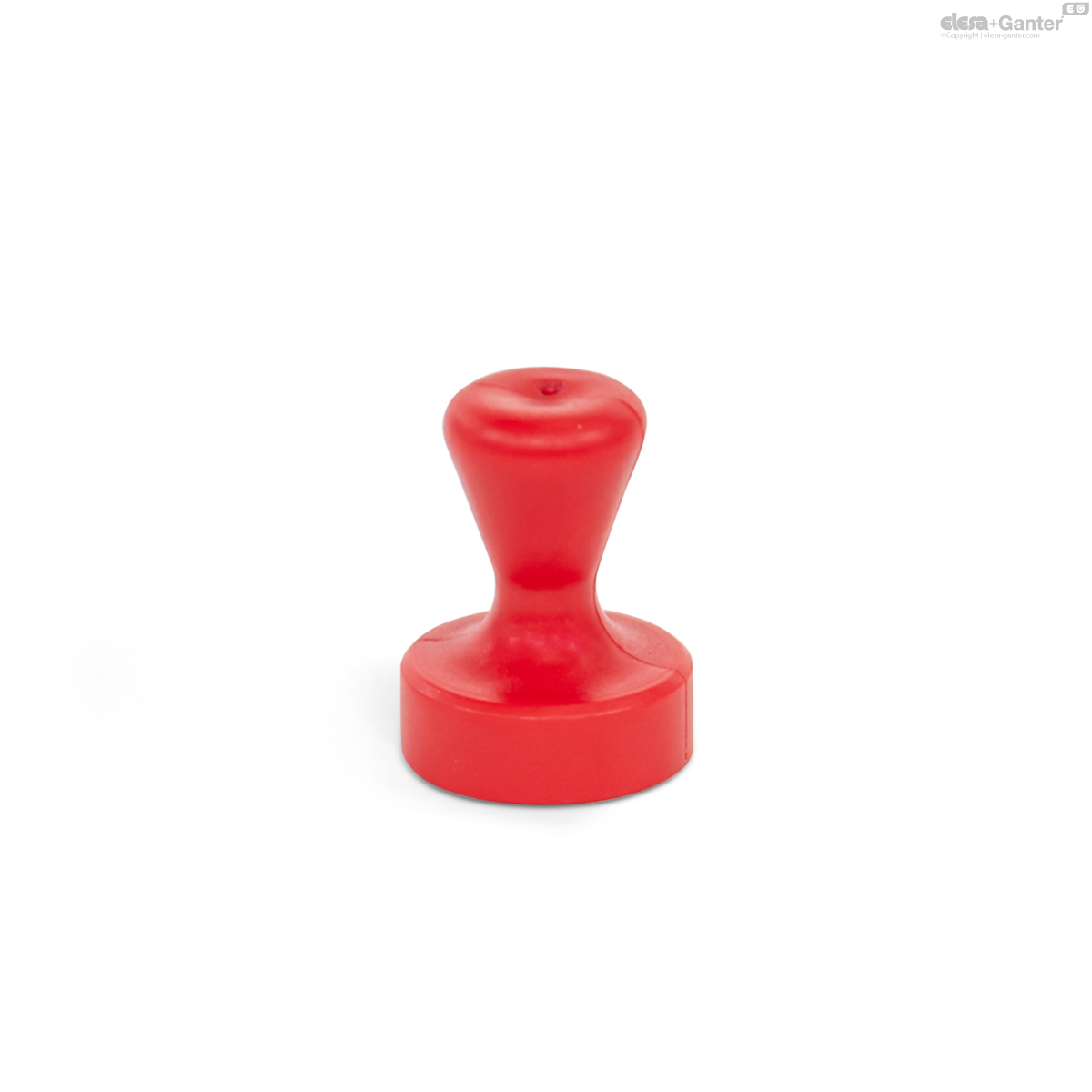

Red, RAL 3031 RT

Countersunk screw

Stainless steel

Information

Magnets GN 53.3 work in combination with the ergonomic plastic handle as a system for holding documents, templates, drawings etc. that are used in technical environments.

The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.

Type B with eyelet also offers the ability to protect the magnet from being lost with a retaining cable.

More Information on Retaining Magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Stainless Steel Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

On request

Other colors

GN 53.3-A

	Color	d₁	d₂	h₁	h₂	Nominal magnetic force in N
Code								Actions
GN 53.3-ND-17-A-GR	GR - RAL 7040	17	12	22.5	6	35	8
GN 53.3-ND-17-A-RT	RT - RAL 3031	17	12	22.5	6	35	8
GN 53.3-ND-17-A-SW	SW - RAL 9004	17	12	22.5	6	35	8
GN 53.3-ND-17-A-WS	WS - RAL 9003	17	12	22.5	6	35	8
