GN 53.2
Magnets
Rectangular-Shape, with Plastic Housing
Description
Specification
Housing
Plastic

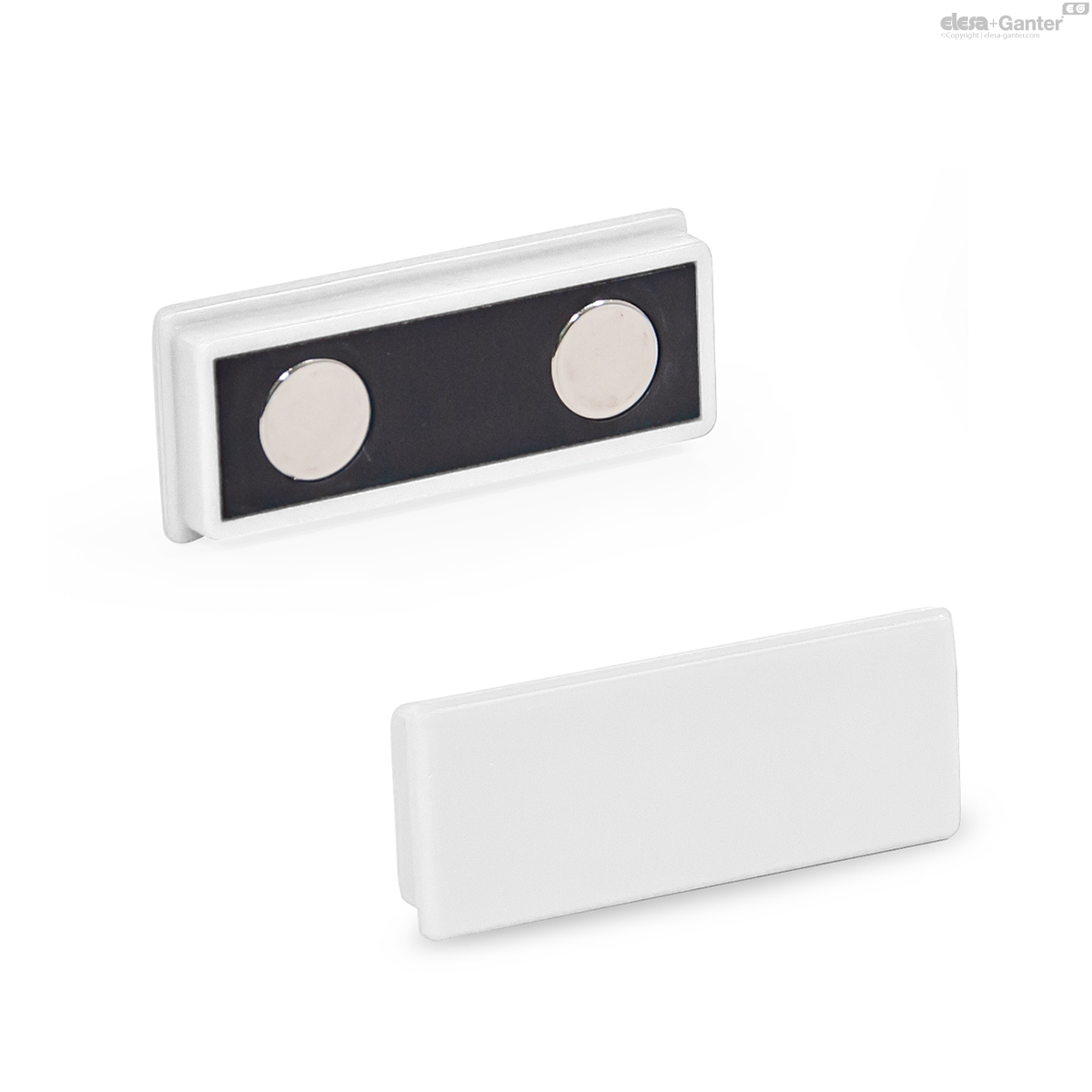

- White, RAL 9003 WS

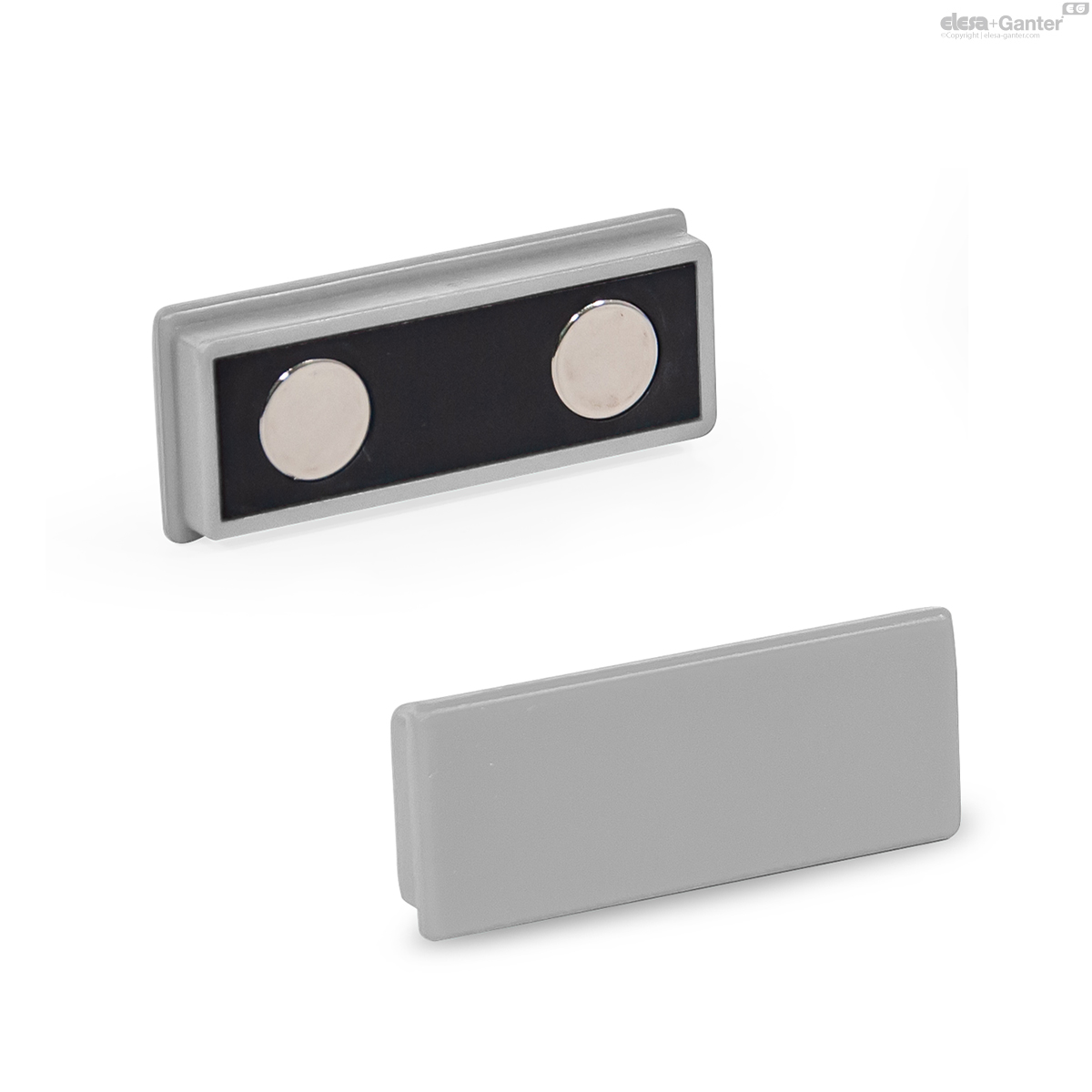

- Gray, RAL 7040 GR

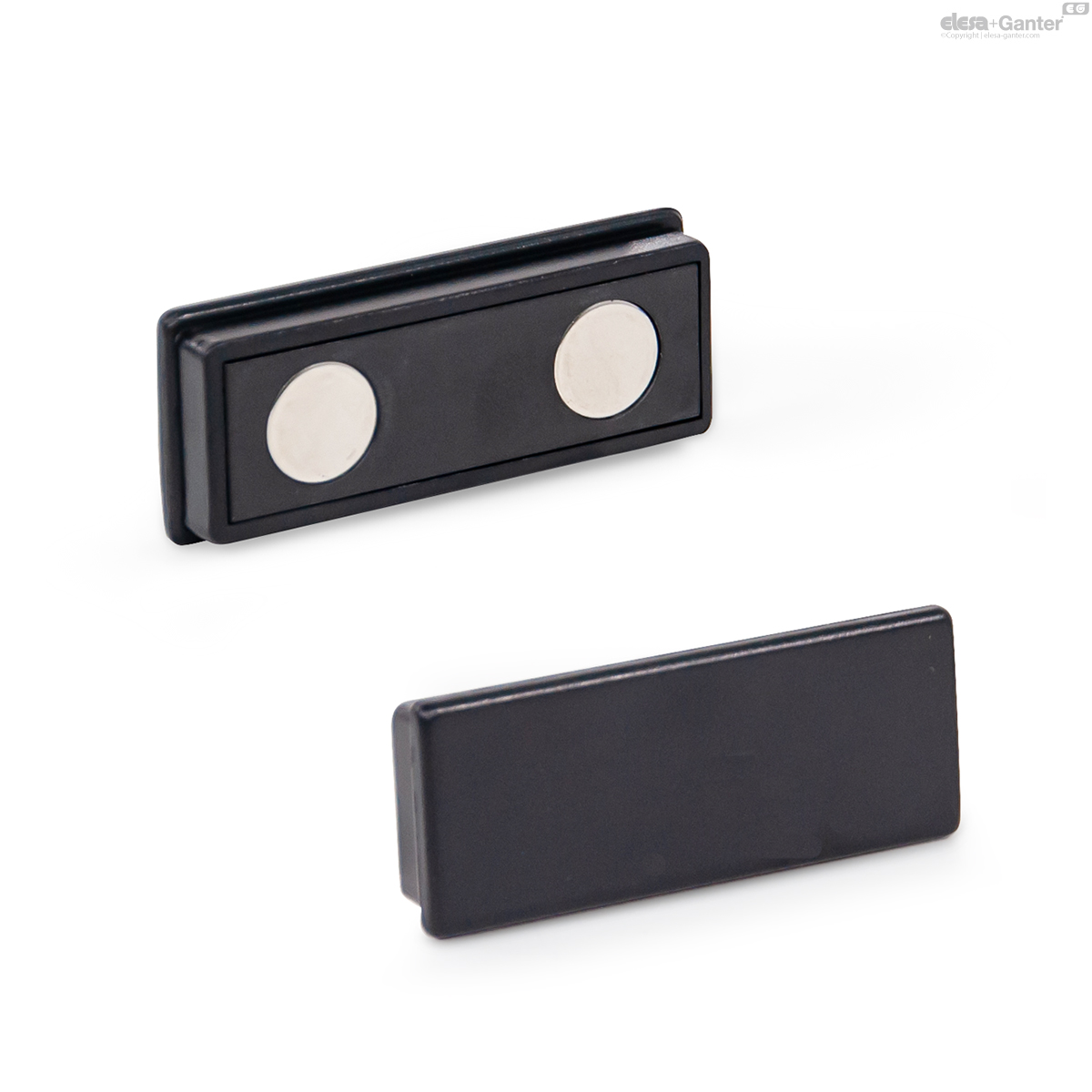

- Black, RAL 9004 SW

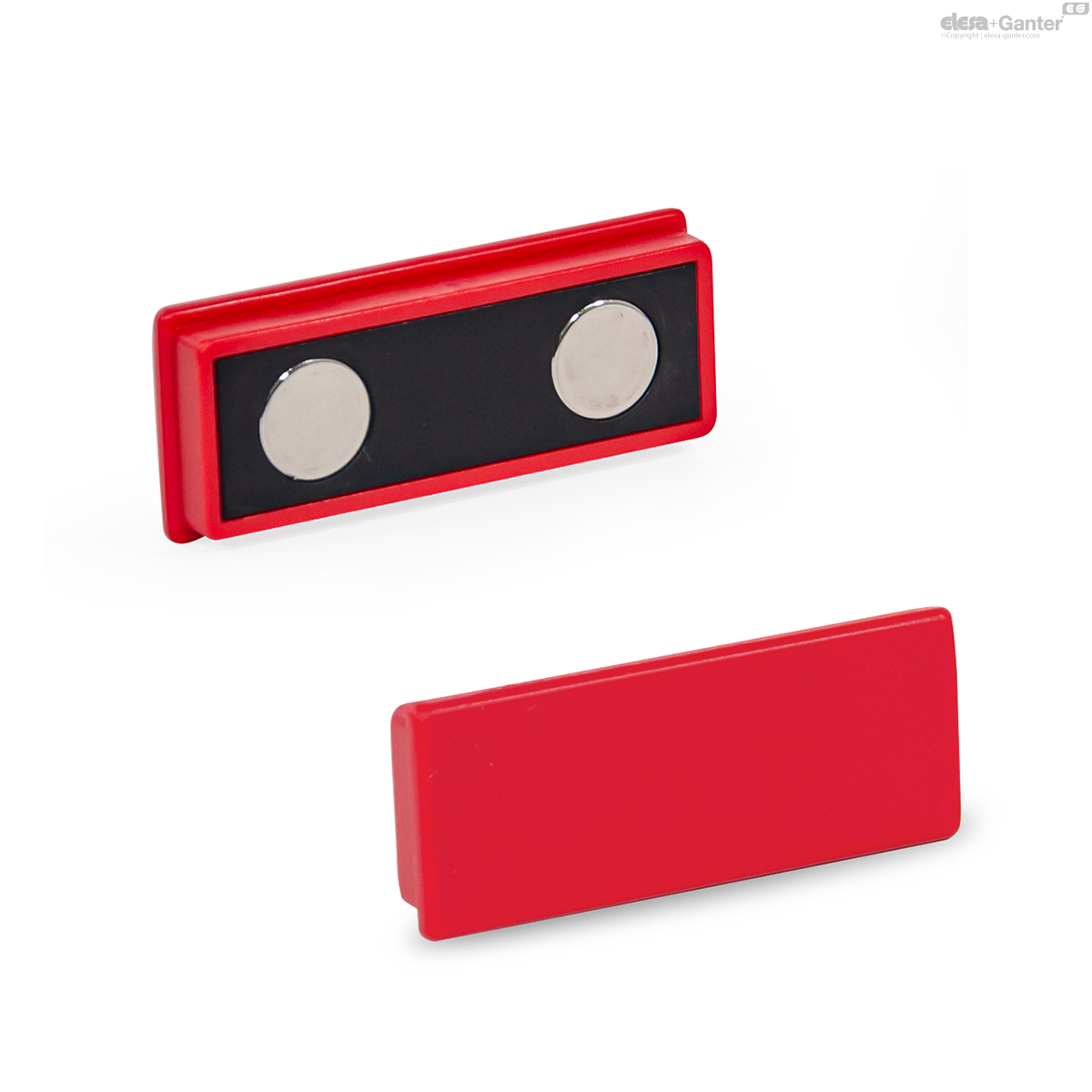

- Red, RAL 3031 RT
Magnet material
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Information
Magnets GN 53.2 work in combination with the flat, rectangular plastic housing as a system for holding documents, templates, drawings etc. that are used in technical environments.
The neodymium magnets used are characterized by a high retaining force.
- More Information on Retaining MagnetsÂ
Accessory
- Holding Disks GN 70Â
- Adhesive Disks GN 70.1Â
On request
- Other colors
- Magnet material hard ferrite
- With custom imprint
GN 53.2

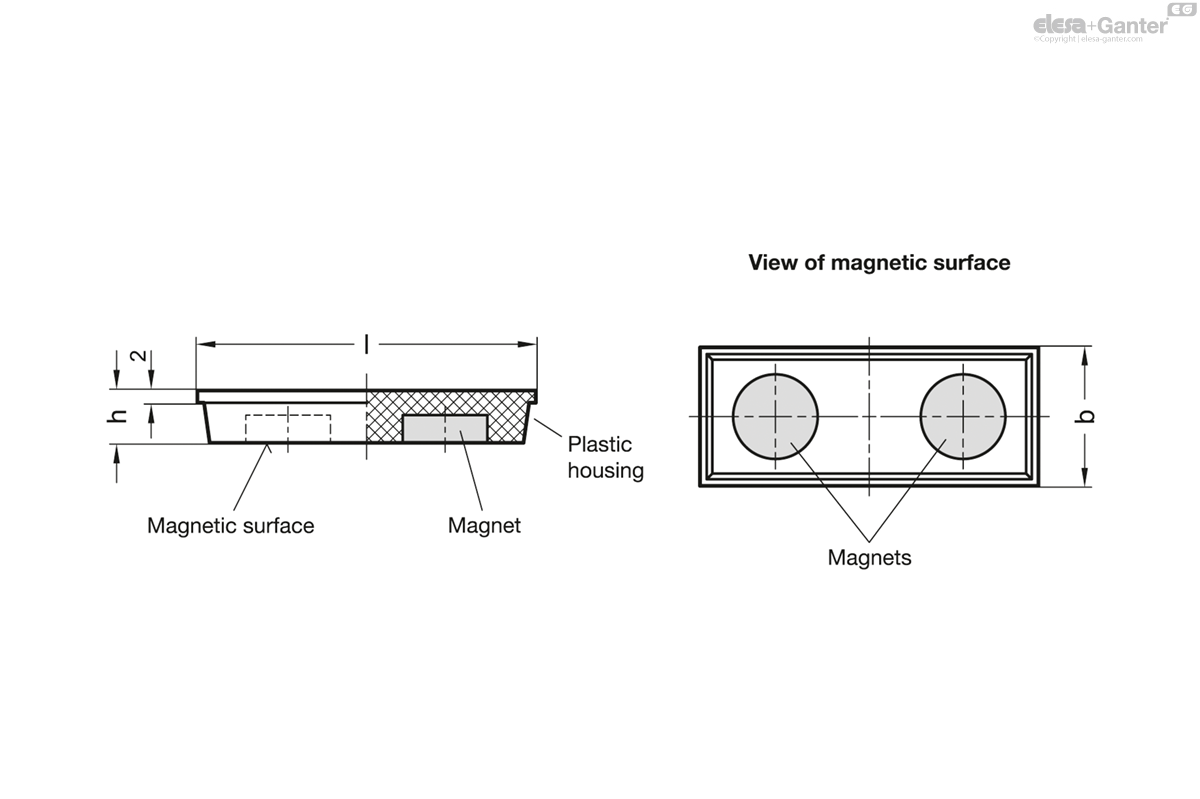

| Color | l | b | h | Nominal magnetic force in N |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 53.2-ND-55-GR | GR - RAL 7040 | 55 | 22.5 | 8.5 | 48 | 25 |
|
| GN 53.2-ND-55-RT | RT - RAL 3031 | 55 | 22.5 | 8.5 | 48 | 25 |
|
| GN 53.2-ND-55-SW | SW - RAL 9004 | 55 | 22.5 | 8.5 | 48 | 25 |
|
| GN 53.2-ND-55-WS | WS - RAL 9003 | 55 | 22.5 | 8.5 | 48 | 25 |
|
