GN 52b

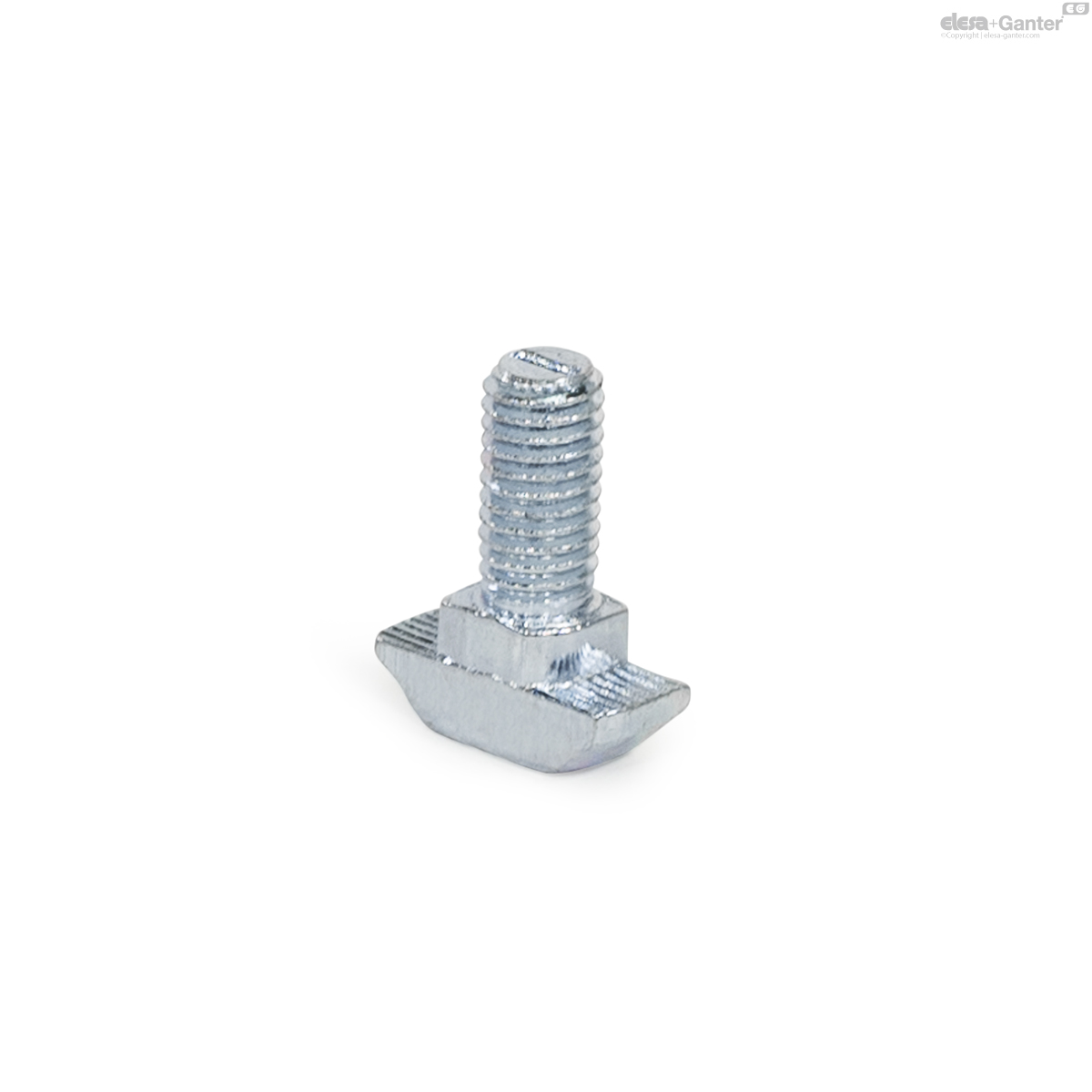

T-Slot Bolts
Steel / Stainless Steel, for Aluminum Profiles (b-Modular System)
Description
Specification
Steel, zinc plated, blue passivated SZ

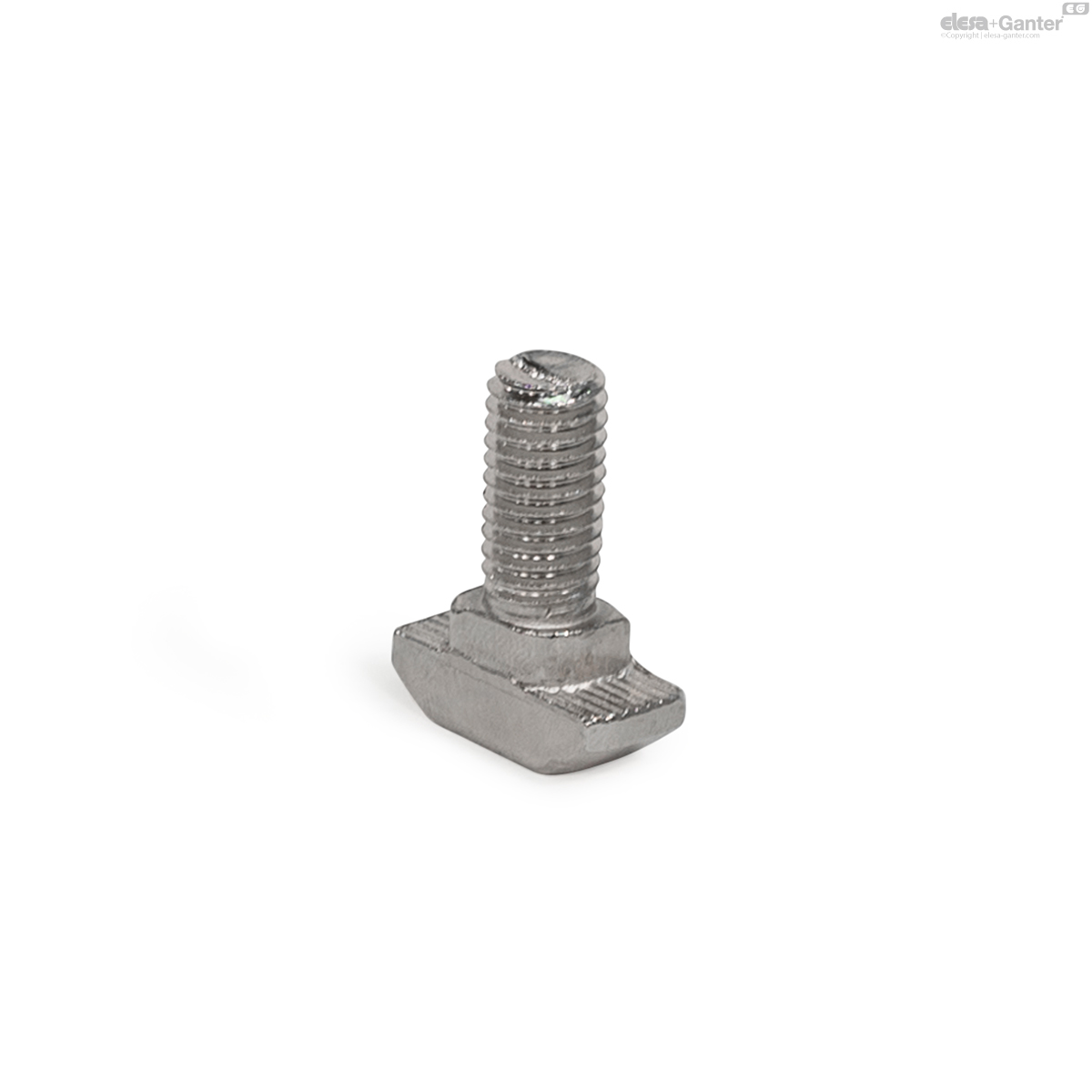

Stainless steel, plain finish NB
Information

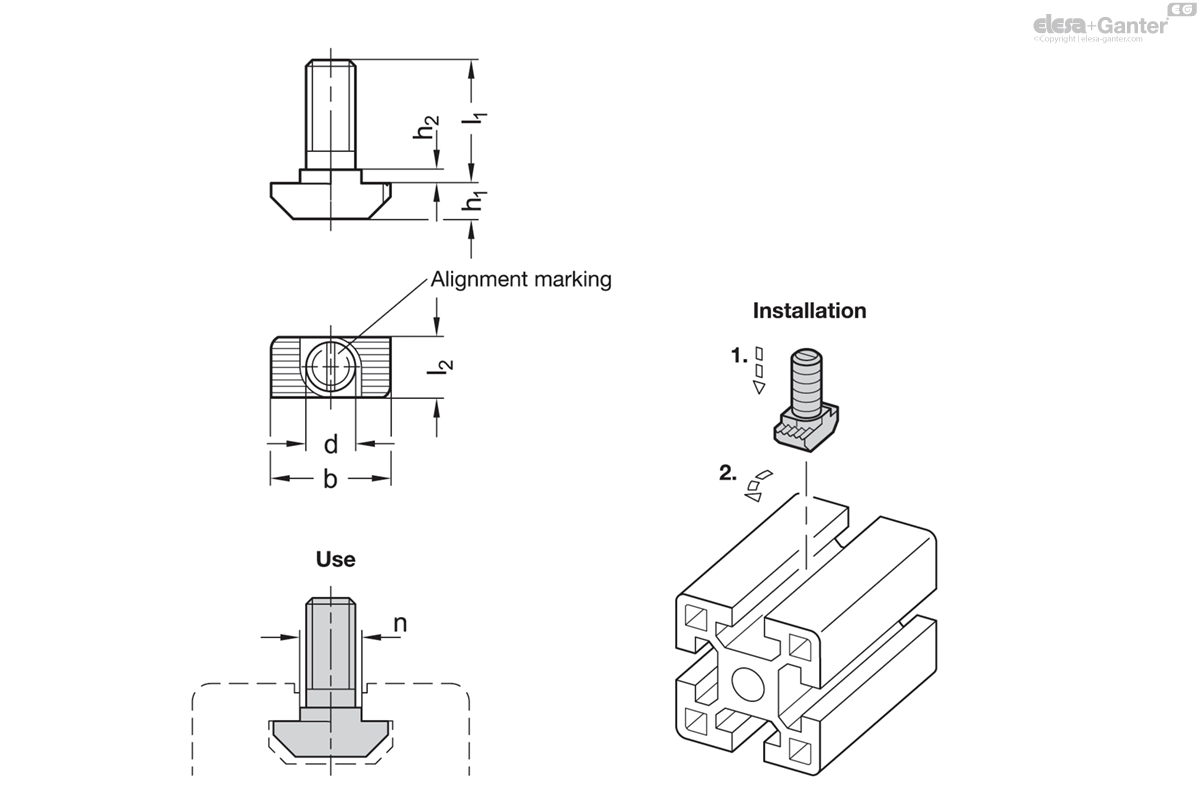

T-slot bolts GN 52b fasten attachments and accessories in the slot of aluminum profiles. They are inserted into the slot of the aluminum profile at any position and affixed by a 90° turn.
The connection is conductive.
Accessory
- Collar Nuts GN 53b
GN 52b
| Color | n | d | l1 Steel |
l1 Stainless steel |
b | h1 | h2 | l2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 52b-8M616-SZ | SZ | 8 | M 6 | 16 | - | 16 | 4.5 | 1.5 | 8 | 6 |
|
| GN 52b-8M620-NB | NB | 8 | M 6 | - | 20 | 16 | 4.5 | 1.5 | 8 | 8 |
|
| GN 52b-8M620-SZ | SZ | 8 | M 6 | 20 | - | 16 | 4.5 | 1.5 | 8 | 7 |
|
| GN 52b-8M625-NB | NB | 8 | M 6 | - | 25 | 16 | 4.5 | 1.5 | 8 | 9 |
|
| GN 52b-8M625-SZ | SZ | 8 | M 6 | 25 | - | 16 | 4.5 | 1.5 | 8 | 7 |
|
| GN 52b-8M630-NB | NB | 8 | M 6 | - | 30 | 16 | 4.5 | 1.5 | 8 | 10 |
|
| GN 52b-8M630-SZ | SZ | 8 | M 6 | 30 | - | 16 | 4.5 | 1.5 | 8 | 8 |
|
| GN 52b-8M640-NB | NB | 8 | M 6 | - | 40 | 16 | 4.5 | 1.5 | 8 | 11 |
|
| GN 52b-8M640-SZ | SZ | 8 | M 6 | 40 | - | 16 | 4.5 | 1.5 | 8 | 10 |
|
| GN 52b-8M660-NB | NB | 8 | M 6 | - | 60 | 16 | 4.5 | 1.5 | 8 | 14 |
|
| GN 52b-8M660-SZ | SZ | 8 | M 6 | 60 | - | 16 | 4.5 | 1.5 | 8 | 12 |
|
| GN 52b-8M820-SZ | SZ | 8 | M 8 | 20 | - | 16 | 4.5 | 1.5 | 8 | 9 |
|
| GN 52b-8M825-SZ | SZ | 8 | M 8 | 25 | - | 16 | 4.5 | 1.5 | 8 | 10 |
|
| GN 52b-8M830-SZ | SZ | 8 | M 8 | 30 | - | 16 | 4.5 | 1.5 | 8 | 12 |
|
| GN 52b-10M616-SZ | SZ | 10 | M 6 | 16 | - | 19.5 | 5.5 | 4 | 8.5 | 6 |
|
| GN 52b-10M620-NB | NB | 10 | M 6 | - | 20 | 19.5 | 5.5 | 4 | 8.5 | 11 |
|
| GN 52b-10M620-SZ | SZ | 10 | M 6 | 20 | - | 19.5 | 5.5 | 4 | 8.5 | 7 |
|
| GN 52b-10M625-NB | NB | 10 | M 6 | - | 25 | 19.5 | 5.5 | 4 | 8.5 | 12 |
|
| GN 52b-10M625-SZ | SZ | 10 | M 6 | 25 | - | 19.5 | 5.5 | 4 | 8.5 | 7 |
|
| GN 52b-10M630-NB | NB | 10 | M 6 | - | 30 | 19.5 | 5.5 | 4 | 8.5 | 13 |
|
| GN 52b-10M630-SZ | SZ | 10 | M 6 | 30 | - | 19.5 | 5.5 | 4 | 8.5 | 8 |
|
| GN 52b-10M640-NB | NB | 10 | M 6 | - | 40 | 19.5 | 5.5 | 4 | 8.5 | 15 |
|
| GN 52b-10M640-SZ | SZ | 10 | M 6 | 40 | - | 19.5 | 5.5 | 4 | 8.5 | 9 |
|
| GN 52b-10M660-NB | NB | 10 | M 6 | - | 60 | 19.5 | 5.5 | 4 | 8.5 | 19 |
|
| GN 52b-10M660-SZ | SZ | 10 | M 6 | 60 | - | 19.5 | 5.5 | 4 | 8.5 | 10 |
|
| GN 52b-10M820-NB | NB | 10 | M 8 | - | 20 | 19.5 | 5.5 | 4 | 8.5 | 14 |
|
| GN 52b-10M820-SZ | SZ | 10 | M 8 | 20 | - | 19.5 | 5.5 | 4 | 8.5 | 14 |
|
| GN 52b-10M825-NB | NB | 10 | M 8 | - | 25 | 19.5 | 5.5 | 4 | 8.5 | 16 |
|
| GN 52b-10M825-SZ | SZ | 10 | M 8 | 25 | - | 19.5 | 5.5 | 4 | 8.5 | 15 |
|
| GN 52b-10M830-NB | NB | 10 | M 8 | - | 30 | 19.5 | 5.5 | 4 | 8.5 | 17 |
|
| GN 52b-10M830-SZ | SZ | 10 | M 8 | 30 | - | 19.5 | 5.5 | 4 | 8.5 | 17 |
|
| GN 52b-10M840-NB | NB | 10 | M 8 | - | 40 | 19.5 | 5.5 | 4 | 8.5 | 20 |
|
| GN 52b-10M840-SZ | SZ | 10 | M 8 | 40 | - | 19.5 | 5.5 | 4 | 8.5 | 20 |
|
| GN 52b-10M860-NB | NB | 10 | M 8 | - | 60 | 19.5 | 5.5 | 4 | 8.5 | 27 |
|
| GN 52b-10M860-SZ | SZ | 10 | M 8 | 60 | - | 19.5 | 5.5 | 4 | 8.5 | 26 |
|
