Description

Specification

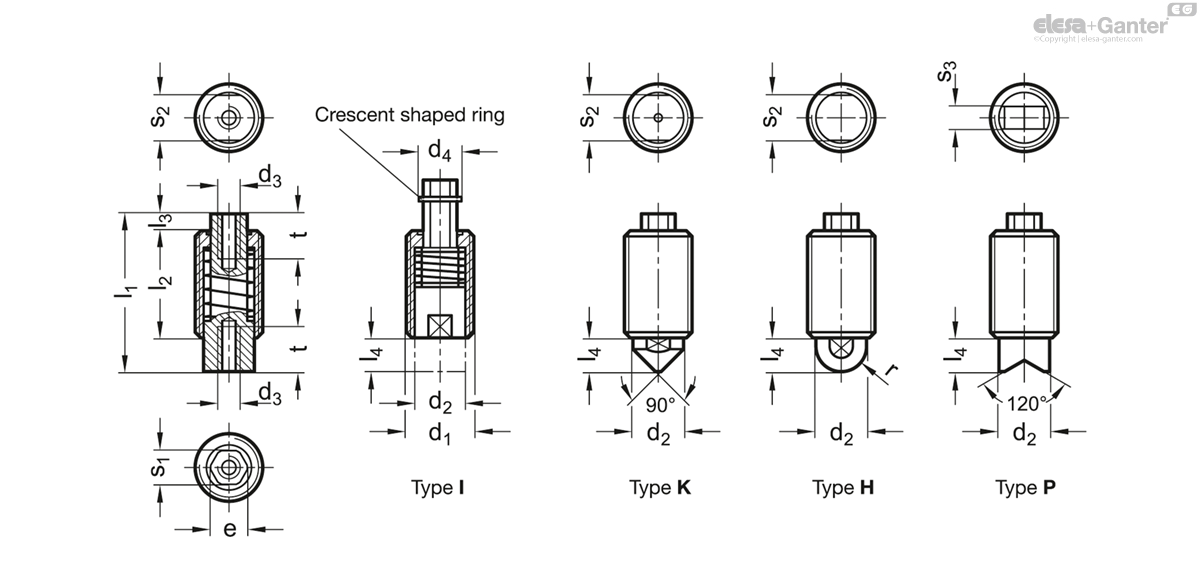

Types

Type I: Female thread

Type K: Pointed nose

Type H: Semi-spherical, Steel

Type P: Prism (120°)

Identification No.

Version 1: standard spring load

Version 2: high spring load

Steel

Threaded sleeve

zinc plated, blue passivated

Spring bolt

case hardened, blackened

Identification

standard spring load:

Crescent shaped ring

phosphated (anthracite)

high spring load:

Crescent shaped ring

zinc plated, blue passivated

Information

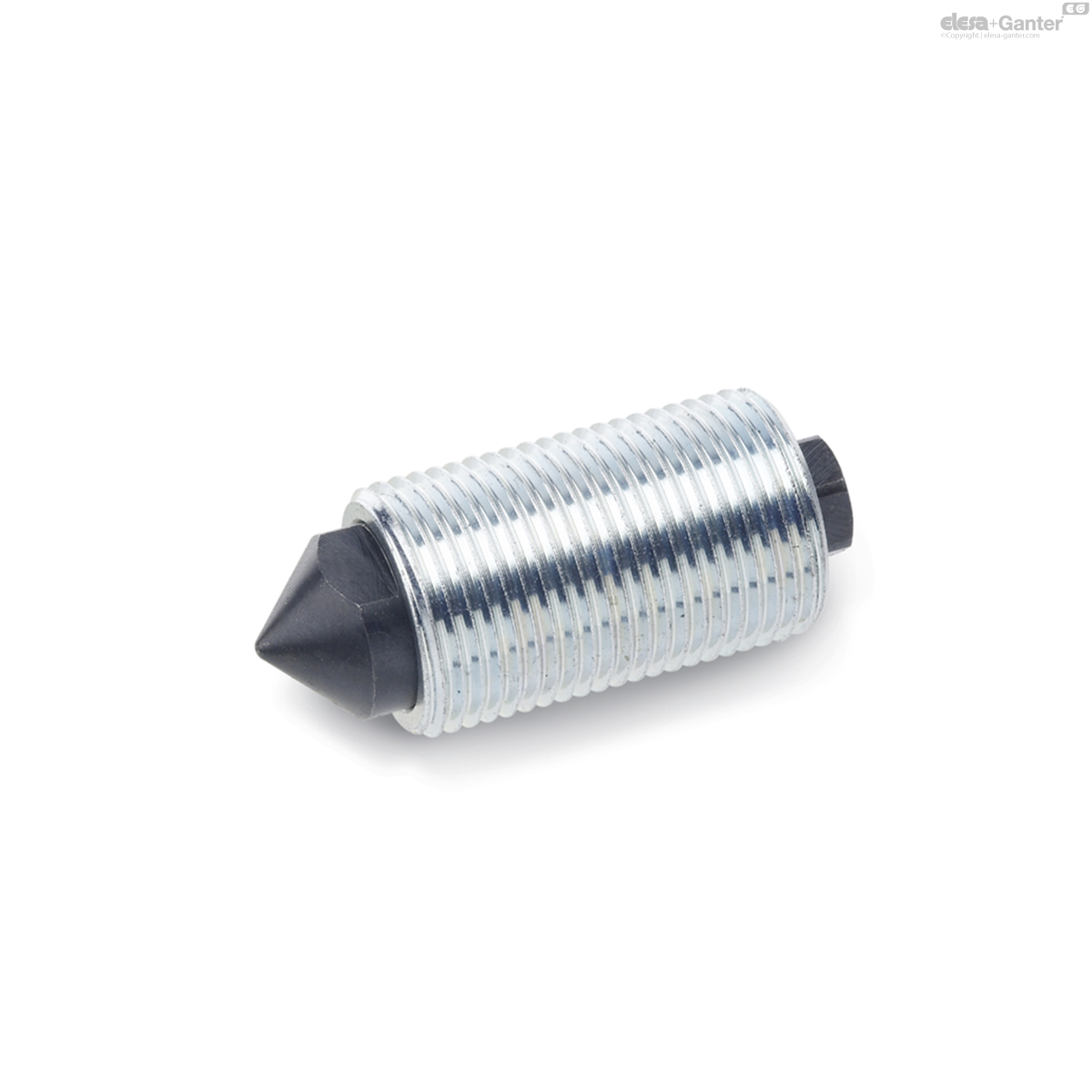

Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.

At the pulling end the female thread will accept a pulling rod or an operating knob.

Type I with a female thread at the pushing end can be fitted with a special plunger nose.

The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.

GN 513

	d₁	d₂	d₃	d₄	e	l₁	l₂	l₃	l₄	r	s₁	s₂	s₃	t min.	Spring load in N ≈ initial	Spring load in N ≈ end
Code																		Actions
GN 513-M12x1,5-H-1	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	4.5	6	8	-	-	16	35	14
GN 513-M12x1,5-H-2	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	4.5	6	8	-	-	18	56	14
GN 513-M12x1,5-I-1	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	8	-	8	16	35	10
GN 513-M12x1,5-I-2	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	8	-	8	18	56	10
GN 513-M12x1,5-K-1	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	8	-	8	16	35	13
GN 513-M12x1,5-K-2	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	8	-	8	18	56	13
GN 513-M12x1,5-P-1	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	-	4	8	16	35	12
GN 513-M12x1,5-P-2	M 12 x 1.5	9	M 4	7.6	6.5	28	19	3	6	-	6	-	4	8	18	56	12
GN 513-M16x1,5-H-1	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	6	7	10	-	-	25	71	30
GN 513-M16x1,5-H-2	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	6	7	10	-	-	45	125	30
GN 513-M16x1,5-I-1	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	10	-	10	25	71	31
GN 513-M16x1,5-I-2	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	10	-	10	45	125	31
GN 513-M16x1,5-K-1	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	10	-	10	25	71	30
GN 513-M16x1,5-K-2	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	10	-	10	45	125	30
GN 513-M16x1,5-P-1	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	-	6	10	25	71	30
GN 513-M16x1,5-P-2	M 16 x 1.5	12	M 5	8.8	7.8	38	27	3	8	-	7	-	6	10	45	125	30
GN 513-M20x1,5-H-1	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	7.2	9	12	-	-	40	130	66
GN 513-M20x1,5-H-2	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	7.2	9	12	-	-	65	200	66
GN 513-M20x1,5-I-1	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	-	9	12	-	12	40	130	65
GN 513-M20x1,5-I-2	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	-	9	12	-	12	65	200	65
GN 513-M20x1,5-K-1	M 20 x 1,5	14.5	M 6	11.4	10	47	33	4	10	-	9	12	-	12	40	130	65
GN 513-M20x1,5-K-2	M 20 x 1,5	14.5	M 6	11.4	10	47	33	4	10	-	9	12	-	12	65	200	65
GN 513-M20x1,5-P-1	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	-	9	-	8	12	40	130	64
GN 513-M20x1,5-P-2	M 20 x 1.5	14.5	M 6	11.4	10	47	33	4	10	-	9	-	8	12	65	200	64
