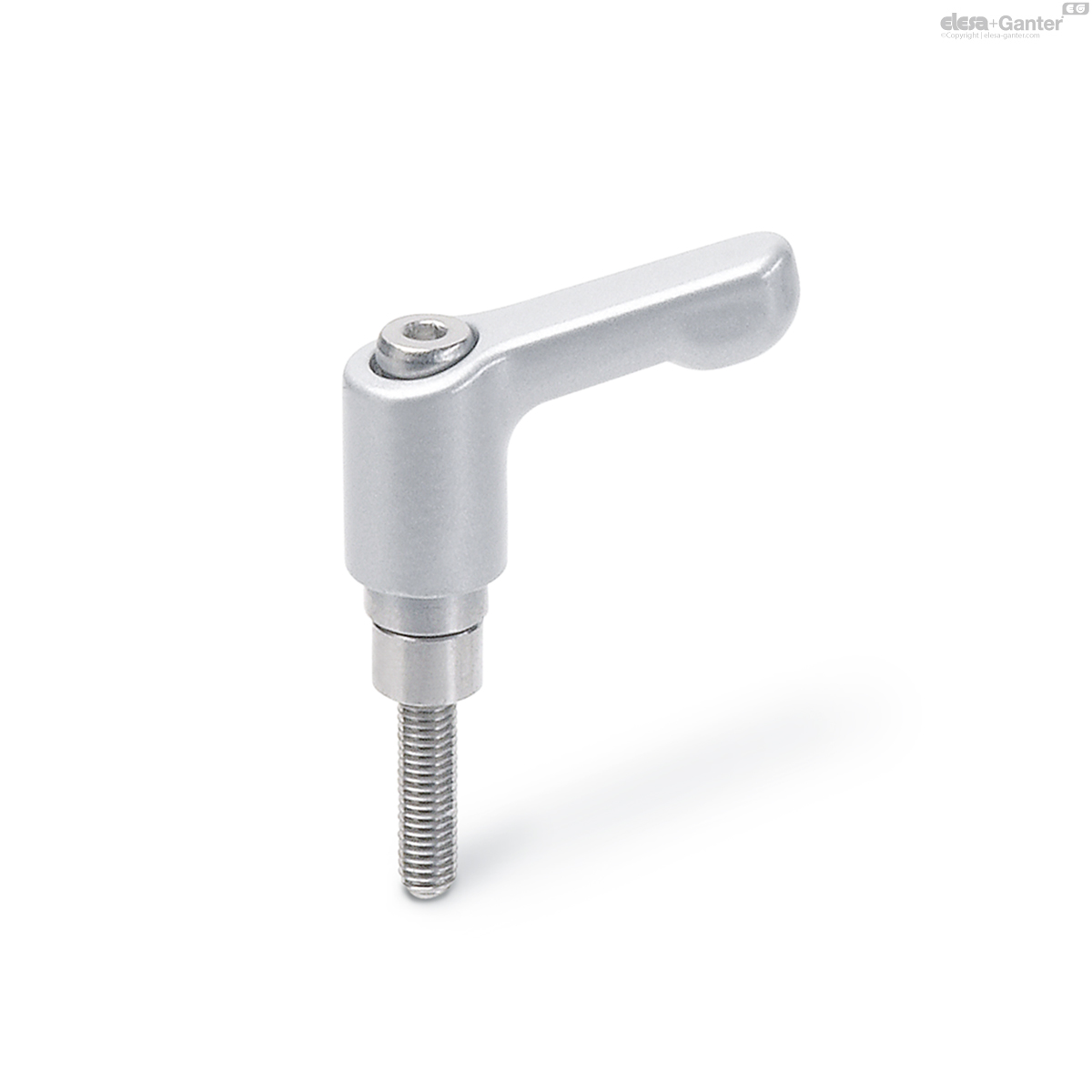

GN 511
Clamping lever kits
adjustable, for clamp mountings
Description
Specification
Handle
Zinc die casting
plastic coated
silver, RAL 9006, textured finish
Insert / Distance bushing
Stainless Steel AISI 303
Information
For clamp mountings, the clamping kits GN 511 replace the hexagon socket screw DIN 912. It is used on all clamping points where repeated clamping actions are required, e.g. for adjusting a stop mechanism.
The matching clamping kits for each clamping thread are listed in the dimensional tables of the clamp mountings.
Technical information
- Stainless Steel characteristicsÂ

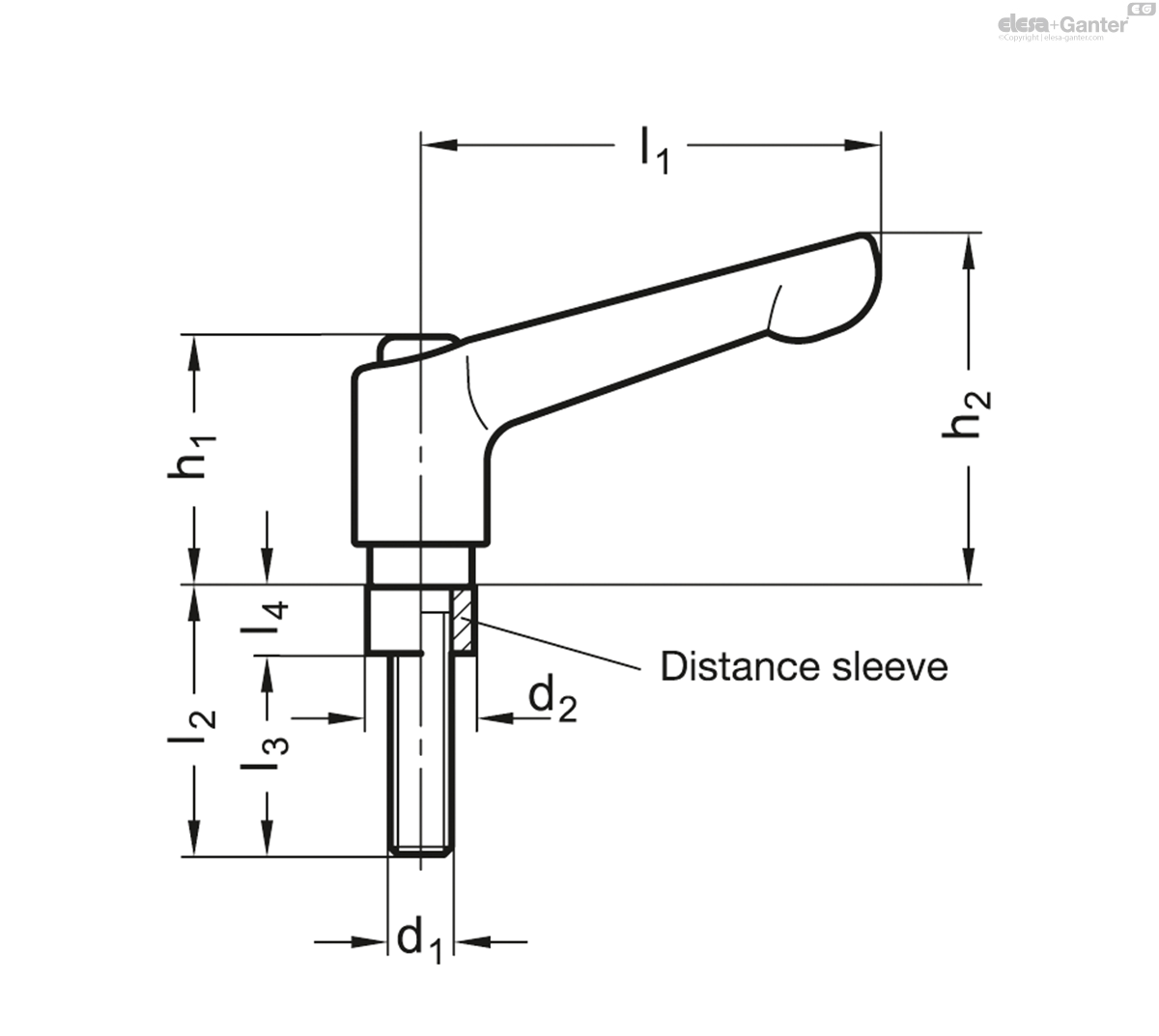

GN 511
| d1 | l2 | d2 | l1 | l3 | l4 | h1 | h2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 511-M4-14 | M 4 | 14 | 7.5 | 22 | 9.5 | 4.5 | 18.5 | 23 | 38 |
|
| GN 511-M4-16 | M 4 | 16 | 7.5 | 22 | 11.5 | 4.5 | 18.5 | 23 | 38 |
|
| GN 511-M4-20 | M 4 | 20 | 7.5 | 22 | 15.5 | 4.5 | 18.5 | 23 | 40 |
|
| GN 511-M5-16 | M 5 | 16 | 9 | 30 | 10 | 6 | 24.5 | 30.5 | 41 |
|
| GN 511-M5-20 | M 5 | 20 | 9 | 30 | 14 | 6 | 24.5 | 30.5 | 40 |
|
| GN 511-M5-25 | M 5 | 25 | 9 | 30 | 19 | 6 | 24.5 | 30.5 | 40 |
|
| GN 511-M6-20 | M 6 | 20 | 10.5 | 45 | 13.5 | 6.5 | 24.5 | 35 | 40 |
|
| GN 511-M6-25 | M 6 | 25 | 10.5 | 45 | 18.5 | 6.5 | 24.5 | 35 | 50 |
|
| GN 511-M6-30 | M 6 | 30 | 10.5 | 45 | 23.5 | 6.5 | 24.5 | 35 | 51 |
|
| GN 511-M6-32 | M 6 | 32 | 10.5 | 45 | 25.5 | 6.5 | 24.5 | 35 | 51 |
|
