GN 51.10
Retaining Magnets
Neodymium-Iron-Boron, with Hook / Eyelet, with Rubber Jacket
Description
Specification
Types

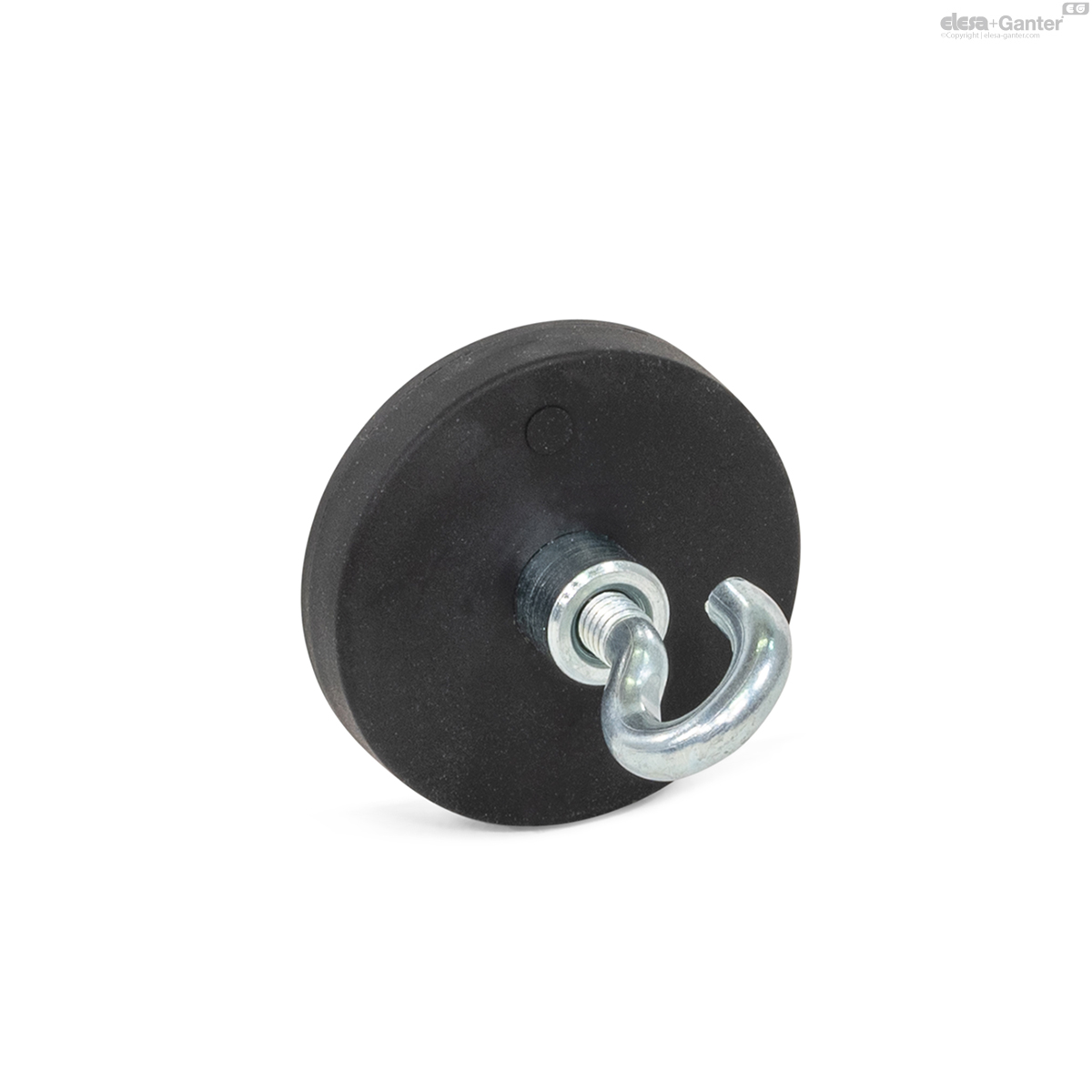

- Type A: With hook

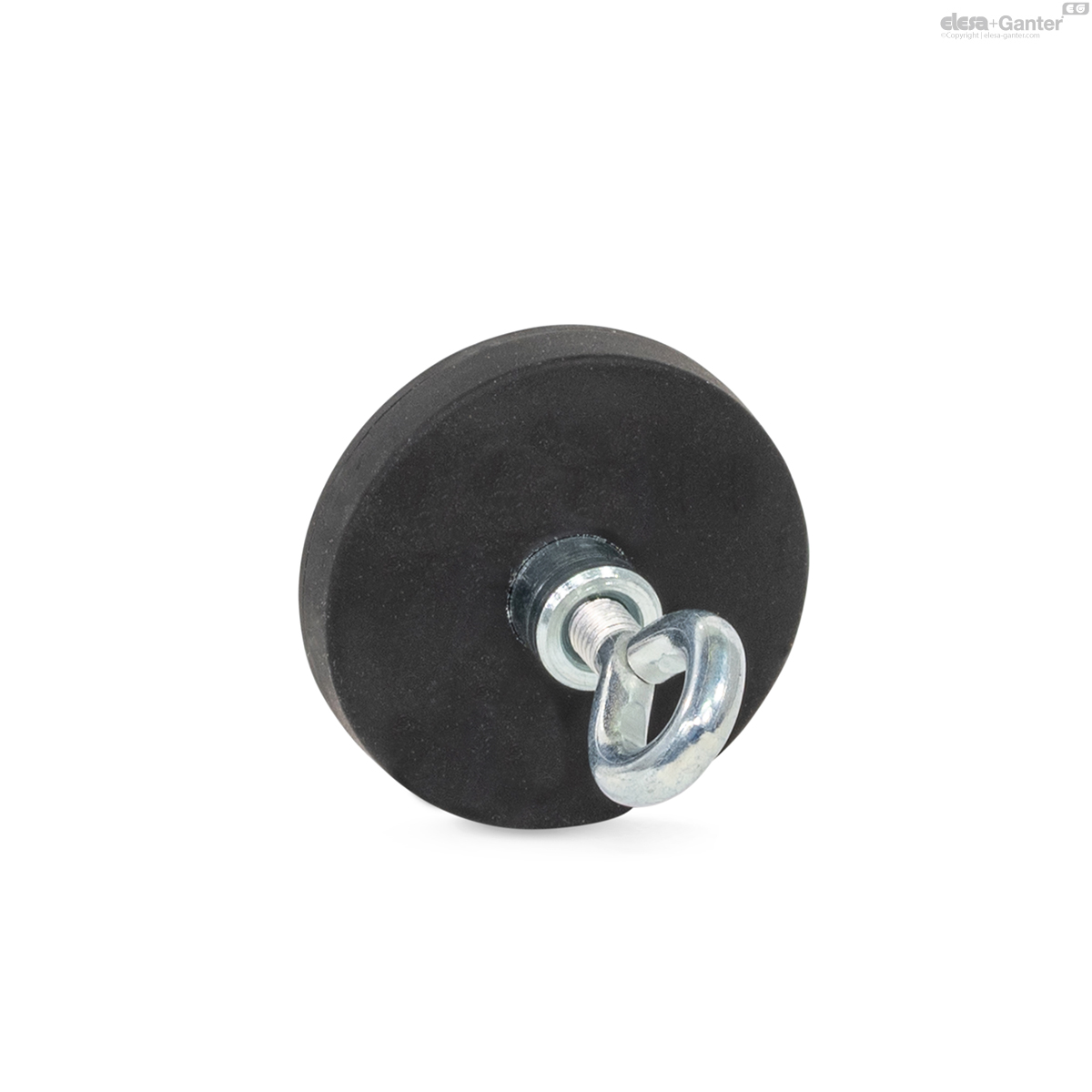

- Type B: With eyelet
Magnet
NdFeB
Neodymium, iron, boron
Operating temperature up to 80 °C
Steel part
Zinc plated
Hook / Eyelet
Steel, zinc plated
Rubber jacket
Thermoplastic elastomer (TPE)
- Black SW
- Hardness ≈ 80 Shore A
Information
The retaining magnets GN 51.10 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
Accessory
- GN 70Â Holding Disks
- GN 70.1Â Adhesive Disks
On request
- Other colors
- Other Shore hardness
Technical information
- More Information on Retaining MagnetsÂ
- Plastic CharacteristicsÂ

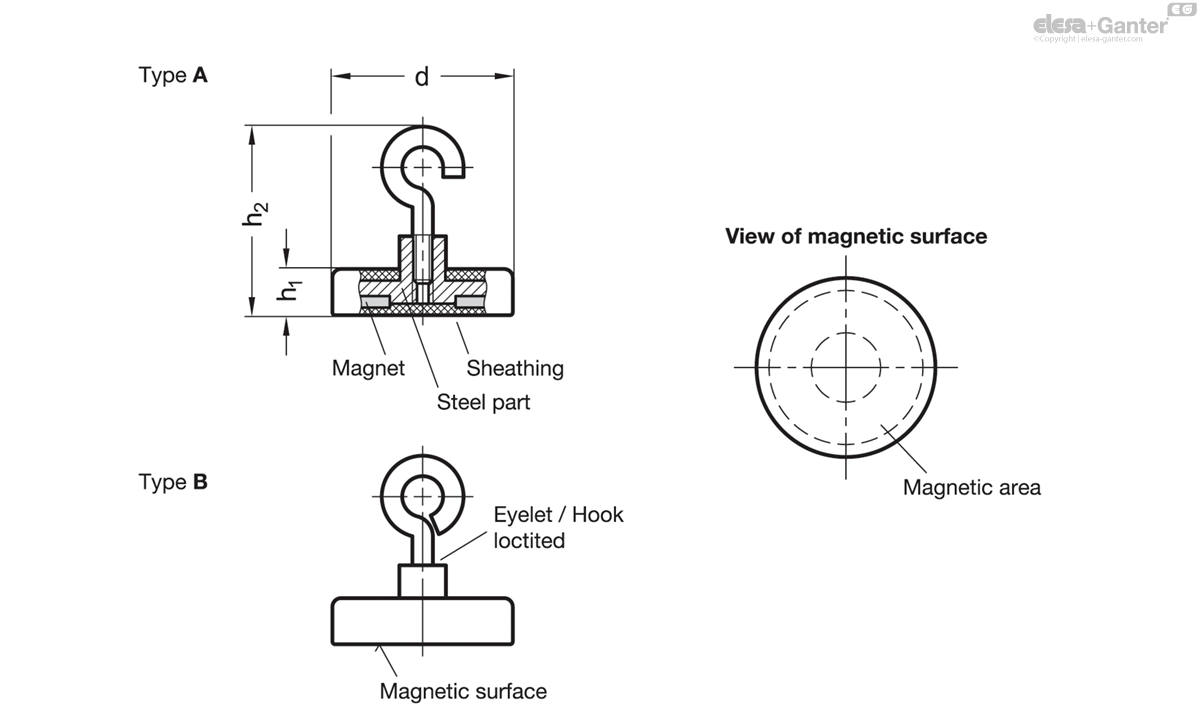

GN 51.10-A
| d | h1 | h2 ±3 | Nominal magnetic forces in N |
 |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 51.10-22-A-SW | 22 | 6 | 30 | 58 | 16 |
|
| GN 51.10-31-A-SW | 31 | 6 | 30 | 69 | 28 |
|
| GN 51.10-43-A-SW | 43 | 6 | 29 | 100 | 35 |
|
| GN 51.10-66-A-SW | 66 | 8.5 | 40 | 250 | 112 |
|
