GN 50b
T-Nuts
Steel, for Aluminum Profiles (b-Modular System)
GN 50b-V
T-Nuts

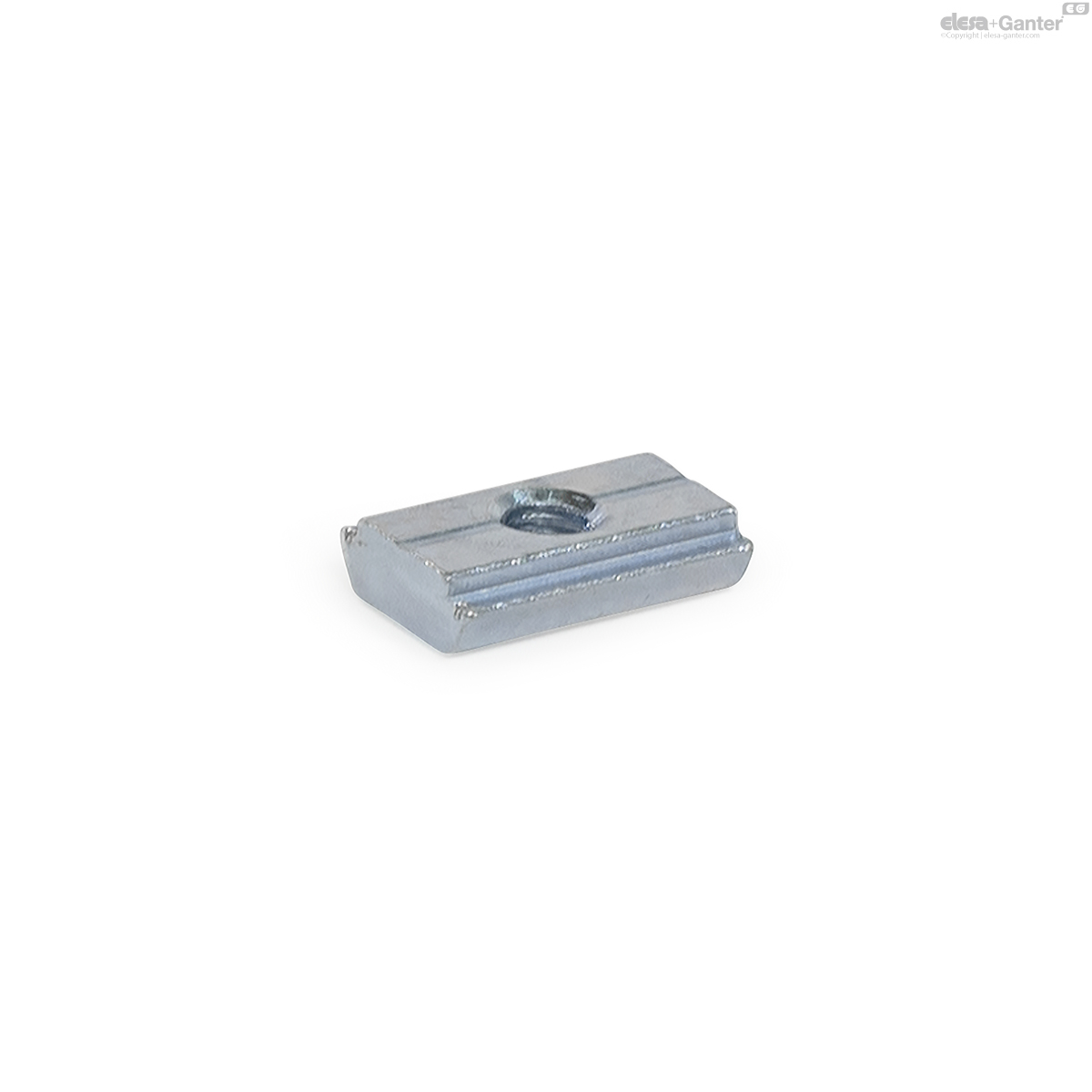

With anti-twist protection
GN 50b-F
T-Nuts

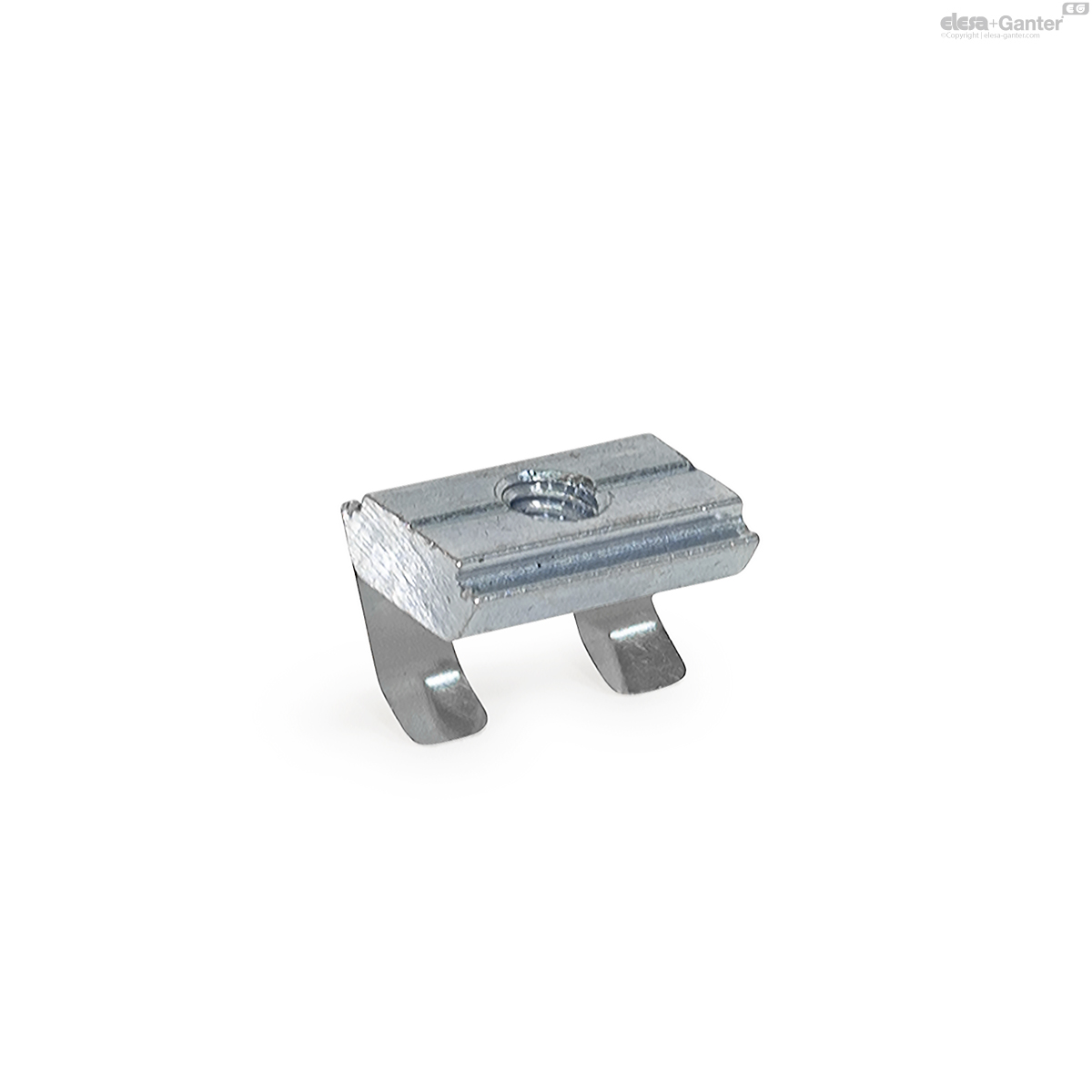

With anti-twist protection, with spring
GN 50b-S
T-Nuts

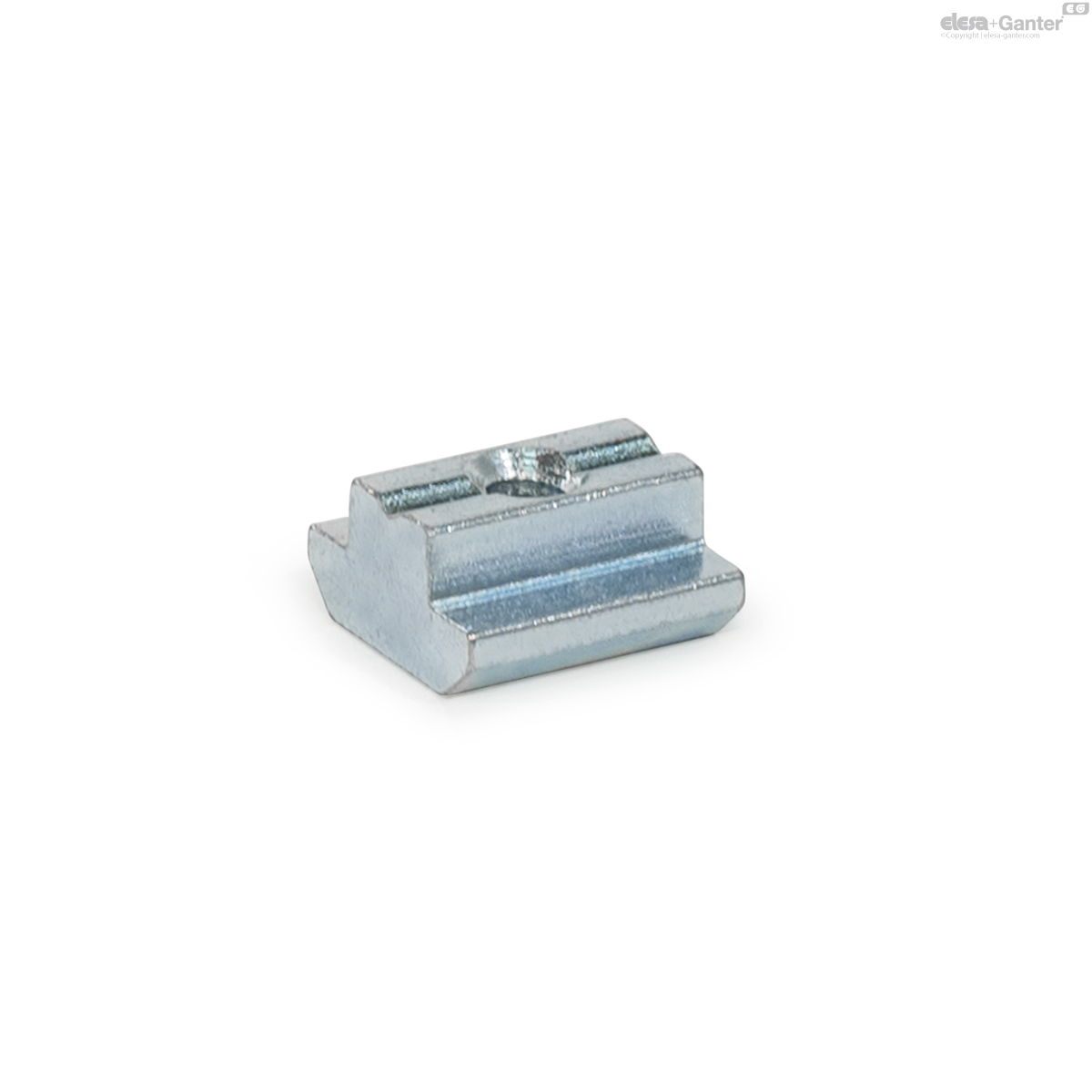

Heavy
Description
Specification
Types
- Type V: With anti-twist protection
- Type F: With anti-twist protection, with spring
- Type S: Heavy
Steel, zinc plated, blue passivated SZ
Information
T-nuts GN 50b fasten attachments and accessories in the slot of aluminum profiles.
The spring of type F secures the T-nut against unwanted slipping in the groove, making installation easier.
T-nuts of types V and F can be swiveled into the slot at any position.

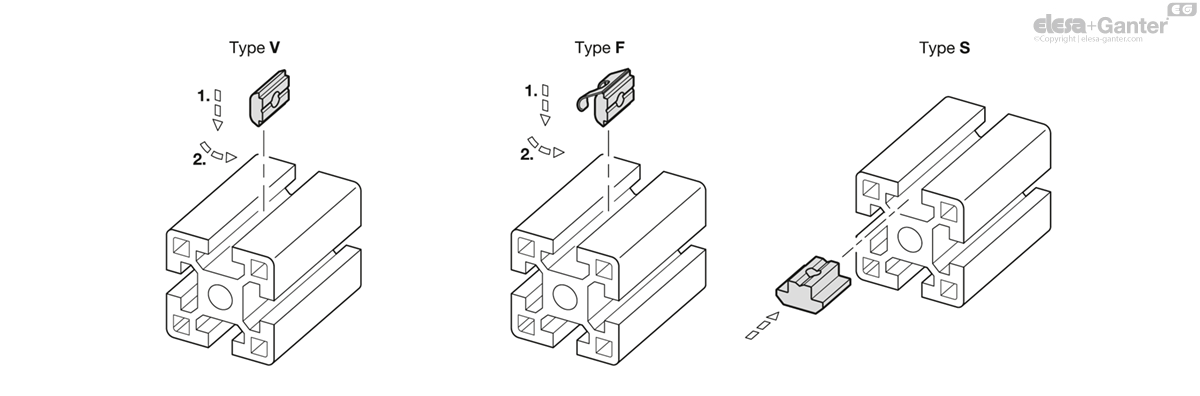

Assembly Instructions
 GN 50b-V

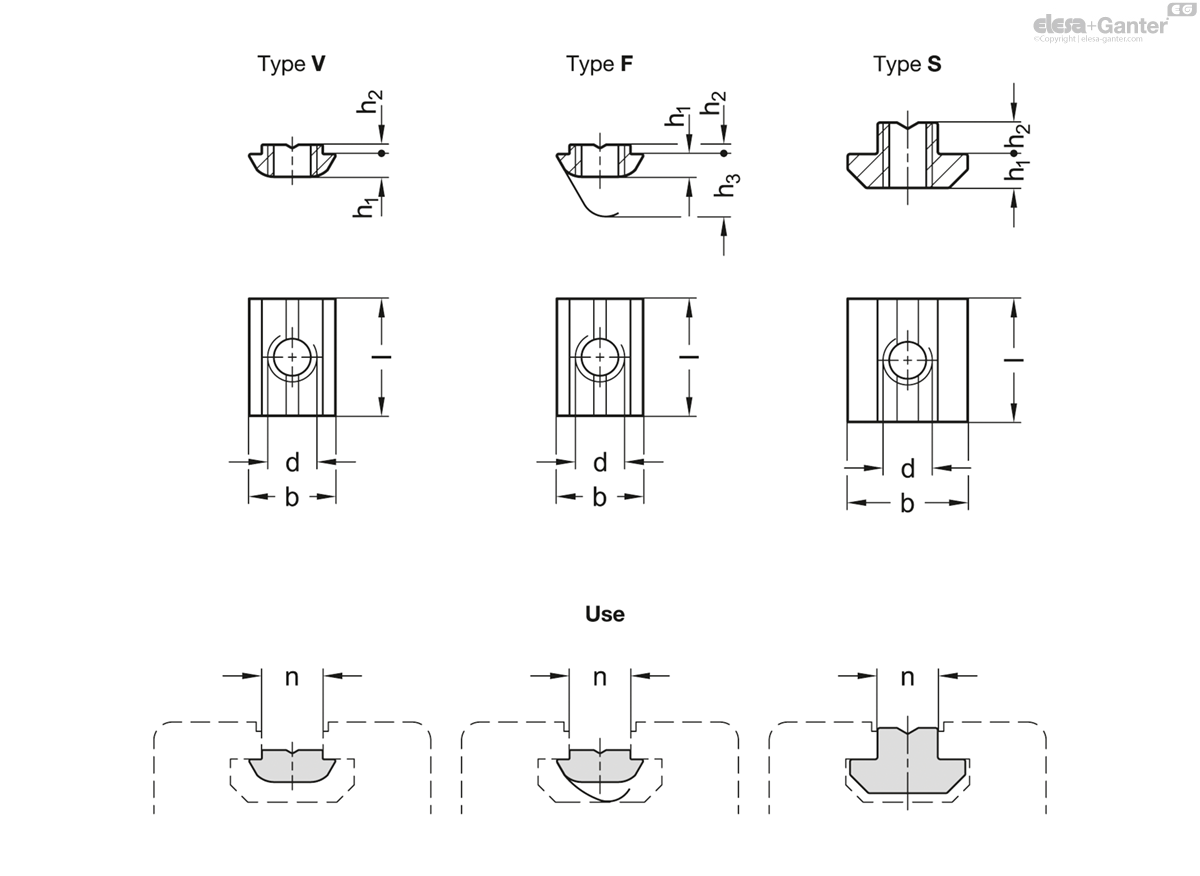

| n | d | b | h1 | h2 | Length l |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 50b-8M4-V-SZ | 8 | M 4 | 11.6 | 3.8 | 1 | 16 | 5 |
|
| GN 50b-8M5-V-SZ | 8 | M 5 | 11.6 | 3.8 | 1 | 16 | 4 |
|
| GN 50b-8M6-V-SZ | 8 | M 6 | 11.6 | 3.8 | 1 | 16 | 4 |
|
| GN 50b-8M8-V-SZ | 8 | M 8 | 11.6 | 3.8 | 1 | 16 | 3 |
|
| GN 50b-10M4-V-SZ | 10 | M 4 | 14 | 3.8 | 1.5 | 20 | 8 |
|
| GN 50b-10M5-V-SZ | 10 | M 5 | 14 | 3.8 | 1.5 | 20 | 9 |
|
| GN 50b-10M6-V-SZ | 10 | M 6 | 14 | 3.8 | 1.5 | 20 | 8 |
|
| GN 50b-10M8-V-SZ | 10 | M 8 | 14 | 3.8 | 1.5 | 20 | 7 |
|
