GN 509.8

Ball Transfer Units

Housing Steel Sheet Metal, with Mounting Flange

Enquire Now

Description

Specification

Housing

Steel sheet metal S

Zinc plated, blue passivated

Load ball

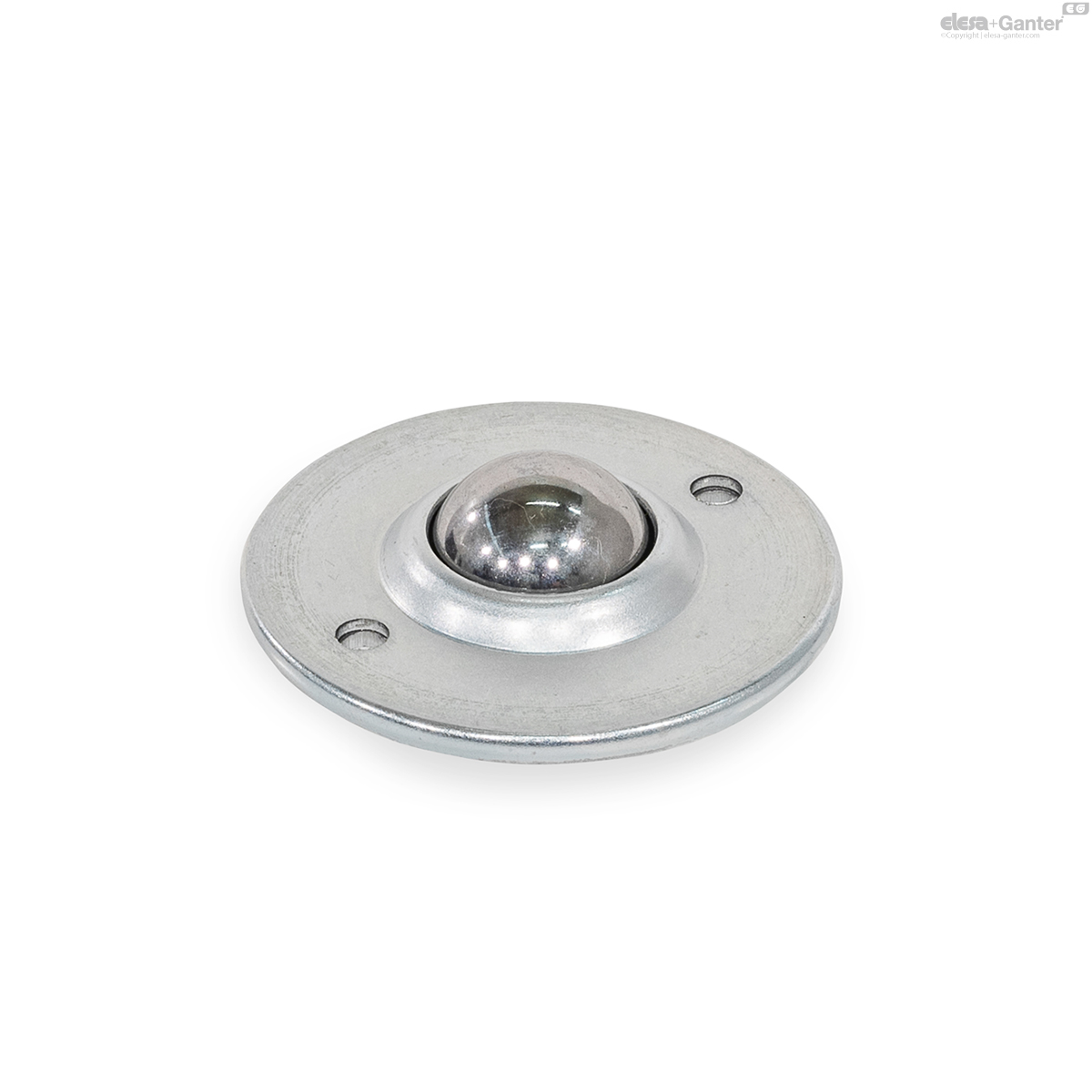

Steel, plain finish BL

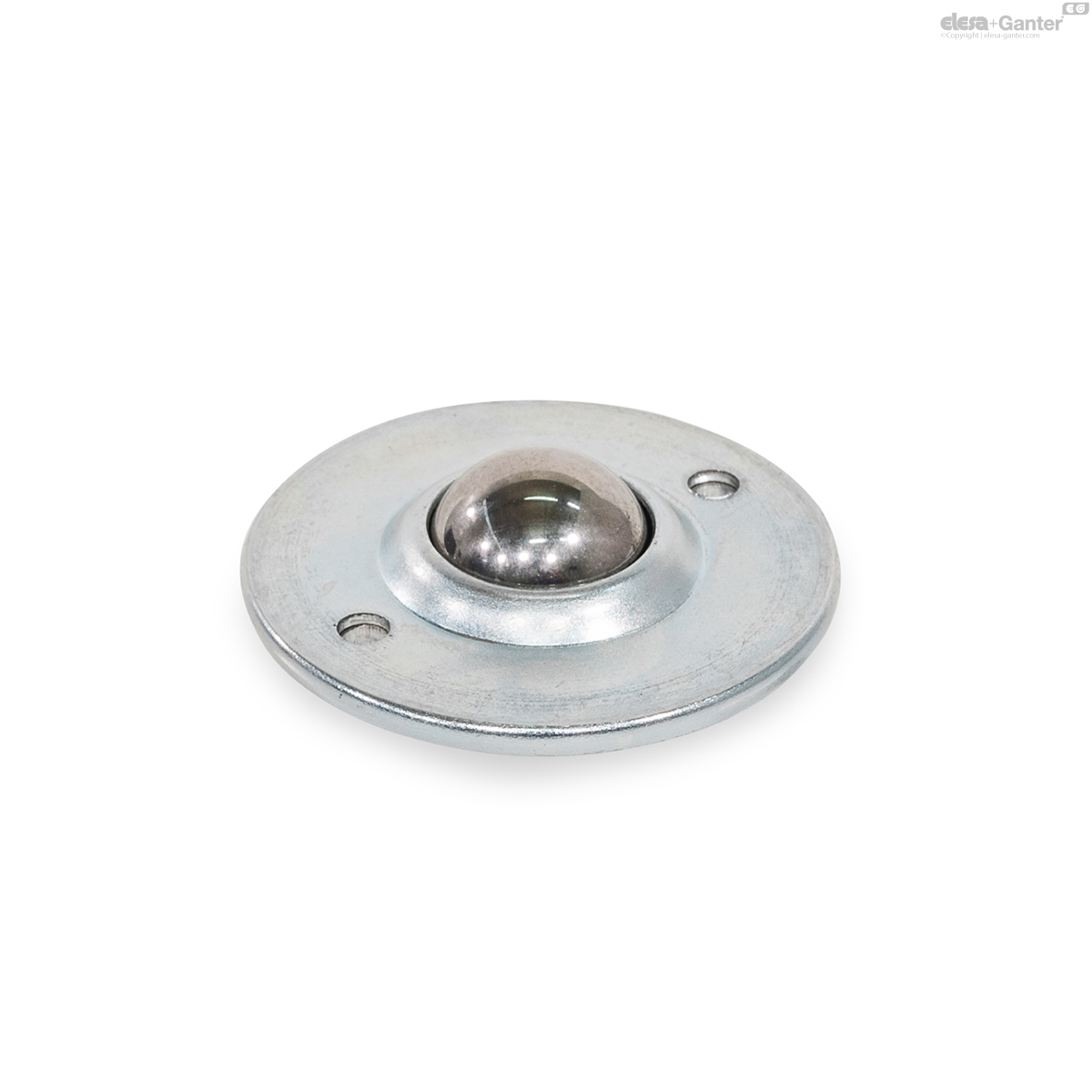

Stainless steel AISI 420C NI

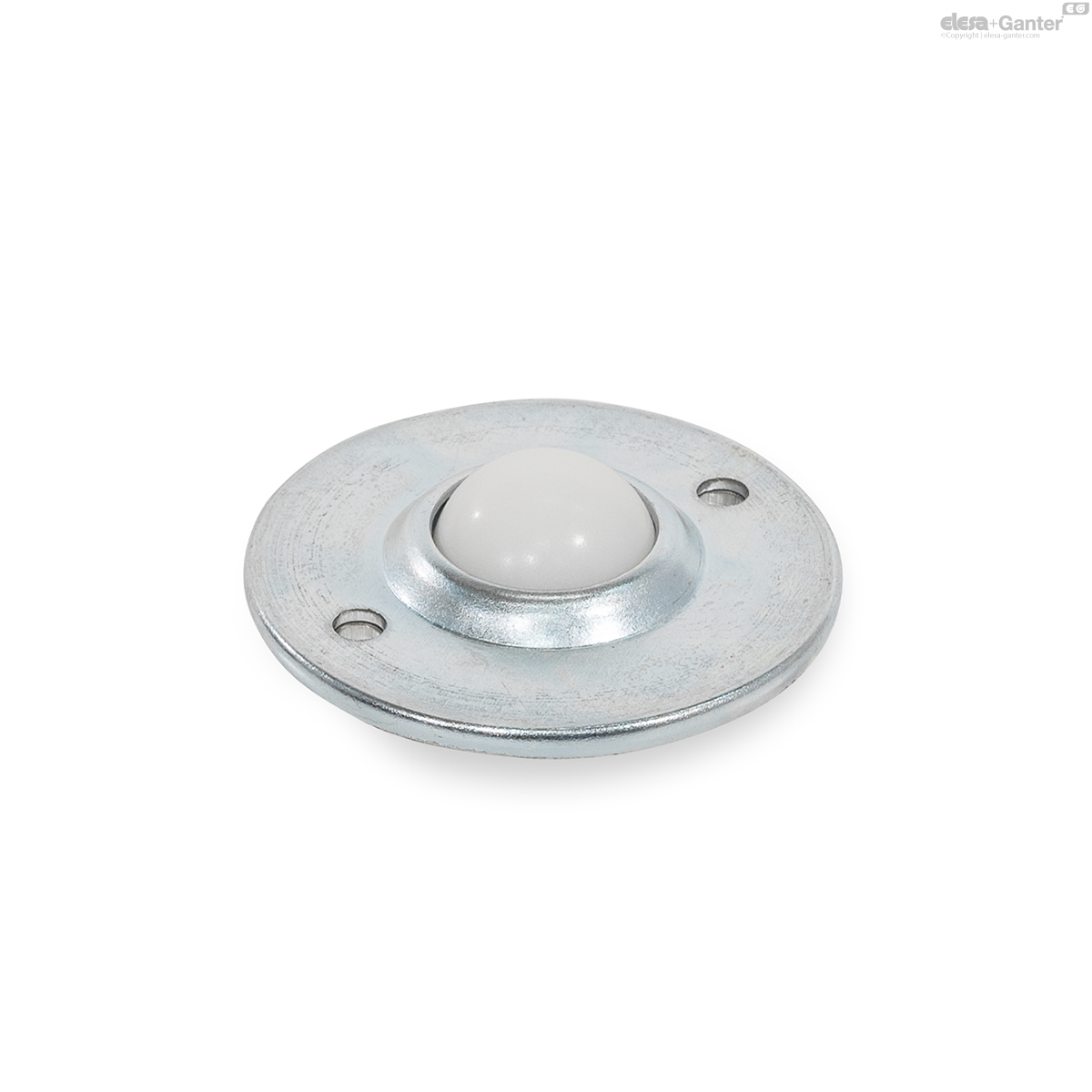

Plastic, polyacetal (POM) KU

Bearing balls

Steel, plain finish for load ball BL / KU
Stainless steel AISI 420C for load ball NI

Information

Ball transfer units GN 509.8 are used, for example, in conveyor technology or on packing tables to move heavy loads in any direction without great effort. The roller bearing of the ball ensures reliable operation and a long service life.

The ball transfer units are attached via the mounting flange.

Technical information

Overview of Types of Ball Transfer Units
Technical Instructions
Plastic Characteristics

GN 509.8

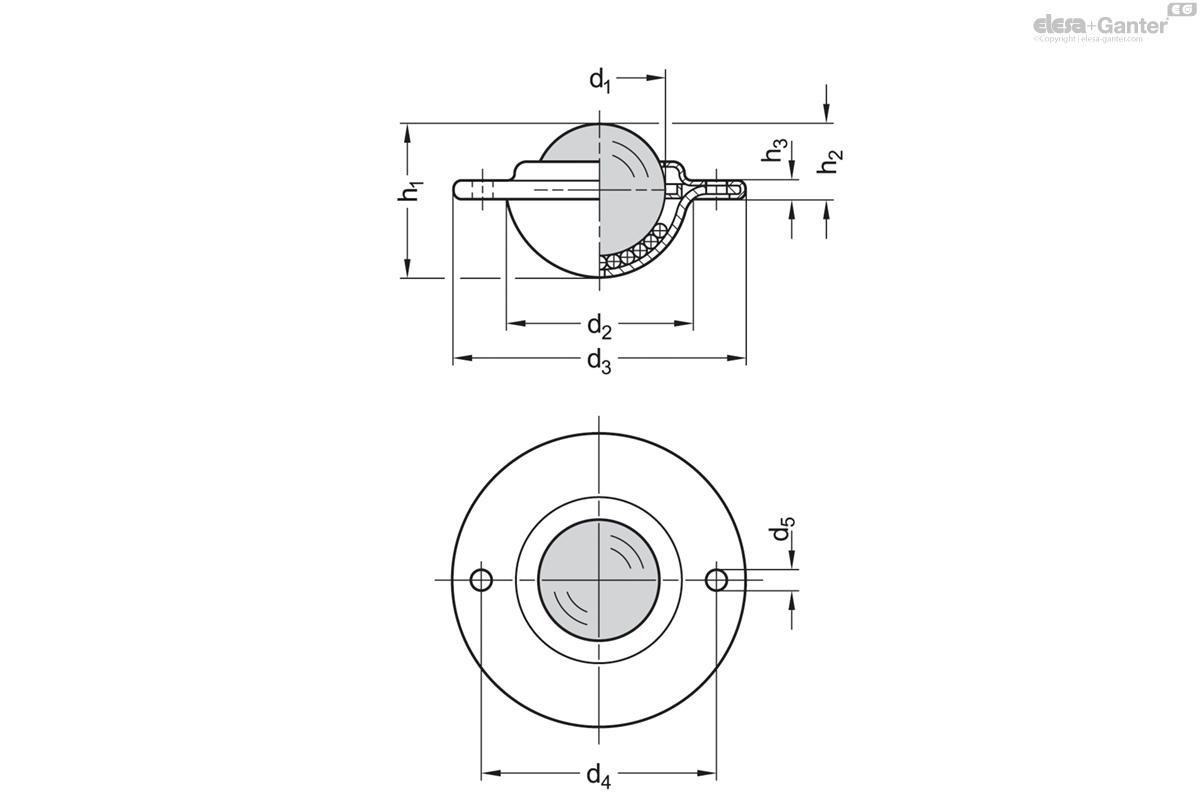

	Color	Size	d₁ Ball	d₂	d₃ ±0.4	d₄	d₅	h₁ ±0.4	h₂ ±0.4	h₃	Load C in N
Code													Actions
GN 509.8-15-SBL	BL - Plain finish	15	15.8	24	41	30	3.5	19.6	10.8	3.4	150	45
GN 509.8-15-SKU	Plastic	15	15.8	24	41	30	3.5	19.6	10.8	3.4	100	34
GN 509.8-15-SNI	NI - Stainless steel	15	15.8	24	41	30	3.5	19.6	10.8	3.4	150	45
GN 509.8-25-SBL	BL - Plain finish	25	25.4	38	56	45	4	30	14.6	3.4	600	130
GN 509.8-25-SKU	Plastic	25	25.4	38	56	45	4	30	14.6	3.4	200	75
GN 509.8-25-SNI	NI - Stainless steel	25	25.4	38	56	45	4	30	14.6	3.4	600	130
