GN 509.3

Spring Rings

Retainers for Ball Transfer Units GN 509 / GN 509.1

Enquire Now

Description

Specification

Types

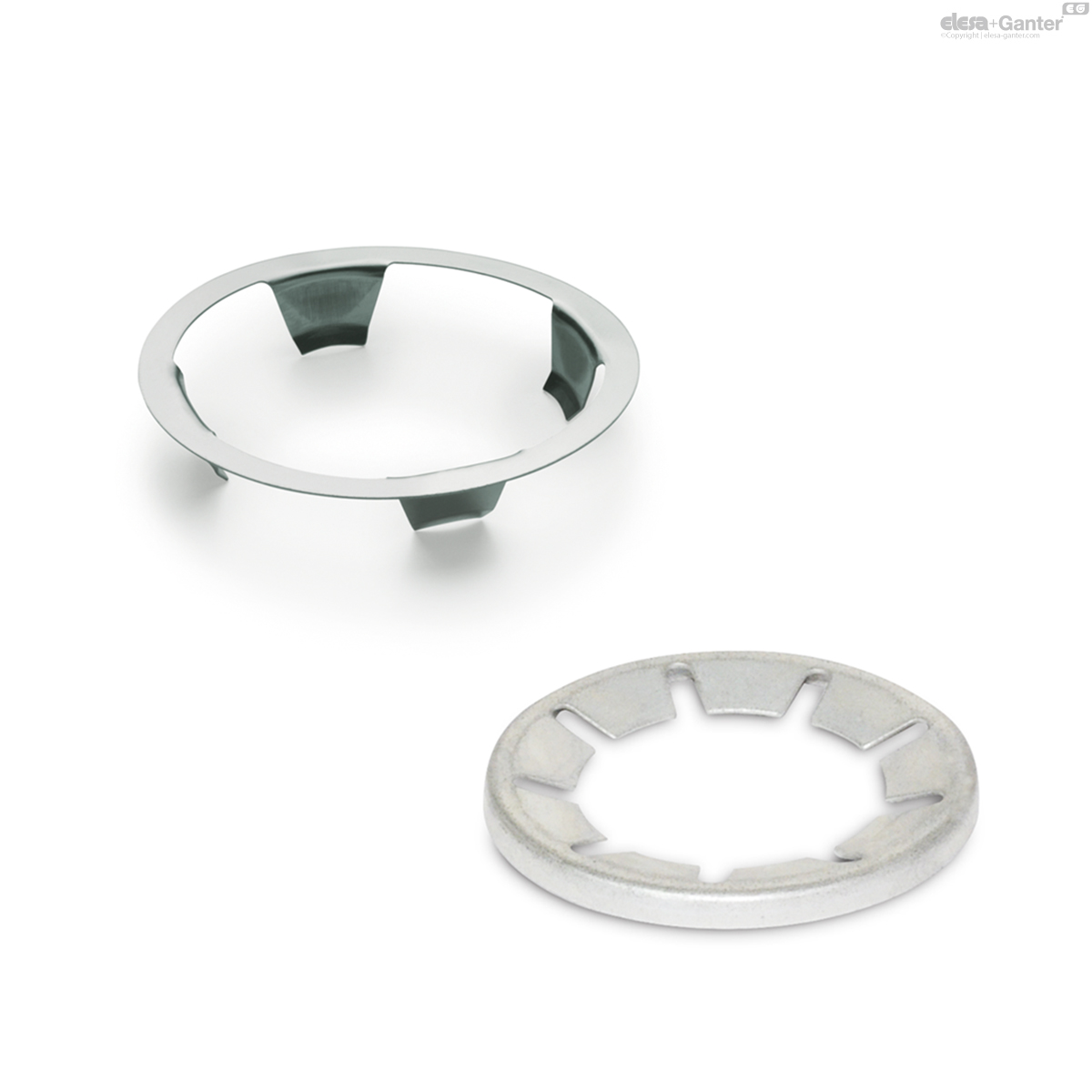

Type A: Clamp spring washer

Type B: Retaining ring

Type A

Spring steel

Stainless steel

Type B

Spring steel

Zinc plated

Information

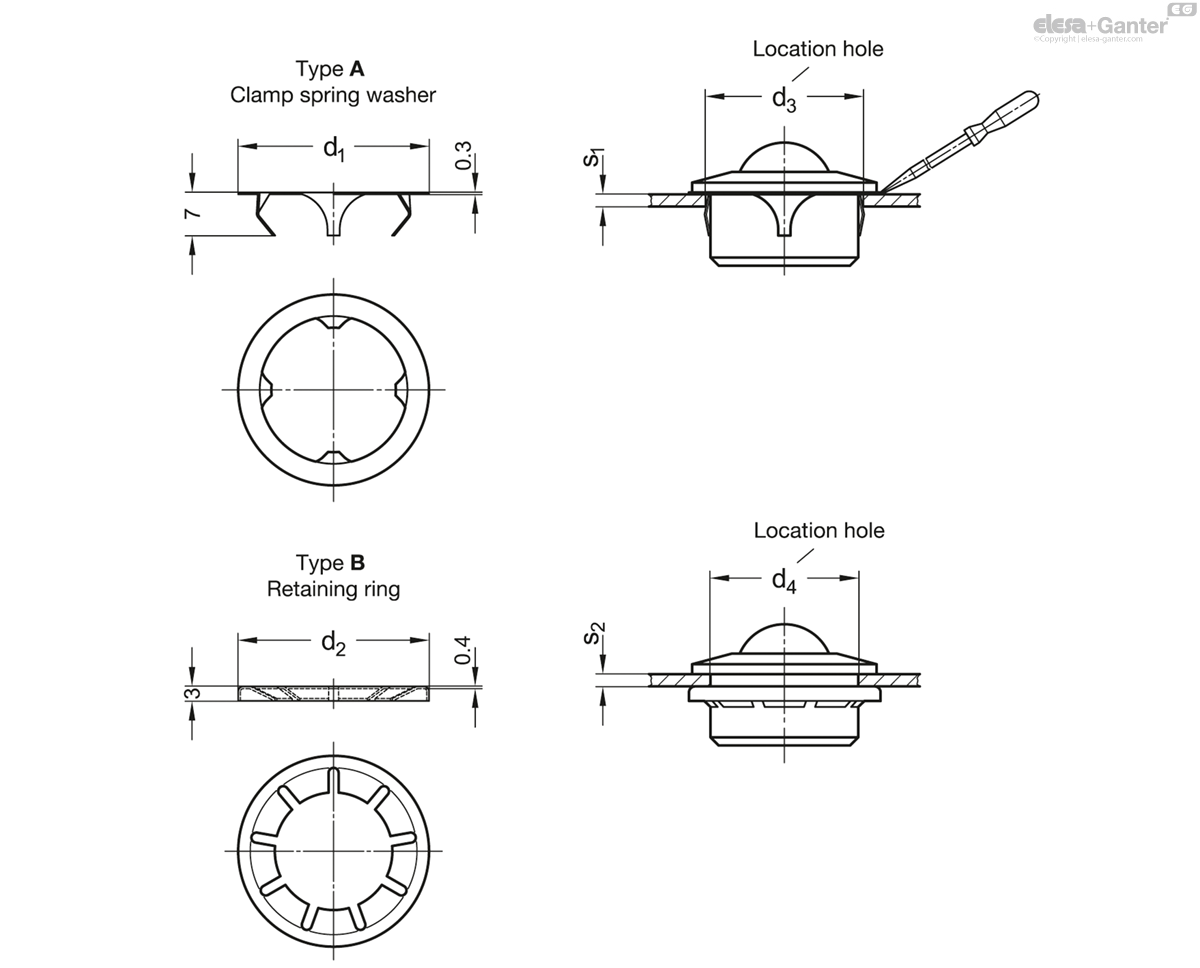

Clamp spring washers GN 509.3, type A allow ball transfers units to be mounted and removed from the installation side.

Retaining rings GN 509.3, type B are mounted from the back. Ball transfers units mounted this way can no longer be dismantled. No restrictions exist with respect to sheet metal thickness.

GN 509.3

	d₁	d₂	d₃	d₄ min.	s₁	s₂	For ball transfer units GN 509 GN 509.1 Size
Code									Actions
GN 509.3-31-A	31	-	25 -0.2	-	2 ... 3	-	15	1
GN 509.3-36-B	-	36	-	22.2	-	0 ... ∞	12	3
GN 509.3-38-B	-	38	-	24.2	-	0 ... ∞	15	3
GN 509.3-44-A	44	-	37.3 -0.3	-	2 ... 4	-	22	2
GN 509.3-55-A	55	-	46.7 -0.3	-	2 ... 4	-	30	2
