GN 509.10
Ball Transfer Units
Stainless Steel, with Collar, with Friction Bearing
Description
Specification
Housing
Stainless steel AISI 303 NI
Ball
Stainless steel AISI 420C, hardened
Friction bearing
Plastic
Operating temperature -50 °C to +90 °C
Information

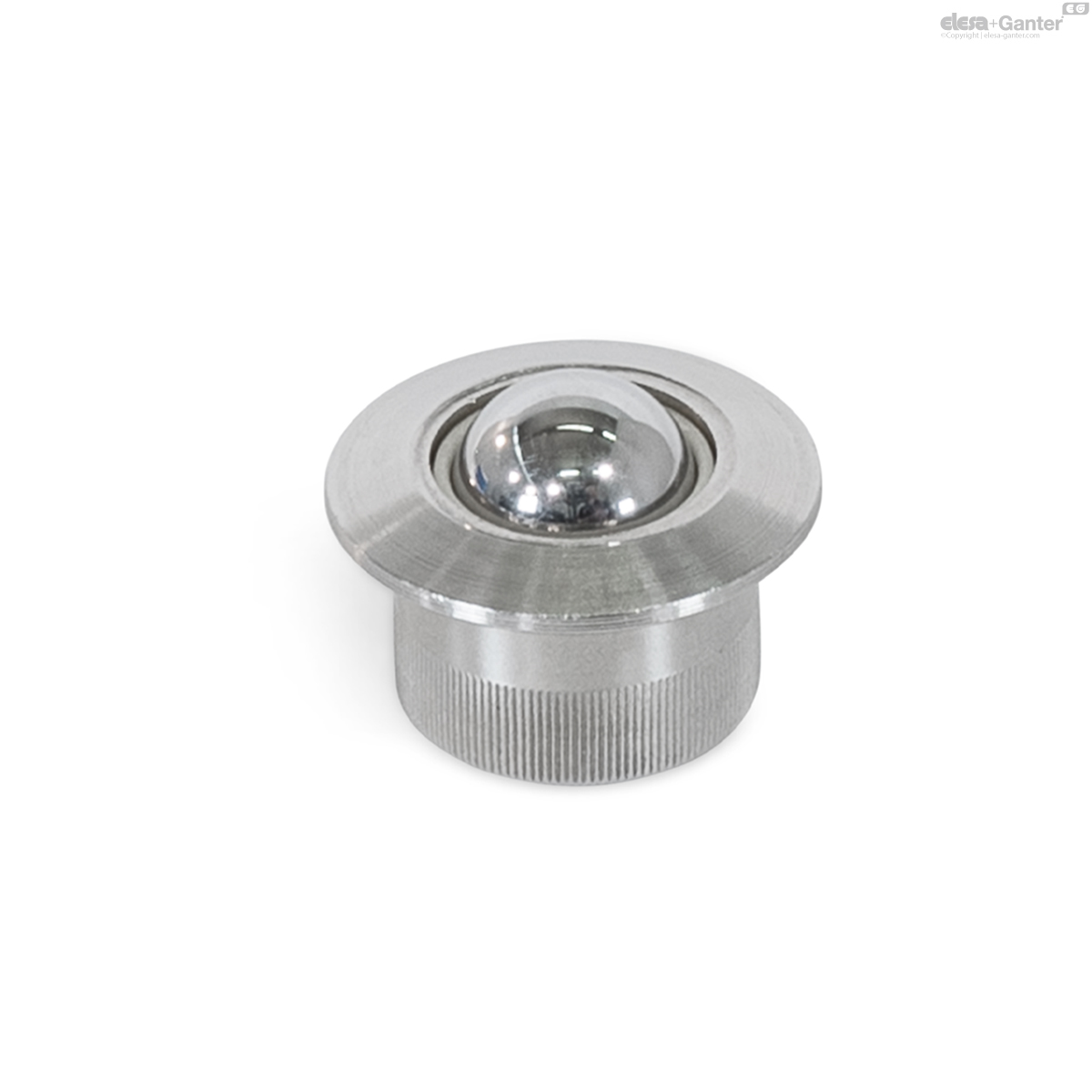

Ball transfer units GN 509.10 are used for building mechanisms and devices. The friction bearing of the ball ensures low-friction displacement and rotation of workpieces in any direction.
A tolerance of H7 for the location hole of d2 is recommended.
Technical information
- ISO-Fundamental Tolerances
- Stainless Steel CharacteristicsÂ
GN 509.10

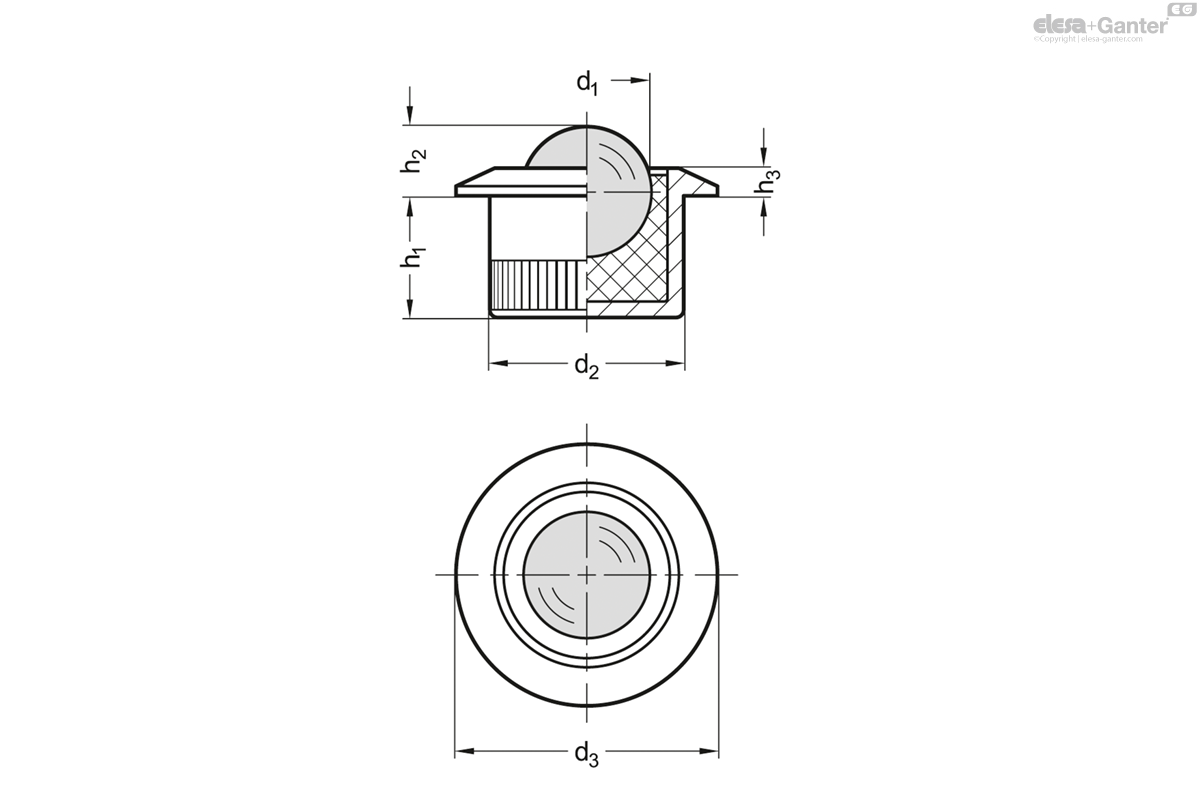

| Size | d1 Ball |
d2 | d3 | h1 | h2 | h3 | Load C0 in N |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 509.10-6-NI | 6 | 6.5 | 10 | 13 | 8 | 3.2 | 1.2 | 1161 | 4 |
|
| GN 509.10-8-NI | 8 | 8.5 | 12.6 | 17 | 7.9 | 4.5 | 1.8 | 1986 | 8 |
|
