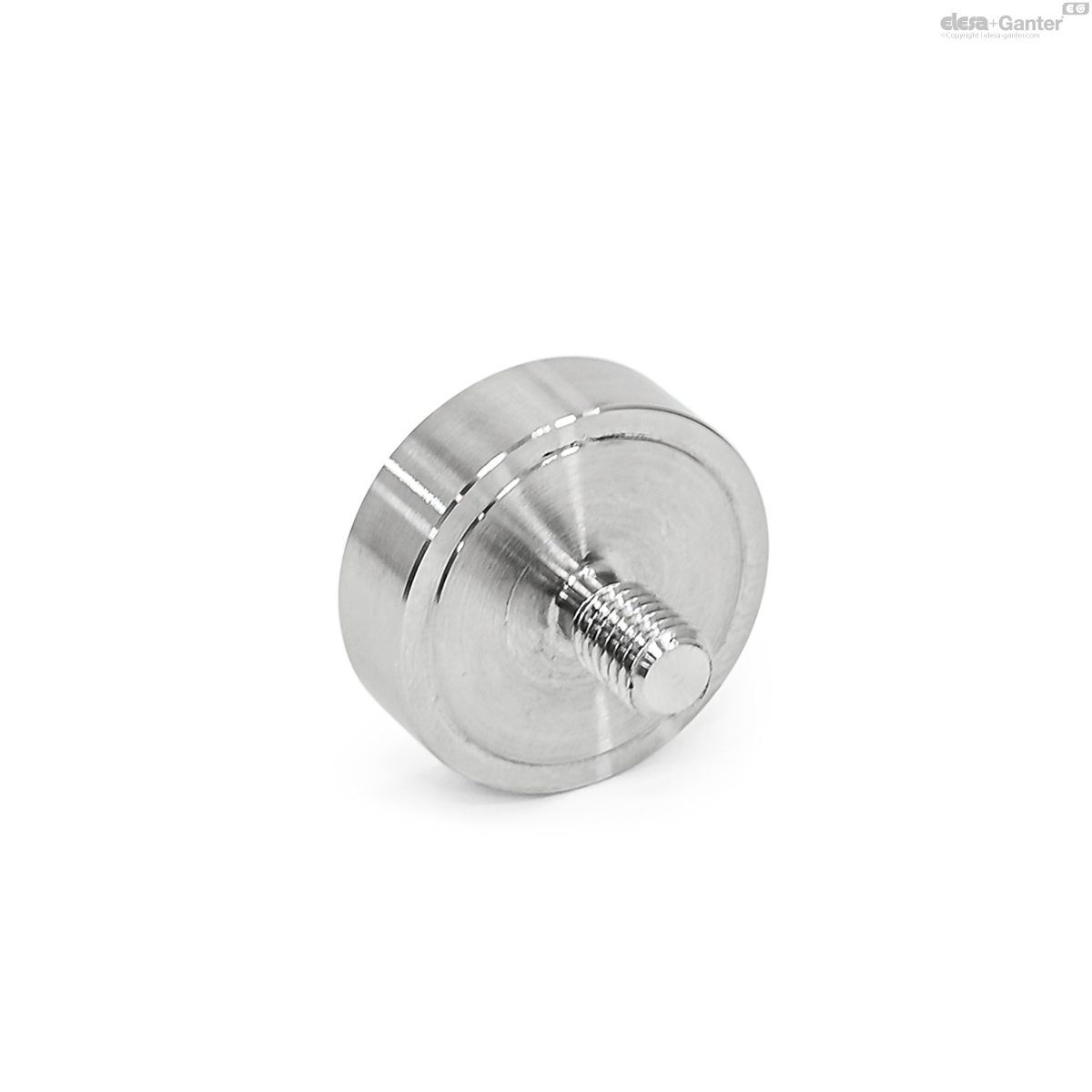

GN 50.8

Retaining Magnets

Samarium-Cobalt (SmCo), Housing Stainless Steel, with Threaded Stud

Enquire Now

Description

Specification

Material of the magnet

SmCo SC

Samarium, cobalt

Temperature resistant up to 350 °C

Housing

Stainless steel AISI 316L

Information

Retaining magnets GN 50.8 are combined with the stainless steel housing into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

Because the stainless steel housing is tightly welded, the retaining magnets are suited for use in corrosive environments.

Thanks to the high temperature resistance, the magnets can even be used on oven doors, for example.

More Information on Retaining Magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Technical information

Stainless Steel Characteristics

GN 50.8

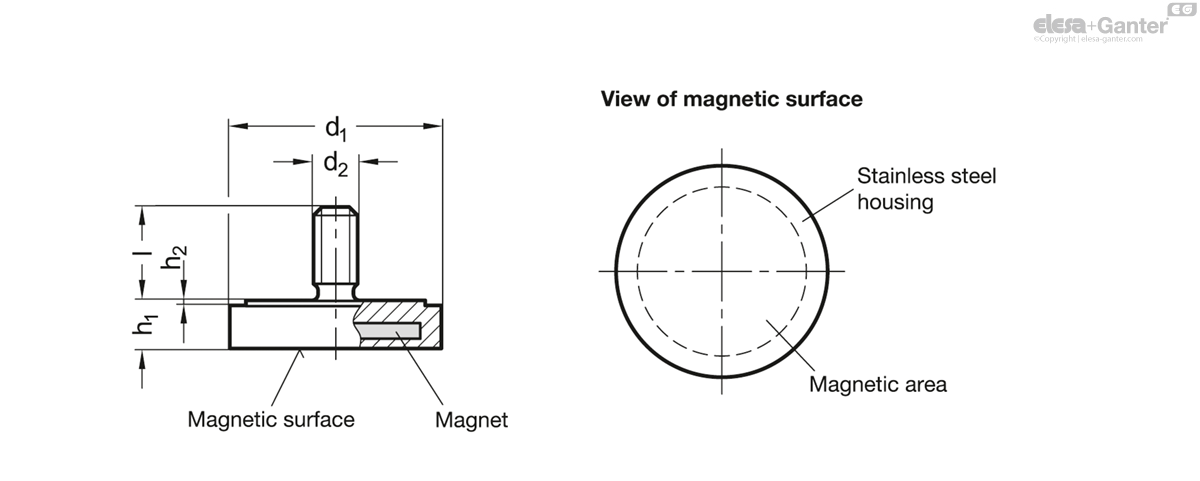

	d₁ ±0.2	d₂	h₁ ±0.2	h₂	l	Nominal magnetic forces in N
Code								Actions
GN 50.8-SC-16-M6	16	M 6	7	0.2	8	6.5	12
GN 50.8-SC-20-M6	20	M 6	7.5	0.2	10	20	20
GN 50.8-SC-25-M6	25	M 6	7.5	0.3	10	30	30
GN 50.8-SC-32-M6	32	M 6	8	0.3	10	77	51
