GN 50.6

Retaining Magnets

Disk-Shaped, with Hook / with Eyelet

Enquire Now

Description

Specification

Types

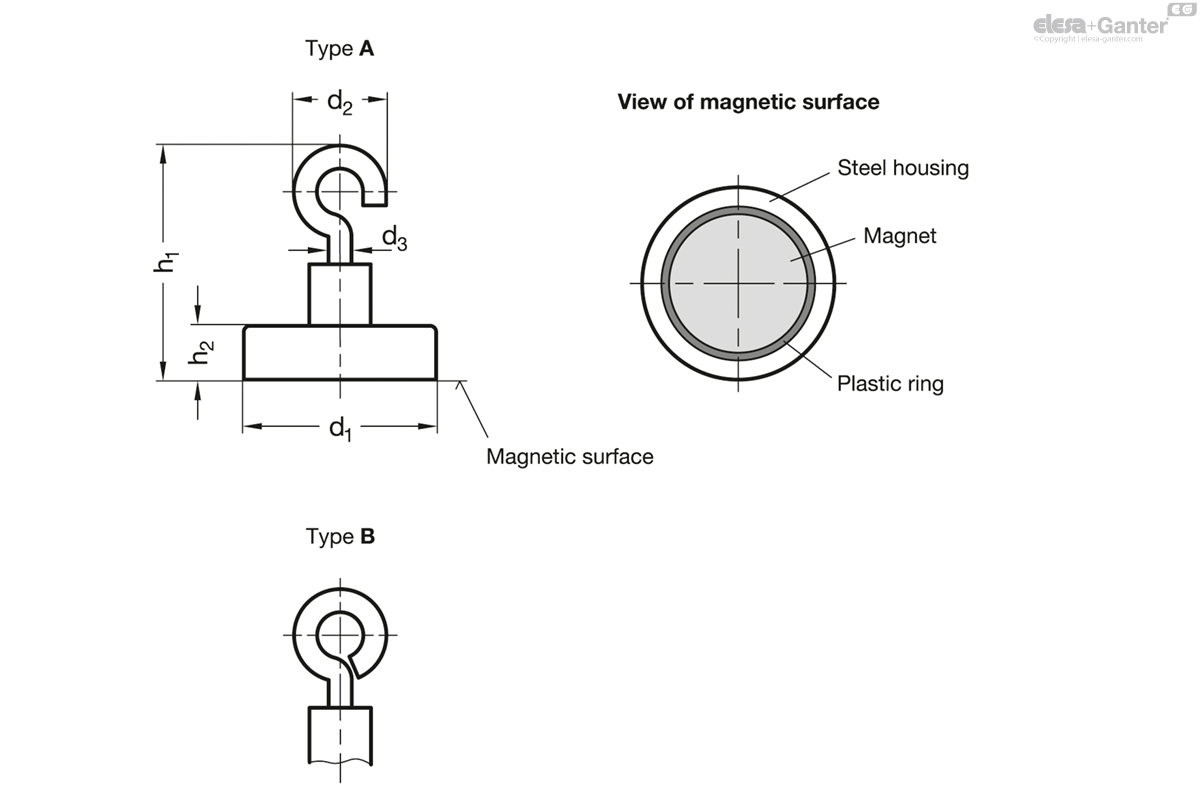

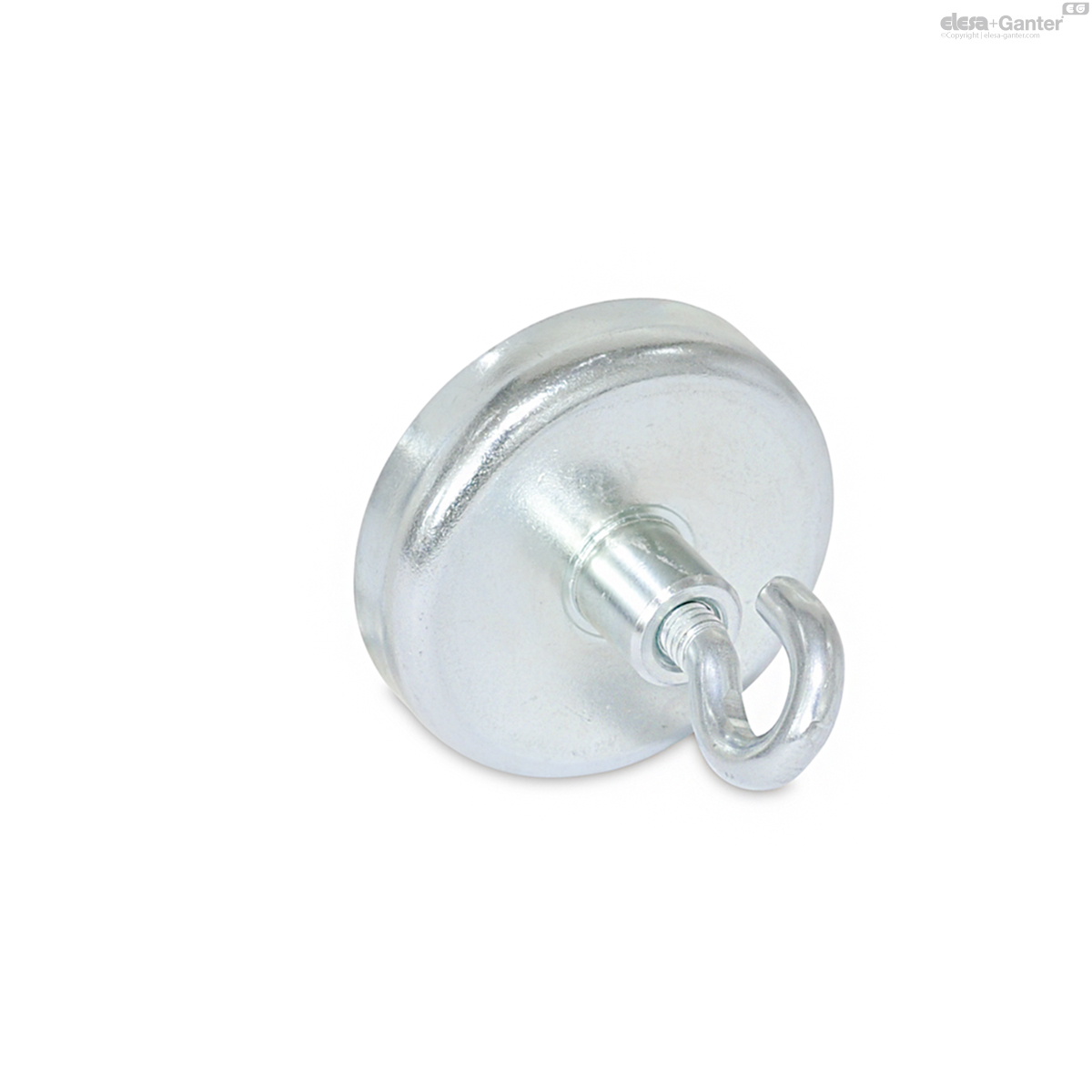

Type A: with hook

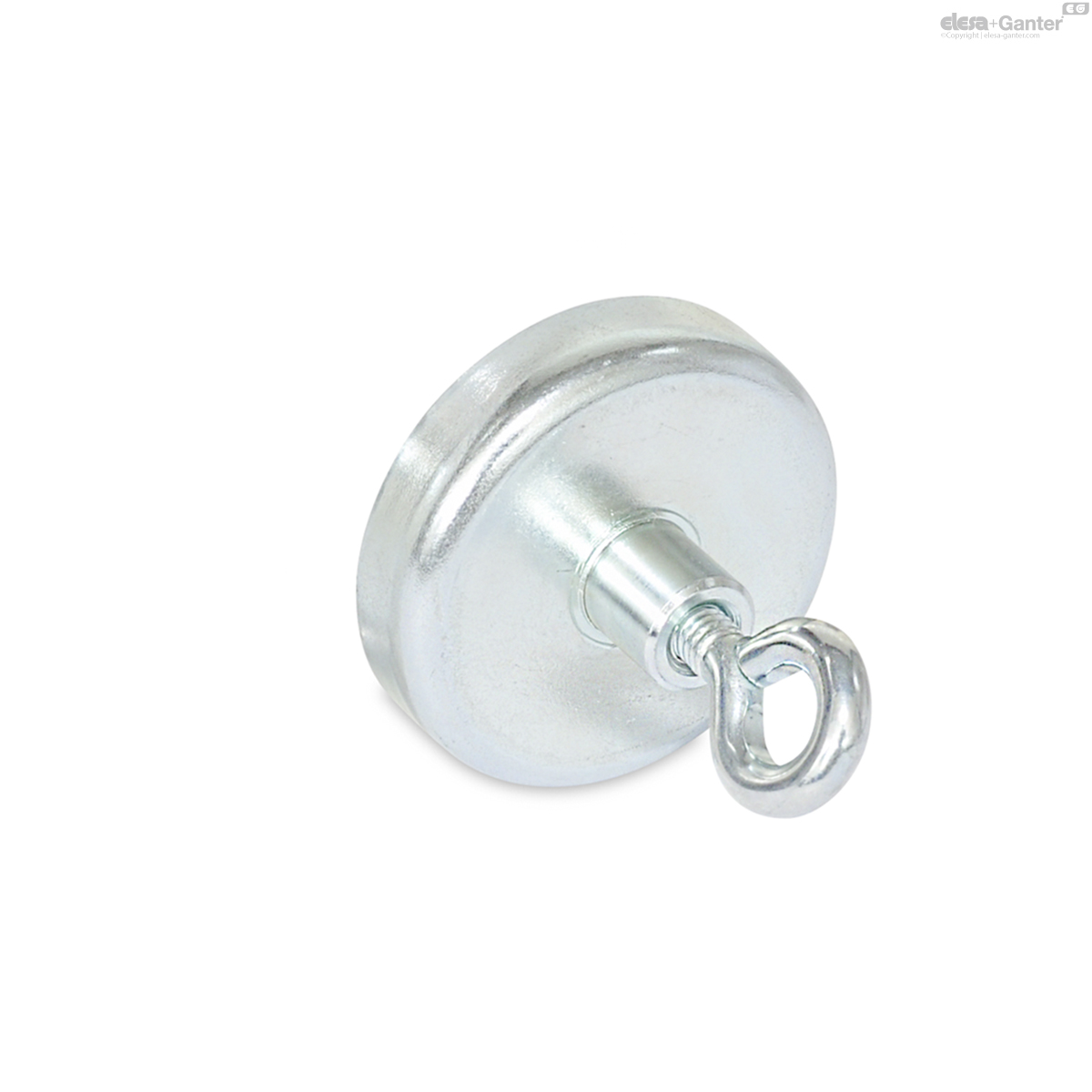

Type B: with eyelet

Housing / hook / eyelet

Steel, zinc plated

Material of the magnet:

Hard ferrite HF

Temperature resistant up to 200 °C

Information

Retaining magnets GN 50.6 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

More information to retaining magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

GN 50.6-A

	d₁	d₂ ±1	d₃	h₁ ±2	h₂	Nominal adhesive forces in N
Code								Actions
GN 50.6-HF-16-A	16	10	2.5	24.5	4.5	18	6
GN 50.6-HF-20-A	20	10	2.5	28	6	30	12
GN 50.6-HF-25-A	25	13.5	3.5	30.5	7	40	23
GN 50.6-HF-32-A	32	13.5	3.5	30.5	7	80	34
GN 50.6-HF-36-A	36	13.5	3.5	32	7.7	100	45
GN 50.6-HF-40-A	40	13.5	3.5	30.5	8	125	59
GN 50.6-HF-47-A	47	13.5	3.5	34	9	180	89
GN 50.6-HF-50-A	50	13.5	3.5	32	10	220	109
GN 50.6-HF-57-A	57	13.5	3.5	35	10.5	280	150
GN 50.6-HF-63-A	63	13.5	3.5	36	14	350	232
GN 50.6-HF-80-A	80	23	5.5	57.5	18	600	490
