GN 482

Swivel clamp mountings

Aluminium

Enquire Now

Description

Specification

Types

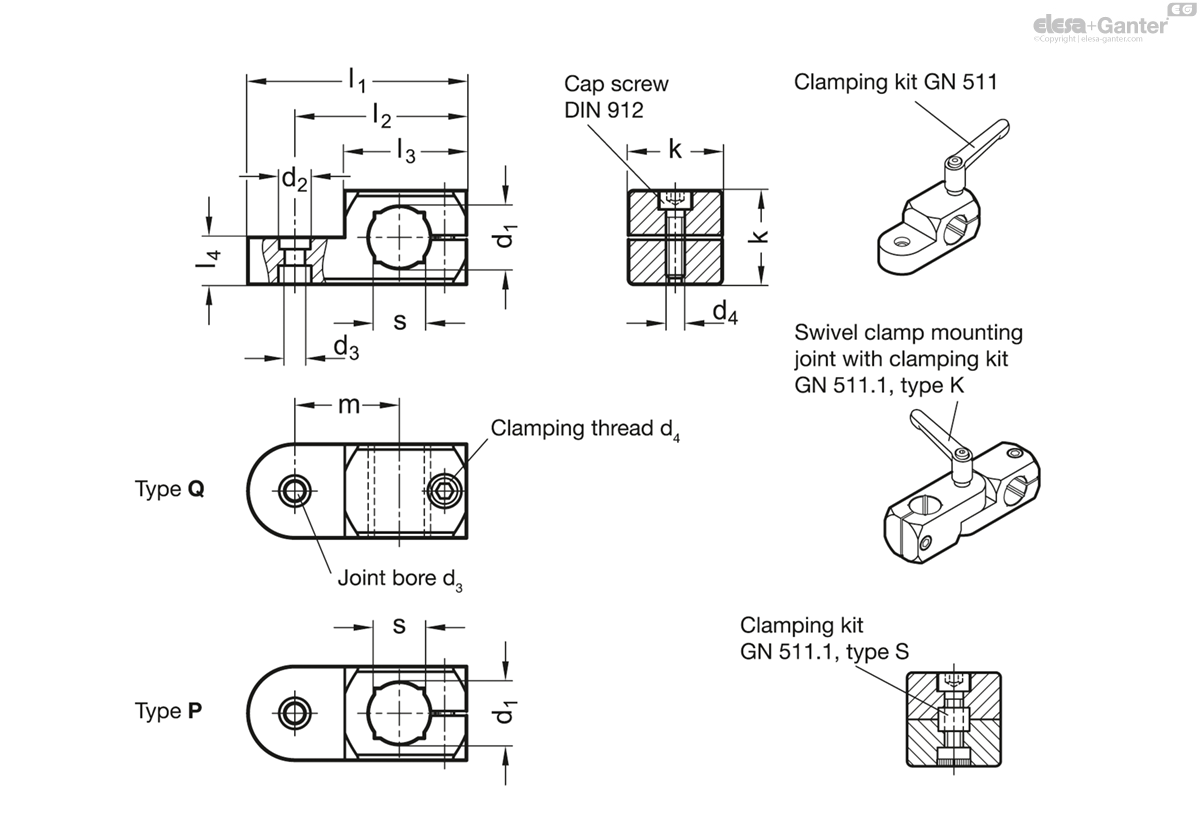

Type Q: Clamping bore transverse to the swivel axis

Type P: Clamping bore parallel to the swivel axis

Aluminium

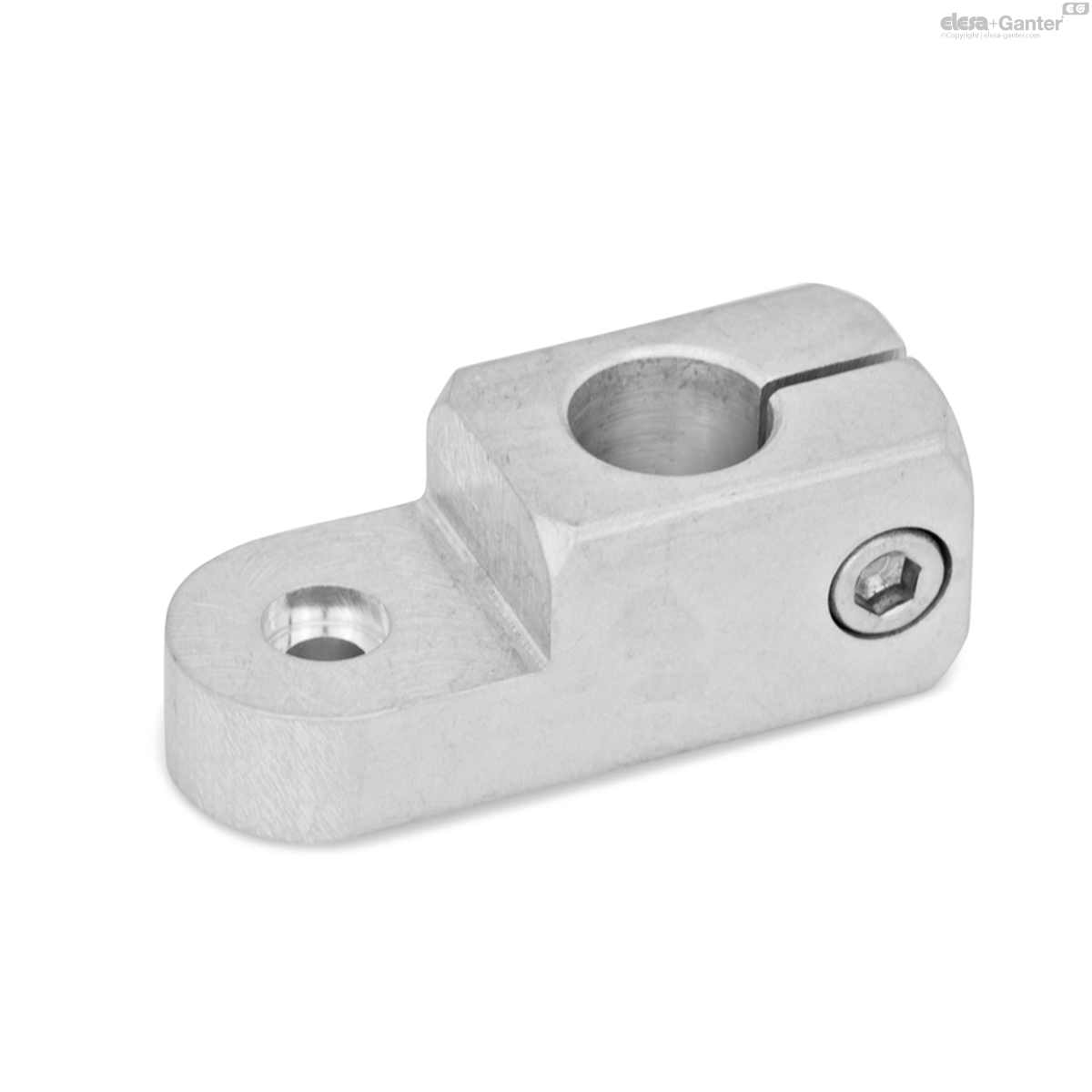

matt, slide ground MT

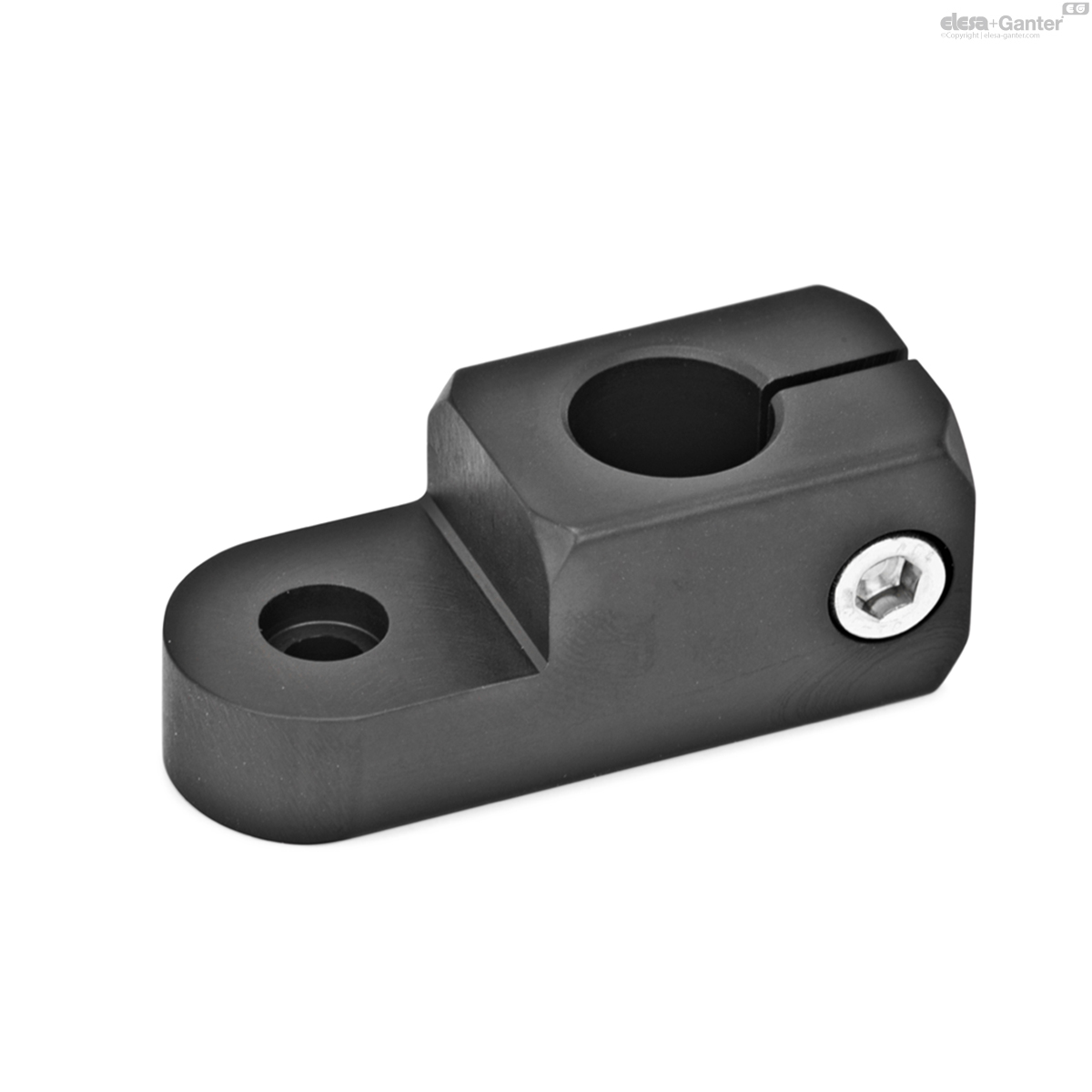

anodized black ELS

Cylinder head screws DIN 912

Stainless Steel AISI 304

Information

Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.

Also, the clamping screw d₄ - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit GN 511 .

The description for ordering is shown in the dimensional table.

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

Accessory

Clamping kits GN 511

Clamping kits GN 511.1

GN 482

	Color	d₁ Bore for shaft tolerance h11	k	d₂	d₃	d₄	l₁	l₂	l₃	m	l₄	s	Clamping kit for d₃ Type S/K	Clamping kit for d₄
Code																Actions
GN 482-B8-16-P-ELS	ELS - Anodized	B 8	16	7	4.5	M 4	40	32	23	18.5	8	-	GN 511.1-M4-16-S/K	GN 511-M4-16	19
GN 482-B8-16-P-MT	MT - Matte finish	B 8	16	7	4.5	M 4	40	32	23	18.5	8	-	GN 511.1-M4-16-S/K	GN 511-M4-16	19
GN 482-B8-16-Q-ELS	ELS - Anodized	B 8	16	7	4.5	M 4	40	32	23	18.5	8	-	GN 511.1-M4-16-S/K	GN 511-M4-16	19
GN 482-B8-16-Q-MT	MT - Matte finish	B 8	16	7	4.5	M 4	40	32	23	18.5	8	-	GN 511.1-M4-16-S/K	GN 511-M4-16	19
GN 482-B10-20-P-ELS	ELS - Anodized	B 10	20	8.5	5.5	M 5	50	40	29	23	10	8	GN 511.1-M5-20-S/K	GN 511-M5-20	36
GN 482-B10-20-P-MT	MT - Matte finish	B 10	20	8.5	5.5	M 5	50	40	29	23	10	8	GN 511.1-M5-20-S/K	GN 511-M5-20	36
GN 482-B10-20-Q-ELS	ELS - Anodized	B 10	20	8.5	5.5	M 5	50	40	29	23	10	8	GN 511.1-M5-20-S/K	GN 511-M5-20	36
GN 482-B10-20-Q-MT	MT - Matte finish	B 10	20	8.5	5.5	M 5	50	40	29	23	10	8	GN 511.1-M5-20-S/K	GN 511-M5-20	36
GN 482-B12-20-P-ELS	ELS - Anodized	B 12	20	8.5	5.5	M 5	50	40	29	23	10	10	GN 511.1-M5-20-S/K	GN 511-M5-20	35
GN 482-B12-20-P-MT	MT - Matte finish	B 12	20	8.5	5.5	M 5	50	40	29	23	10	10	GN 511.1-M5-20-S/K	GN 511-M5-20	35
GN 482-B12-20-Q-ELS	ELS - Anodized	B 12	20	8.5	5.5	M 5	50	40	29	23	10	10	GN 511.1-M5-20-S/K	GN 511-M5-20	35
GN 482-B12-20-Q-MT	MT - Matte finish	B 12	20	8.5	5.5	M 5	50	40	29	23	10	10	GN 511.1-M5-20-S/K	GN 511-M5-20	35
GN 482-B15-25-P-ELS	ELS - Anodized	B 15	25	10	6.5	M 6	62	49.5	36	29	12.5	12	GN 511.1-M6-25-S/K	GN 511-M6-25	67
GN 482-B15-25-P-MT	MT - Matte finish	B 15	25	10	6.5	M 6	62	49.5	36	29	12.5	12	GN 511.1-M6-25-S/K	GN 511-M6-25	67
GN 482-B15-25-Q-ELS	ELS - Anodized	B 15	25	10	6.5	M 6	62	49.5	36	29	12.5	12	GN 511.1-M6-25-S/K	GN 511-M6-25	61
GN 482-B15-25-Q-MT	MT - Matte finish	B 15	25	10	6.5	M 6	62	49.5	36	29	12.5	12	GN 511.1-M6-25-S/K	GN 511-M6-25	61
GN 482-B16-25-P-ELS	ELS - Anodized	B 16	25	10	6.5	M 6	62	49.5	36	29	12.5	-	GN 511.1-M6-25-S/K	GN 511-M5-25	66
GN 482-B16-25-P-MT	MT - Matte finish	B 16	25	10	6.5	M 6	62	49.5	36	29	12.5	-	GN 511.1-M6-25-S/K	GN 511-M5-25	66
GN 482-B16-25-Q-ELS	ELS - Anodized	B 16	25	10	6.5	M 6	62	49.5	36	29	12.5	-	GN 511.1-M6-25-S/K	GN 511-M6-25	66
GN 482-B16-25-Q-MT	MT - Matte finish	B 16	25	10	6.5	M 6	62	49.5	36	29	12.5	-	GN 511.1-M6-25-S/K	GN 511-M6-25	66
GN 482-B20-30-P-ELS	ELS - Anodized	B 20	30	10	6.5	M 6	70	55	39	33.5	15	16	GN 511.1-M6-30-S/K	GN 511-M6-32	99
GN 482-B20-30-P-MT	MT - Matte finish	B 20	30	10	6.5	M 6	70	55	39	33.5	15	16	GN 511.1-M6-30-S/K	GN 511-M6-32	99
GN 482-B20-30-Q-ELS	ELS - Anodized	B 20	30	10	6.5	M 6	70	55	39	33.5	15	16	GN 511.1-M6-30-S/K	GN 511-M6-32	99
GN 482-B20-30-Q-MT	MT - Matte finish	B 20	30	10	6.5	M 6	70	55	39	33.5	15	16	GN 511.1-M6-30-S/K	GN 511-M6-32	99
