Description

Specification

Handle profile

Aluminum

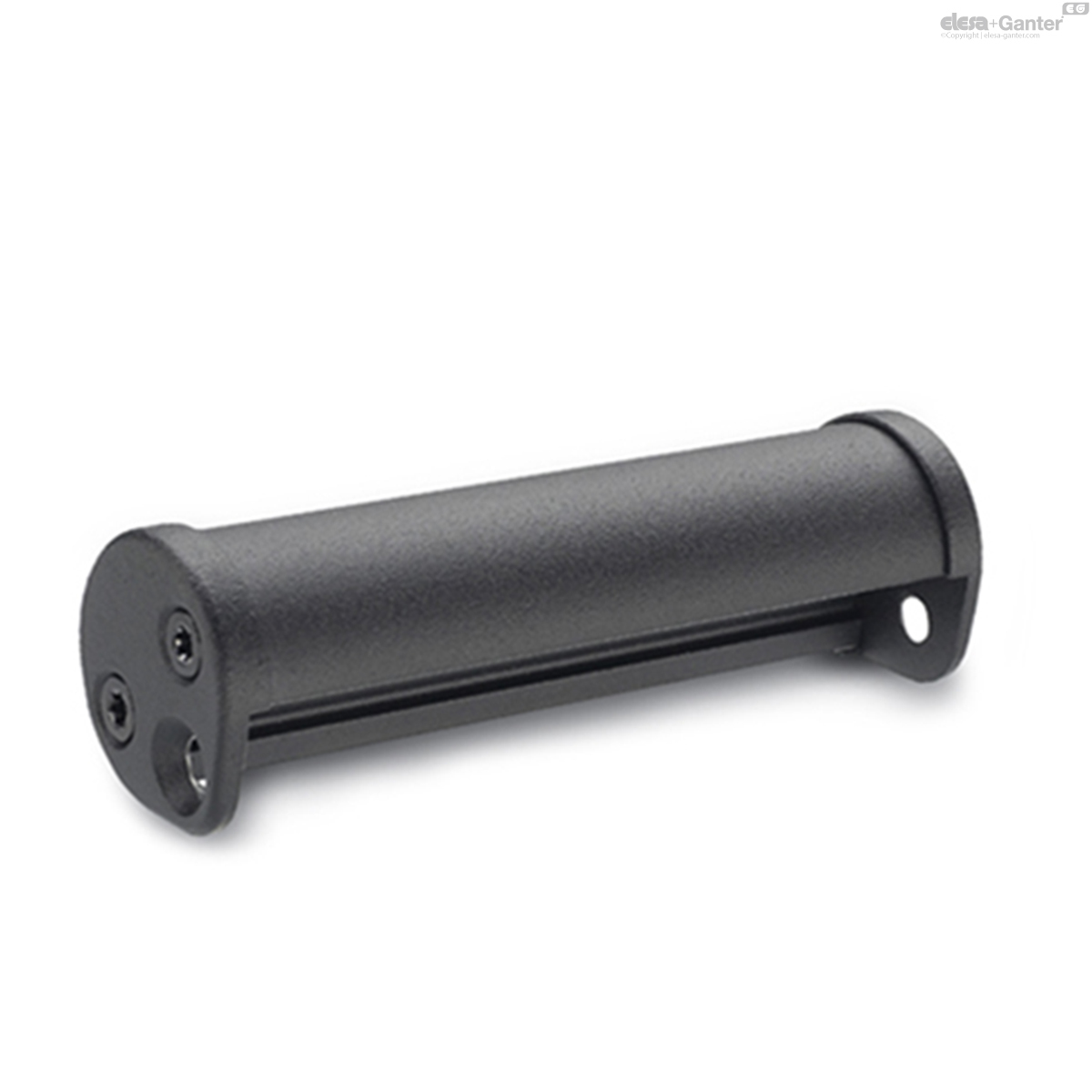

Black, RAL 9005, textured finish SW

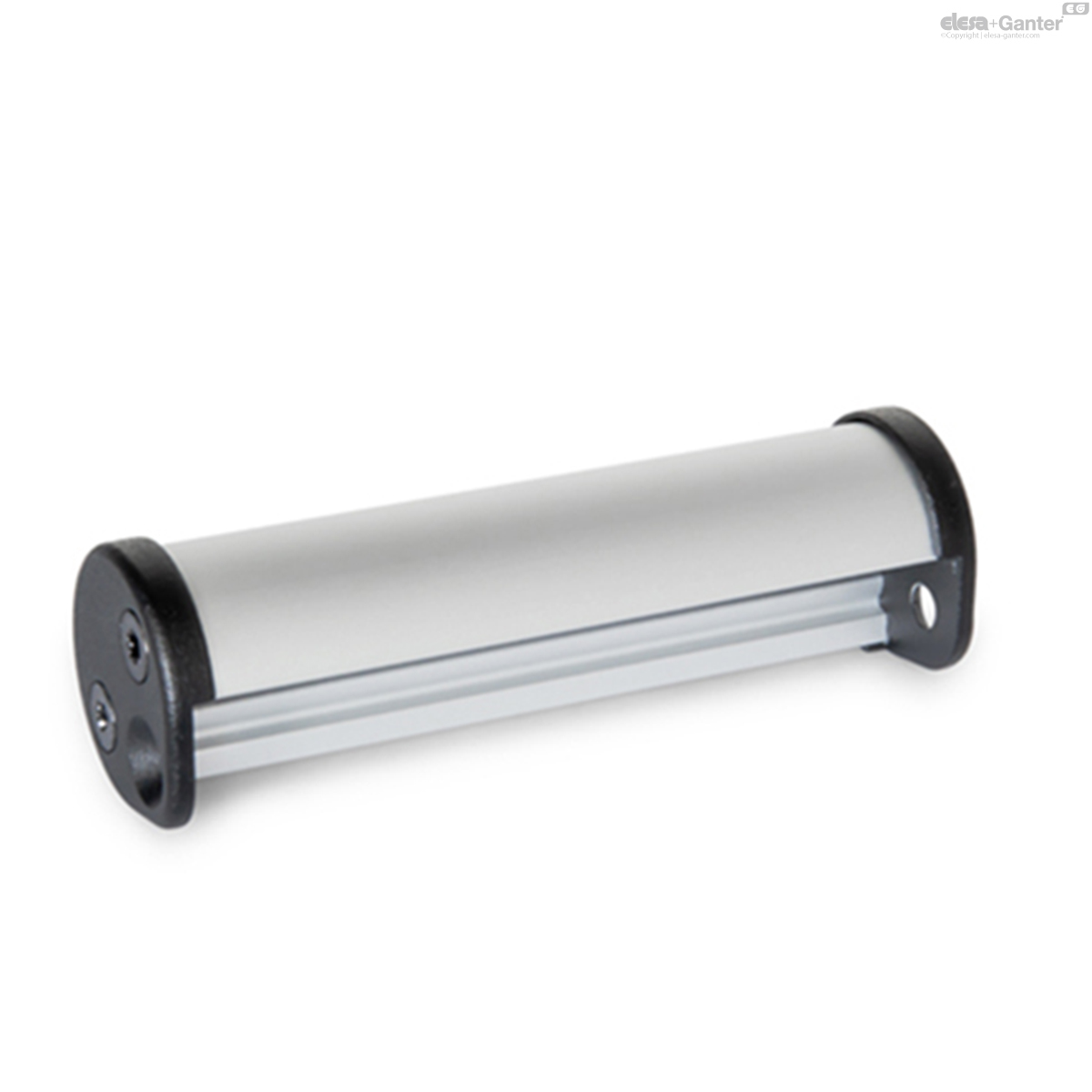

Anodized, natural color ES

End pieces

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Countersunk screws

Self tapping, with internal hexalobular

Black, zinc plated

Information

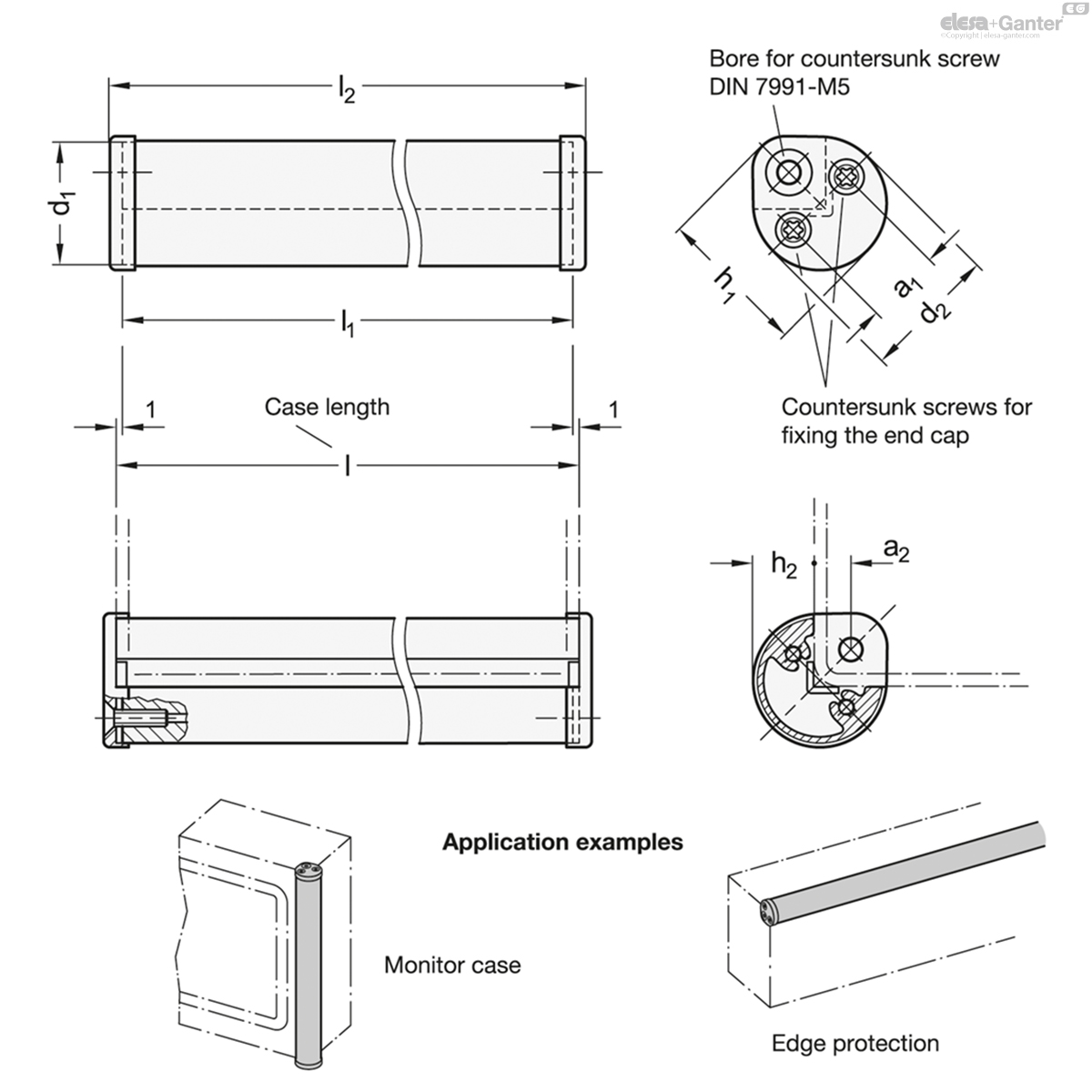

Edge handles GN 481 are particularly compact and are used, for example, on the side of monitor housings as a handling aid or generally to protect the edges of housings.

Tolerance compensation of 1 mm per end cap simplifies installation. The two end caps are mounted to the handle profile with self-tapping countersunk screws so they can be screwed back on after adjusting the length of the handle without requiring readjustment. This allows the length of the housing to be adapted to any desired size.

On request

Other lengths l₁

Other finishes

GN 481

	Color	d₁ -0.5	l₁ ±2	l₁ +2	l₁	a₁	a₂	d₂	h₁	h₂ -0.1	l₂
Code													Actions
GN 481-30-100-EL	EL - Anodized, natural color	30	-	100	100	18	9	32	34.5	14.5	106	95
GN 481-30-100-SW	SW - RAL 9004	30	100	100	100	18	9	32	34.5	14.5	106	95
GN 481-30-200-EL	EL - Anodized, natural color	30	-	200	200	18	9	32	34.5	14.5	206	143
GN 481-30-200-SW	SW - RAL 9004	30	200	200	200	18	9	32	34.5	14.5	206	143
GN 481-30-300-EL	EL - Anodized, natural color	30	-	300	300	18	9	32	34.5	14.5	306	195
GN 481-30-300-SW	SW - RAL 9004	30	300	300	300	18	9	32	34.5	14.5	306	195
GN 481-30-400-EL	EL - Anodized, natural color	30	-	400	400	18	9	32	34.5	14.5	406	250
GN 481-30-400-SW	SW - RAL 9004	30	400	400	400	18	9	32	34.5	14.5	406	250
GN 481-30-500-EL	EL - Anodized, natural color	30	-	500	500	18	9	32	34.5	14.5	506	300
GN 481-30-500-SW	SW - RAL 9004	30	500	500	500	18	9	32	34.5	14.5	506	300
