GN 480.3

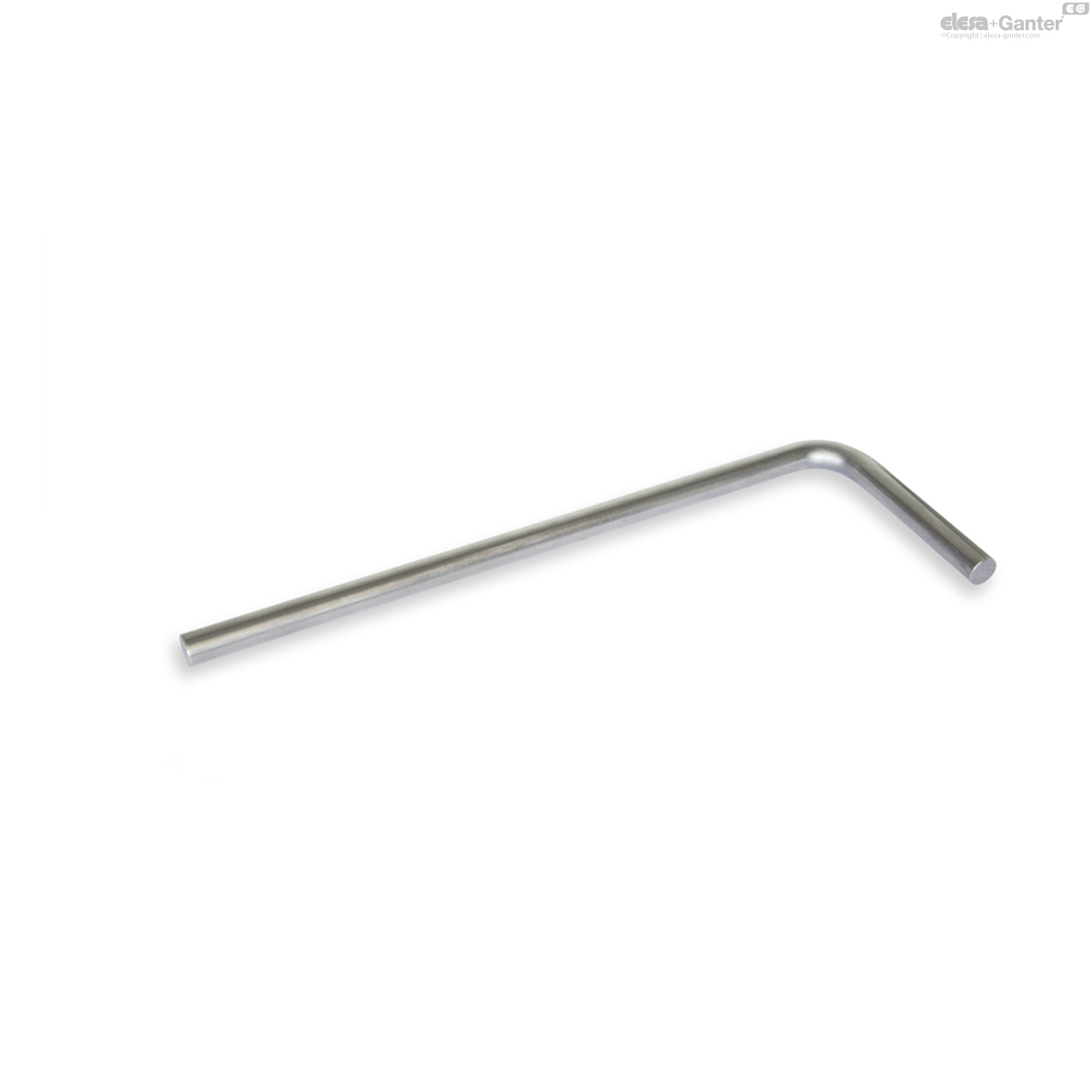

Stainless Steel-Retaining rods
for clamp mountings, angled
Description
Specification
Stainless Steel NI
AISI 304
blank
Information
The dimensions of GN 480.3 Stainless Steel-Retaining rods are tailored for use with clamp mountings.
The angled Stainless Steel-Retaining rods make it possible to create compact and space-saving clamp mounting structures efficiently and cost-effectively with few components.
On request
- other dimensions for l1 and l2
Technical information
- Stainless Steel characteristicsÂ
GN 480.3

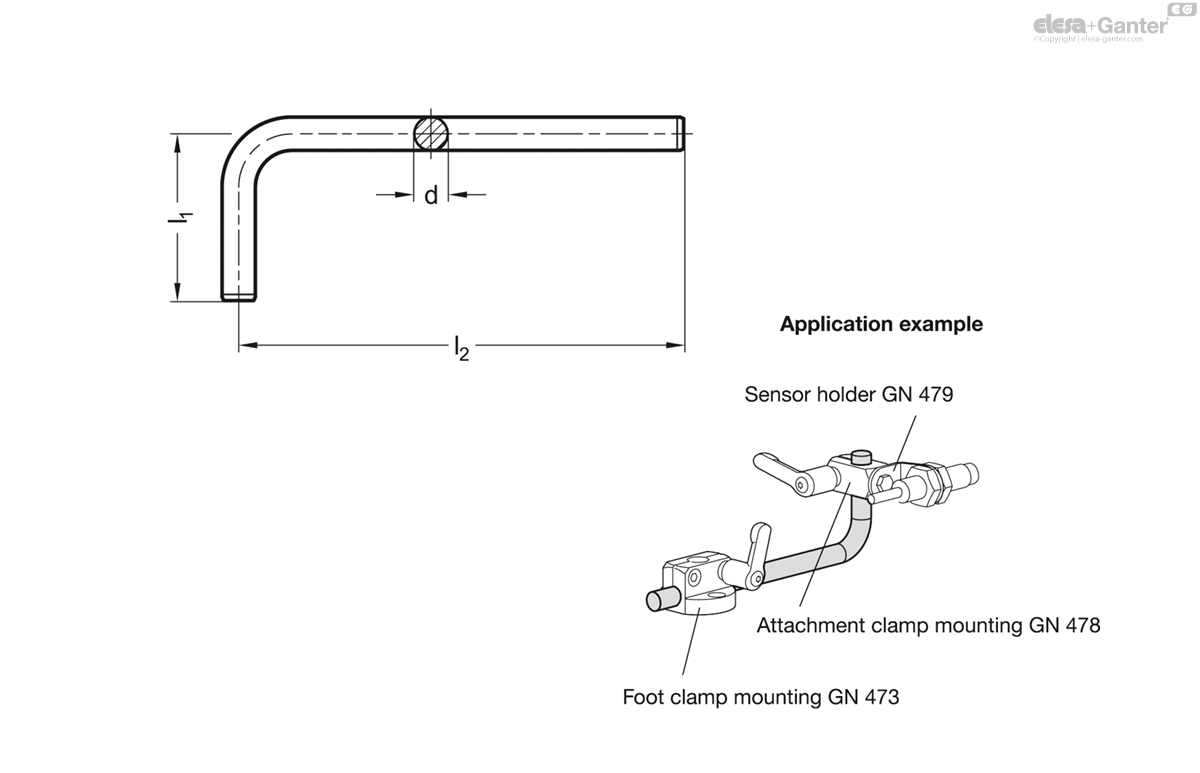

| d | l1 | l2 |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 480.3-D8-30-90-NI | D 8 | 30 | 90 | 45 |
|
| GN 480.3-D8-50-150-NI | D 8 | 50 | 150 | 77 |
|
| GN 480.3-D8-80-240-NI | D 8 | 80 | 240 | 125 |
|
| GN 480.3-D10-50-150-NI | D 10 | 50 | 150 | 118 |
|
| GN 480.3-D10-70-210-NI | D 10 | 70 | 210 | 170 |
|
| GN 480.3-D10-100-300-NI | D 10 | 100 | 300 | 240 |
|
