GN 479.1

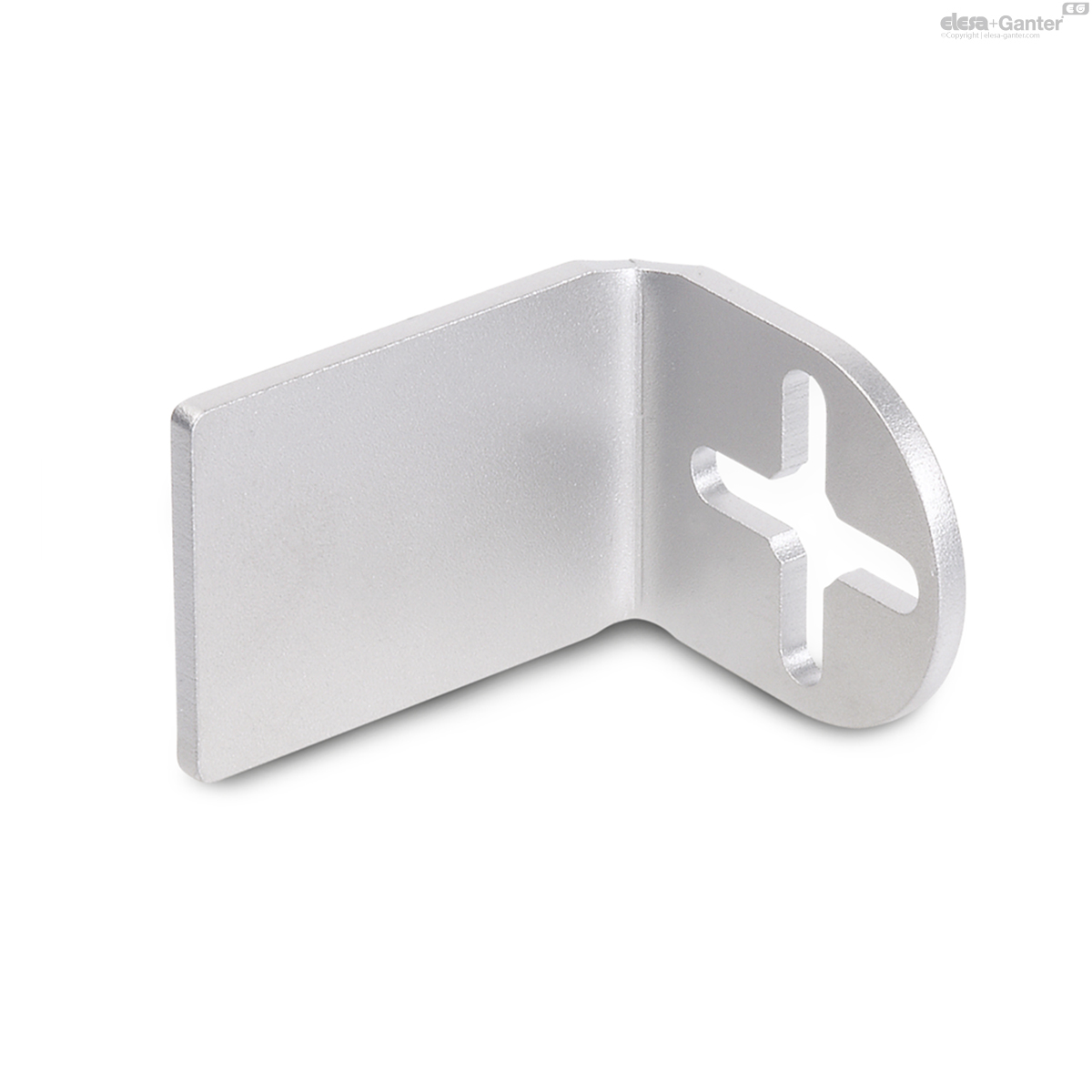

Retaining plates
for clamp mountings with threaded holes GN 478 / GN 484
Description
Specification
Stainless Steel AISI 303
matt-shot blasted
Information
Retaining plates GN 479.1 are designed as universal mounting elements, e.g. for integrating specific hole patterns..

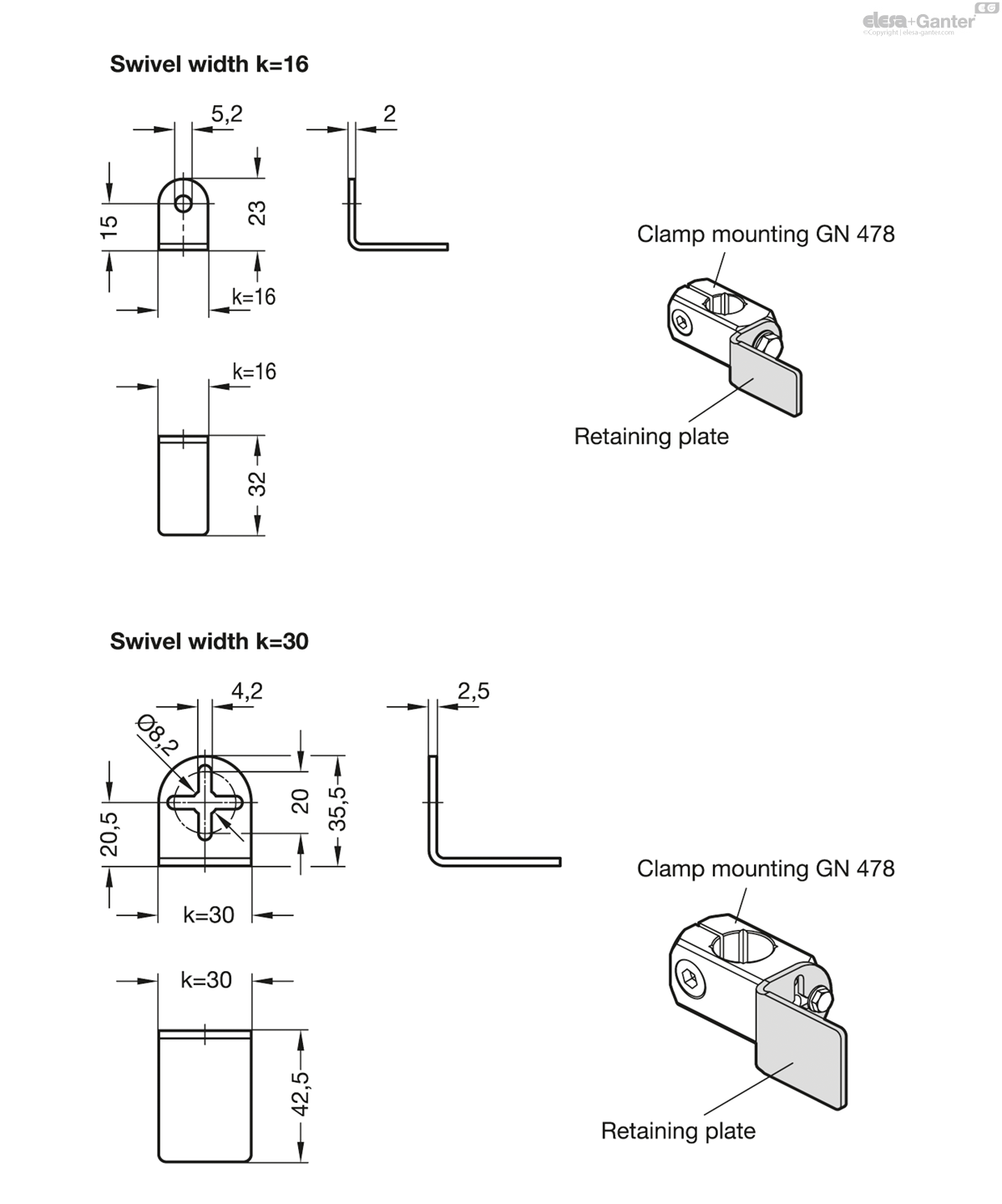

The attachment bore matches the central thread of clamp mountings  GN 478 GN 484 and attachment clamp mountings GN 478 GN 484 . For k=30, the cross-shaped slotted holes provide extra adjustability and allow the use of two fixing screws.
Fixing screws have to be ordered separately.
Technical information
- Stainless Steel characteristicsÂ
GN 479.1
| k |  |
||
|---|---|---|---|
| Code | Actions | ||
| GN 479.1-16 | 16 | 11 |
|
| GN 479.1-30 | 30 | 37 |
|
