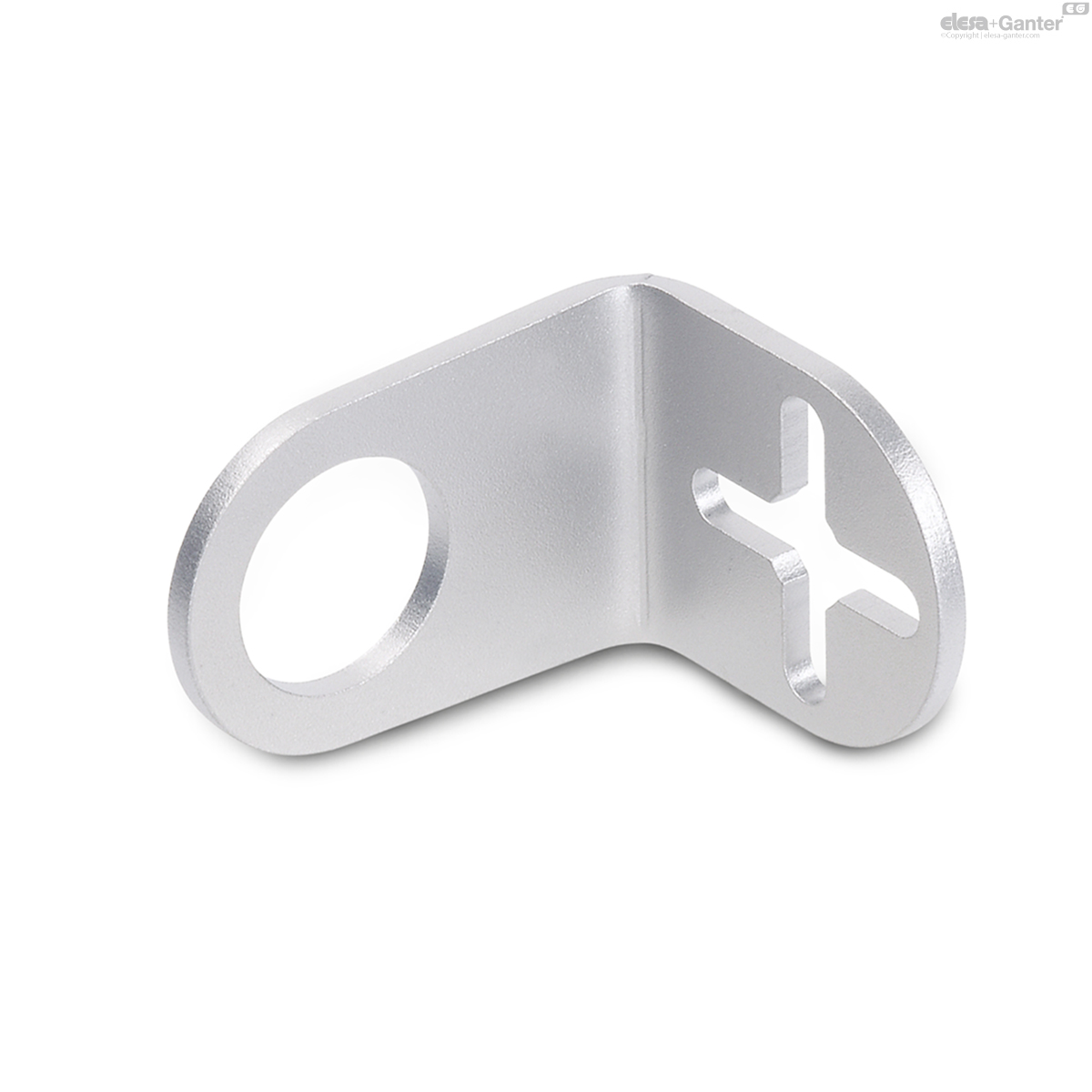

GN 479
Sensor holders
for clamp mountings with threaded holes GN 478 / GN 484
Description
Specification
Stainless Steel AISI 303
matt-shot blasted
Information
The sensor holders GN 479 are designed for holding sensors attached with two lock nuts.
The attachment bore matches the central thread of clamp mountings  GN 478 GN 484  and attachment clamp mountings GN 478 GN 484  . For k=30, the cross-shaped slotted holes provide extra adjustability and allow the use of two fixing screws.
Fixing screws have to be ordered separately.
Technical information
- Stainless Steel characteristicsÂ

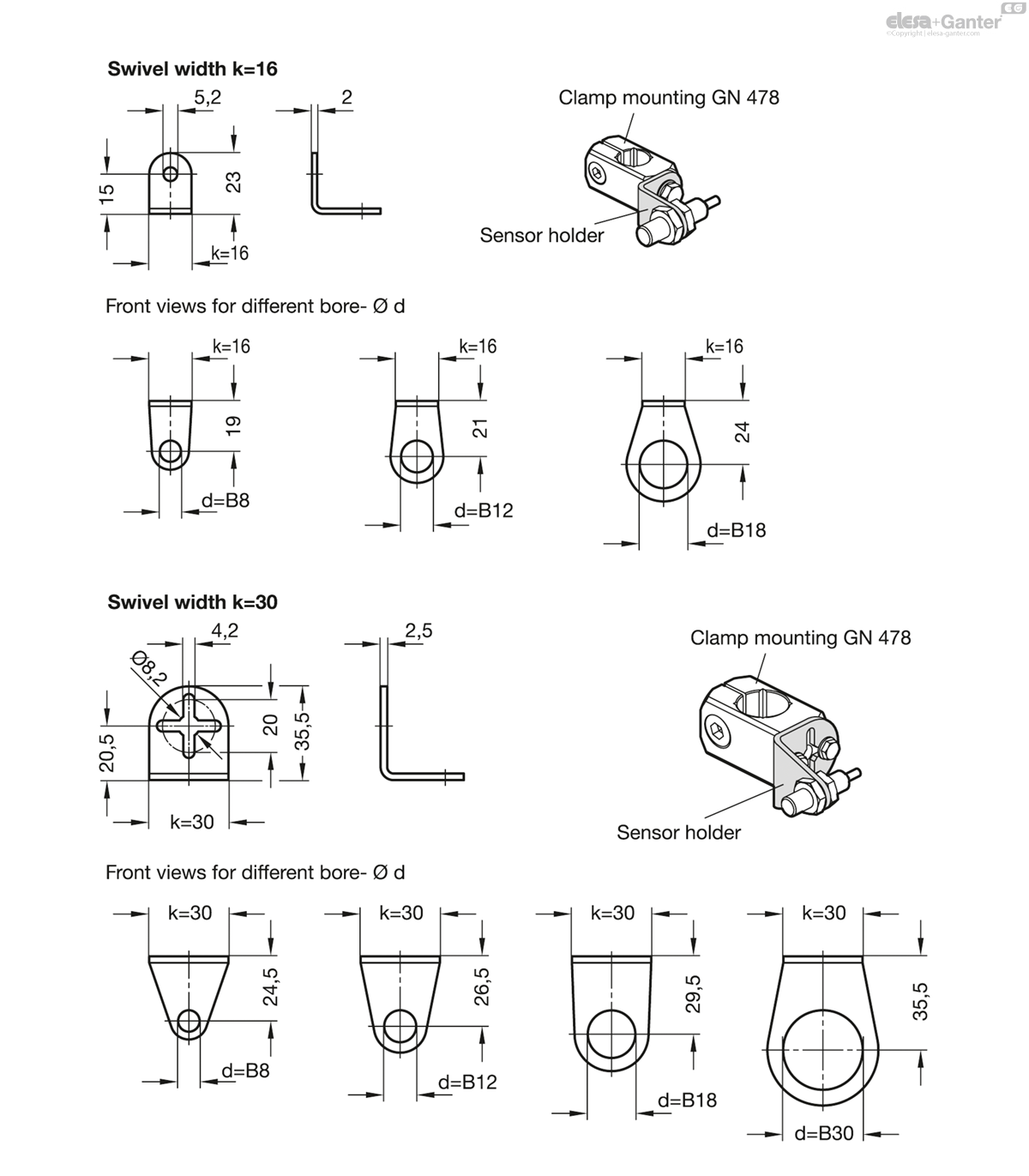

Assembly examples
 GN 479
| d | k |  |
||
|---|---|---|---|---|
| Code | Actions | |||
| GN 479-B8-16 | B 8 | 16 | 9 |
|
| GN 479-B8-30 | B 8 | 30 | 20 |
|
| GN 479-B12-16 | B 12 | 16 | 10 |
|
| GN 479-B12-30 | B 12 | 30 | 26 |
|
| GN 479-B18-16 | B 18 | 16 | 13 |
|
| GN 479-B18-30 | B 18 | 30 | 30 |
|
| GN 479-B30-30 | B 30 | 30 | 36 |
|
