GN 476.2
Rail T-Mounting Clamps
Aluminum, Splittable
Description
Specification
Types
- Type A: With bore
- Type W: With bolt
Mounting clamp
Aluminum
- Matte finish, tumbled MT
- Anodized, black ELS
Bolt for type W
Stainless steel AISI 303
Socket cap screws ISO 4762
Stainless steel
Dowel pin ISO 2338
Stainless steel
Grub screw DIN 913 for type A
Stainless steel
Grub screw DIN 915 for type W
Stainless steel
Information
Rail T-mounting clamps GN 476.2 connect tubes and rods in a T shape. They are used for applications such as side guides, where the mounting clamps must not protrude to the side.
In addition, the split clamping point permits subsequent insertion of the mounting clamp into an existing structure and simplifies installation when axial insertion is not possible, such as due to curves.
By combining one mounting clamp of type W and one of type A, two tubes or rods can be connected together at any adjustable angle. The standard clamping screw is a socket cap screw with hexagonal socket ISO 4762. It can be replaced by a clamping kit GN 511 (for article code, see table of dimensions).
Accessory
- GN 511Â Clamping Kits
- GN 480.1Â Retaining Rods / Retaining Tubes
Technical information
- ISO-Fundamental Tolerances
- Stainless Steel CharacteristicsÂ

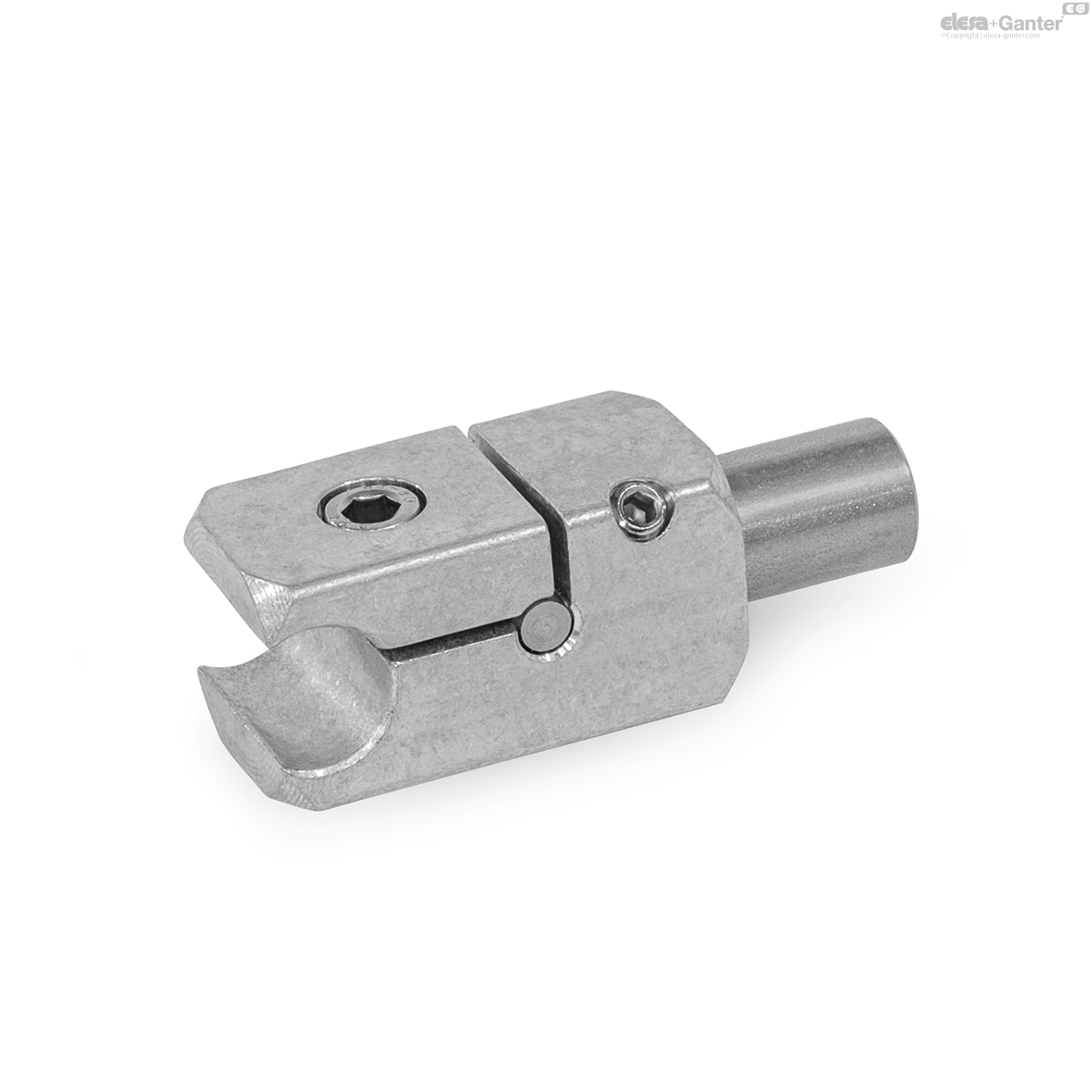

GN 476.2-W
| Color | d1 Bore for shaft tolerance h11 |
d3 | d4 Clamping thread | d5 | k | l1 | l2 | l3 | l4 | l5 | Clamping kit for d4 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 476.2-B8-8-W-ELS | ELS - Anodized | B 8 | 8 | M 4 | M 4 | 16 | 16 | 32 | 2.5 | 30.5 | 5.5 | GN 511-M4-16 | 29 |
|
| GN 476.2-B8-8-W-MT | MT - Matte finish | B 8 | 8 | M 4 | M 4 | 16 | 16 | 32 | 2.5 | 30.5 | 5.5 | GN 511-M4-16 | 29 |
|
| GN 476.2-B10-10-W-ELS | ELS - Anodized | B 10 | 10 | M 5 | M 5 | 20 | 17 | 38 | 3.1 | 36.1 | 7 | GN 511-M5-20 | 53 |
|
| GN 476.2-B10-10-W-MT | MT - Matte finish | B 10 | 10 | M 5 | M 5 | 20 | 17 | 38 | 3.1 | 36.1 | 7 | GN 511-M5-20 | 53 |
|
| GN 476.2-B12-12-W-ELS | ELS - Anodized | B 12 | 12 | M 5 | M 5 | 20 | 19 | 42 | 3.6 | 39.6 | 8 | GN 511-M5-20 | 64 |
|
| GN 476.2-B12-12-W-MT | MT - Matte finish | B 12 | 12 | M 5 | M 5 | 20 | 19 | 42 | 3.6 | 39.6 | 8 | GN 511-M5-20 | 64 |
|
| GN 476.2-B15-15-W-ELS | ELS - Anodized | B 15 | 15 | M 6 | M 6 | 25 | 21 | 52 | 4.4 | 48.9 | 10 | GN 511-M6-25 | 119 |
|
| GN 476.2-B15-15-W-MT | MT - Matte finish | B 15 | 15 | M 6 | M 6 | 25 | 21 | 52 | 4.4 | 48.9 | 10 | GN 511-M6-25 | 119 |
|
| GN 476.2-B16-16-W-ELS | ELS - Anodized | B 16 | 16 | M 6 | M 6 | 25 | 24 | 55 | 4.8 | 51.8 | 11 | GN 511-M6-25 | 134 |
|
| GN 476.2-B16-16-W-MT | MT - Matte finish | B 16 | 16 | M 6 | M 6 | 25 | 24 | 55 | 4.8 | 51.8 | 11 | GN 511-M6-25 | 134 |
|
| GN 476.2-B20-20-W-ELS | ELS - Anodized | B 20 | 20 | M 6 | M 6 | 30 | 26 | 63 | 6 | 59 | 12 | GN 511-M6-30 | 219 |
|
| GN 476.2-B20-20-W-MT | MT - Matte finish | B 20 | 20 | M 6 | M 6 | 30 | 26 | 63 | 6 | 59 | 12 | GN 511-M6-30 | 219 |
|
