Home Tube Clamp Connectors Clamp mountings GN 476

GN 476

T-Clamp mountings

Aluminium

Enquire Now

Description

Specification

Types

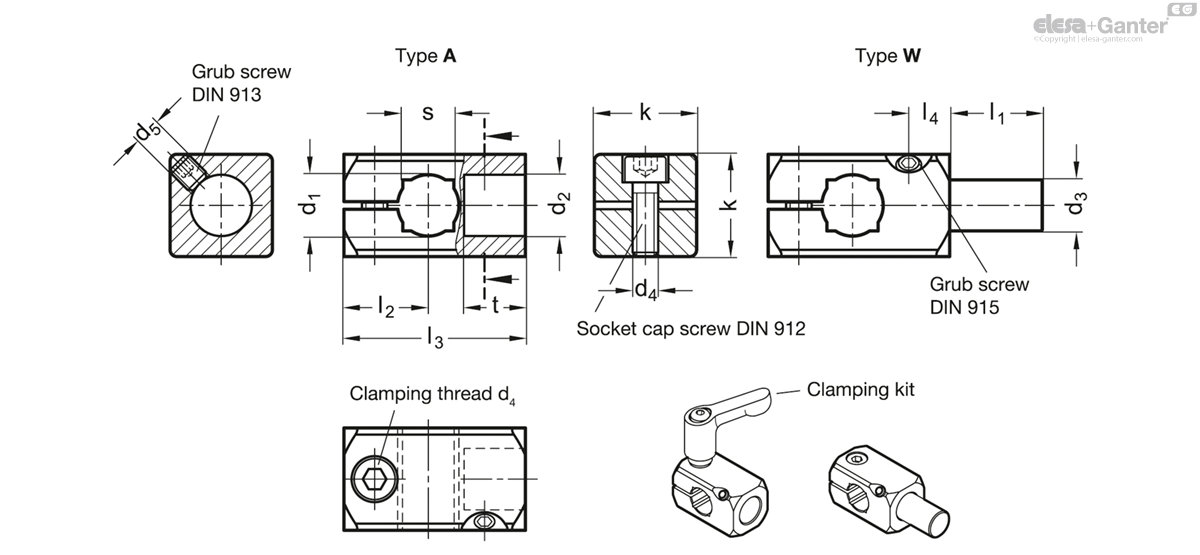

Type A: with bore

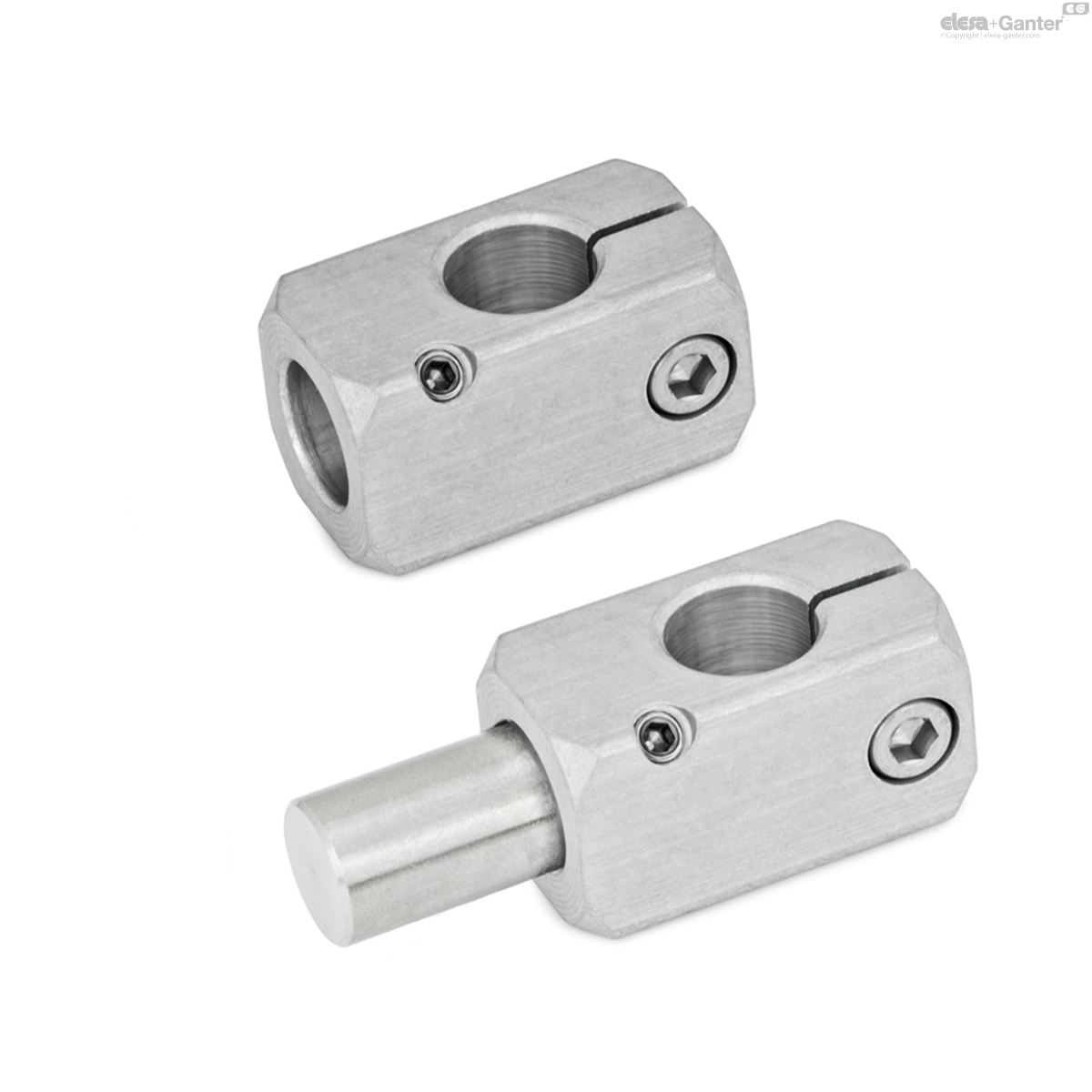

Type W: with bolt

Aluminium

matt, slide ground MT

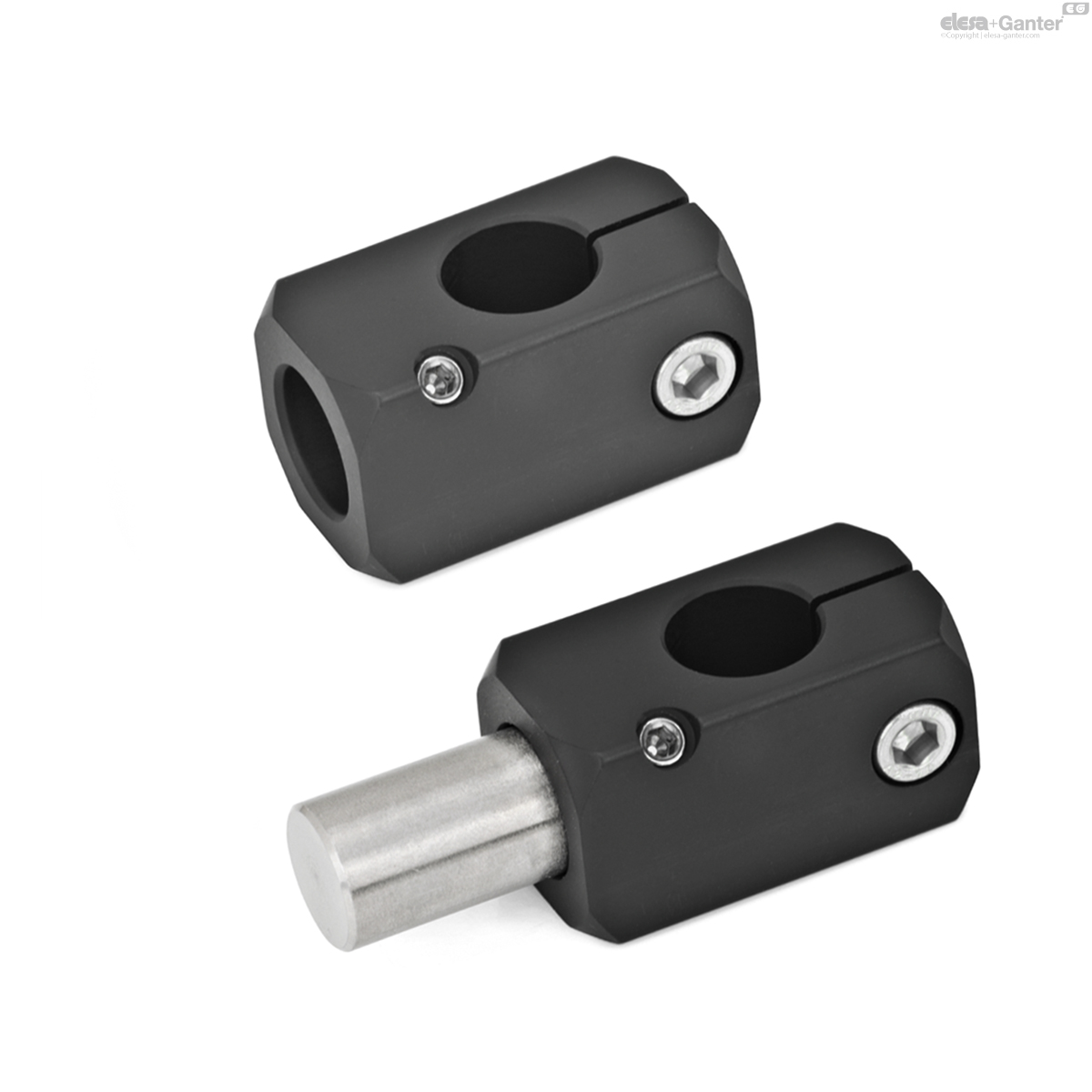

anodized, black ELS

Bolt (Type W)

Stainless Steel AISI 303

Socket cap screw DIN 912

Stainless Steel AISI 304

Grub screw DIN 913 (Type A)

Stainless Steel AISI 304

Grub screw DIN 915 (Type W)

Stainless Steel AISI 304

Clamping kits GN 511

Information

The T-Clamp mountings GN 476 (Type W) are an alternative to twistable two-way clamp mountings GN 475 if high angular forces are required.

The standard version of the clamping screw at the clamping thread d₄ is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping lever GN 511 (description see table of dimensions).

Accessory

Clamping kits GN 511

Technical information

Stainless Steel characteristics

Assembly examples

GN 476

	Color	d₁ Bore for shaft tolerance h11	d₂	d₃	k	d₄	d₅	l₁	l₂	l₃	l₄	t	s	Clamping kits for d₄
Code																Actions
GN 476-B8-8-W-ELS	ELS - Anodized	B 8	-	8	16	M 4	M 4	16	13	26	5.5	8	-	GN 511-M4-16	25
GN 476-B8-8-W-MT	MT - Matte finish	B 8	-	8	16	M 4	M 4	16	13	26	5.5	8	-	GN 511-M4-16	25
GN 476-B8-B8-A-ELS	ELS - Anodized	B 8	B 8	-	16	M 4	M 4	16	13	26	5.5	8	-	GN 511-M4-16	20
GN 476-B8-B8-A-MT	MT - Matte finish	B 8	B 8	-	16	M 4	M 4	16	13	26	5.5	8	-	GN 511-M4-16	20
GN 476-B10-10-W-ELS	ELS - Anodized	B 10	-	10	20	M 5	M 5	17	15.5	31.5	7	10	8	GN 511-M5-20	45
GN 476-B10-10-W-MT	MT - Matte finish	B 10	-	10	20	M 5	M 5	17	15.5	31.5	7	10	8	GN 511-M5-20	45
GN 476-B10-B10-A-ELS	ELS - Anodized	B 10	B 10	-	20	M 5	M 5	17	15.5	31.5	7	10	8	GN 511-M5-20	28
GN 476-B10-B10-A-MT	MT - Matte finish	B 10	B 10	-	20	M 5	M 5	17	15.5	31.5	7	10	8	GN 511-M5-20	28
GN 476-B12-12-W-ELS	ELS - Anodized	B 12	-	12	20	M 5	M 5	19	16.5	35.5	8	12	10	GN 511-M5-20	57
GN 476-B12-12-W-MT	MT - Matte finish	B 12	-	12	20	M 5	M 5	19	16.5	35.5	8	12	10	GN 511-M5-20	57
GN 476-B12-B12-A-ELS	ELS - Anodized	B 12	B 12	-	20	M 5	M 5	19	16.5	35.5	8	12	10	GN 511-M5-20	28
GN 476-B12-B12-A-MT	MT - Matte finish	B 12	B 12	-	20	M 5	M 5	19	16.5	35.5	8	12	10	GN 511-M5-20	28
GN 476-B15-15-W-ELS	ELS - Anodized	B 15	-	15	25	M 6	M 6	21	20	43.5	10	15	12	GN 511-M6-25	103
GN 476-B15-15-W-MT	MT - Matte finish	B 15	-	15	25	M 6	M 6	21	20	43.5	10	15	12	GN 511-M6-25	103
GN 476-B15-B15-A-ELS	ELS - Anodized	B 15	B 15	-	25	M 6	M 6	21	20	43.5	10	15	12	GN 511-M6-25	54
GN 476-B15-B15-A-MT	MT - Matte finish	B 15	B 15	-	25	M 6	M 6	21	20	43.5	10	15	12	GN 511-M6-25	54
GN 476-B16-16-W-ELS	ELS - Anodized	B 16	-	16	25	M 6	M 6	24	20	45	11	16	-	GN 511-M6-25	45
GN 476-B16-16-W-MT	MT - Matte finish	B 16	-	16	25	M 6	M 6	24	20	45	11	16	-	GN 511-M6-25	45
GN 476-B16-B16-A-ELS	ELS - Anodized	B 16	B 16	-	25	M 6	M 6	24	20	45	11	16	-	GN 511-M6-25	54
GN 476-B16-B16-A-MT	MT - Matte finish	B 16	B 16	-	25	M 6	M 6	24	20	45	11	16	-	GN 511-M6-25	54
GN 476-B20-20-W-ELS	ELS - Anodized	B 20	-	20	30	M 6	M 6	26	22	51	12	18	16	GN 511-M6-30	191
GN 476-B20-20-W-MT	MT - Matte finish	B 20	-	20	30	M 6	M 6	26	22	51	12	18	16	GN 511-M6-30	191
GN 476-B20-B20-A-ELS	ELS - Anodized	B 20	B 20	-	30	M 6	M 6	26	22	51	12	18	16	GN 511-M6-30	80
GN 476-B20-B20-A-MT	MT - Matte finish	B 20	B 20	-	30	M 6	M 6	26	22	51	12	18	16	GN 511-M6-30	80
