GN 474.1
Two-way clamp mountings
Aluminium
Description
Specification
Aluminium

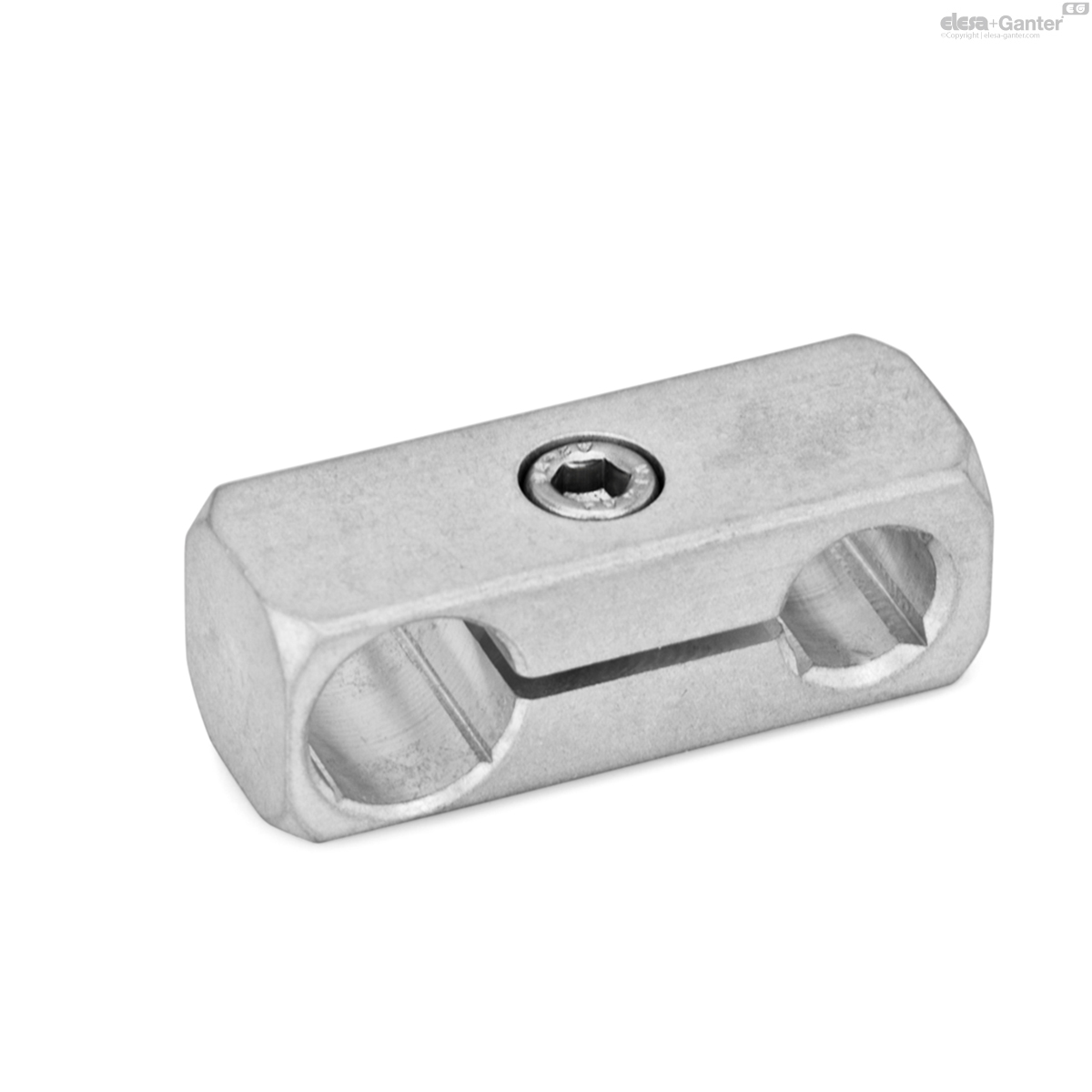

- matt, tumbled finish MT

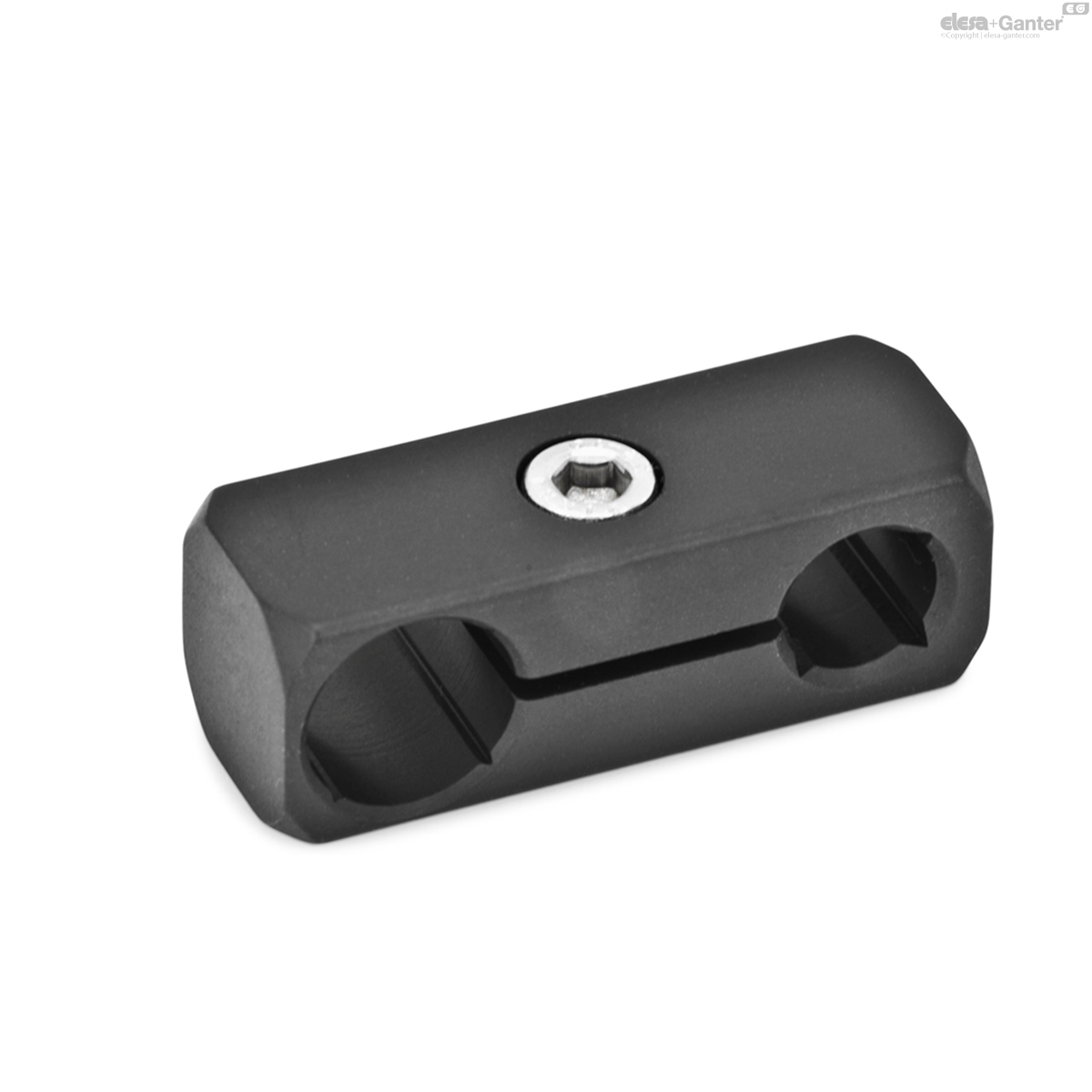

- anodized black ELS
Socket cap screws DIN 912
Stainless Steel AISI 304
Information
The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit  GN 511 .
Technical information
- Stainless Steel characteristicsÂ

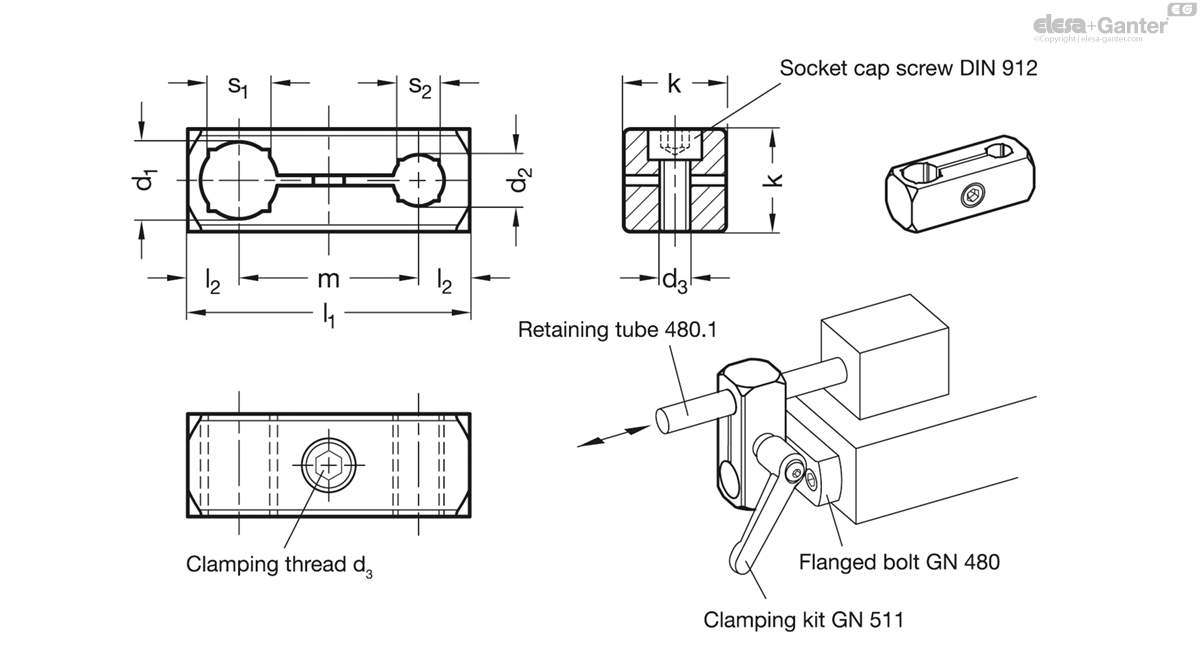

GN 474.1
| Color | d1 Bore for shaft tolerance h11 |
d2 Bore for shaft tolerance h11 |
k | d3 | l1 | l2 | m | s1 | s2 | Clamping kits for d3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 474.1-B8-B8-ELS | ELS - Anodized | B 8 | B 8 | 14 | M 4 | 38 | 7 | 24 | - | - | GN 511-M4-14 | 17 |
|
| GN 474.1-B8-B8-MT | MT - Matte finish | B 8 | B 8 | 14 | M 4 | 38 | 7 | 24 | - | - | GN 511-M4-14 | 17 |
|
| GN 474.1-B10-B8-ELS | ELS - Anodized | B 10 | B 10 | 16 | M 5 | 44 | 8 | 28 | 8 | - | GN 511-M5-16 | 24 |
|
| GN 474.1-B10-B8-MT | MT - Matte finish | B 10 | B 10 | 16 | M 5 | 44 | 8 | 28 | 8 | - | GN 511-M5-16 | 24 |
|
| GN 474.1-B10-B10-ELS | ELS - Anodized | B 10 | B 10 | 16 | M 5 | 44 | 8 | 28 | 8 | 8 | GN 511-M5-16 | 23 |
|
| GN 474.1-B10-B10-MT | MT - Matte finish | B 10 | B 10 | 16 | M 5 | 44 | 8 | 28 | 8 | 8 | GN 511-M5-16 | 23 |
|
| GN 474.1-B12-B8-ELS | ELS - Anodized | B 12 | B 8 | 16 | M 5 | 45 | 8 | 29 | 10 | - | GN 511-M5-16 | 23 |
|
| GN 474.1-B12-B8-MT | MT - Matte finish | B 12 | B 8 | 16 | M 5 | 45 | 8 | 29 | 10 | - | GN 511-M5-16 | 23 |
|
| GN 474.1-B12-B10-ELS | ELS - Anodized | B 12 | B 10 | 16 | M 5 | 45 | 8 | 29 | 10 | 8 | GN 511-M5-16 | 22 |
|
| GN 474.1-B12-B10-MT | MT - Matte finish | B 12 | B 10 | 16 | M 5 | 45 | 8 | 29 | 10 | 8 | GN 511-M5-16 | 22 |
|
| GN 474.1-B12-B12-ELS | ELS - Anodized | B 12 | B 12 | 16 | M 5 | 45 | 8 | 29 | 10 | 10 | GN 511-M5-16 | 21 |
|
| GN 474.1-B12-B12-MT | MT - Matte finish | B 12 | B 12 | 16 | M 5 | 45 | 8 | 29 | 10 | 10 | GN 511-M5-16 | 21 |
|
| GN 474.1-B15-B10-ELS | ELS - Anodized | B 15 | B 10 | 20 | M 6 | 55 | 10 | 35 | 12 | 8 | GN 511-M6-20 | 45 |
|
| GN 474.1-B15-B10-MT | MT - Matte finish | B 15 | B 10 | 20 | M 6 | 55 | 10 | 35 | 12 | 8 | GN 511-M6-20 | 45 |
|
| GN 474.1-B15-B12-ELS | ELS - Anodized | B 15 | B 12 | 20 | M 6 | 55 | 10 | 35 | 12 | 10 | GN 511-M6-20 | 43 |
|
| GN 474.1-B15-B12-MT | MT - Matte finish | B 15 | B 12 | 20 | M 6 | 55 | 10 | 35 | 12 | 10 | GN 511-M6-20 | 43 |
|
| GN 474.1-B15-B15-ELS | ELS - Anodized | B 15 | B 15 | 20 | M 6 | 55 | 10 | 35 | 12 | 12 | GN 511-M6-20 | 40 |
|
| GN 474.1-B15-B15-MT | MT - Matte finish | B 15 | B 15 | 20 | M 6 | 55 | 10 | 35 | 12 | 12 | GN 511-M6-20 | 40 |
|
| GN 474.1-B16-B10-ELS | ELS - Anodized | B 16 | B 10 | 20 | M 6 | 55 | 10 | 35 | - | 8 | GN 511-M6-20 | 44 |
|
| GN 474.1-B16-B10-MT | MT - Matte finish | B 16 | B 10 | 20 | M 6 | 55 | 10 | 35 | - | 8 | GN 511-M6-20 | 44 |
|
| GN 474.1-B16-B12-ELS | ELS - Anodized | B 16 | B 12 | 20 | M 6 | 55 | 10 | 35 | - | 10 | GN 511-M6-20 | 42 |
|
| GN 474.1-B16-B12-MT | MT - Matte finish | B 16 | B 12 | 20 | M 6 | 55 | 10 | 35 | - | 10 | GN 511-M6-20 | 42 |
|
| GN 474.1-B16-B15-ELS | ELS - Anodized | B 16 | B 15 | 20 | M 6 | 55 | 10 | 35 | - | 12 | GN 511-M6-20 | 39 |
|
| GN 474.1-B16-B15-MT | MT - Matte finish | B 16 | B 15 | 20 | M 6 | 55 | 10 | 35 | - | 12 | GN 511-M6-20 | 39 |
|
| GN 474.1-B16-B16-ELS | ELS - Anodized | B 16 | B 16 | 20 | M 6 | 55 | 10 | 35 | - | - | GN 511-M6-20 | 38 |
|
| GN 474.1-B16-B16-MT | MT - Matte finish | B 16 | B 16 | 20 | M 6 | 55 | 10 | 35 | - | - | GN 511-M6-20 | 38 |
|
| GN 474.1-B20-B12-ELS | ELS - Anodized | B 20 | B 12 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 10 | GN 511-M6-25 | 79 |
|
| GN 474.1-B20-B12-MT | MT - Matte finish | B 20 | B 12 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 10 | GN 511-M6-25 | 79 |
|
| GN 474.1-B20-B15-ELS | ELS - Anodized | B 20 | B 15 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 12 | GN 511-M6-25 | 75 |
|
| GN 474.1-B20-B15-MT | MT - Matte finish | B 20 | B 15 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 12 | GN 511-M6-25 | 75 |
|
| GN 474.1-B20-B16-ELS | ELS - Anodized | B 20 | B 16 | 25 | M 6 | 66 | 12.5 | 41 | 16 | - | GN 511-M6-25 | 74 |
|
| GN 474.1-B20-B16-MT | MT - Matte finish | B 20 | B 16 | 25 | M 6 | 66 | 12.5 | 41 | 16 | - | GN 511-M6-25 | 74 |
|
| GN 474.1-B20-B20-ELS | ELS - Anodized | B 20 | B 20 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 16 | GN 511-M6-25 | 67 |
|
| GN 474.1-B20-B20-MT | MT - Matte finish | B 20 | B 20 | 25 | M 6 | 66 | 12.5 | 41 | 16 | 16 | GN 511-M6-25 | 67 |
|
