GN 474
Two-way clamp mountings
Aluminium
Description
Specification
Aluminium

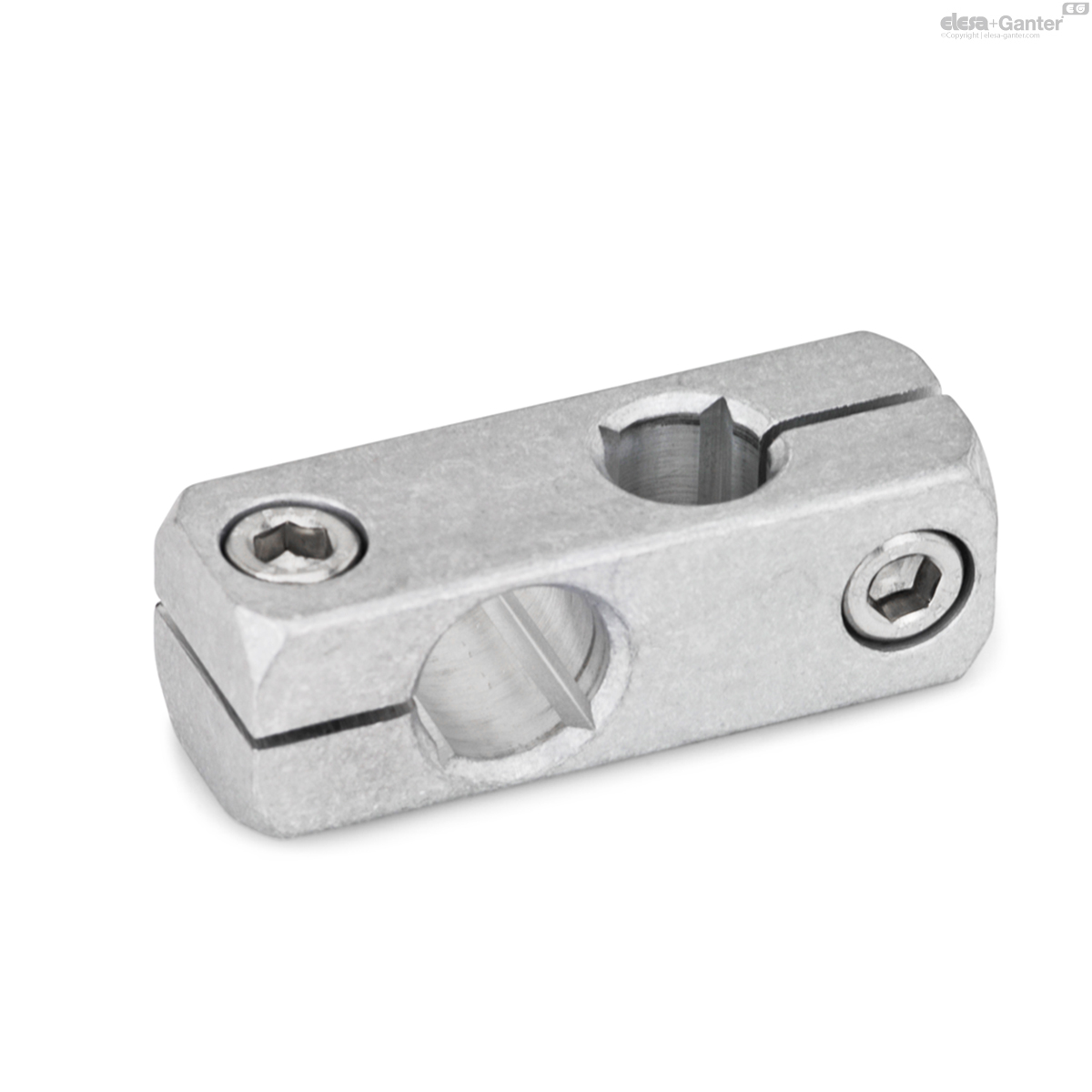

- matt, slide ground MT

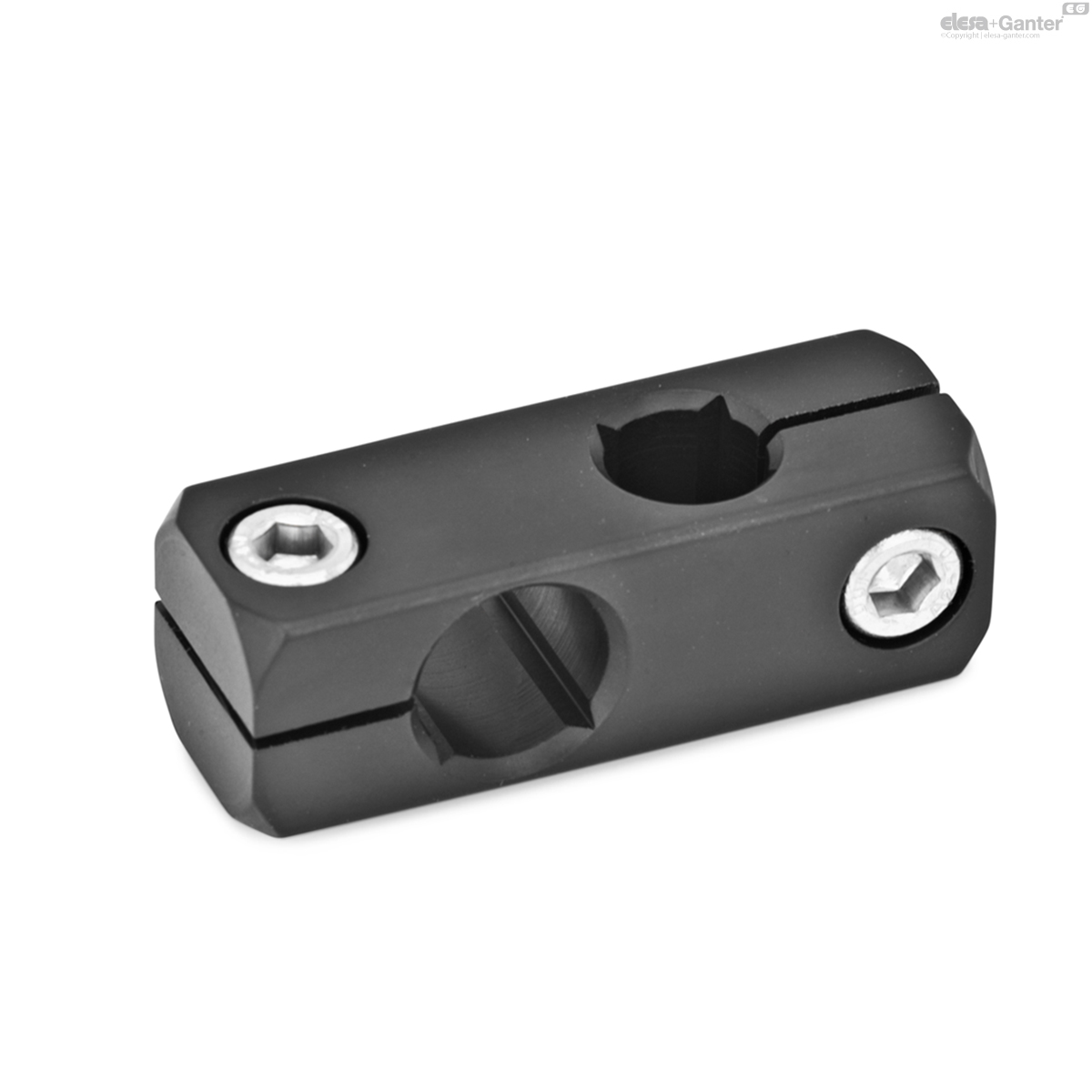

- anodized, black ELS
Socket cap screws DIN 912
Stainless Steel AISI 304
Information
The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping kit GN 511  (see table of dimensions).
Technical information
- Stainless Steel characteristicsÂ
Accessory
- Clamping kits GN 511
Assembly examples

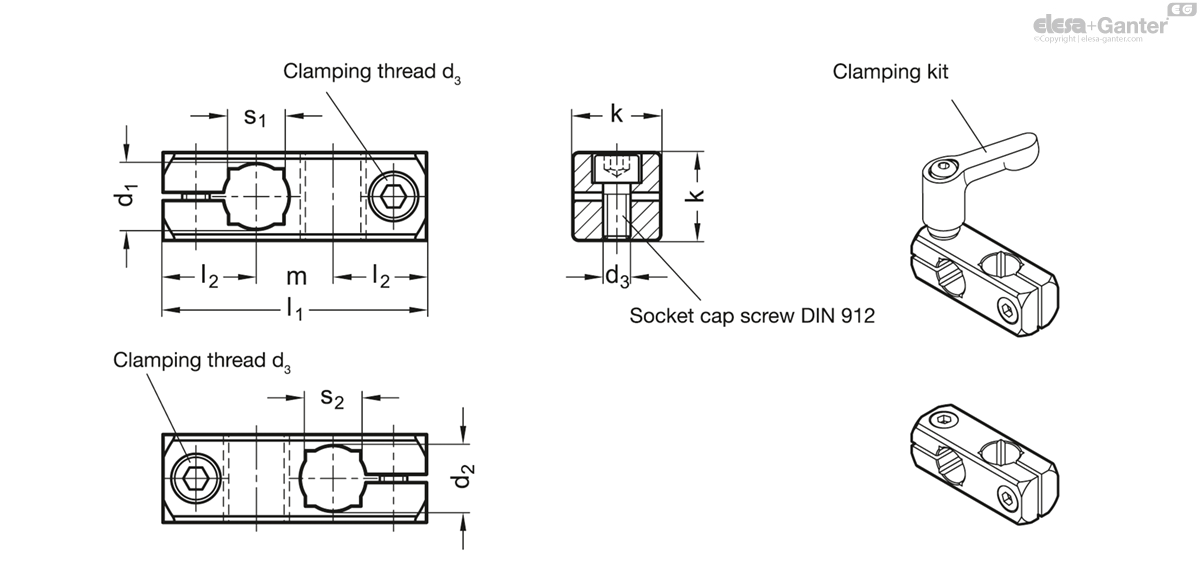

 GN 474
| Color | d1 Bore for shaft tolerance h11 |
d2 Bore for shaft tolerance h11 |
k | d3 | l1 | l2 | m | s1 | s2 | Clamping kits for d3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 474-B8-B8-ELS | ELS - Anodized | B 8 | B 8 | 14 | M 4 | 37 | 13.5 | 10 | - | - | GN 511-M4-14 | 16 |
|
| GN 474-B8-B8-MT | MT - Matte finish | B 8 | B 8 | 14 | M 4 | 37 | 13.5 | 10 | - | - | GN 511-M4-14 | 16 |
|
| GN 474-B10-B8-ELS | ELS - Anodized | B 10 | B 8 | 16 | M 5 | 46 | 17 | 12 | 8 | - | GN 511-M5-16 | 28 |
|
| GN 474-B10-B8-MT | MT - Matte finish | B 10 | B 8 | 16 | M 5 | 46 | 17 | 12 | 8 | - | GN 511-M5-16 | 28 |
|
| GN 474-B10-B10-ELS | ELS - Anodized | B 10 | B 10 | 16 | M 5 | 46 | 17 | 12 | 8 | 8 | GN 511-M5-16 | 25 |
|
| GN 474-B10-B10-MT | MT - Matte finish | B 10 | B 10 | 16 | M 5 | 46 | 17 | 12 | 8 | 8 | GN 511-M5-16 | 25 |
|
| GN 474-B12-B8-ELS | ELS - Anodized | B 12 | B 8 | 16 | M 5 | 48 | 17 | 14 | 10 | - | GN 511-M5-16 | 27 |
|
| GN 474-B12-B8-MT | MT - Matte finish | B 12 | B 8 | 16 | M 5 | 48 | 17 | 14 | 10 | - | GN 511-M5-16 | 27 |
|
| GN 474-B12-B12-ELS | ELS - Anodized | B 12 | B 12 | 16 | M 5 | 48 | 17 | 14 | 10 | 10 | GN 511-M5-16 | 25 |
|
| GN 474-B12-B12-MT | MT - Matte finish | B 12 | B 12 | 16 | M 5 | 48 | 17 | 14 | 10 | 10 | GN 511-M5-16 | 25 |
|
| GN 474-B15-B10-ELS | ELS - Anodized | B 15 | B 10 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 8 | GN 511-M6-20 | 51 |
|
| GN 474-B15-B10-MT | MT - Matte finish | B 15 | B 10 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 8 | GN 511-M6-20 | 51 |
|
| GN 474-B15-B12-ELS | ELS - Anodized | B 15 | B 12 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 10 | GN 511-M6-20 | 50 |
|
| GN 474-B15-B12-MT | MT - Matte finish | B 15 | B 12 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 10 | GN 511-M6-20 | 50 |
|
| GN 474-B15-B15-ELS | ELS - Anodized | B 15 | B 15 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 12 | GN 511-M6-20 | 44 |
|
| GN 474-B15-B15-MT | MT - Matte finish | B 15 | B 15 | 20 | M 6 | 58 | 20.5 | 17 | 12 | 12 | GN 511-M6-20 | 44 |
|
| GN 474-B16-B12-ELS | ELS - Anodized | B 16 | B 12 | 20 | M 6 | 59 | 20.5 | 18 | - | 10 | GN 511-M6-20 | 49 |
|
| GN 474-B16-B12-MT | MT - Matte finish | B 16 | B 12 | 20 | M 6 | 59 | 20.5 | 18 | - | 10 | GN 511-M6-20 | 49 |
|
| GN 474-B16-B16-ELS | ELS - Anodized | B 16 | B 16 | 20 | M 6 | 59 | 20.5 | 18 | - | - | GN 511-M6-20 | 44 |
|
| GN 474-B16-B16-MT | MT - Matte finish | B 16 | B 16 | 20 | M 6 | 59 | 20.5 | 18 | - | - | GN 511-M6-20 | 44 |
|
| GN 474-B20-B15-ELS | ELS - Anodized | B 20 | B 15 | 25 | M 6 | 65 | 21.5 | 22 | 16 | 12 | GN 511-M6-25 | 80 |
|
| GN 474-B20-B15-MT | MT - Matte finish | B 20 | B 15 | 25 | M 6 | 65 | 21.5 | 22 | 16 | 12 | GN 511-M6-25 | 80 |
|
| GN 474-B20-B16-ELS | ELS - Anodized | B 20 | B 16 | 25 | M 6 | 65 | 21.5 | 22 | 16 | - | GN 511-M6-25 | 77 |
|
| GN 474-B20-B16-MT | MT - Matte finish | B 20 | B 16 | 25 | M 6 | 65 | 21.5 | 22 | 16 | - | GN 511-M6-25 | 77 |
|
| GN 474-B20-B20-ELS | ELS - Anodized | B 20 | B 20 | 25 | M 6 | 65 | 21.5 | 22 | 16 | 16 | GN 511-M6-25 | 67 |
|
| GN 474-B20-B20-MT | MT - Matte finish | B 20 | B 20 | 25 | M 6 | 65 | 21.5 | 22 | 16 | 16 | GN 511-M6-25 | 67 |
|
