GN 4490.2
Mounting Plates
for Mounting Blocks of Ball Catches GN 4490, Stainless Steel
Description
Specification
Type
- Type F: Flat
Stainless steel AISI 316 A4
Matte shot-blasted GS
Information

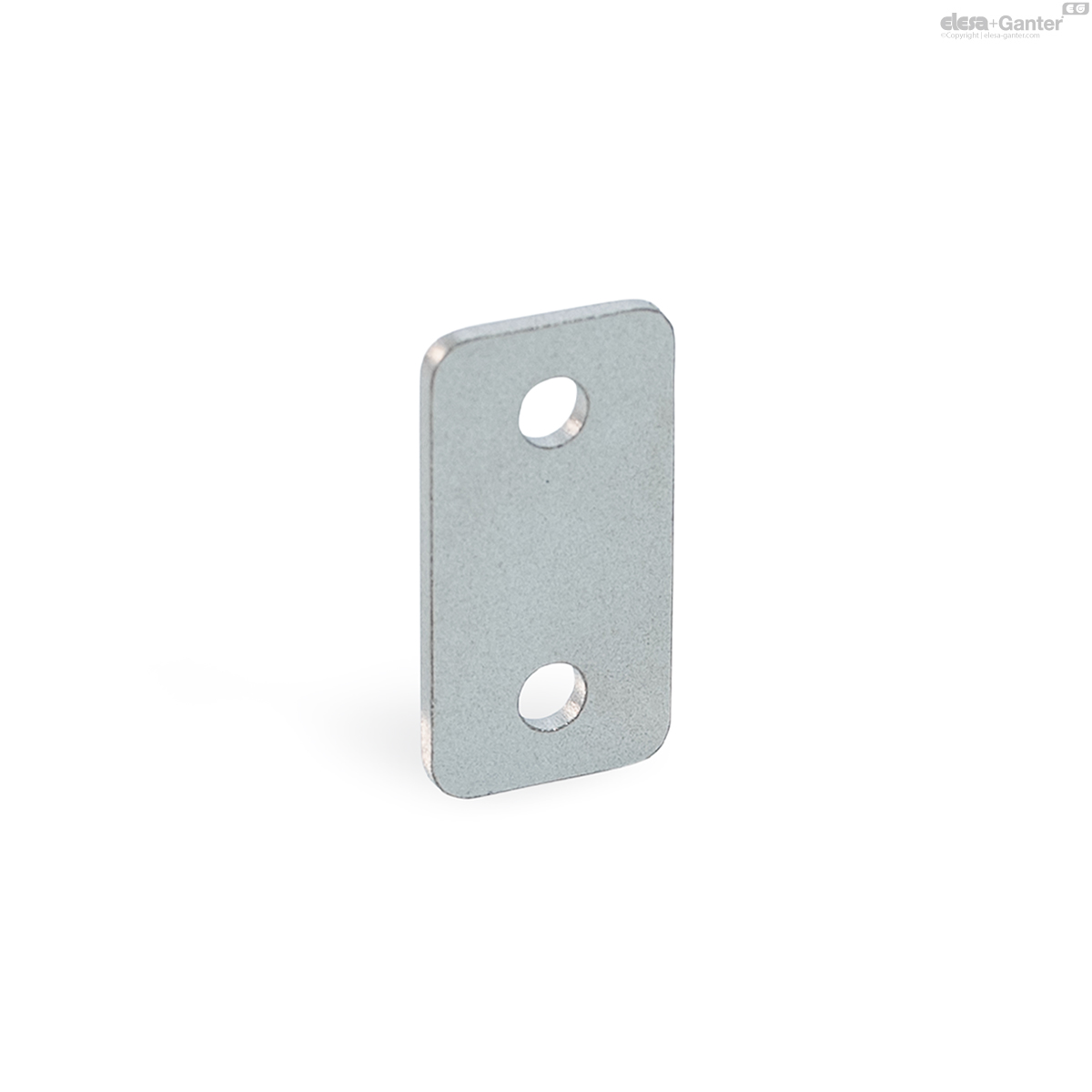

Mounting plates GN 4490.2 enlarge the contact surface of the mounting blocks of ball catches GN 4490. This allows mounting blocks to be securely attached to aluminum profiles regardless of the slot width.
Accessory
- GN 50b T-NutsÂ
- GN 50i T-NutsÂ
- GN 51b T-Slot NutsÂ
Technical information
- Stainless Steel CharacteristicsÂ

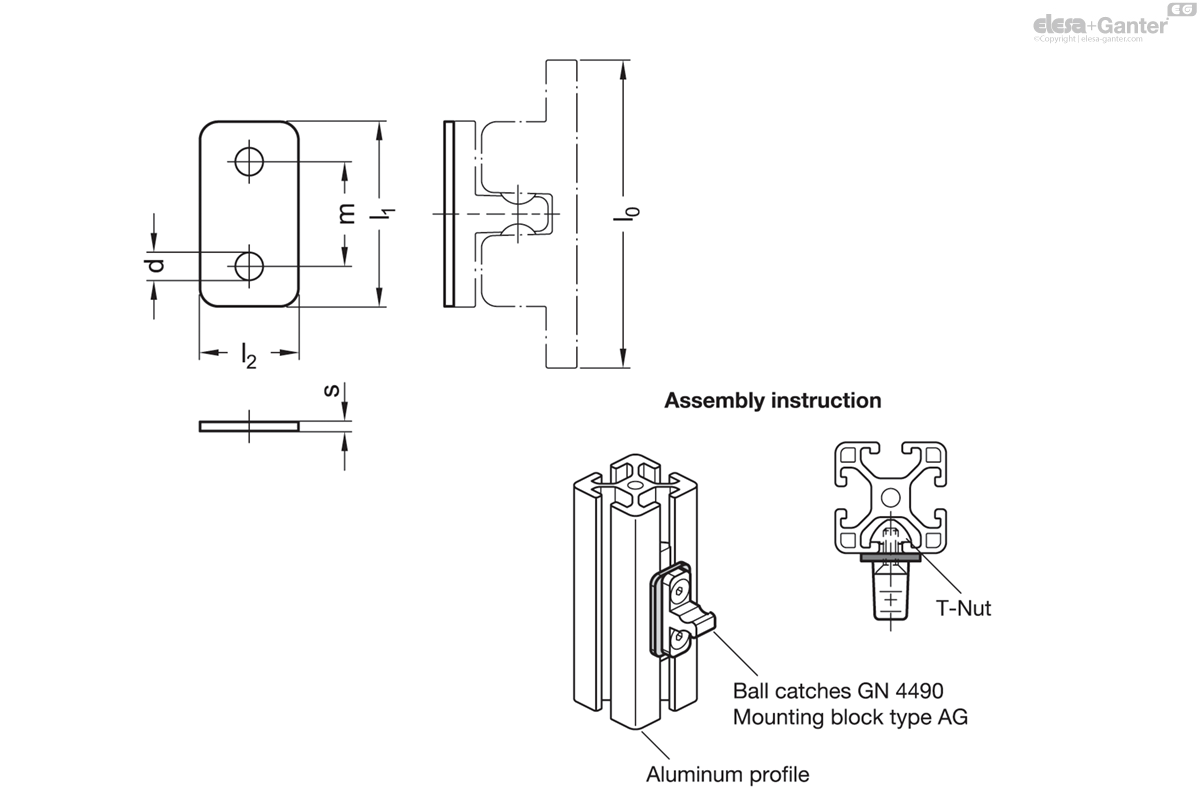

GN 4490.2
| l0 length of ball catch | d | l2 | l1 | m | s | For aluminum profiles with grid size |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 4490.2-A4-50-F-GS | 50 | 4.5 | 16 | 30 | 17 | 2 | 20 / 30 / 40 / 45 | 7 |
|
| GN 4490.2-A4-68-F-GS | 68 | 4.5 | 17 | 32.5 | 20 | 2 | 20 / 30 / 40 / 45 | 8 |
|
| GN 4490.2-A4-80-F-GS | 80 | 5.5 | 20 | 40 | 25 | 2 | 20 / 30 / 40 / 45 | 12 |
|
