Home Magnets Rod-shaped GN 4470

GN 4470

Magnetic catches

with rubberised magnetic surface

Enquire Now

GN 4470-A1

Magnetic catches

Magnetic surface top, with bore

GN 4470-A2

Magnetic catches

Magnetic surface top, with slotted hole

GN 4470-C1

Magnetic catches

Magnetic surface laterally, with bore

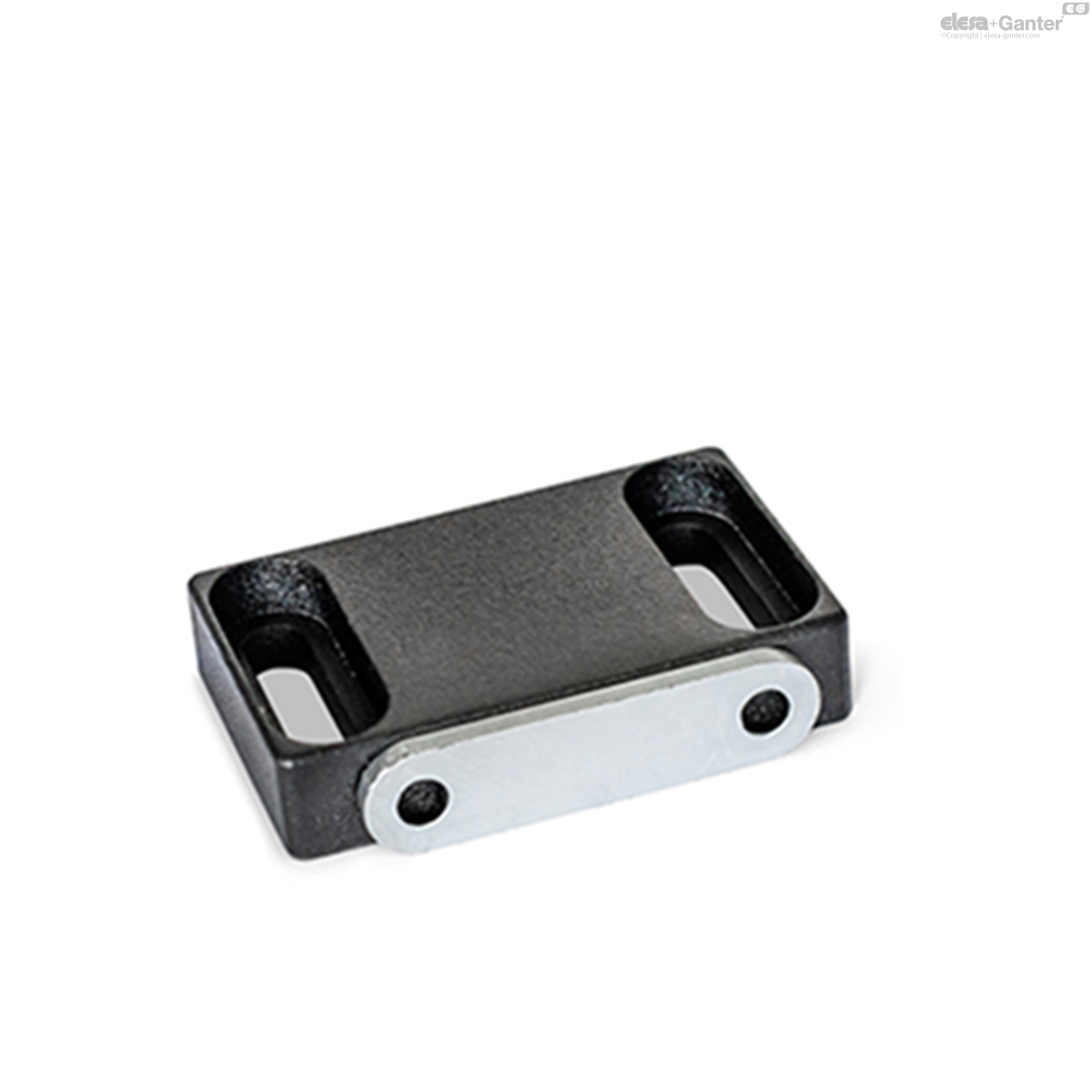

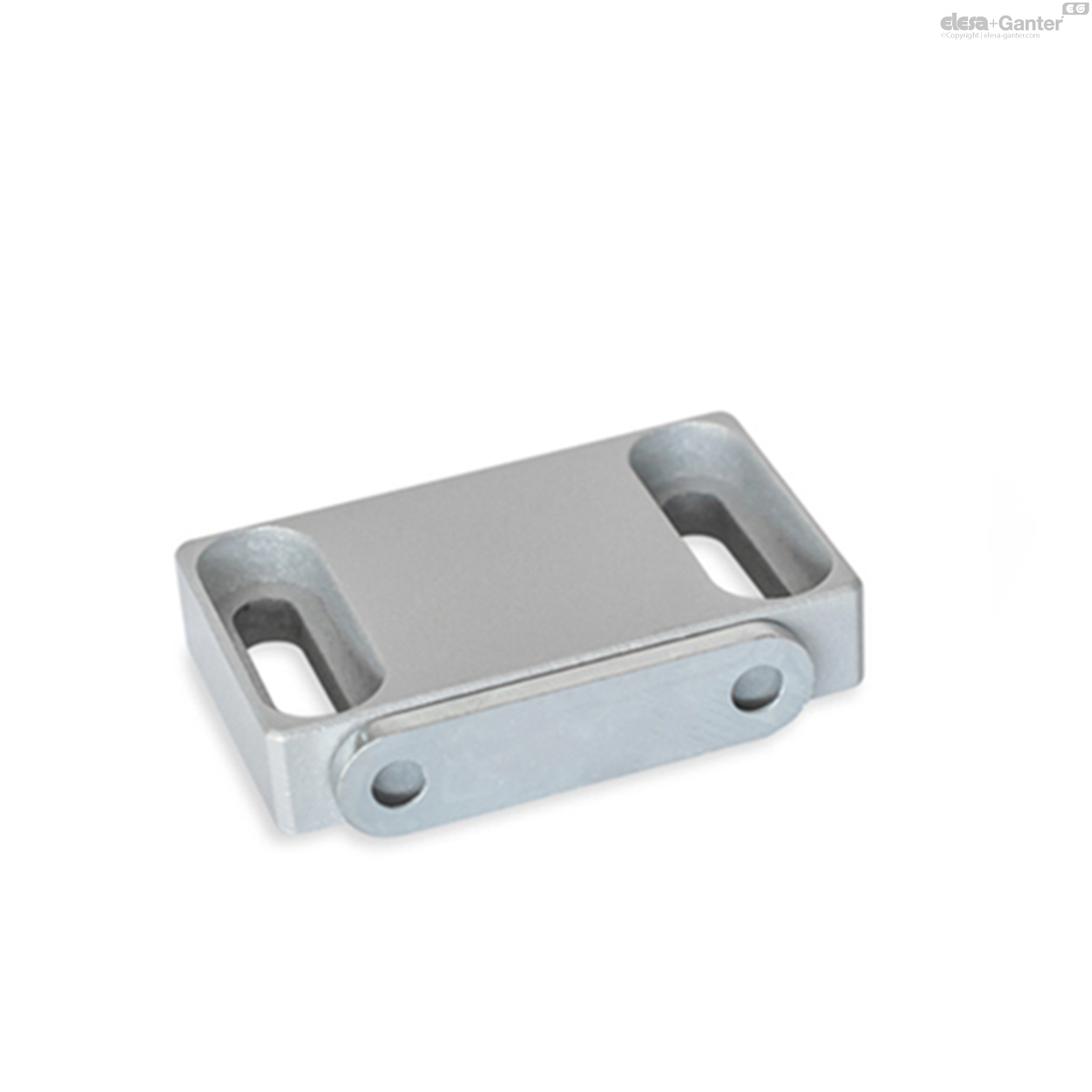

GN 4470-C2

Magnetic catches

Magnetic surface laterally, with slotted hole

Description

Specification

Types

Type A1: Magnetic surface top, with bore

Type A2: Magnetic surface top, with slotted hole

Type C1: Magnetic surface laterally, with bore

Type C2: Magnetic surface laterally, with slotted hole

Identification no.

Version W: without contact plate

Version F: with contact plate, with countersunk hole

Version L2: with contact plate, L-profile, with slotted hole

Version L3: with contact plate, L-profile, with slotted hole, elongated

Version Z2: with contact plate, Z-profile, with slotted hole

Version Z3: with contact plate, Z-profile, with slotted hole, elongated

Zinc die casting

Plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Material of the magnet

NdFeB

Neodymium, iron, boron

temperature resistant up to 80 °C

Rubber cap (magnetic surface)

Elastomer (TPE), black

Hardness ≈ 80 Shore A

Contact plate

Steel

zinc plated, blue passivated

Information

Magnetic catches GN 4470 are compact parts that hold covers, doors and sliding doors closed. The rubberised magnetic surface reduces noise and prevents damage to the opposite part.

The contact plates for diverse installation situations expand the possible range of applications and are used, for example, when magnetic catches are desired but the opposite part is non-magnetic.

For magnetic catches of types A1 and A2, full-surface contact in the area of the locking plate must be ensured during installation.

On request

further finishes

other magnetic surfaces

Contact plates with other dimensions

Contact plates with other shapes

Contact plates with other finishes

Application examples

Possible combinations Magnetic catch - Contact plate

Use on profile systems

Grid dimension of the profile system	Magnetic catches with contact plate
Type - Identification
A1 - L ...	A1 - L ...	A1 - L ...	A2 - Z ...	C2 - F	C2 - L ...
-	Surface-mounted door	Surface-mounted door - Countersunk magnet	Inset door	Surface-mounted door	Sliding door
-
20	-	L2	Z2, s = 0 ... 10 mm	F	L2, s = 0 ... 10 mm
30	-	L2	Z3, s = 0 ... 15 mm	F	L3, s = 0 ... 15 mm
40	L2	L2	Z3, s = 0 ... 10 mm	F	L3, s = 0 ... 10 mm
45	L2	L2	Z3, s = 0 ... 7 mm	F	L3, s = 0 ... 7 mm

GN 4470-C2

	Color	l₁	b	d₁	d₂	d₃	h₁	h₂	h₃	l₂	l₃	l₄	l₅	l₆	l₇	l₈	m₂	m₃	m₄	m₅	m₆	s₁	s₂	s₃	Nominal adhesive forces in N
Code																											Actions
GN 4470-50-C2-F-SR	SR - RAL 9006	50	7	5.5	4.5	-	10	-	-	30	24	10	40	-	-	-	18	30	-	-	-	0.5	2.5	-	30	60
GN 4470-50-C2-F-SW	SW - RAL 9004	50	7	5.5	4.5	-	10	-	-	30	24	10	40	-	-	-	18	30	-	-	-	0.5	2.5	-	30	60
GN 4470-50-C2-L2-SR	SR - RAL 9006	50	7	5.5	-	5.5	10	12	-	30	24	-	-	26	-	28	18	-	16	10	9	0.5	-	2	30	67
GN 4470-50-C2-L2-SW	SW - RAL 9004	50	7	5.5	-	5.5	10	12	-	30	24	-	-	26	-	28	18	-	16	10	9	0.5	-	2	30	67
GN 4470-50-C2-L3-SR	SR - RAL 9006	50	7	5.5	-	5.5	10	12	-	30	24	-	-	38	-	28	18	-	16	14	15	0.5	-	2	30	71
GN 4470-50-C2-L3-SW	SW - RAL 9004	50	7	5.5	-	5.5	10	12	-	30	24	-	-	38	-	28	18	-	16	14	15	0.5	-	2	30	71
GN 4470-50-C2-W-SR	SR - RAL 9006	50	7	5.5	-	-	10	-	-	30	24	-	-	-	-	-	18	-	-	-	-	0.5	-	-	30	54
GN 4470-50-C2-W-SW	SW - RAL 9004	50	7	5.5	-	-	10	-	-	30	24	-	-	-	-	-	18	-	-	-	-	0.5	-	-	30	54
GN 4470-50-C2-Z2-SR	SR - RAL 9006	50	7	5.5	-	5.5	10	-	12.5	30	24	-	-	26	13	28	18	-	16	10	9	0.5	-	2	30	73
GN 4470-50-C2-Z2-SW	SW - RAL 9004	50	7	5.5	-	5.5	10	-	12.5	30	24	-	-	26	13	28	18	-	16	10	9	0.5	-	2	30	73
GN 4470-50-C2-Z3-SR	SR - RAL 9006	50	7	5.5	-	5.5	10	-	12.5	30	24	-	-	38	13	28	18	-	16	14	15	0.5	-	2	30	77
GN 4470-50-C2-Z3-SW	SW - RAL 9004	50	7	5.5	-	5.5	10	-	12.5	30	24	-	-	38	13	28	18	-	16	14	15	0.5	-	2	30	77
