GN 444.2

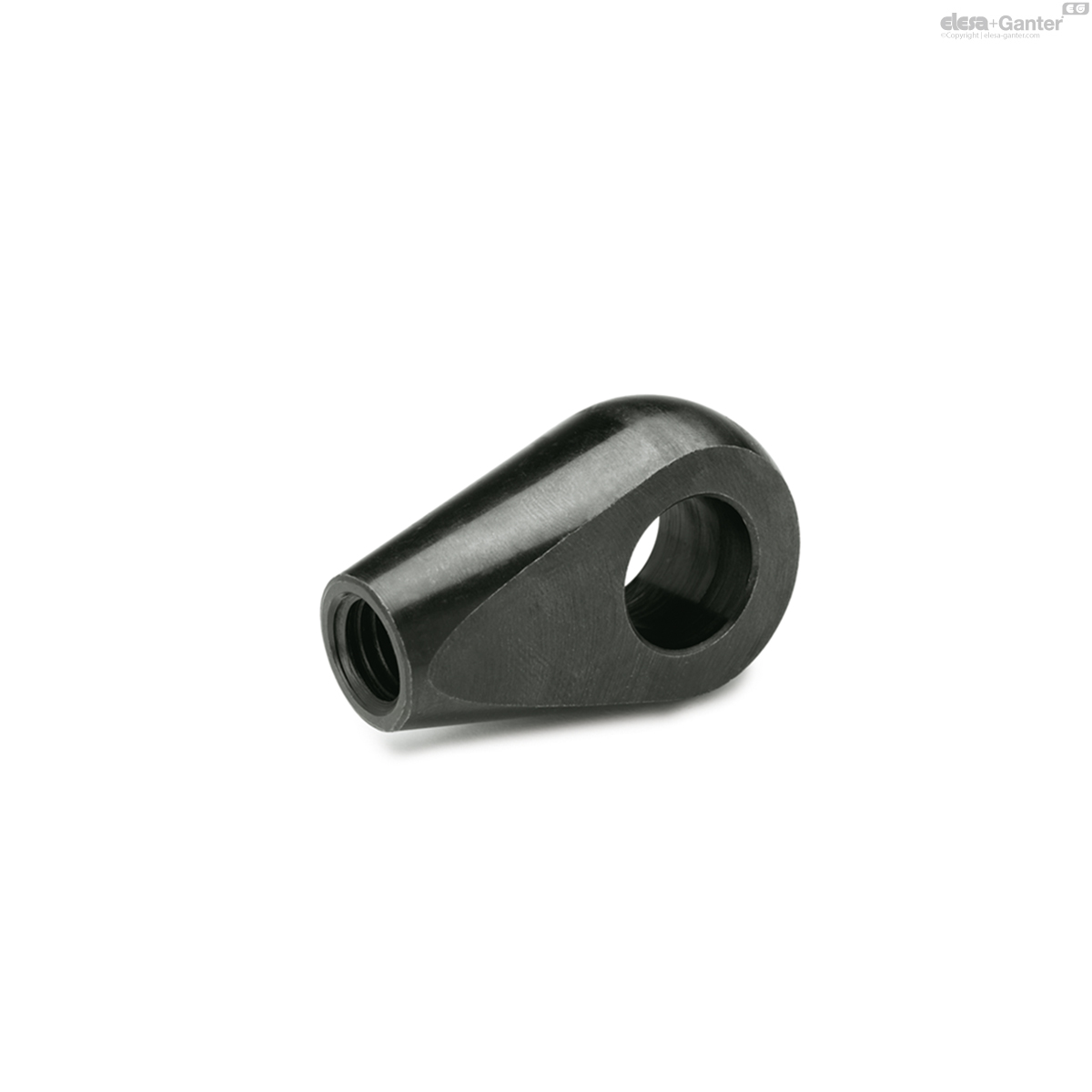

Swing nuts
Description
Specification
Steel
- Tensile strength class 5.8
- blackened
Information
In combination with grub screws i.e. DIN 913 or DIN 6379 and swing nuts GN 444.2  can be used together as swing bolts in varying lengths.
In addition, used with a cap screw DIN 912, a swivelling clamping screw can be produced.

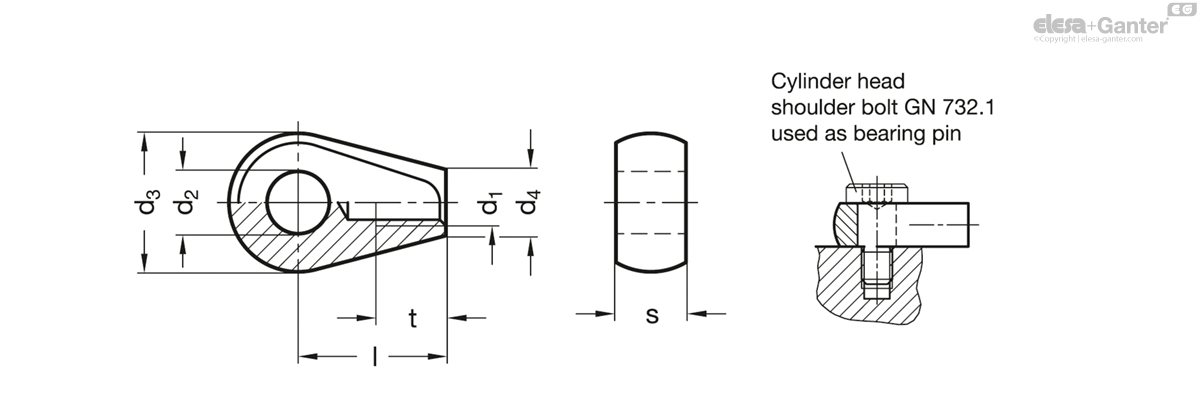

Dimensions d2 ,d3 and s are identical to DIN 444 .
For stocking purposes cylinder head shoulder bolts GN 732.1 can be used for the sizes M8, M10 and M12.
Technical information
- ISO-Fundamental TolerancesÂ
- Strength values of nutsÂ
GN 444.2
| d1 | d2 H7 | d3 -0.3 | d4 | l | s -0.15 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 444.2-M6-8 | M 6 | 8 | 18 | 8.5 | 19 | 9 | 9 | 18 |
|
| GN 444.2-M8-10 | M 8 | 10 | 20 | 11 | 24 | 12 | 11 | 30 |
|
| GN 444.2-M10-12 | M 10 | 12 | 25 | 13.5 | 28 | 14 | 14 | 52 |
|
| GN 444.2-M12-16 | M 12 | 16 | 32 | 16 | 34 | 17 | 16 | 101 |
|
