GN 437.4

Hinges

Zinc die casting, with detent

Enquire Now

Description

Specification

Types

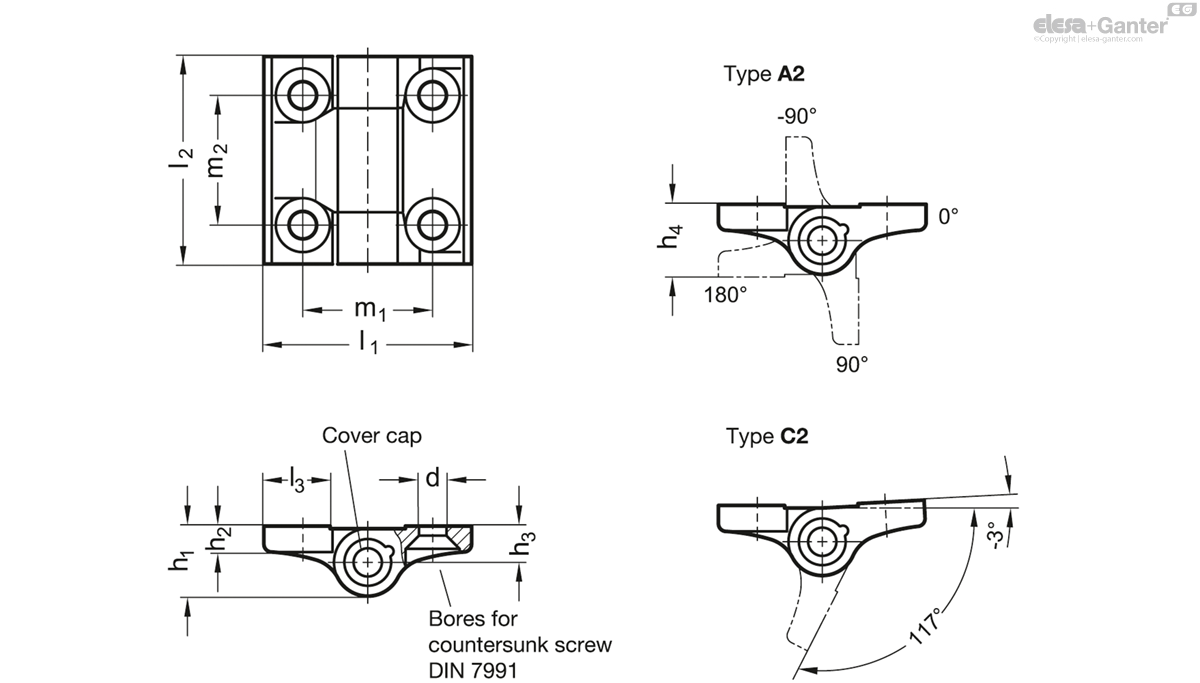

Type A2: Indexing position, -90°, 0°, 90° and 180°, medium holding torque

Type C2: Indexing position, -3° and 117°, medium holding torque

Zinc die casting ZD

plastic coated

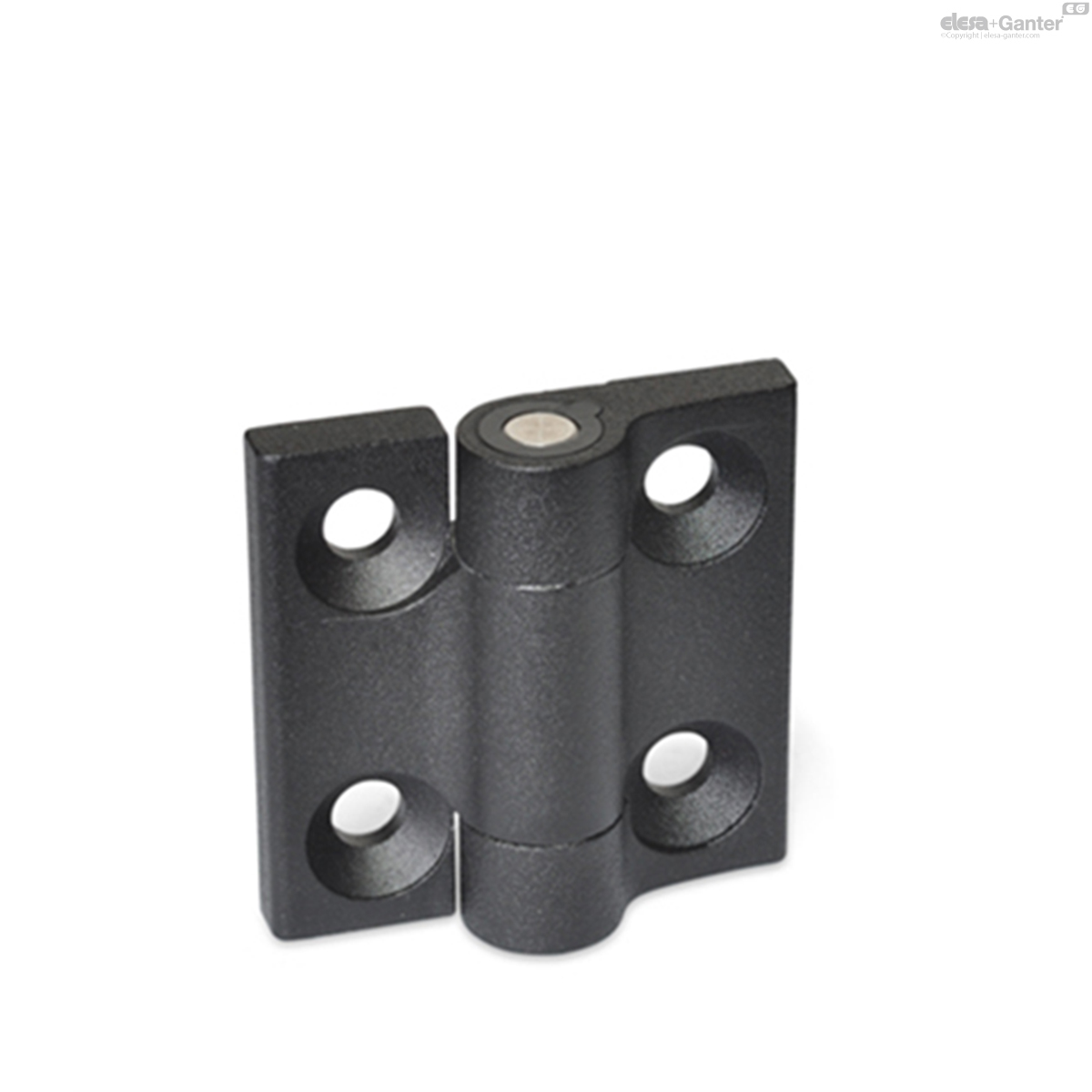

black, RAL 9005, textured finish SW

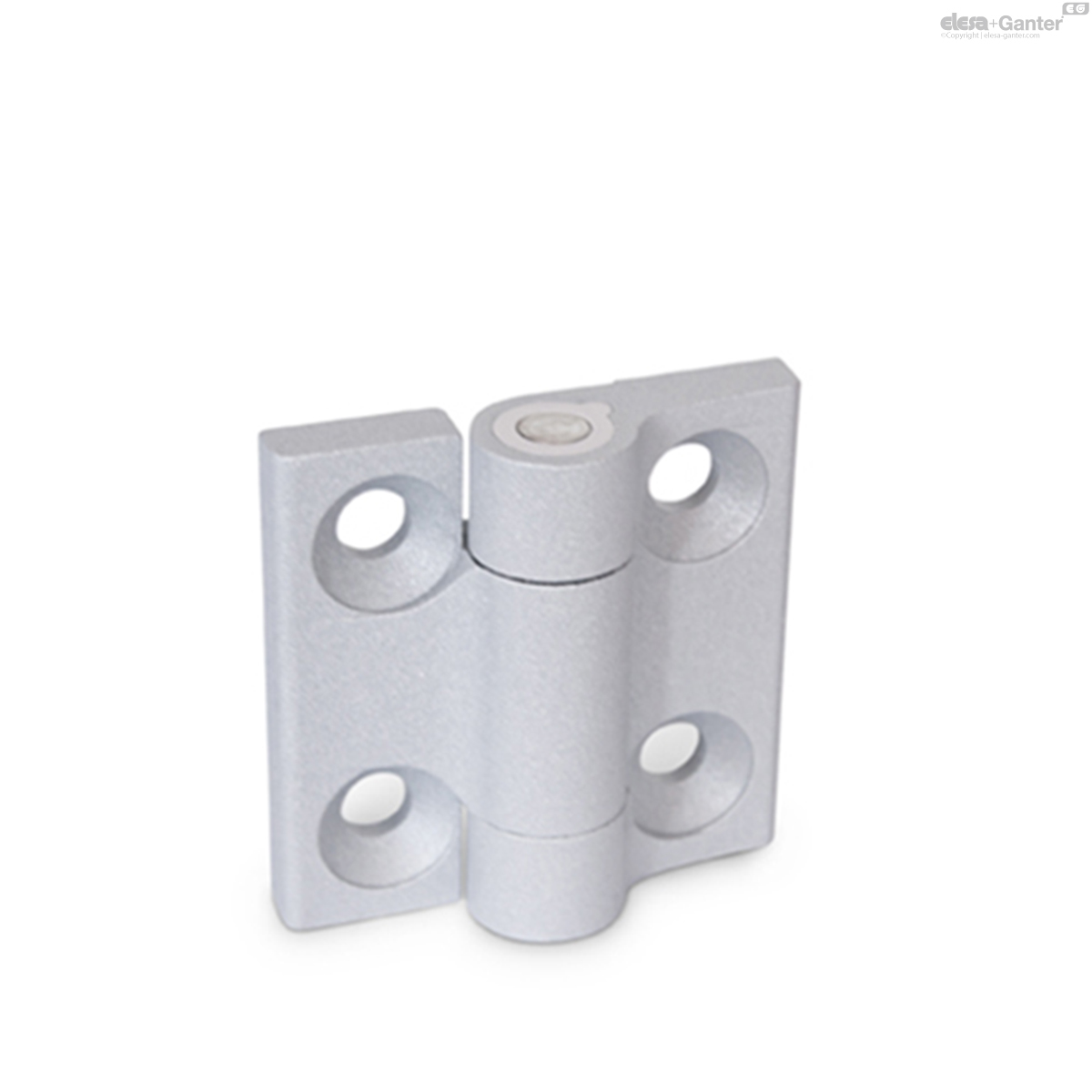

silver, RAL 9006, textured finish SR

Locking elements / Cover cap

Plastic (Polyacetal POM)

temperature resistant up to 80 °C

Stainless Steel AISI 303

Compression spring

Spring steel

Information

GN 437.4 Hinges with detent hold door and covers in the given indexing position without additional mechanics.

This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent closing and opening is prevented.

The -3° of the type C2 moreover ensures that the door or cover presses slightly against the housing frame when closed.

Technical information

Plastic characteristics

Accessory

Stainless Steel-Spacer plates GN 2370

Stainless Steel-Plates with tapped holes GN 2372

GN 437.4

	Color	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	max. return torque M_H ± 10 in Nm
Code														Actions
GN 437.4-ZD-60-60-A2-SR	SR - RAL 9006	60	60	8.3	18.5	7.5	9.5	19	20	36	36	1	152
GN 437.4-ZD-60-60-A2-SW	SW - RAL 9004	60	60	8.3	18.5	7.5	9.5	19	20	36	36	1	152
GN 437.4-ZD-60-60-C2-SR	SR - RAL 9006	60	60	8.3	18.5	7.5	9.5	19	20	36	36	1	155
GN 437.4-ZD-60-60-C2-SW	SW - RAL 9004	60	60	8.3	18.5	7.5	9.5	19	20	36	36	1	155
