GN 437.1

Hinges

Zinc die casting

Enquire Now

Description

Specification

Zinc die casting ZD

plastic coated

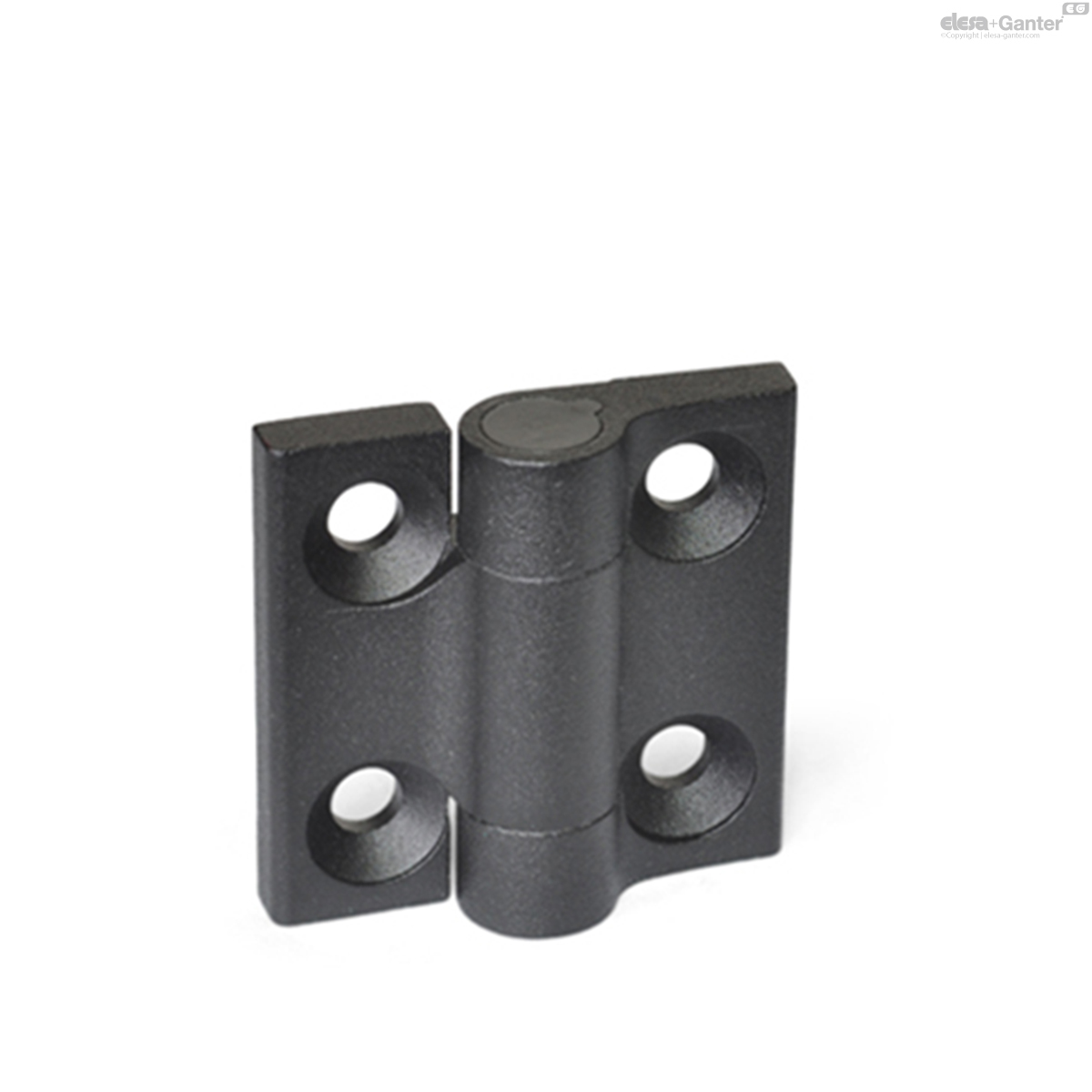

black, RAL 9005, textured finish SW

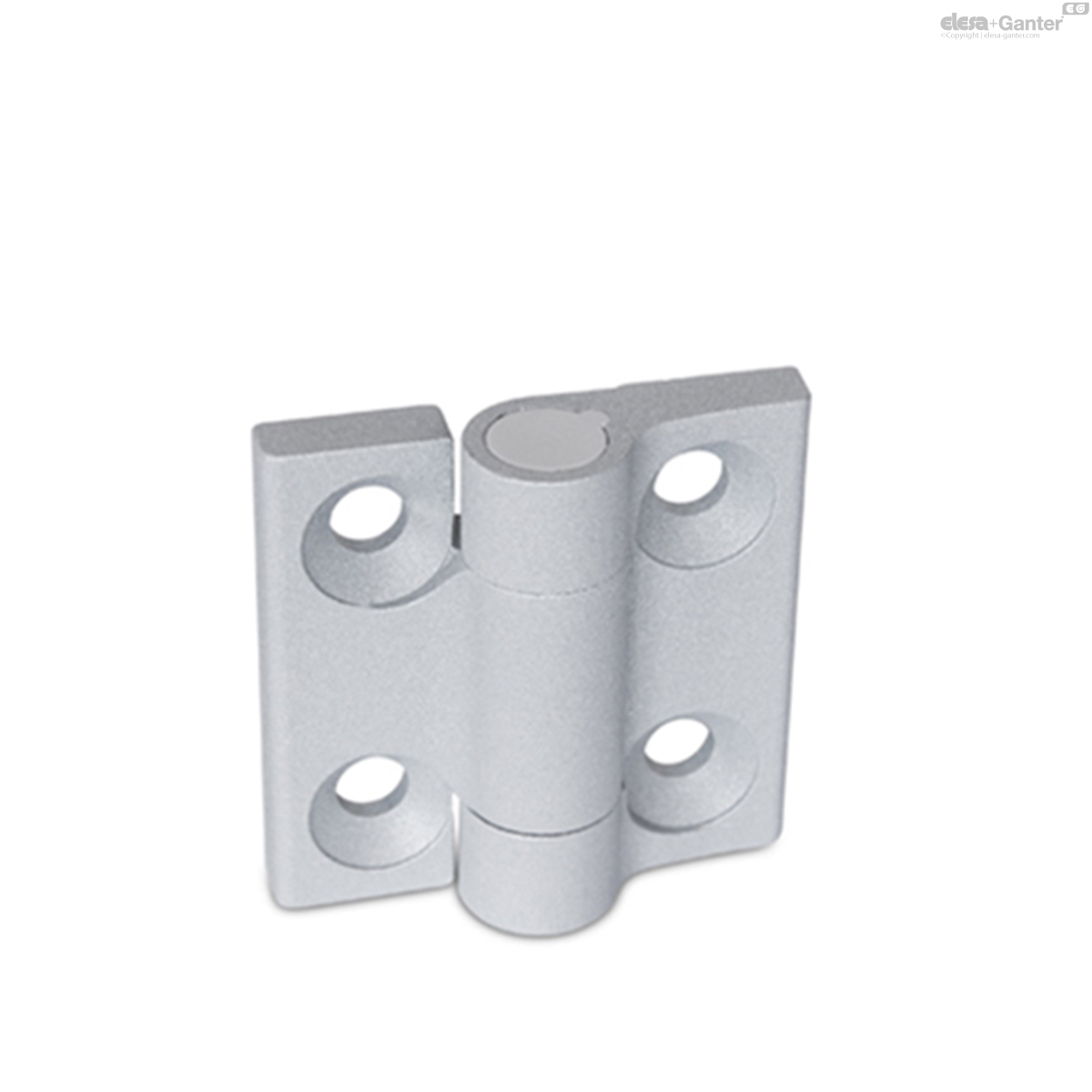

silver, RAL 9006, textured finish SR

Cover cap

Plastic (Polyacetal POM)

temperature resistant up to 80 °C

Information

GN 437.1 Hinges of zinc die casting fit perfectly into a wide range of environments thanks to their timeless design.

Moreover, they are matched with the GN 437 functional hinge family as complementary hinges.

Technical information

Accessory

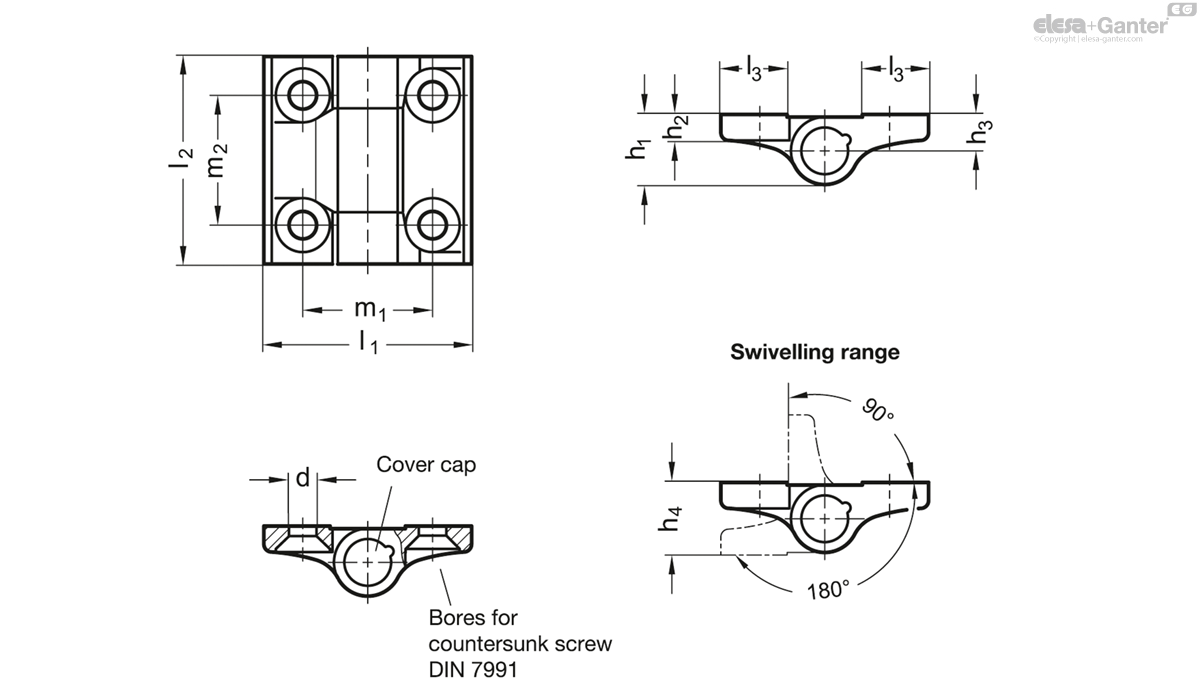

	Color	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂
Code													Actions
GN 437.1-ZD-60-60-A-SR	SR - RAL 9006	60	60	8.3	18.5	7.5	9.5	19	20	36	36	138
GN 437.1-ZD-60-60-A-SW	SW - RAL 9004	60	60	8.3	18.5	7.5	9.5	19	20	36	36	138
