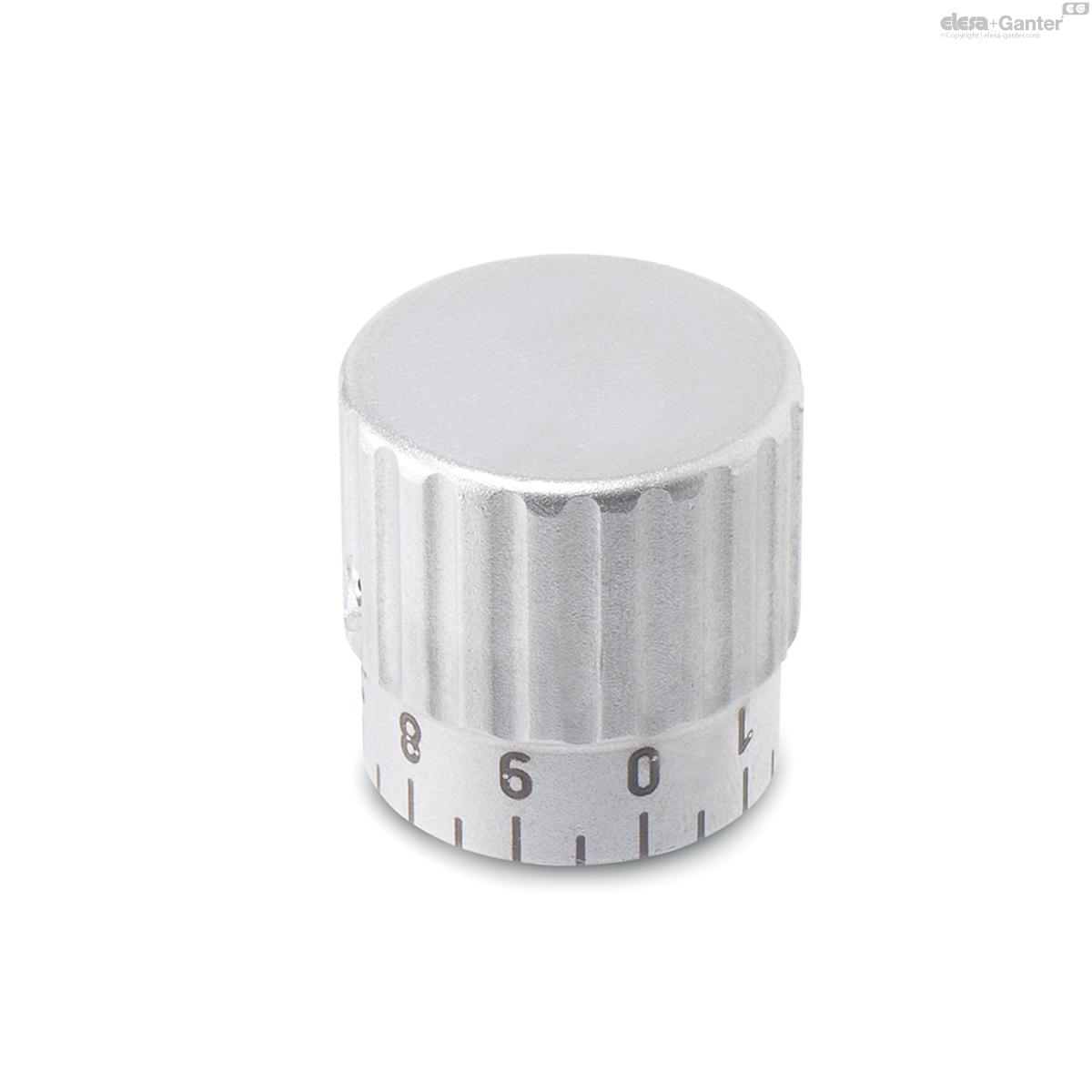

Stainless Steel-Knurled Control knobs

Enquire Now

Description

Specification

Types

Type A: with arrow

Type B: neutral, without arrow or scale

Type S: with standard scale 0...9, 20 graduations

Stainless Steel AISI 304

matt shot-blasted MT

Scale (Type S) and arrow (Type A)

engraved with laser precision

Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

Information

Scale and arrow on the Stainless Steel-control knobs GN 436.1 are indelibly marked and easily legible.

Besides the standard scale (Type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to order graduations'

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

GN 436.1

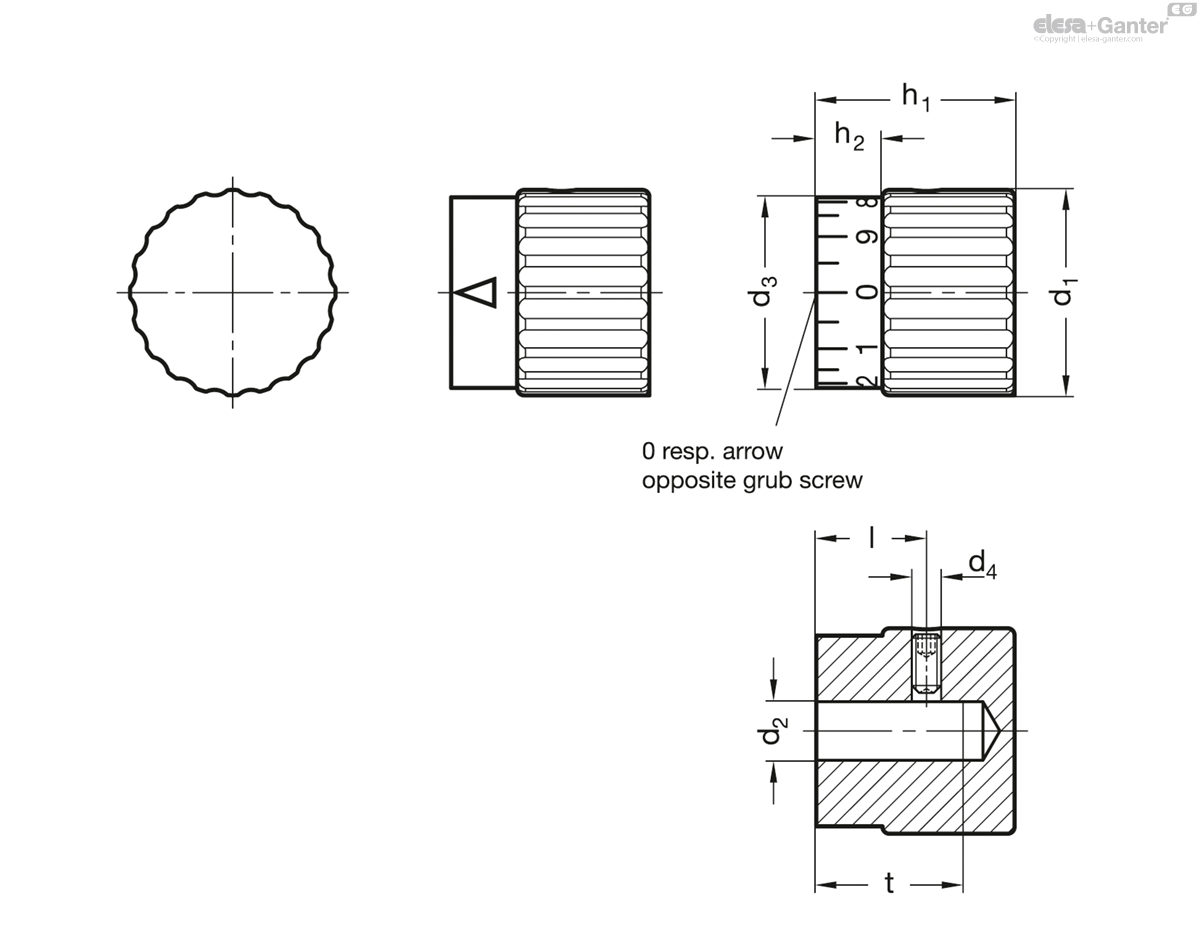

	d₁	d₂ H8	d₃	d₄	h₁	h₂	l	t min.
Code										Actions
GN 436.1-24-B5-A-MT	24	B 5	22	M 4	24	8	12	18	80
GN 436.1-24-B5-B-MT	24	B 5	22	M 4	24	8	12	18	78
GN 436.1-24-B5-S-MT	24	B 5	22	M 4	24	8	12	18	84
GN 436.1-24-B6-A-MT	24	B 6	22	M 4	24	8	12	18	80
GN 436.1-24-B6-B-MT	24	B 6	22	M 4	24	8	12	18	80
GN 436.1-24-B6-S-MT	24	B 6	22	M 4	24	8	12	18	60
GN 436.1-28-B6-A-MT	28	B 6	26	M 4	27	9	13	20	116
GN 436.1-28-B6-B-MT	28	B 6	26	M 4	27	9	13	20	126
GN 436.1-28-B6-S-MT	28	B 6	26	M 4	27	9	13	20	120
GN 436.1-28-B8-A-MT	28	B 8	26	M 4	27	9	13	20	120
GN 436.1-28-B8-B-MT	28	B 8	26	M 4	27	9	13	20	114
GN 436.1-28-B8-S-MT	28	B 8	26	M 4	27	9	13	20	120
